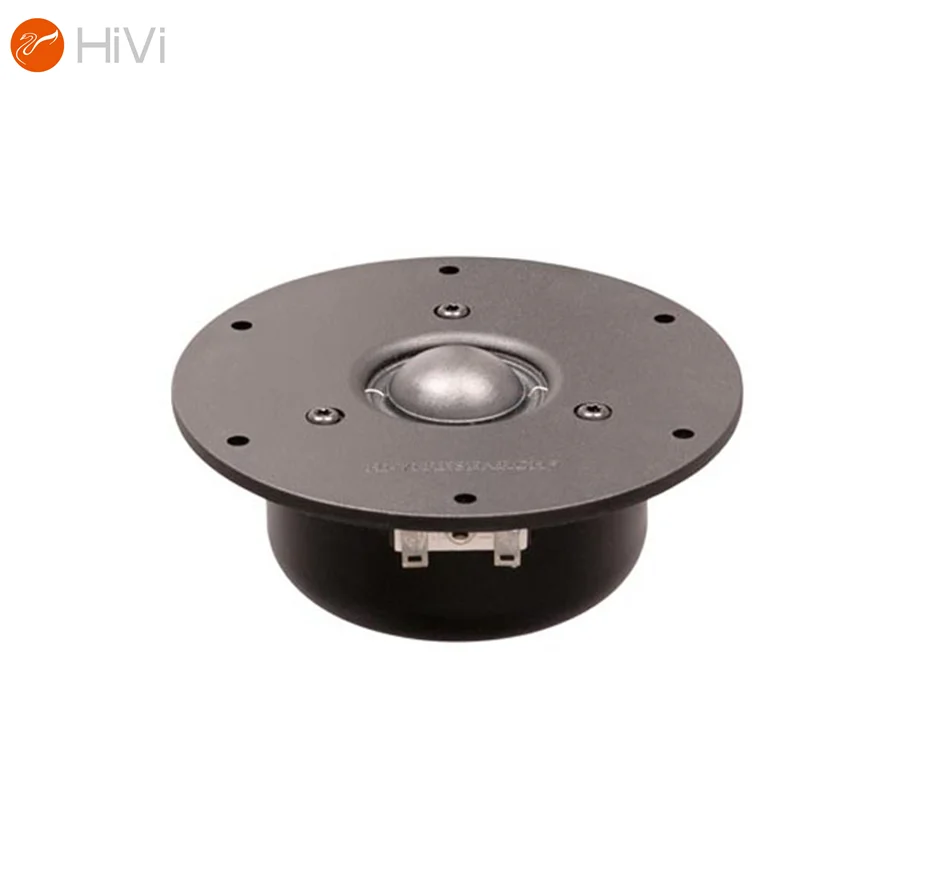

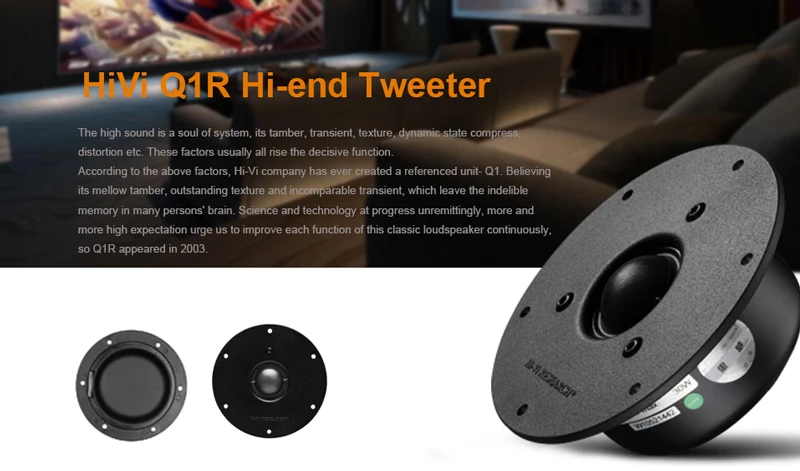

Hi Fi Diy Q1R Ball Dome Stereo Home Loudspeaker 4 inch Tweeter Speaker
- Category: >>>
- Supplier: Zhuhai Hivi Technology Company Limited
Share on (62088590617):
Product Overview
Description
Voice coil 28mm coiled with copper-plated aluminum wire and cooled with ferrofluidfor better power handling.
Fully double ferrite magnetic circuit armored allowing the unit to be used in a Multimedia or Home Theater configuration
Product Description
Moble | Q1R | ||
Nominal Impedance (Z)(Ω) : | 6 | ||
Resonance Frequency (Fs)(Hz) : | 1000 | ||
Nominal Power Handling (W) : | 15 | ||
Sensitivity (2.83v/1m)(dB) : | 89 | ||
Weight (M)(Kg) : | 0.8 | ||
VC Diameter (mm) : | 28 | ||
DC (Re)(Ω) : | 5.3 | ||
VC Layers : | 2 | ||
VC Former : | CCAW | ||
VC Frame : | ALuminum | ||
Magnet System : | Shielded | ||
Magnet Former : | Ferrite | ||
Recommended Crossover Frequency(Hz) | >2500 | ||
* 1-1/8" soft dome delivers natural response with great dispersion
* Double rear chamber design lowers Fs and improves damping

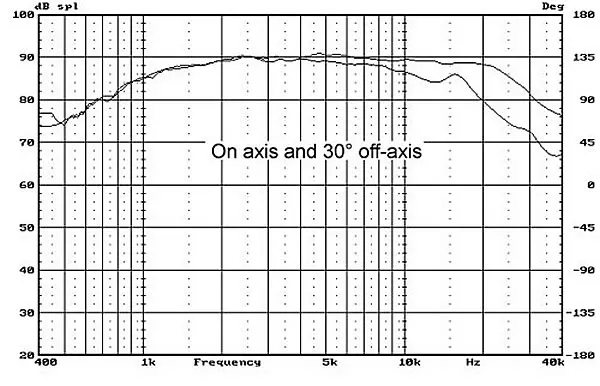

* Popular replacement tweeter for the classic AR3a speaker systemHighlights* Extremely flat response from 1.5-20KHz
* 1-1/8" soft dome delivers natural response with great dispersion
* Double rear chamber design lowers Fs and improves damping
* Popular replacement tweeter for the classic AR3a speaker systemHighlights

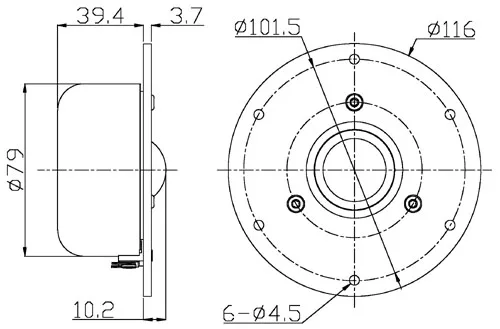

Size
-Overall Outside: Dia.4.56"
- Cutout : Dia.3.63"
- Depth:Dia.1.63"
- Cutout : Dia.3.63"
- Depth:Dia.1.63"

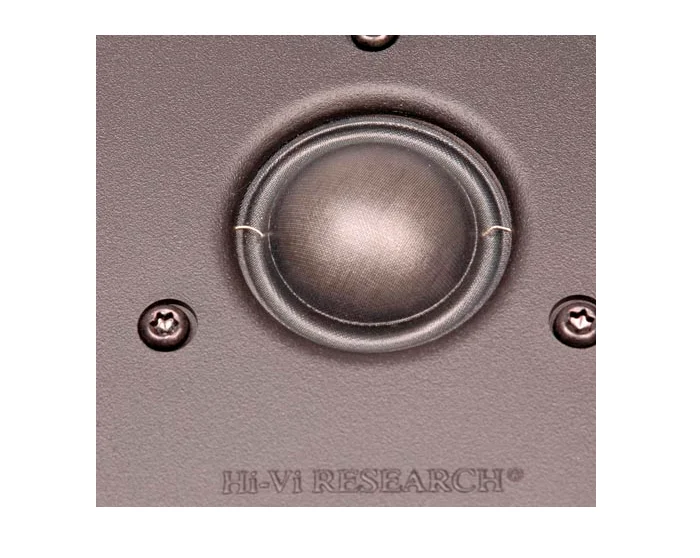

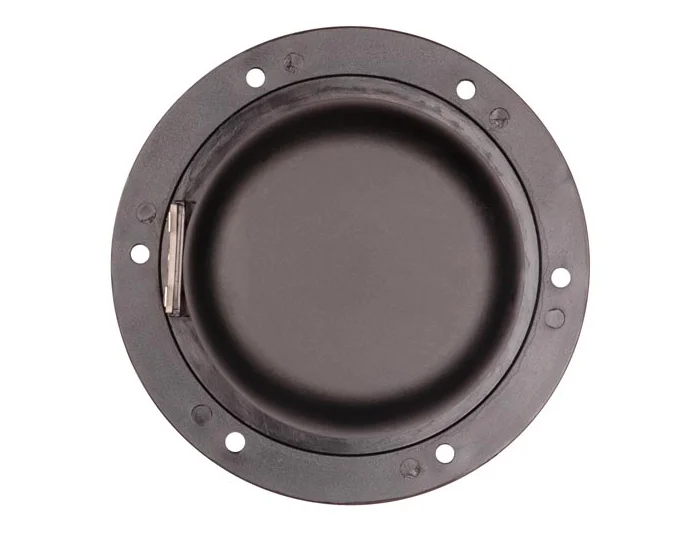

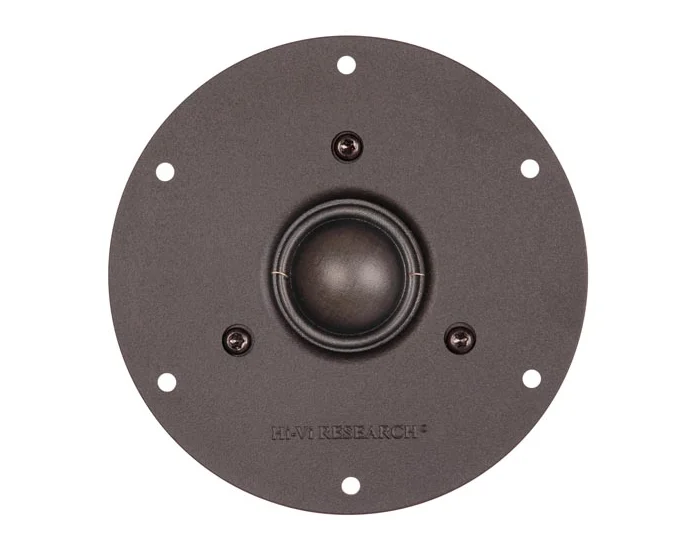

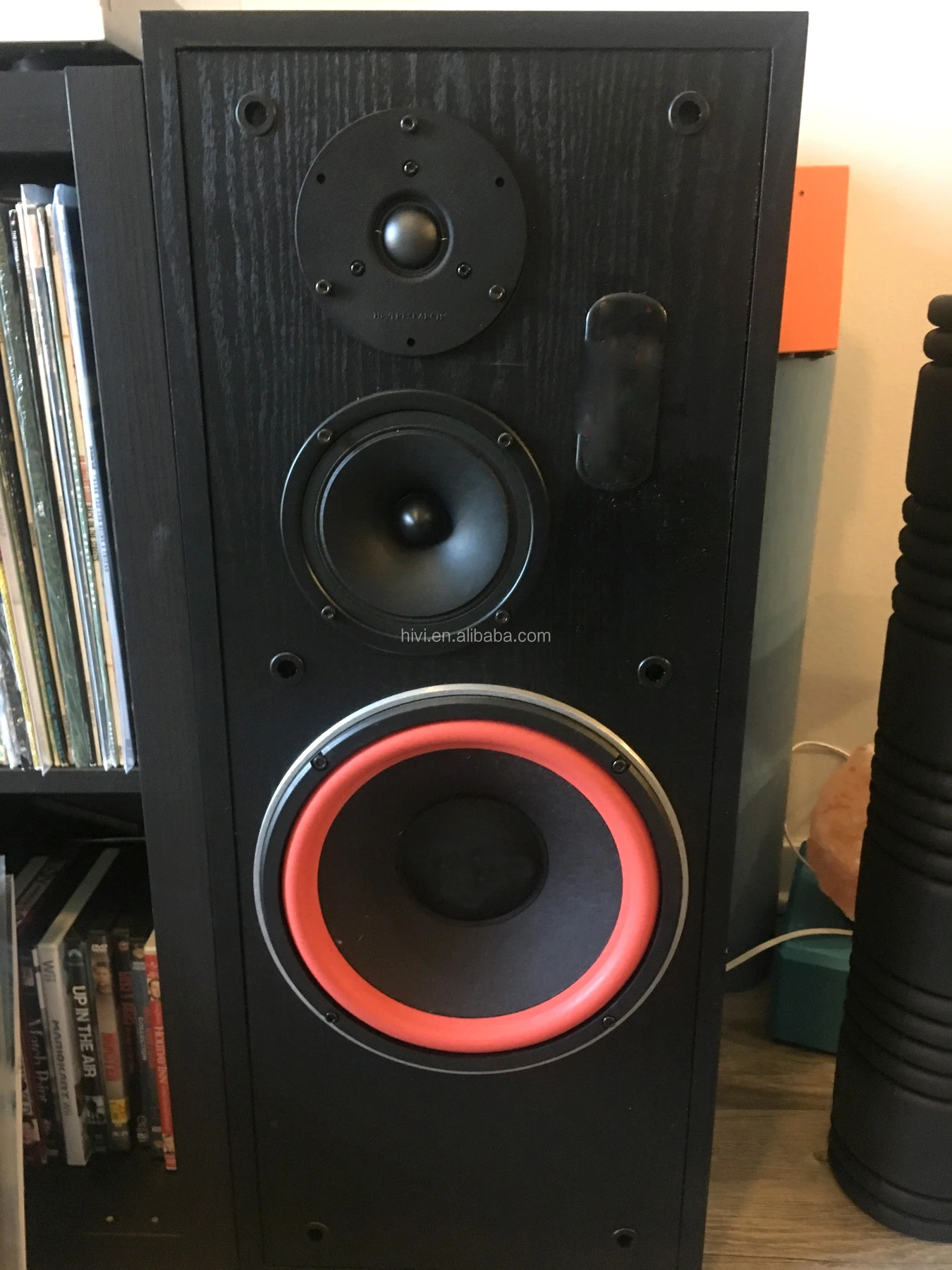

Real photo

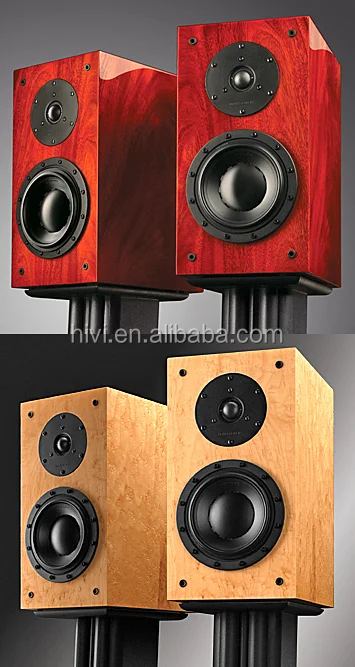

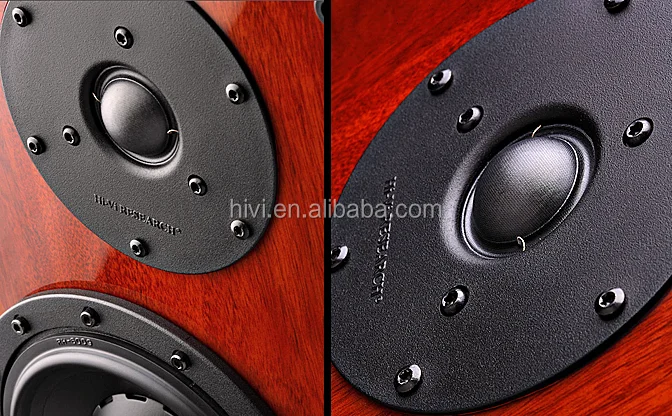

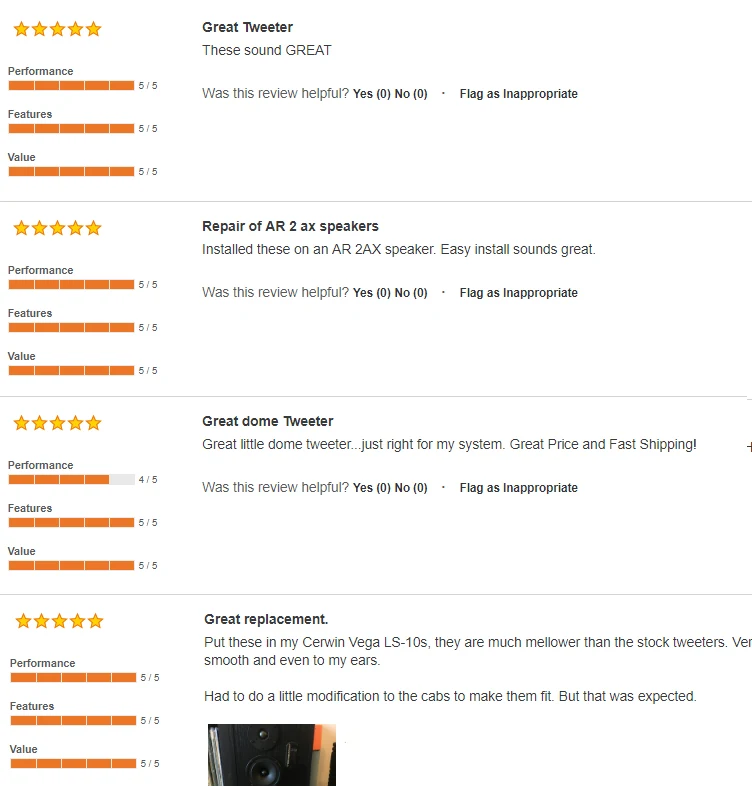

customer share
