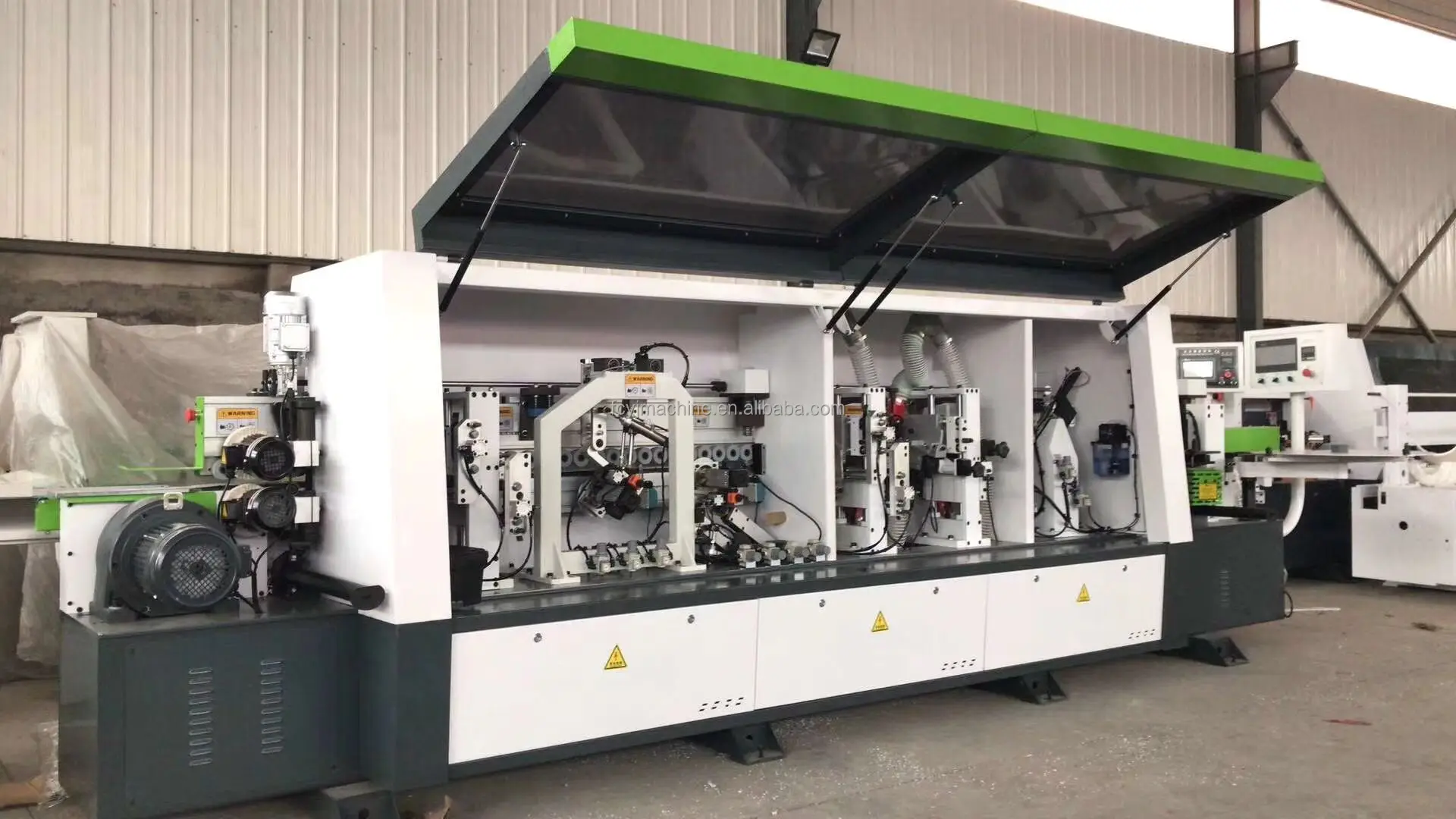

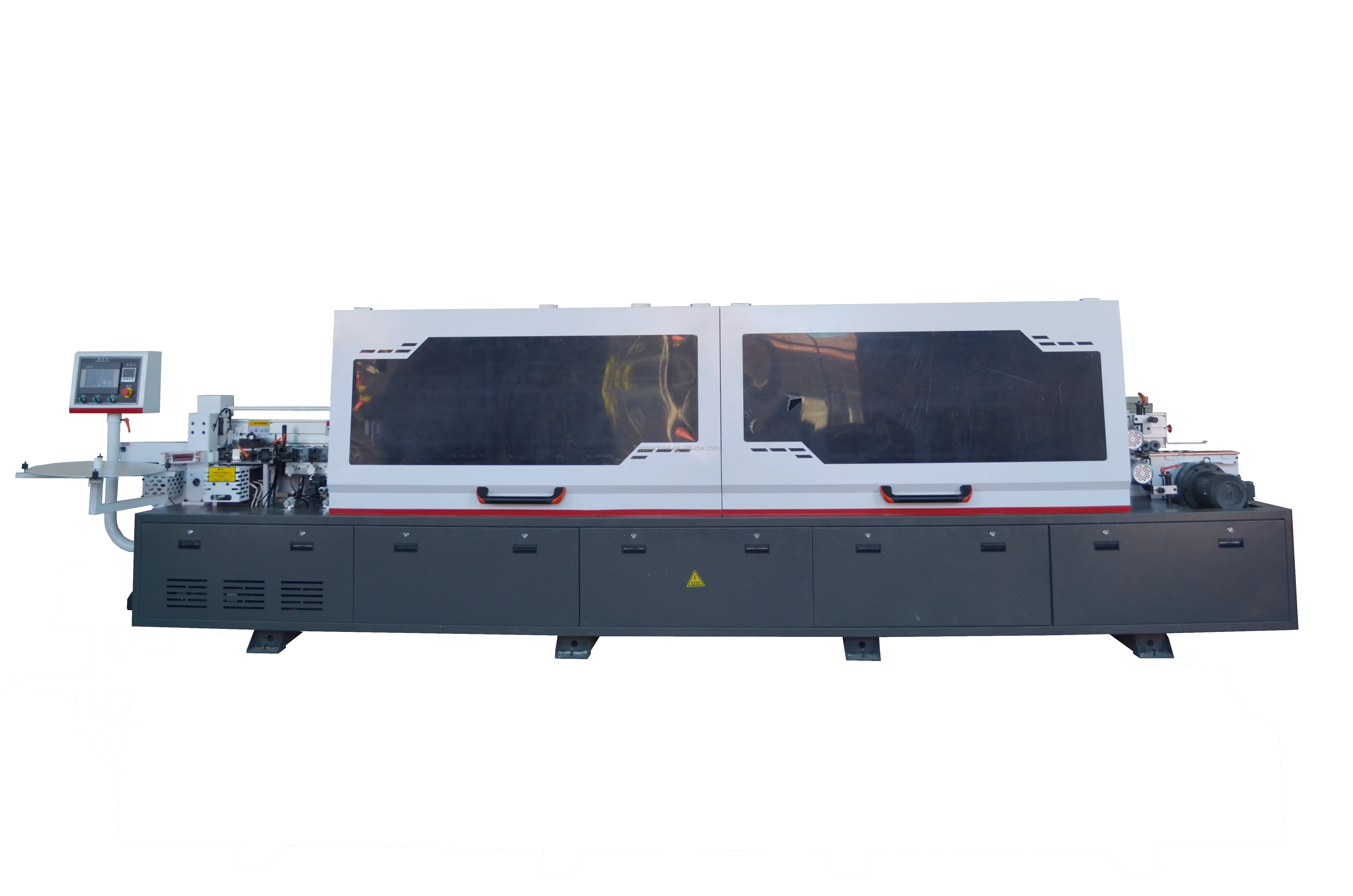

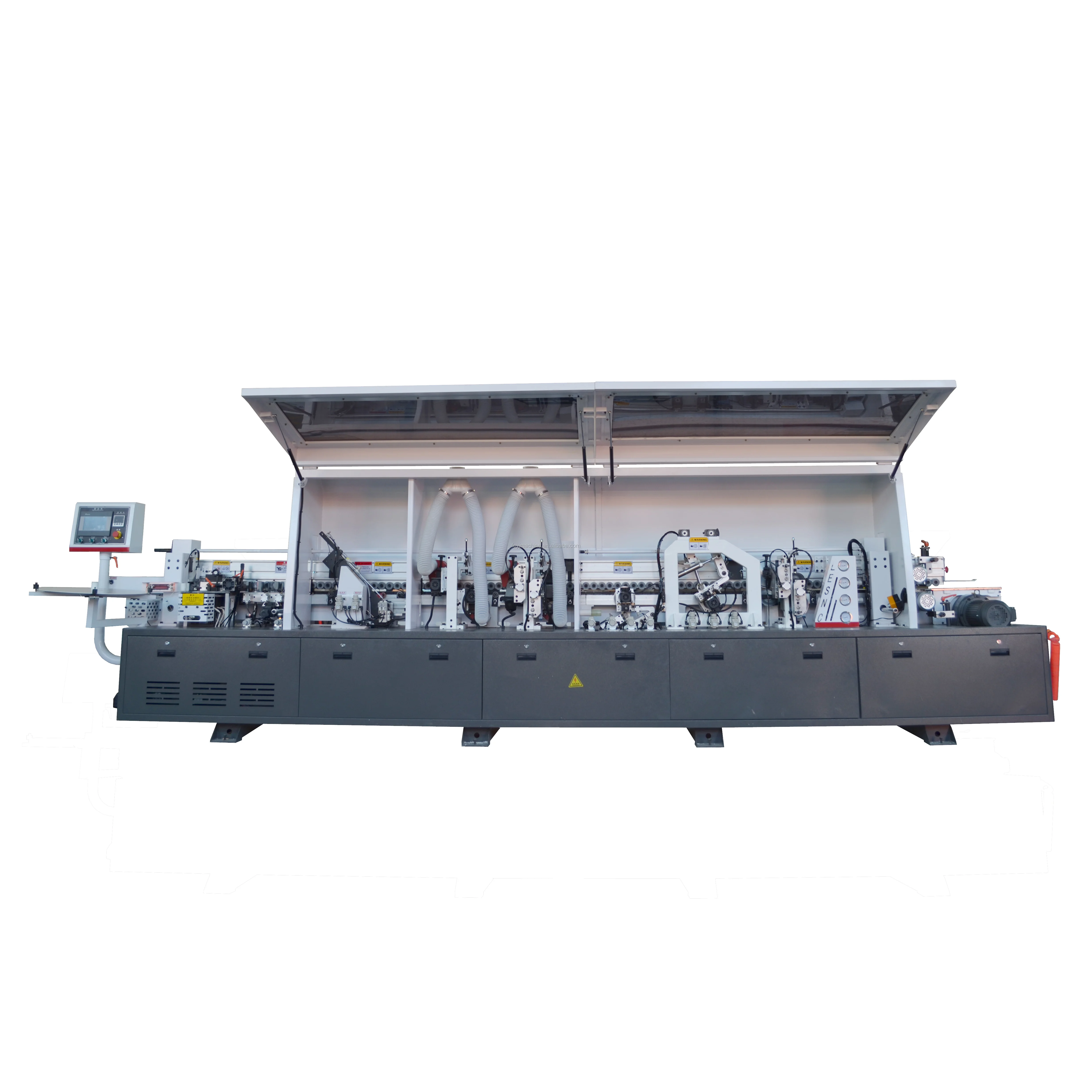

MDF furniture wood door straight line full automatic edge banding machine with double trimming corner rounding
- Category: >>>
- Supplier: Qingdao Fucheng Yijia Machine Co. Ltd.
Share on (62088614676):
Product Overview
Description
Product Description
automatic edge banding machine with corner trimming unit
This is edge banding machine with high technical and efficiency, combining with electricity, pneumatic air system, it is mainly used for straight edge banding of solid wood, chipboard, laminated wood board, medium density fiberboard, etc. It can make the side of the workpiece more smooth, durable and beautiful..
Machine Functions:
Main Features
1) It is high degree of automattion, high efficiency,high precision and high aesthetics.
2) The machine base is laser cutting and it is welded totally once. The machine body is stablility and without deformation, which make sure every parts work precisely.
3)imported motors and high quality electrical compenents
Specification
edge tape thickness | 0.4-3mm | fine trimming motor power | 0.75kw*2 |
egde tape width | 12-65mm | corner rounding motor power | 0.5kw*2 |
workpiece thickness | 10-60mm | polishing motor power | 0.37kw*2 |
workpiece length | ≥80mm | feeding speed | 17,21,25 m/min |
workpiece width | ≥50mm | air pressure | 0.8mpa |
heating power | 2.2kw | overall dimension | 5200*900*1700mm |
feeding motor power | 2.2kw | ||
glue spreading motor power | 0.75kw | ||
end trimming motor power | 0.37kw*2 | ||
rough trimming motor power | 0.75kw*2 |
Detailed Images

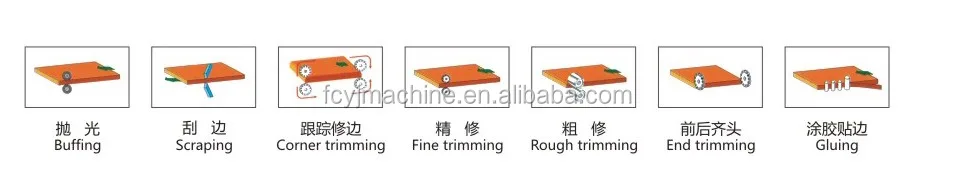

Machine Parts

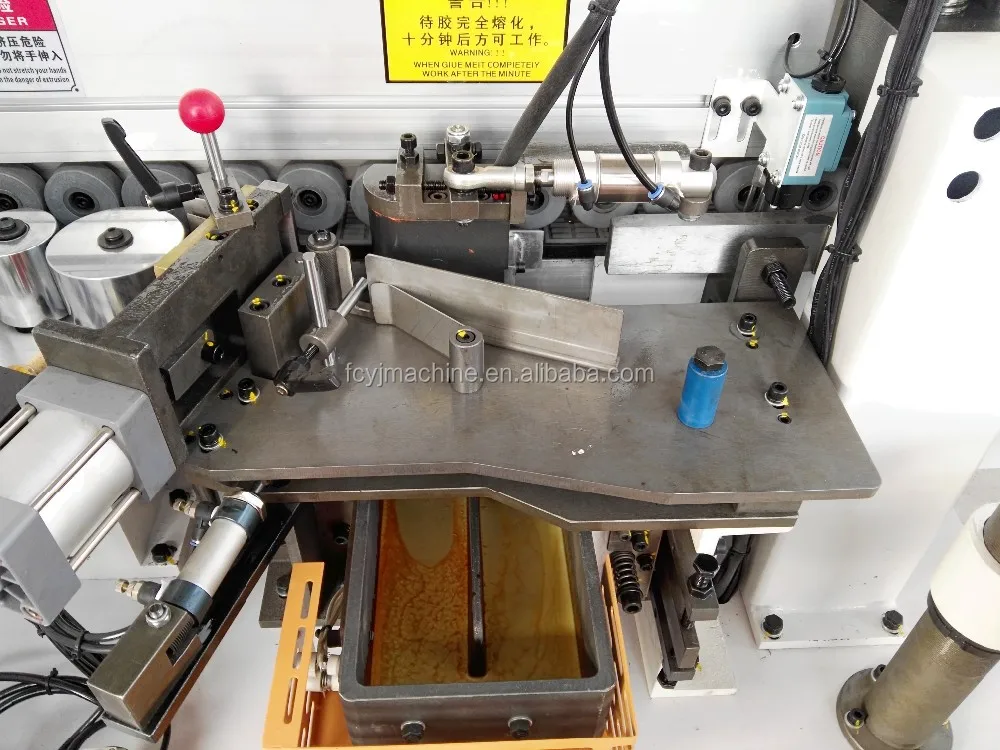

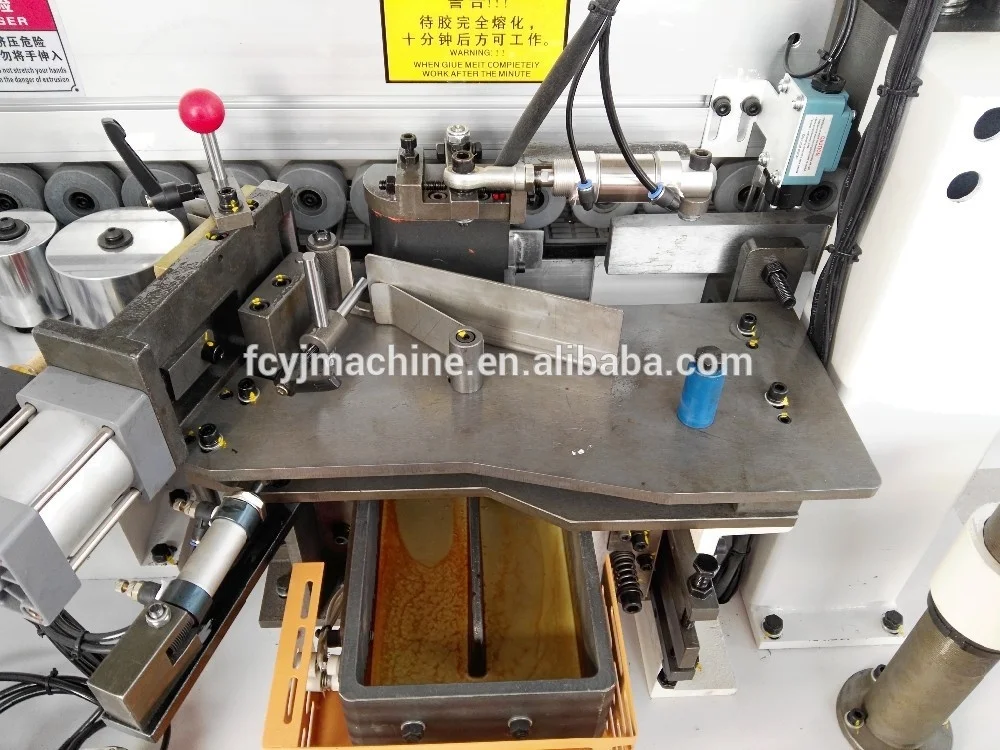

Name: Gluing
The glue mechanism adopts a special structure to geatinize the plates and the costing materials uniformaly, and that ensures a more solid conglutination
Machine Parts

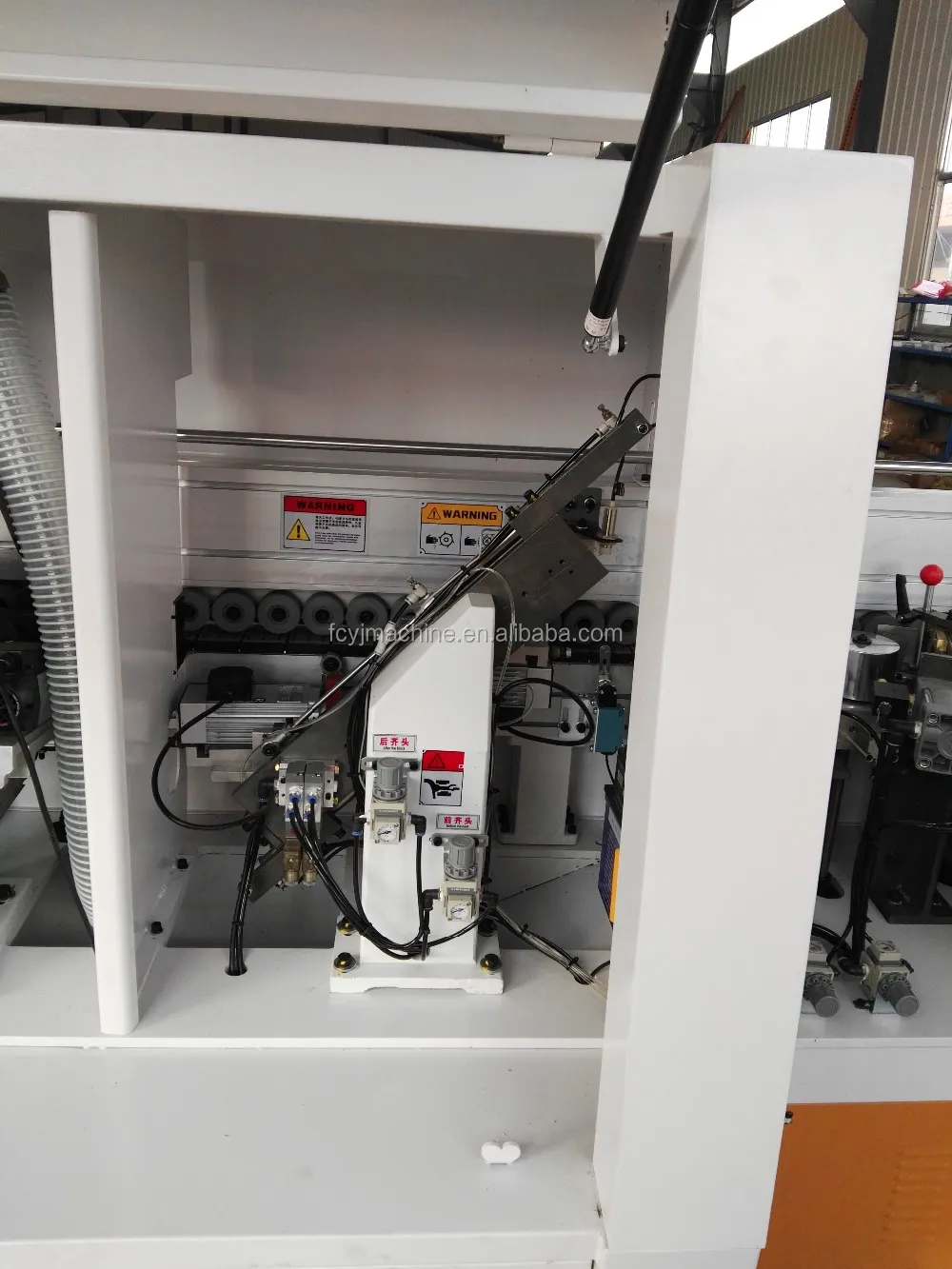

Name: End trimming
The end trimming mechnism is trough a precise guide track movement, and it adopts the automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
Machine Parts

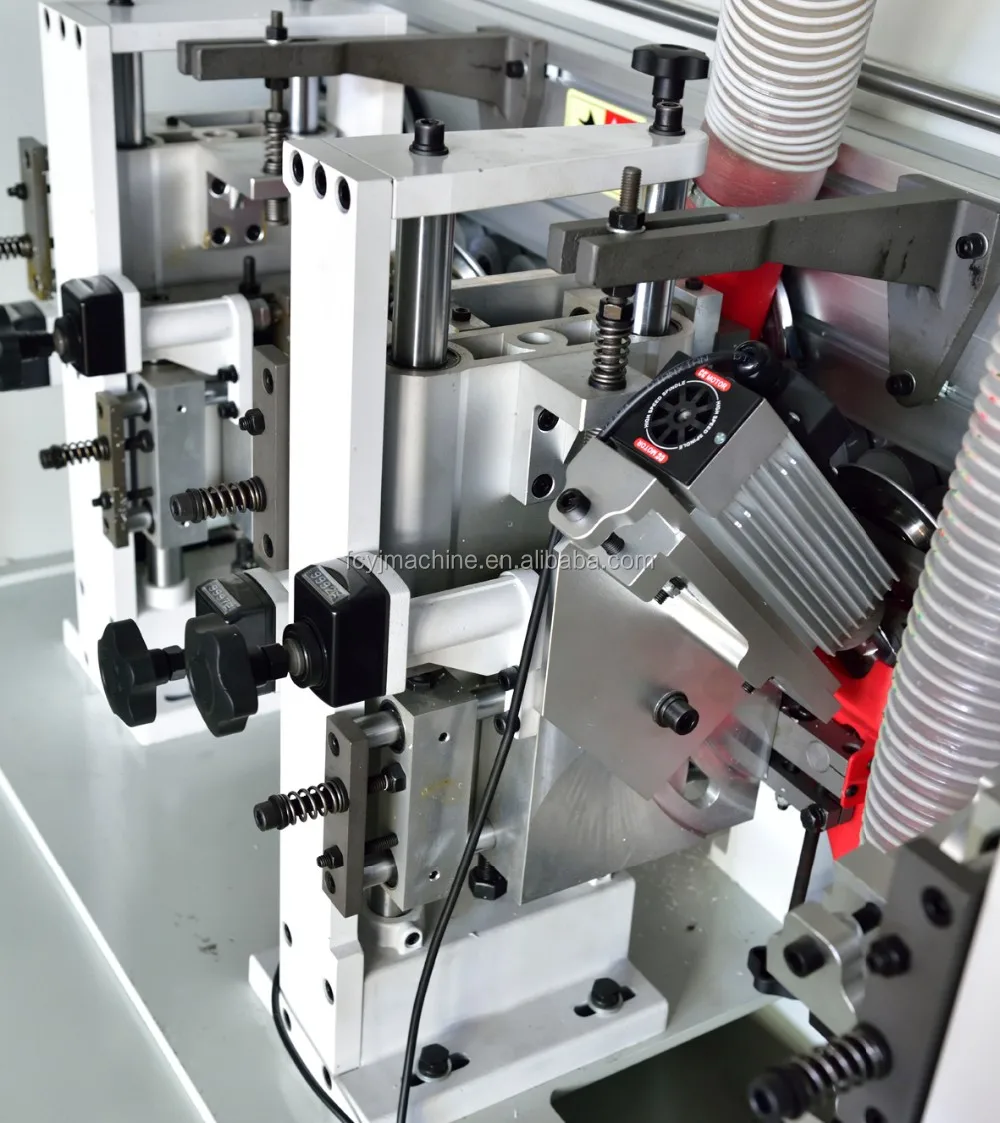

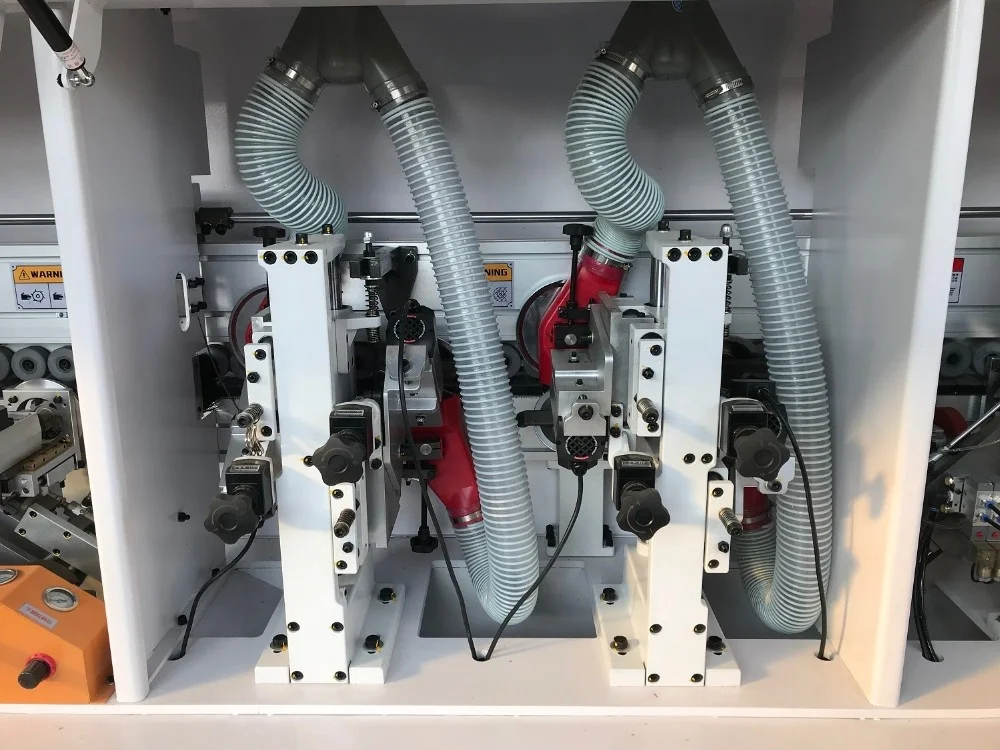

Name: Rought trimming ,fine trimming
The rough and fine trimmng mechanism is sued for trim the extra edge tape, and it adopts automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly
Machine parts

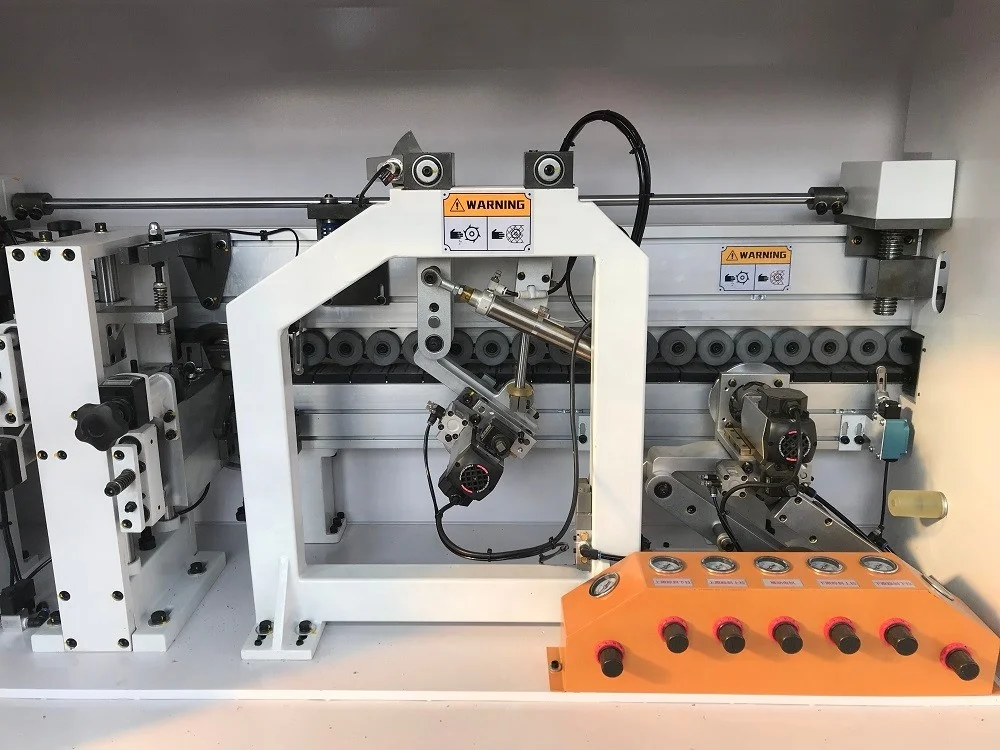

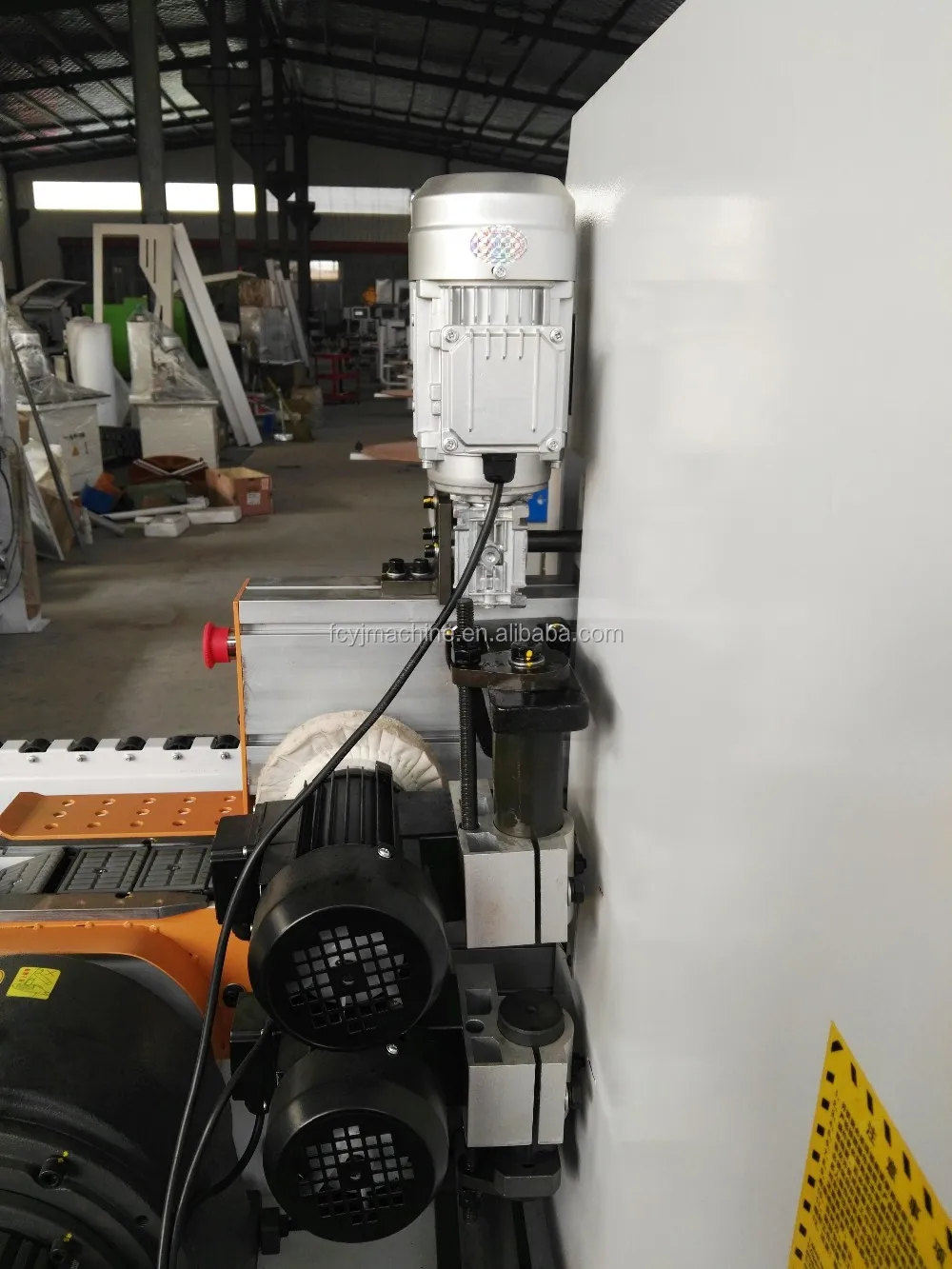

Name: corner trimming
It makes sure the perfect touch of the workpiece processing and visual effects, and it can achieve 4 kinds of different profiling.
Machine Parts
Name: polishing/buffing
The buffing device uses the cloth wheel to polish the processed boards, which make a more smooth surface
Machine Parts

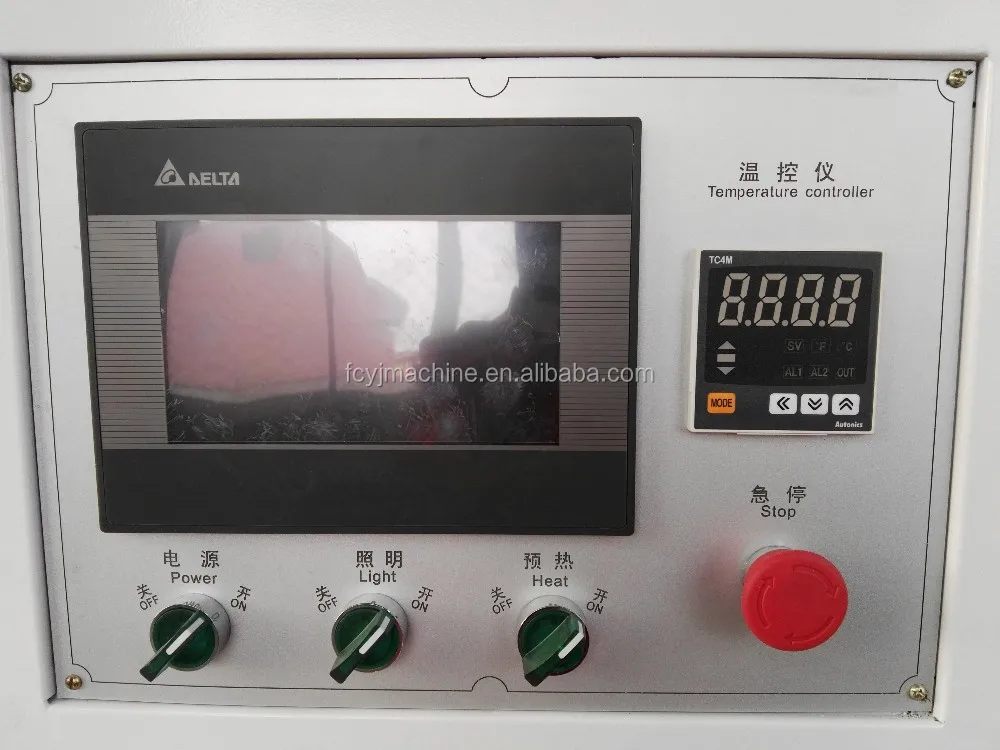

Name: Delta brand touch screen

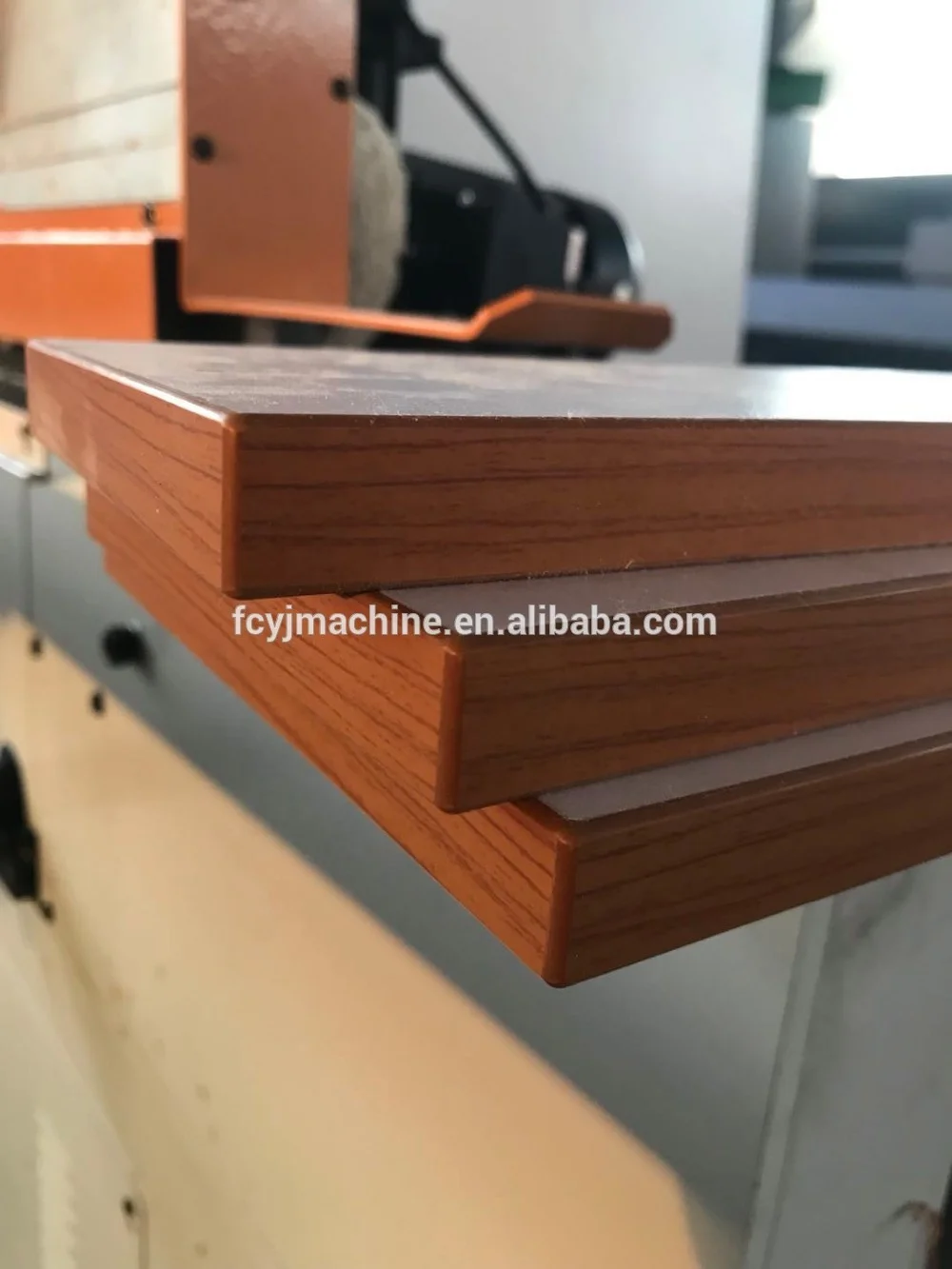

Samples
Packing & Delivery
Packaging | ||
Size | 5700(L) * 930 (W) * 1750 (D)mm | |
Weight | 2090KGS | |
Packaging Details | The normal package is plywood box(Size:5700(L) * 880 (W) * 1580 (D)mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
MF230 Semi-automatic edge bander
91.8% Response Rate
MF350A Manual edge banding machine
91.8% Response Rate
Automatic edge banding machine
91.8% Response Rate
Our Company
Brief company introduction
Qingdao Fucheng Yijia Machine Co., Ltd. is located by the beachside of the Yellow Sea and Jiaozhou Gulf, with beautiful natural scenery and convenient transportation of sea, land and air. We are the professional woodworking machine supplier, and our main products are the Precise panel saw, all kinds of edge banding machine, wood polishing sanding machine, wood multiple-drilling machine, spindle moulder, hydraulic cold press, hot press machine, etc.
Our workshop
FAQ
1)\tHow is the MOQ?
The MOQ is 1 set
2)\tHow is the warranty?
The warranty is 1 year
3)\tWhat is the Term of payment?
The term of payment is T/T, L/C,Western Union,etc.
4)\tHow is the Delivery?
The delivery is 30 days.
5)\t How is the package
The package is export standard package; generally speaking, it is packed with plywood box.
6) Where are your main customers from?
Our customers are from different countries and places in the world. Welcome to visit us.
About our machine, please feel free to contact us, thanks.
