CNC Automatic Pocket Spring Glue Machine/Mattress Glue Machine

Share on (62088619272):


Price:$65,000.00 - $66,000.00

Quantity:


Product Overview

Description



Product Description

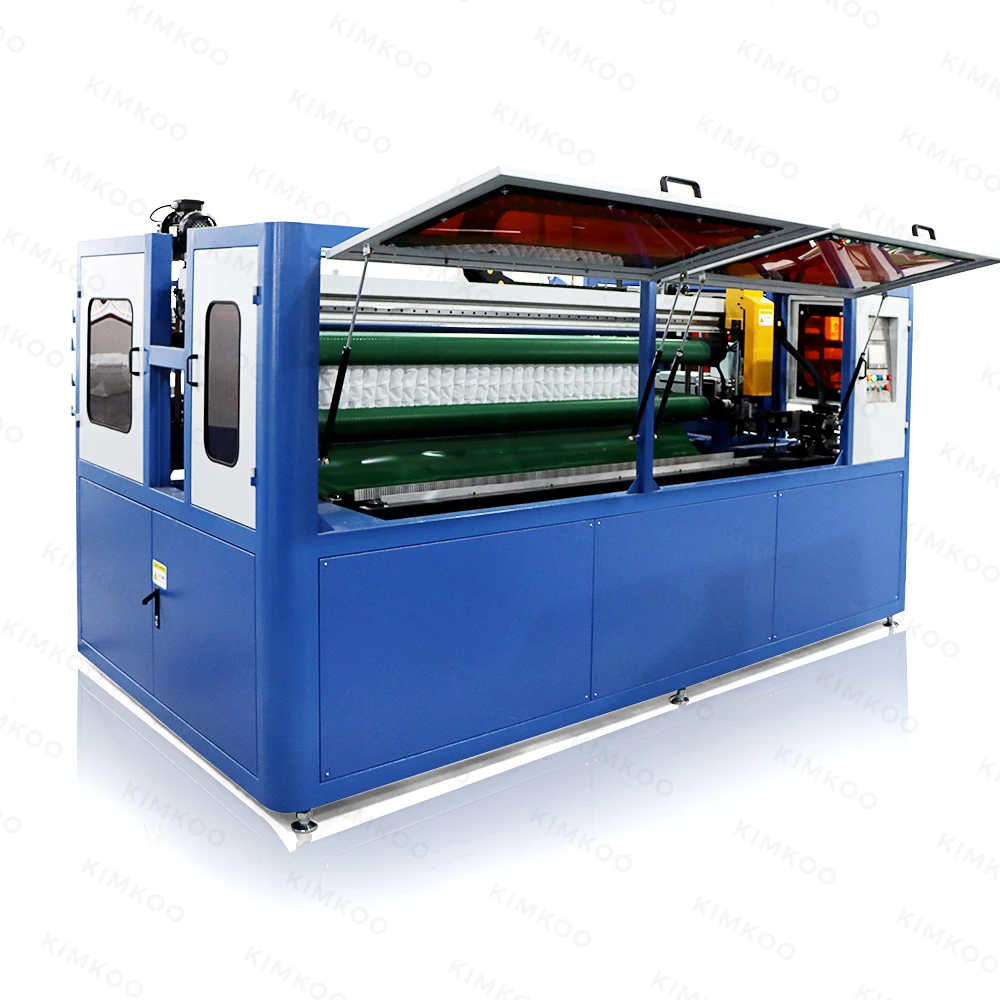

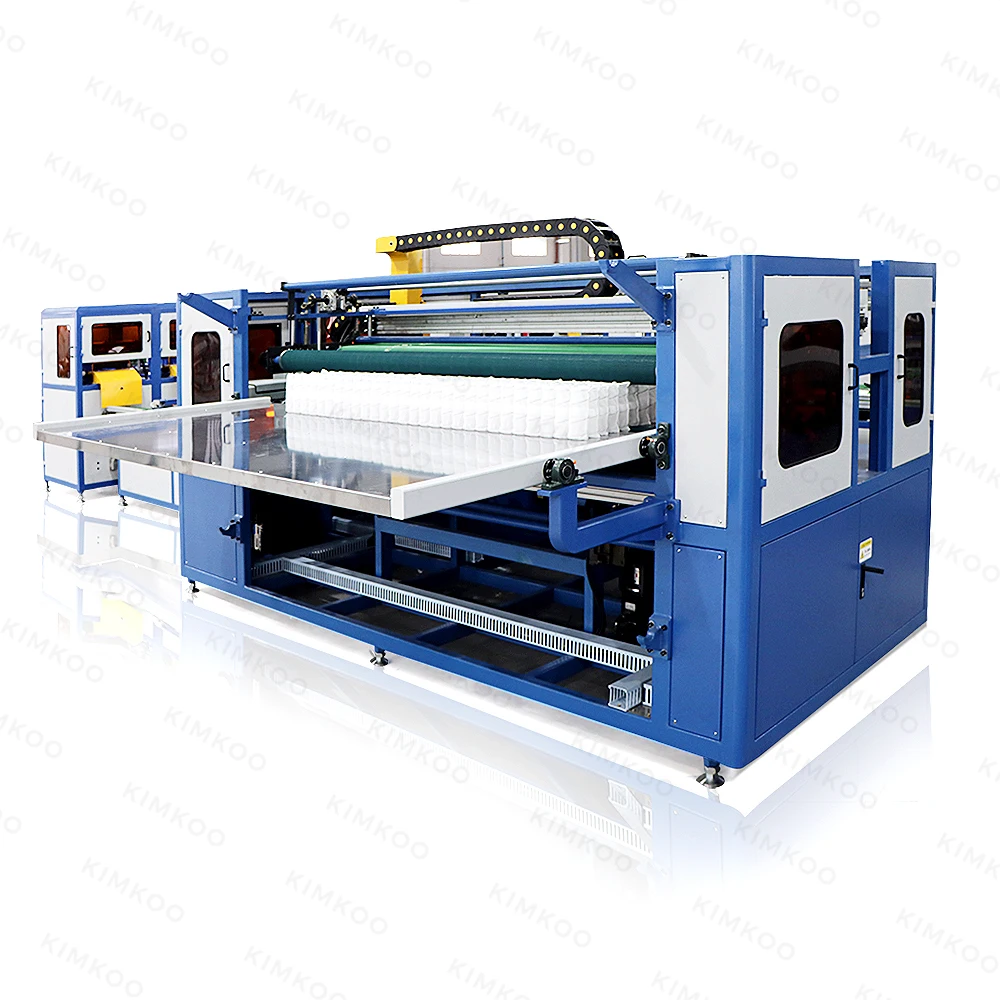

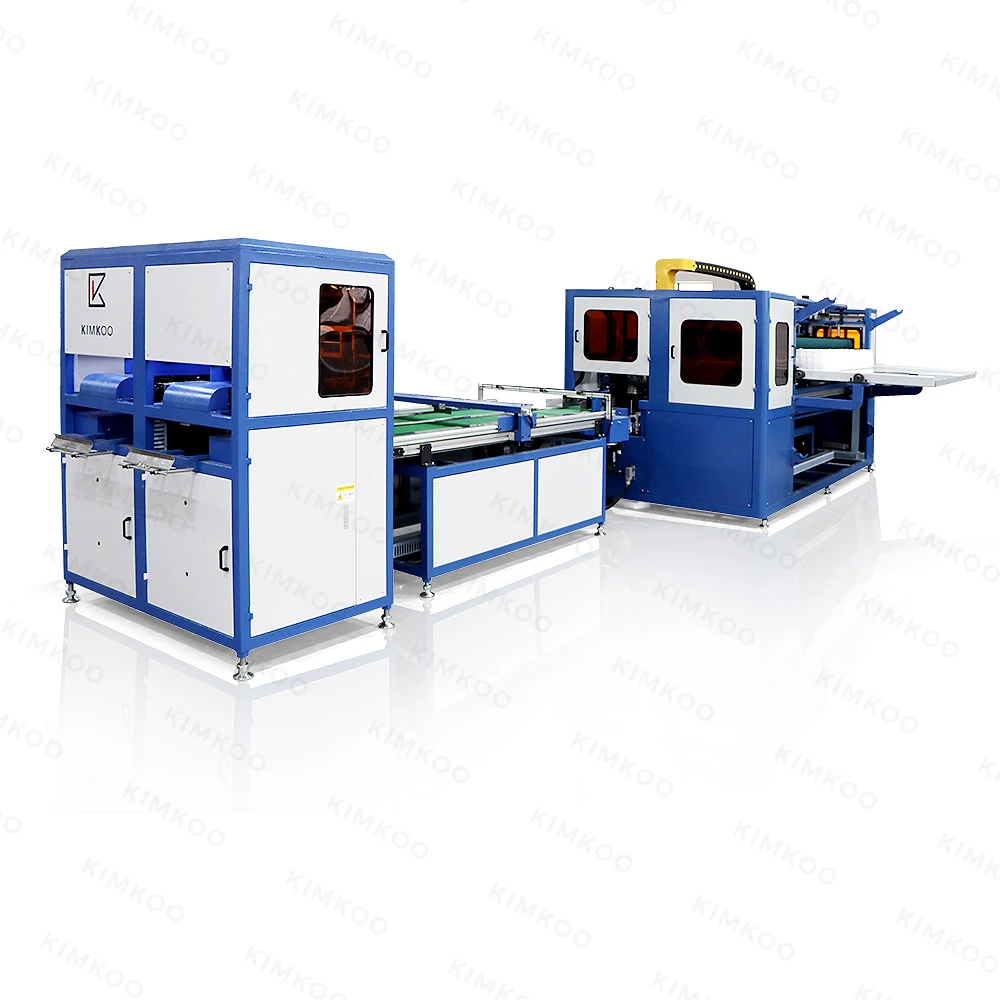

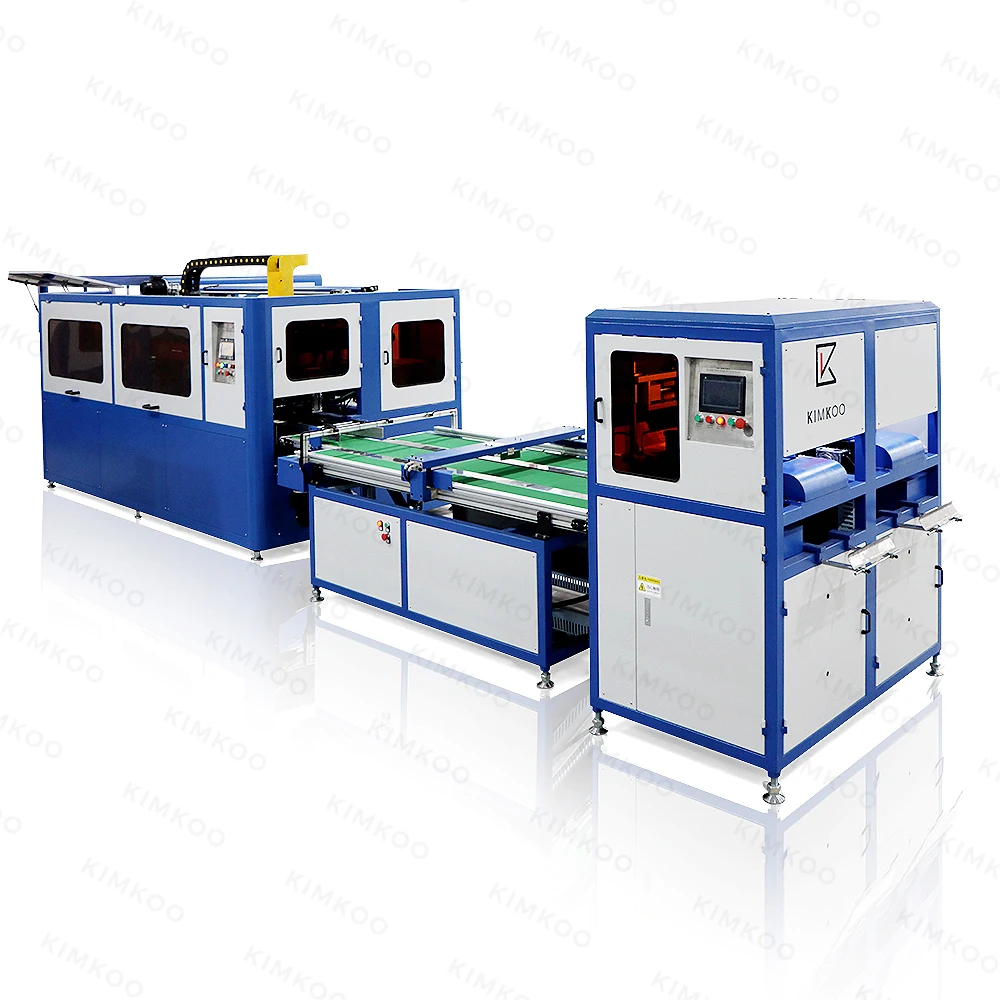

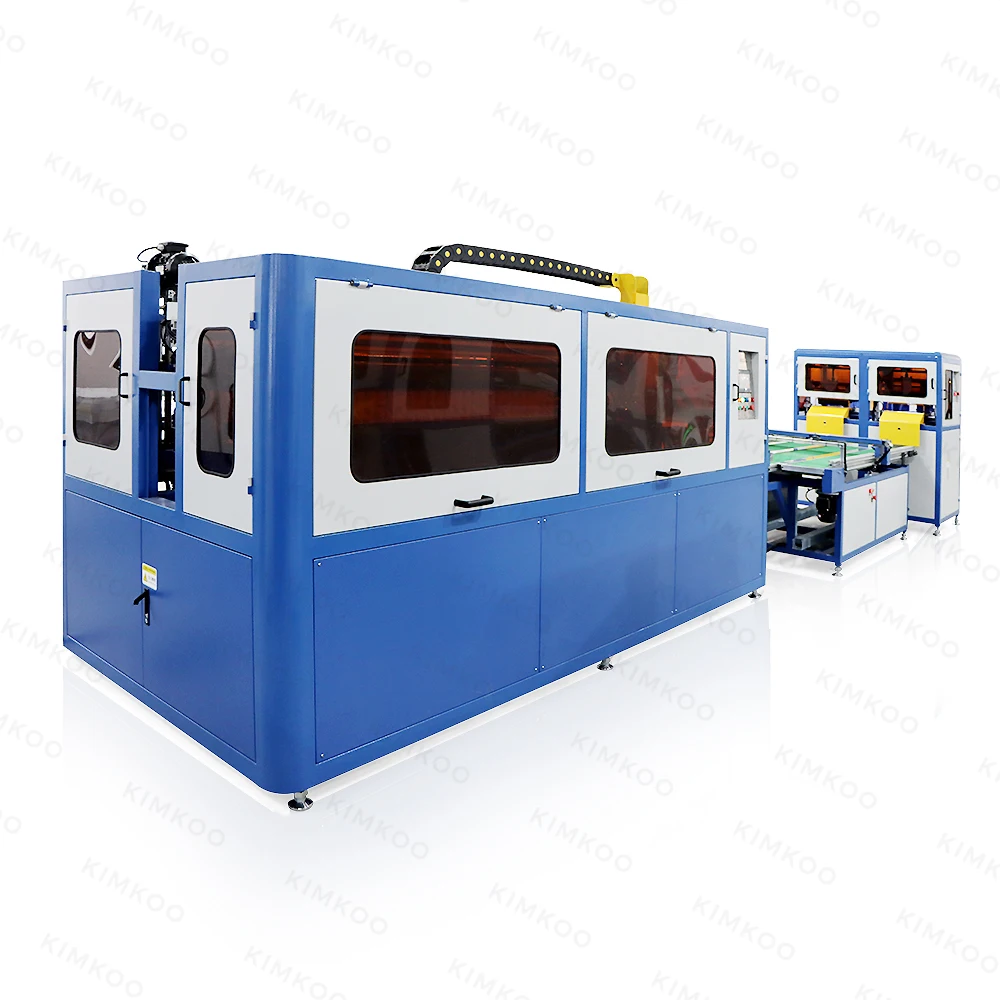

CNC Automatic Pocket Spring Glue Machine/Mattress Glue Machine

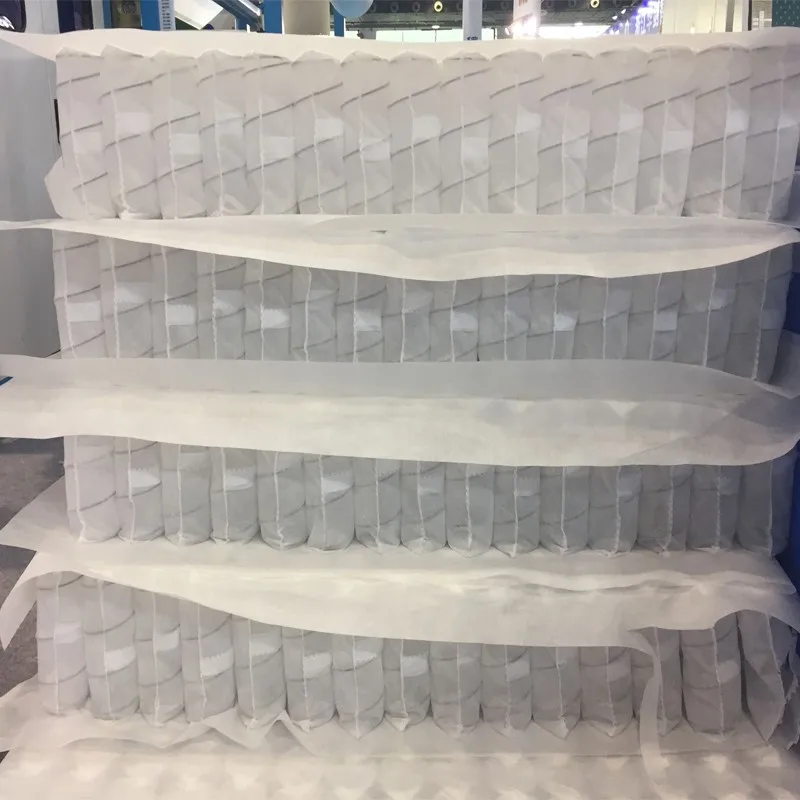

This mattress glue machine is mainly used for assembly the pocket springs. It is a high effective machine, it can assembly 14 rows in a minute. And it can connected with 3 pocket spring machines, so it is good to put it into a pocket spring production line. It's with the automatic zoning function, easy to operate.


Features

1.High speed assembly.14 rows/min Can be added into pocket springs productions line.

2.Point and continuous spray, More solid and don't waste.

3.Use America nordson/Spanish Merlot/Robuck plastic tank.Plastic tank capacity reach 20KG.

4.With automatic zoning,automatic feeding and automatic cutting function.

5.The spring height can be adjusted between 140mm-250mm.



Specifications For Mattress Glue Machine
Productivity
14 rows/min
Input voltage
3AC380V
Plastic box
American Nordson/ Spanish Merlot/ Robuck
Input Current
40A
Plastic tank capacity
20KG
Input cable
5×6mm²
Spraying mrthod
Point spray and continuous spray
Frequency
50/60Hz
Height adjustment
140-250mm(automatic)
Air demand
0.25m³ / min
Operational application
Automatic zoning, automatic cloth feeding, automatic spring feeding, automatic cutting
Working Pressure
0.5-0.6 mpa
Total Power
10KW
Size Length
Length 4300mm
Width 3000mm
Height 1900mm












Certifications




Detailed Images


PLC Control System


We can customize customer local Language PLC control system.



Our Service


Pre-Sales Service

* Project Detail
Our sales will give you the machine details. For example the machine operate video, machine parameters, machine application. Moreover, we will provide all about or related to this projects.
* Project Solutions
Our sales will offer you solutions about this project, and then you can choose one you favorite.
* Customized Suggestions
According customers' require, our sales will offer customers the customized suggestions to sure everything will be good.
* Cost Accounting
Our sales will help customers to account the costing about the project for customers reference before sales service.

After-Sales Service

* Technology Support
Offer technology support life-time for free. Our company will provide you with technical support. Certainly, if you have already purchased zimlin's products, you can contact us online.
-24-hour service hotline +86-755-21077364
-Contact us online with WhatsApp 15078897920
-Contact us by email and tell us the detail, We will help you solve the problem for as soon as possible.
* Repair Service
If have some problems with machine we will send technicians repair. but must in during the warranty period and not human error.
Our company will send professional maintenance personnel to repair. of course, door-to-door maintenance service support covers the whole world.
*One Year Warranty
1 year warranty from the date of original purchase. In fact, we will provide customers comprehensive and thoughtful service.
* Staff Training
KIMKOO provides after sales service also including regular skill trainnings.
Professional staff will show you how to use and operate the machinery.







Packing & Delivery


Film Packaging
Size
length 4300mm, width 3000mm, height 1900mm
Weight
3800KG



Packaging Details
We will use pe film for packing or pack it according to customers special request.````````````````````````````````````````````````````````````
