Tower paddy small grain dryer/15 ton batch grain dryer 0086 18237112103

Share on (62088631464):


Price:$19,800.00 - $25,800.00

Quantity:


Product Overview

Description

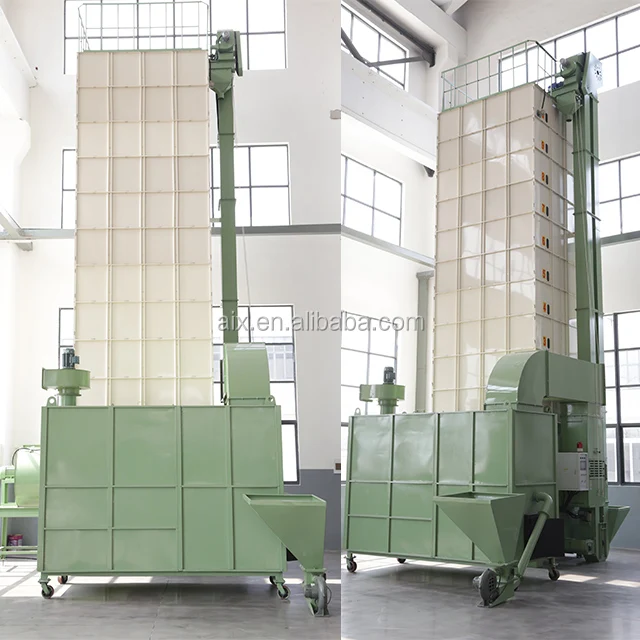

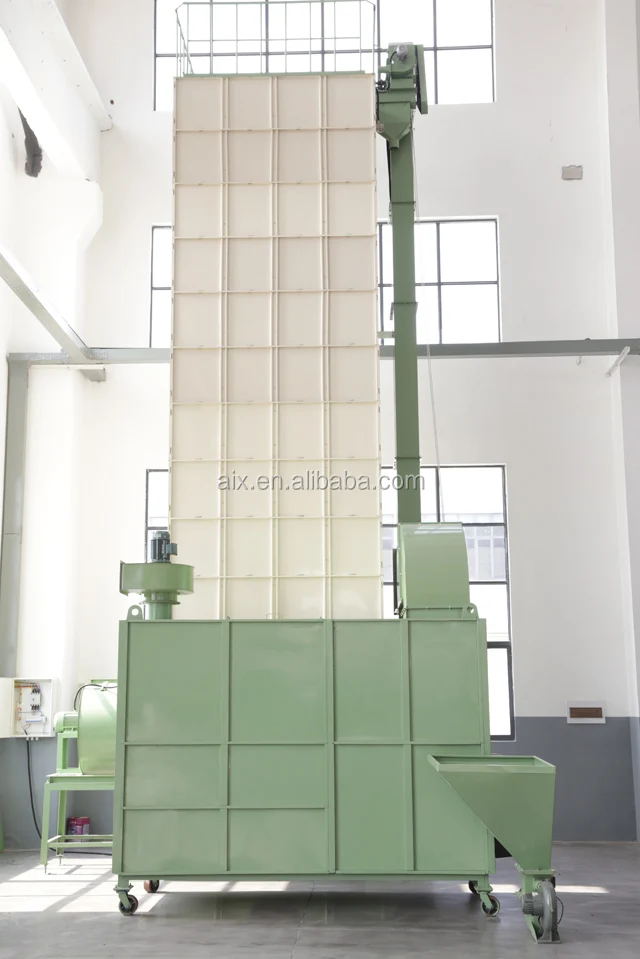

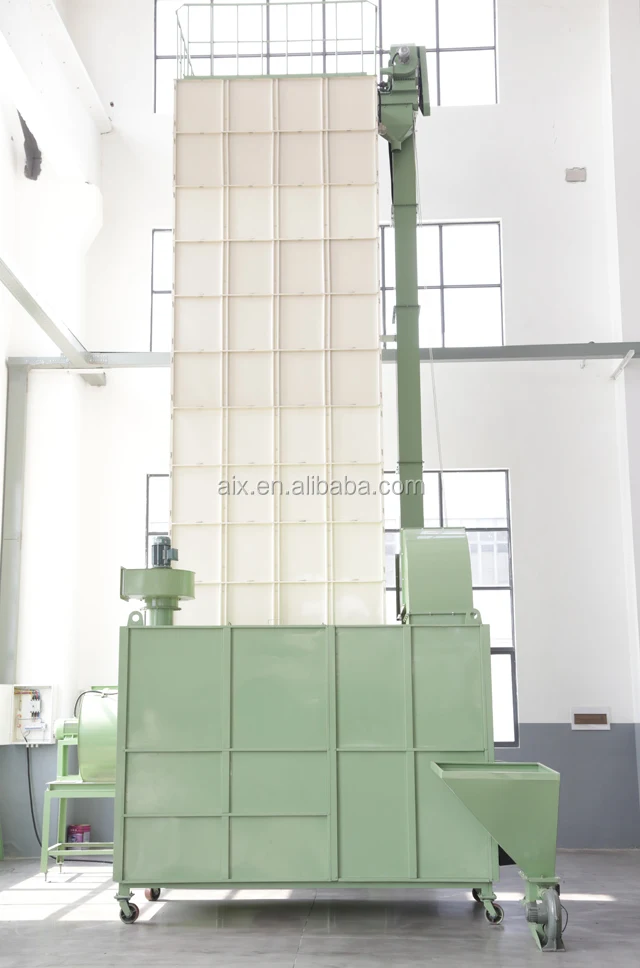

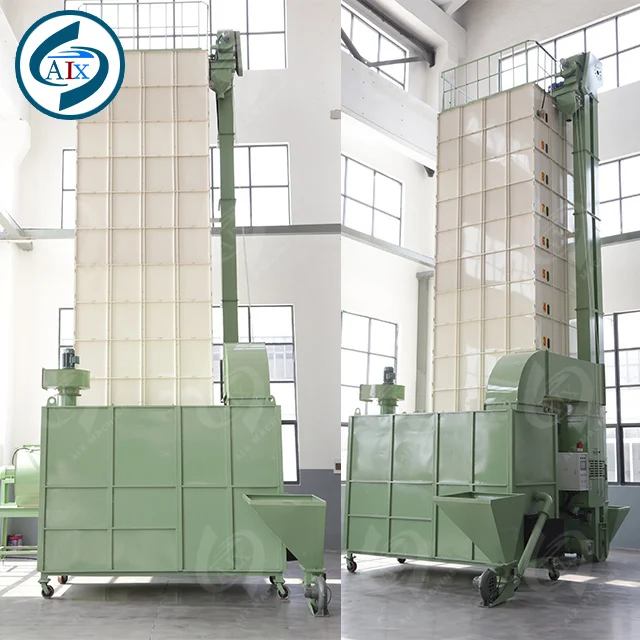

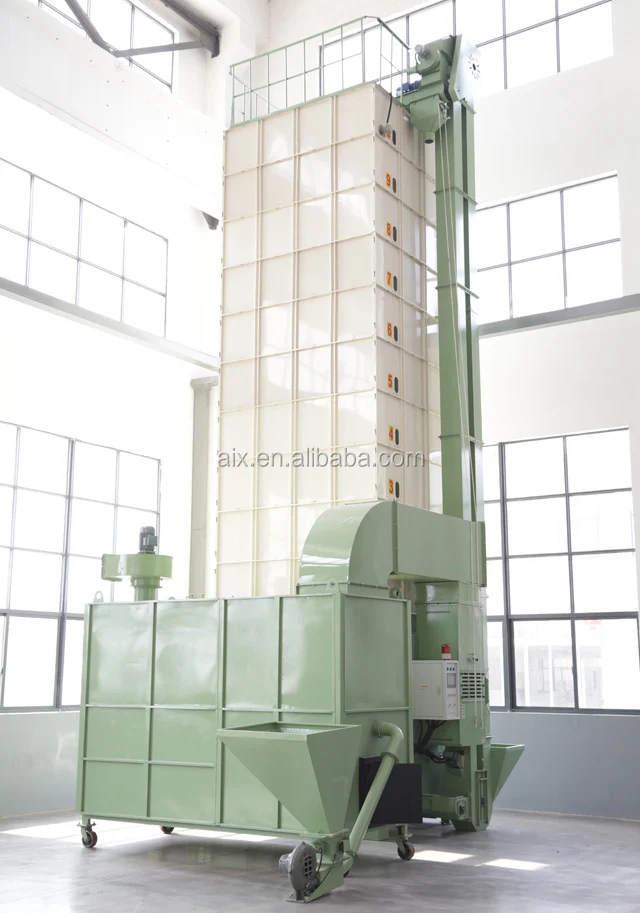

Tower paddy small grain dryer/15 ton batch grain dryer

product-descriptiondryer machine

IMG_1667

The grain dryer is an ideal drying equipment for drying grain and grain. It can be used for one machine. Dry rice, rapeseed, soybean, wheat, corn, peanut and other grains can be dried on the same equipment to meet different grain seasons. Drying, drying of feed grain, commercial grain and seed grain can be carried out to improve the utilization rate and reduce the idle time of equipment. The drying equipment is very suitable for use in food processing plants, lexical processing plants, farms, grain stations, grain farmers, cooperatives, grain depots, grain and oil processing plants and other user groups.



technical-data

model

AIXGH-15

structure

Batch type circulating

capacity

15ton per batch

Total weight

3000kg

dimension

4320*2492*10090mm

Rated air flow

6677-13353m^3/h

Fuel consumption(rice hull)

30-40kg/h

fuel

Rice hull/firewood/straw/anthracite

Total power

15kw

Loading time

50-70min

Unloading time

50-70min

Drying rate

0.5-0.7%/h

Safety device

Grain temperature sensor,fault alarm,full load buzzer,over otemperature alarm,thermal-over relay,hot air temperature sensor,overload protection device,leakage protection device

Standard device

Online moisture monitor,conveying system,unloading system,drying system,tempering system.elevator,exhaust fan in low noise,automatic control system

 If your are interested in our dryer machine and want more details,pls contact me to inquiry:

()-                                                         Product Structure

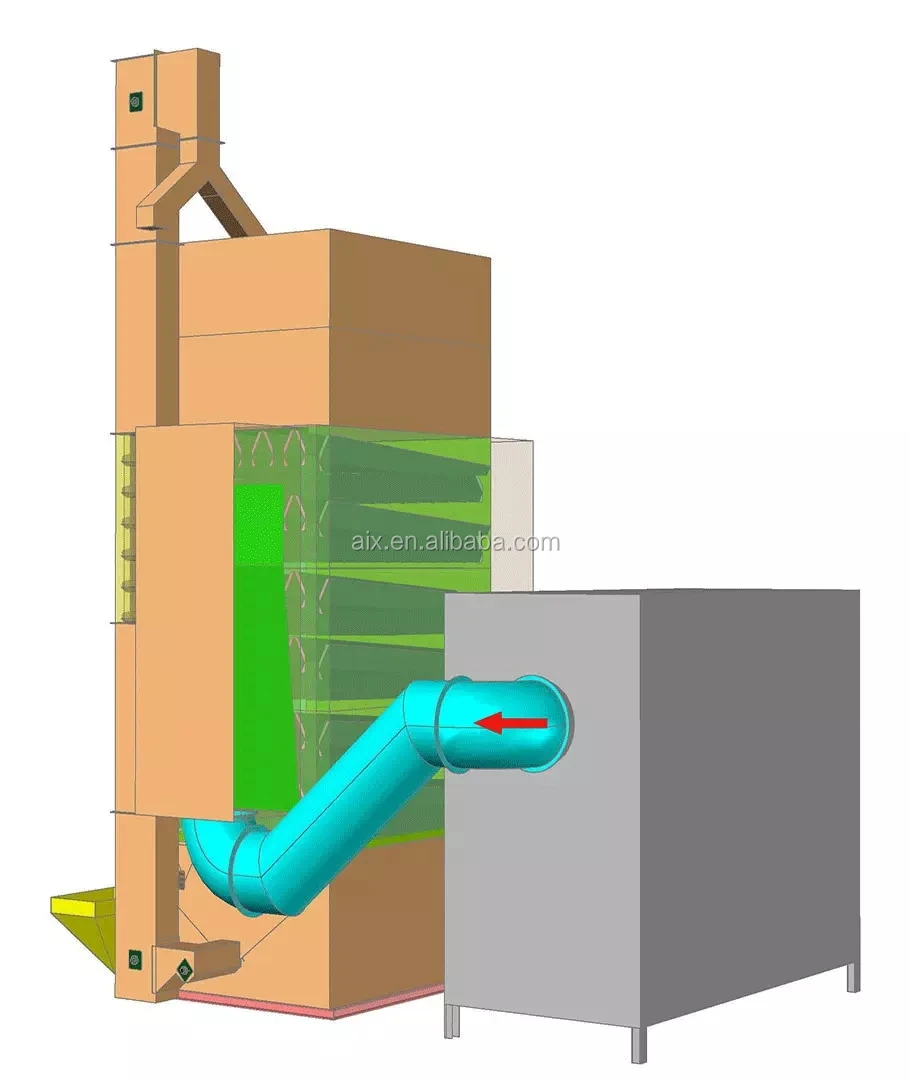

dryer machine (2)put grain into the dryer in batch then circulate orderly by the interaction of electric parts and structural parts.the hot air from the husk burner gets into the Mixed-flow type structure layer to across and hest the grain under thr action of two electric fans.the air flows and takes off the moisture of the grain.the exhaust gas is excluded out of the machine by the exhaust fan.  when the moisture reaching to the set value.the machine stops working.



The hot blast stove equipped with the grain drying equipment is an energy-saving and environment-friendly hot blast stove. The hot blast stove supplies heat to indirectly dry the grain. During the drying process, the grain continuously circulates and the grain rubs against each other. The awns, velvet hair, etc. on the surface of the grain are removed, and the dust is removed from the machine to improve the cleanliness of the dried grain. The production cost of this grain dryer is low. The supporting drying oven can use coal, electricity, natural gas and such as rice husk, corn broken shaft, wood foot and so on as dry heat source, dry Low cost, energy saving and environmental protection

7

                                        Main features

6

1.Advanced batch type and low temperature circulation

 dryingtechnology in counter flow Improve the drying

speed and qualityefficiently

2.Updated unloading structure design Avoid blocking, leakage, grain remaining efficiently and ensure customers' earnings
3.The quality of the dried grain , is better than national standard ( JB/T10268) It's proved that the crack rate is less than 3% and the grind rate is less than 0.5%,which are both superior to the national standard.
4.Advanced indirect heating technology which is non-pollution and can remove dust of the grain.
5.Wide applied range Widely used for drying paddy ,wheat,corn, rapeseed and other seeds.



2

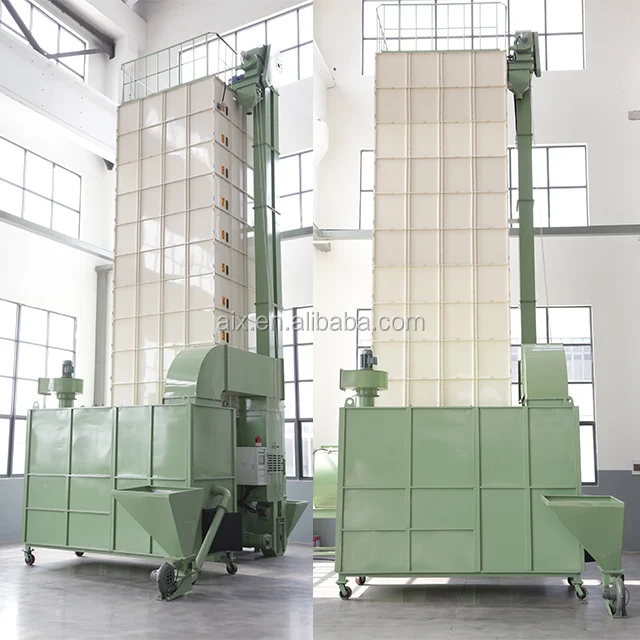

Product show

-1-2

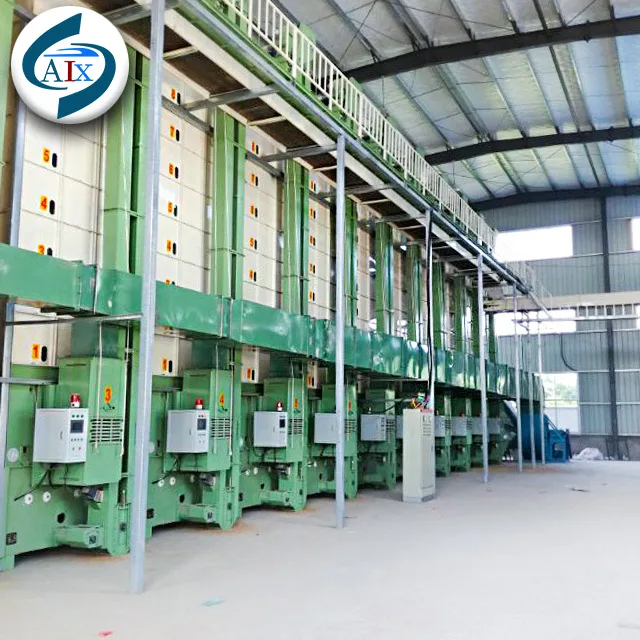

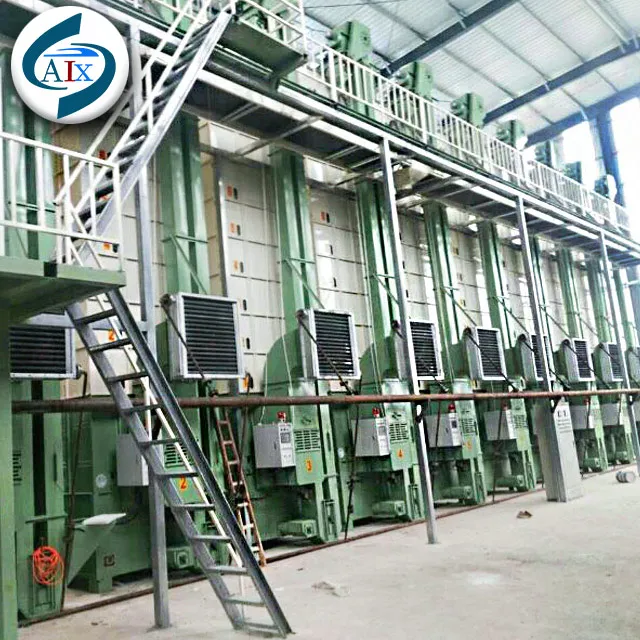

                                                                                            Project case

89

Zhengzhou Aix Machinery Equipment Co,.Ltd.is specialized in crush equipment for many years,our machine,such as:stalk crush machine,wood crusher,grain crusher,corn thresher,corn sheller,wheat thresher,wheat harvester machine,etc.And our machine export:Ukraine,Argentina, Bulgaria,Kenya,Jordan,Malaysia,Togo,Nigeria,etc.The goods was sold very well.Hope we can establish the longstanding relationship

FAQ

1, How long will I receive my machine after payment?
    We usually deliver the machine in 7-15 days after payment.
2,What services do you offer?
   We offer excellent quality machinery,advanced technology and outstanding service.

3,What is your warranty terms?
   We offer different warranty time for different products. Please contact with us for      detailed warranty terms.
4,Can the logo or company name to be printed on the products or package?

   The customer's logo or company name can be printed on the product in many ways.
5,Can I mix different models in one container?
   Yes, different models can be mixed in one container.

  Pls contact me to inquiry at any time!!!
