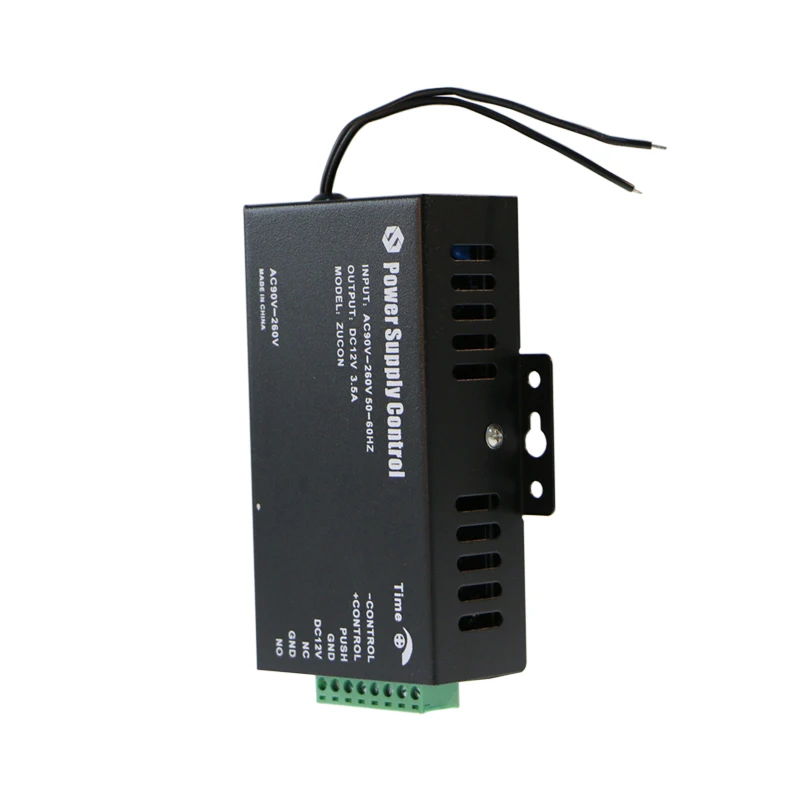

Input AC110V 260V Output DC 12V 3A 36W switching mode Power Supply Controller for Door Access Control System
- Category: >>>
- Supplier: Shanghai Zucheng Electronic Technology Co. Ltd.
Share on (62088686423):
Product Overview
Description
Product Description
Product features:
wide voltage input AC 90V - 260V
Compatible with E/M lock, access controller, exit push button and RFID reader
Control various types of electric locks by settign NC/NO outputs
Can reduce the load of access controller, save wiring to reduce the hidden trouble
lock time can be adjusted with 0 -15 seconds
Automatic protection function for dangerous situation: overload / over voltage / short circuit
Protection mechanism :power may be temporarily disconnected or the fuse auto insured
Compact design and light weight
Product Parameters
Product Name | Access control supply |
Item NO. | ZUCON 503W |
Dimension | 130*68*38mm |
Input Voltage | 90V--260V |
Input frequency | 47HZ--- 60HZ |
Output voltage | DC12V |
Output current | 3A |
Output power | 36W |
Working Temperature | -20°C--70°C |
Weight | 0.32kg |
Housing Material | Steel |
Company Information
Advantages
Certifications
Product Process
Exhibition
FAQ
Q1:Can you offer free sample?
Yes, we can. But to be sure we are serious about this business, we will charge sample cost firstly, and we will deduct the amount from your payment once you give us order.
Q2:How long time it will take for sample?
We can ship out the sample immediately once it confirmed,and we can choose DHL,TNT,FEDEX,EMS,SF as you want.
Q3:Do you have MOQ?
We have no MOQ for ZUCON packing or netural packing. But we have quantity requirement for OEM.
Q4:What is the delivery time for normal order?
For order with ZUCON package or netural package,we can deliver out immediately after confirm the payment. For OEM order with customer LOGO on products but netural package ( including put sticker on box), 3--5 working days is enough. For OEM order with customer LOGO on both products and box,it will take 7 to 9 working days.
Q5:Can you provide after-sale technical support?
Sure. We will support you very well with our years after-sale support experience.
WARRANTY :
We offer two years warranty for all our products(but we will not take responsibility for any artifical damaged products)
