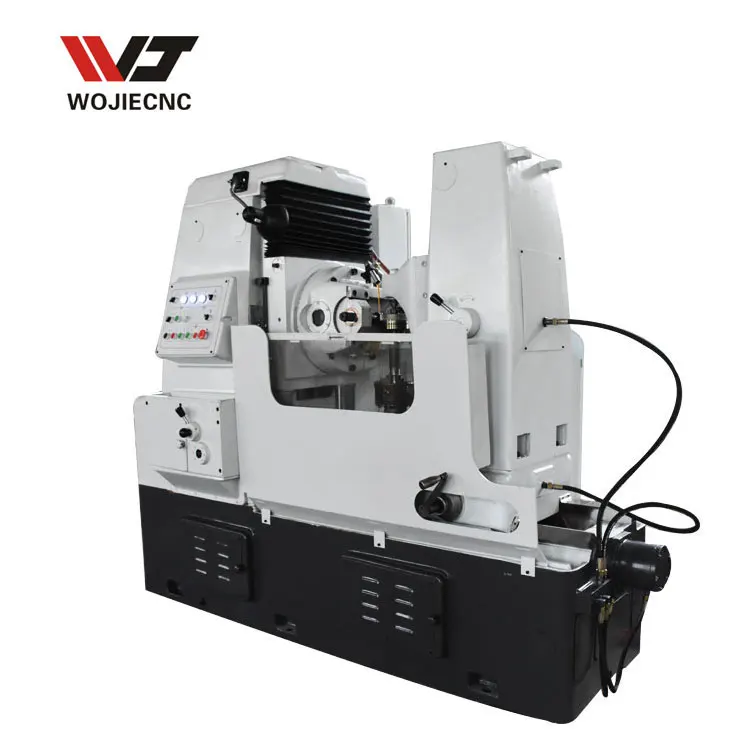

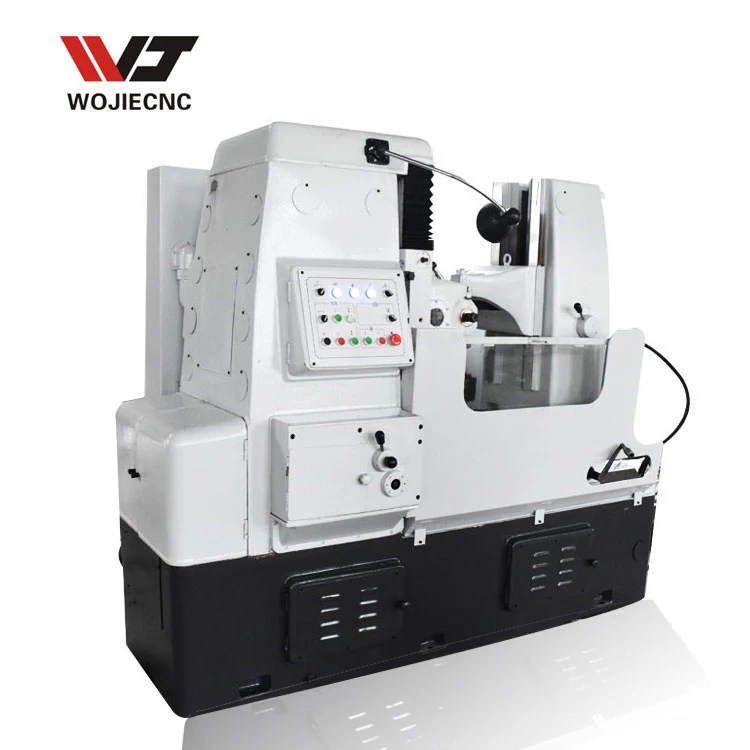

Hoston Semi-automatic Gear Hobbing Machine Y3150/3180
US $5600-$6000
China manufactory gear shaper machine spiral bevel gear hobbing machine y3150
- Category: Gear Cutting Machines >>>
- Supplier: Zaozhuang Wojie CNC Machinery Co. Ltd.
Share on (62088706074):
Product Overview
Description
Product Description
INTRODUCTION:
The gear cutting machine is equipped with a knife rest fast-moving device and automatically stopping device when finishing
cutting, so the machine is not only widely used in gear cutting, and easy to operate, also could be multi-machine management.
The gear cutting machine is equipped with a knife rest fast-moving device and automatically stopping device when finishing
cutting, so the machine is not only widely used in gear cutting, and easy to operate, also could be multi-machine management.
Main technical parameters | Y3150-3 | ||
Max working module | steel (mm) | 5 | |
Cast iron(mm) | 6 | ||
Max diameter cutting straight Spur gear | with column (mm) | 350 | |
without column (mm) | 500 | ||
Max diameter cutting Cylindrical helical gear | Rotation angle 30° | 370mm | |
Rotation angle45° | 250mm | ||
Max vertical travel of hob (mm) | 260 | ||
Max length of cutting (mm) | 240 | ||
Distance from hob spindle to worktable surface (mm) | Max(mm) | 320 | |
Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm | 25 | ||
Minimum distance from worktable surface to hob spindle axis (mm) | 170 | ||
The changeable Diameter of hob spindle(mm) | 22 27 32 | ||
Max diameter of hob (mm) | 120 | ||
Diameter of workingtable hole (mm) | 60 | ||
Diameter of worktable mandrel (mm) | 30 | ||
Speed of Hob main spindle | Grade | 8 | |
Range (r/min) | 50-275 | ||
The vertical feed of hob | 0.24-4.25 mm/r | ||
Main motor power | 3 kw | ||
Main motor speed | 1430 r/min | ||
Pump motor power | 0.125 kw | ||
Pump motor speed | 2790 r/min | ||
Net weight (inclusive all standard accessories) | 2600 kg | ||
Size(L*W*H)mm | 1825*935*1730 | ||
Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
