Sound features:
High analytical power, natural noble hi-end sound, withstand large power, low-frequency response, wide dynamic, bass full, powerful.
Suitable for advanced sound system, advanced home theater system and advanced ultra-low speaker unit.

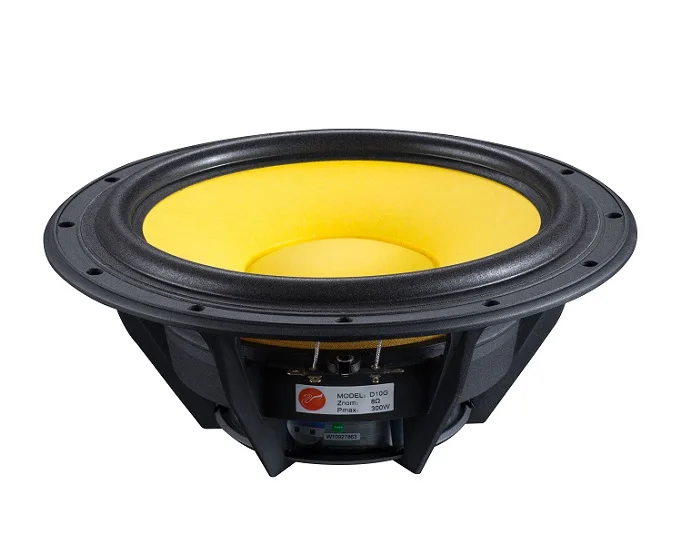

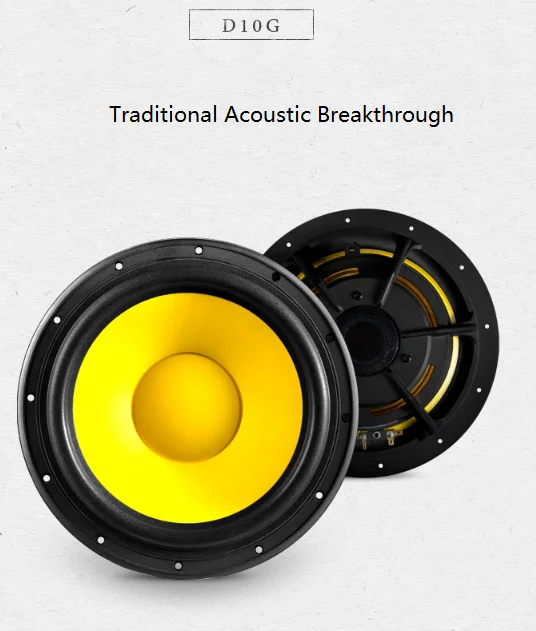

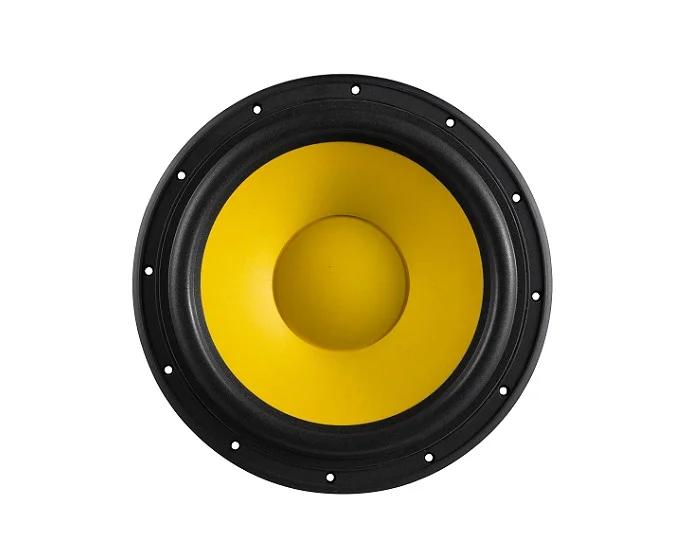

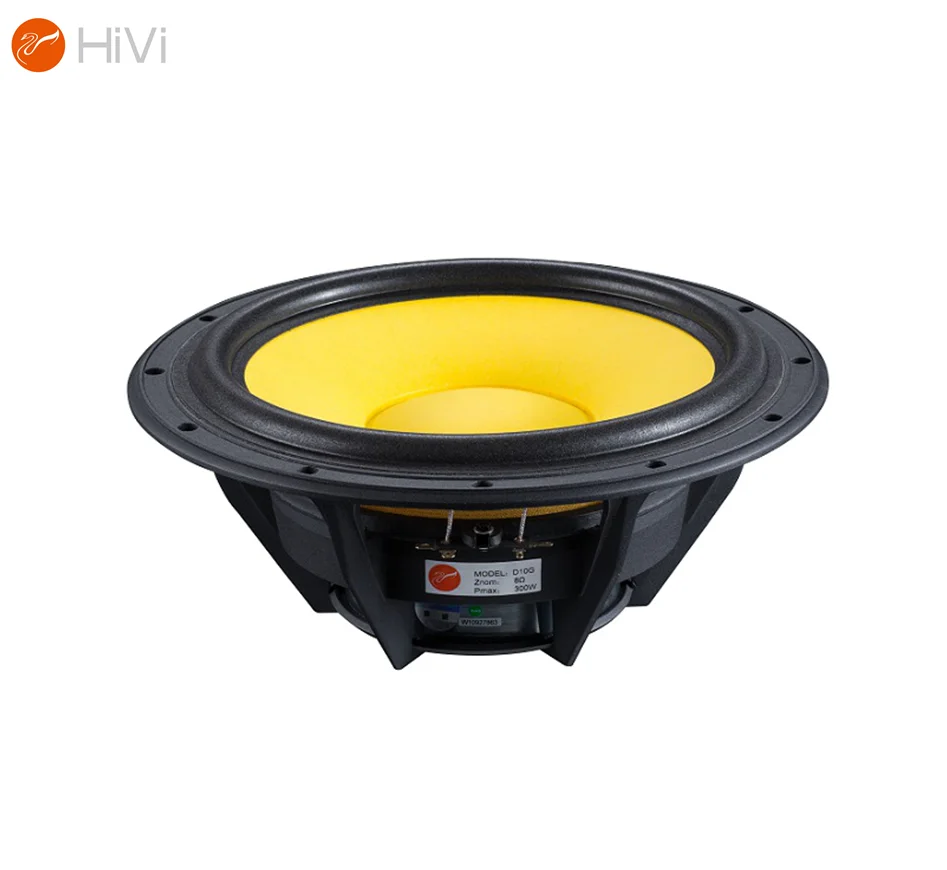

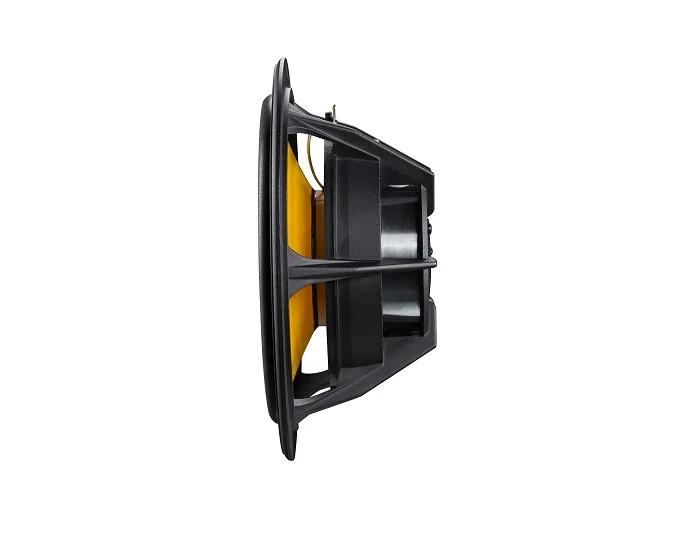

| Model | D10G Midwoofer |
| Nominal Impedance | 8Ω |
| Resonant Frequency | 26Hz |
| Nominal Power Handling | 150W |
| Max Power Handling | 300W |
| Sensitivity(2.83V/1M) | 89dB |
| Direct Current Resistance | 6.5Ω |
| Magnet System | Inner-magnet |
| Magnet | NdFeB |
| Gap Height | 7.0mm |
| Force Factor | 13.2N/A |
| Linear Excurion | 8.3mm |
| Suspension Compliance | 443.9uM/N |
| Mechanical Q | 6.64- |
| Electrical Q | 0.50- |
| Total Q | 0.46- |
| Moving Mass | 82.3g |
| Equivalent Air Volume | 117.3L |
