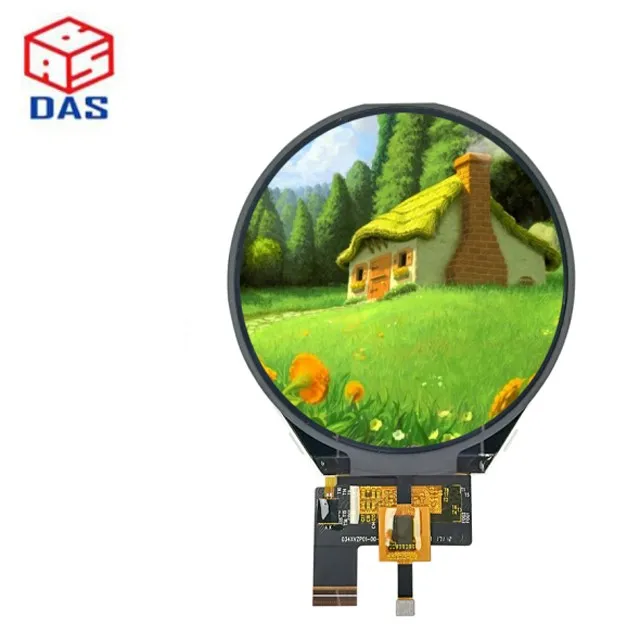

 3.4 inch 800*800 HDMI to MIPI tft lcd panels round lcd display with touch screen monitor


\t
ITEM
\t
SPECIFICATION
\t
UNIT
\t
Dot Matrix
\t
800(RGB) x 800
\t
-
\t
Technology Type
\t
a-Si
\t
mm
\t
Pixel Configuration
\t
R.G.B. Vertical Stripe
\t
mm
\t
Pixel pitch(um)
\t
109.5*109.5
\t
%
\t
Display Mode
\t
SFT
\t
mm
\t
Surface Treatment
\t
HC
\t
mm
\t
Viewing Direction
\t
FREE
\t
mm
\t
Diagonal A/A Size
\t
3.4
\t
inch
\t
Module (W x H x D) (mm) with CTP
\t
99.0 x 96.6 x 3.98
\t
-
\t
Active Area(mm)
\t
87.6*87.6
\t
-
\t
With /Without TSP
\t
With CTP
\t
-
\t
Matching Connection Type
\t
FPC
\t
-
\t
Wide range of operating temperature
\t
-40℃ to 70℃
\t
-
\t
LED Numbers
\t
8 LEDs
\t
-
\t
CTP Surface hardness
\t
≥7H
\t
-
\t
Weight (g)
\t
TBD
\t
-
\t
Interface
\t
MIPI 3 lane
\t
-
\t
Color Depth
\t
16.7M
\t
-
\t
LCD Driver IC
\t
ILI9881C
\t
-
\t
CTP Driver IC
\t
HX8526-E30
\t
-
\t
CTP Interface
\t
IIC
\t
-
Related Products

2.1 inch 320*320 round lcd display with touch panel

1.4 inch 400*400  Round AMOLED display


1.3 inch 128*128 Round OLED display

Our Company

 3.4 inch 800*800 HDMI to MIPI tft lcd panels round lcd display with touch screen monitor


DAS INDUSTRY LMITED was founded in Shanghai in 2005 by a group of experienced engineer who inspired to create a new range of innovative and high quality LCD module. With 9years experience, base on factory, positively develop new market, always keep good quality, best service and fast response, we believe in coming true to be the leader of LCD manufacturer !

DAS main products are 1.5inch to 10.4inch color TFT , to meet different customer's request , we always keep developing new product . Our products cover a lot of fields , such as medical ,industrial , communication ,supermarket etc . From 2010 ,we developed transflective TFT and serial interface TFT , won some new customers in geological survey field ,smart furniture, elevator and so on. Most of our oversea customers are from America, Mexico, Austrulia ,Italy , Russia, Korea, Israel etc.

Hot offer! Transflective TFT display , used in outdoor ,acquire customers highly acclaimed .Welcome to visit us!

Our Factory

Product: Small&middle size TFT LCD(1.44'~10.1'),
used in mobile phone, automative, industrial
control, POS machine, etc.

Our Factory

Brief: Factory is about 10000 ㎡, Office is about 2000 ㎡, 1000 employees.
Capacity: Small size 3KK/Month, Middle size 900K/Month.

Certifications
Packing & Delivery

Packing

 3.4 inch 800*800 HDMI to MIPI tft lcd panels round lcd display with touch screen monitor

\t
Quality
\t
Each item must be tested OK before shipping
\t
MOQ
\t
1 pcs
\t
Discount
\t
More quantity, larger discount
\t
Payment
\t
T/T, Western Union, MoneyGram, Escrow etc
\t
Package
\t
Anti-static bag, Bubble bag, Carton box
\t
Delivery Time
\t
In 1-3 working days after payment confirmed
\t
Shipping
\t
DHL, EMS, Fedex, UPS, TNT, HK Post Air Mail etc
\t
Warranty
\t
90 days warranty
Contact Us

Contact Us:

DAS INDUSTRY LIMITED


Tel:86-21-51082662

Fax:86-21-51083662

WhatsApp: + 86 156 1867 2310

 3.4 inch 800*800 HDMI to MIPI tft lcd panels round lcd display with touch screen monitor



Q1:Where to get the datasheet before orafter purchase?
please send mail to"rita@ das-tek.com",we will reply you in 24hours.

Q2:How do you add the extra function,does it need for charge?
Just confirm the function with seller before your place an order,simple function is free.

Q3:Payment terms of customized service and mass order?
Customized Service:
According to product requirement of charge,100% T/T in advance. we will provide 2~3pcs free sample.
Mass Order:
30% T/T as deposit in advance, the balance will be paid before shipping.
