rice milling rubber rollers rice mill complete rice milling machine thailand
Brief Introduction :

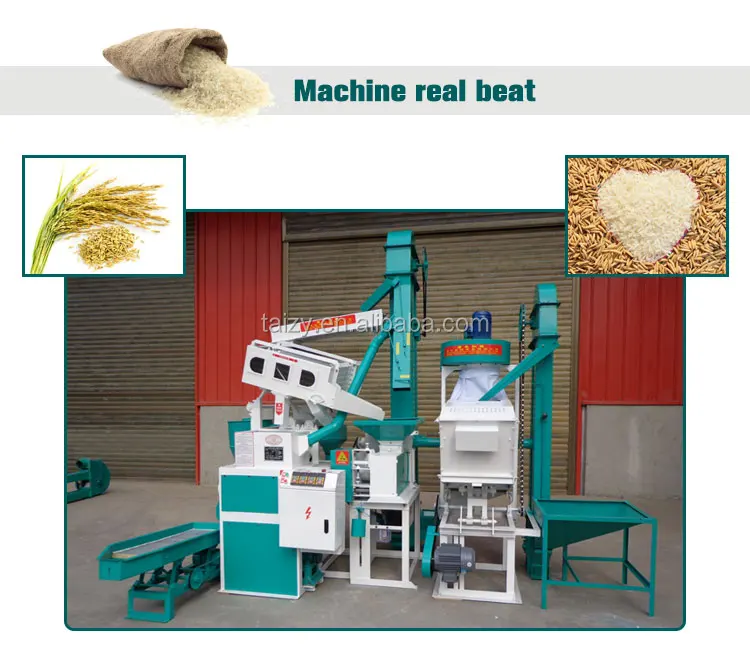

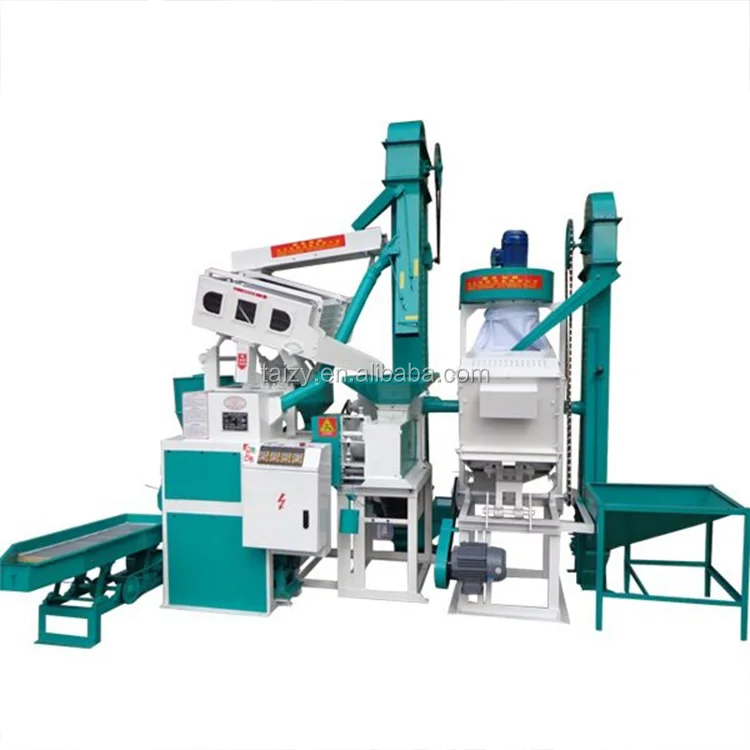

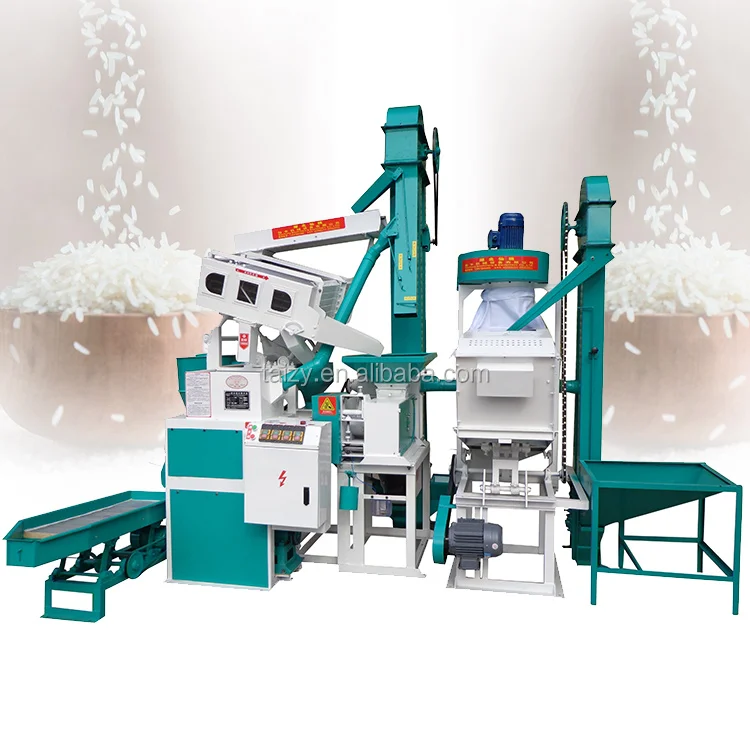

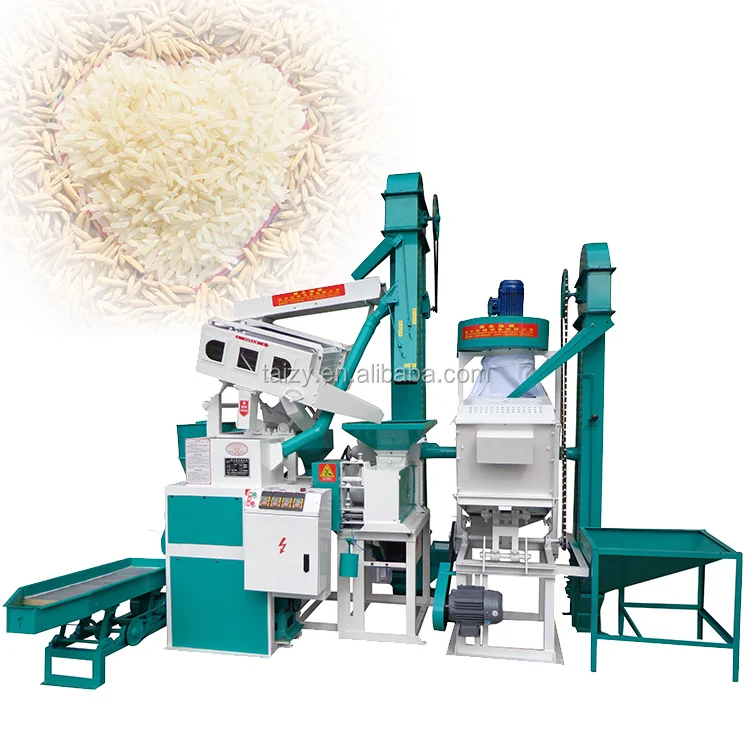

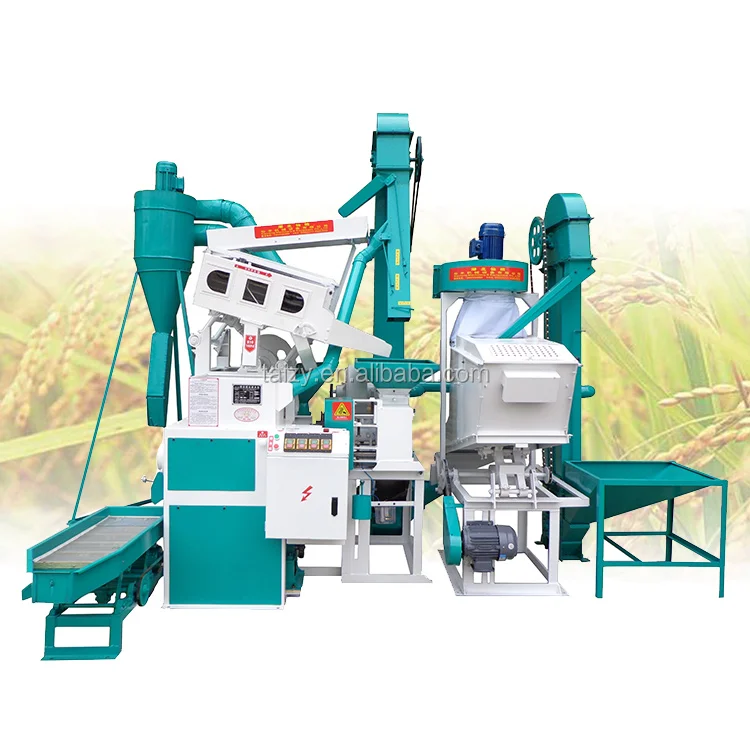

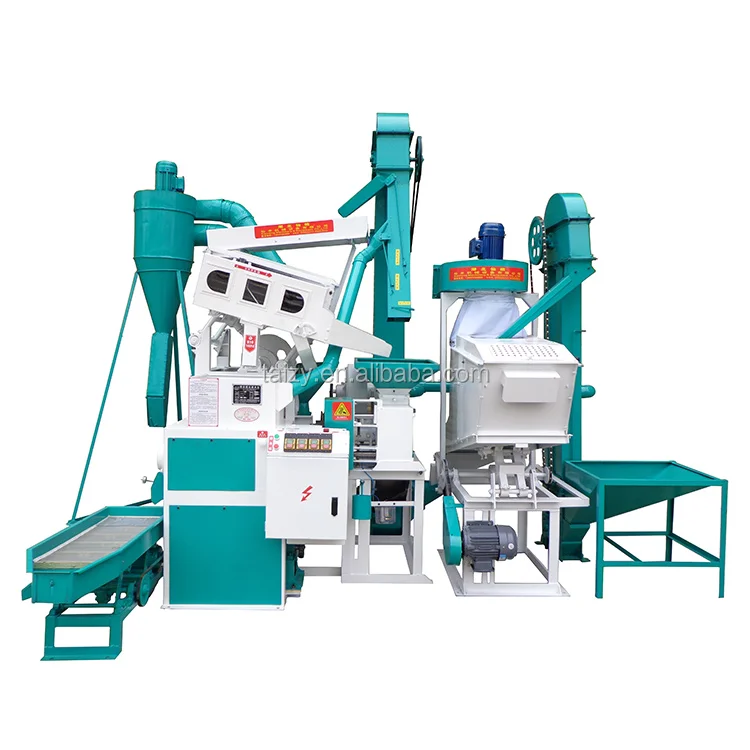

This model is a special big scale equipment for paddy rice processing .It is composed of feeding hopper , paddy husking unit , separating unit for brown rice and chaff ,milling unit and air jet blower ,etc .

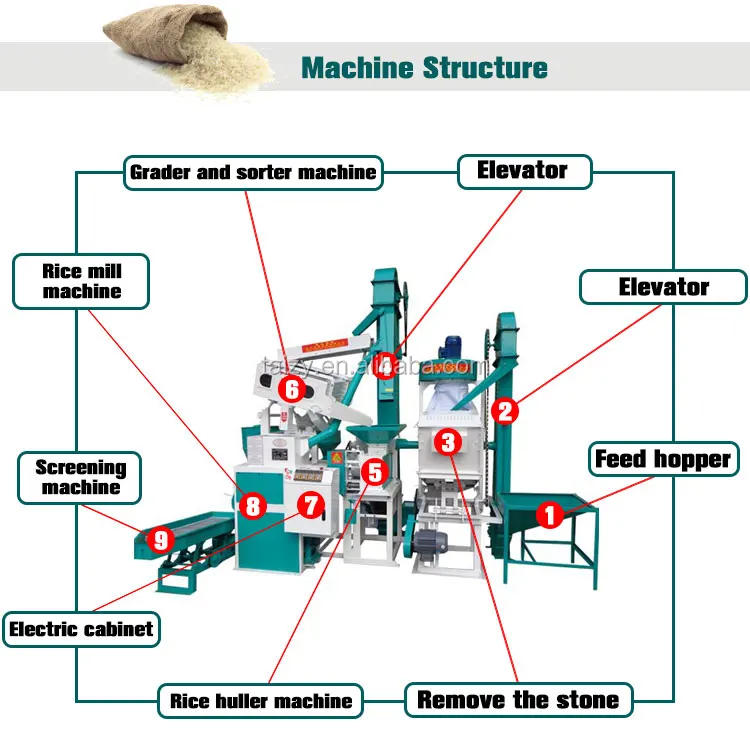

Specification | Function |
1-Rice hopper | Inlet |
2-Single hoist | Lifting rice to suction gravity stone remover from a dust belt |
3-Suction gravity stone remover | Remove stone and straw from Rice |
4-Automatic rice husking machine | Remove the husk from the rice and turn the rice into brown rice. |
5-Twin hoist | It consists of two bucket belts. One is brown rice after the husk is broken by a lifting thresher and the other is gravity sieve. The other is rice which is cleaned by a lifting and sucking specific gravity stone remover. |
6-Gravitational sieves | Completely separate rice from brown rice. |
7-Power Distribution Box | They are all contactors. Control the start of each motor. |
8-Negative pressure rice mill | Whitening and polishing brown rice |
9-Broken rice grading screen | Separating broken rice from finished rice |
10-Grinder | (crushed chaff and rice bran). |
Motor model | Matching parts of motor | |
0.75KW-6 level (960 RPM) | 6-Gravitational force screen(one) | 5-Twin hoist(one) |
1.1KW-4 level (1420 RPM) | 3-Suction gravity stone remover(Small motors for stone removal)(one) | |
1.1KW-2 level (2800 RPM) | 3-Suction gravity stone remover(Small motors for stone fans)(one) | |
22KW-4 level (1460 RPM) | Grinder,8- negative pressure rice mill and 4- automatic rice hullers One motor (one) | |
15KW-4 level (1460 RPM) | If customers do not want 10 crusher. 8- negative pressure rice mill and 4- automatic rice hulling machine share a 15 kilowatt motor. | |
550W-4 (1320 RPM) | 9-Broken rice grading screen (one) | |
Total power of a machine:26.25KW(Grinder containing 10-)6 motorsFine bran type 19.25KW(10- pulverizer)6 motorsBran type | ||
Machine length: 3 m 3, width: 2 m 6, height: 2 m 9 | ||
The number of packages is 3 pieces.. Total: 10.9 party Length * width * high volume: 170*140*215=5.17 190*98*135=2.51 96*2.92*1.15=3.22 The main machines are all assembled together, the machine pallet is made of iron, and the four sides are hot pressing plates. Users can easily use them when they get home. | ||
Structure
Advantage
1. Rice milling machine machine is equipped with a rational layout ,compact structure and little noise in operation .
2. Rice processing machine is light and easy to operate with less power consumption and high productivity
3. The model can produce white rice with high purity that meets national standard, and with less chaff containing and broken rice,so it is a very good paddy rice processing machine for the countryside .
Working principle
1. Paddy first goes into machine through vibrating sieve and magnet device ,and then passes rubber roller for hulling .
2. After air blowing and air jetting to the milling room ,the machine can finish the process of cleaning ,husking ,air blowing selecting , milling and polishing in succession .
3. The husk ,chaff ,runtish paddy ,and white rice are pushed out of machine respectively .
