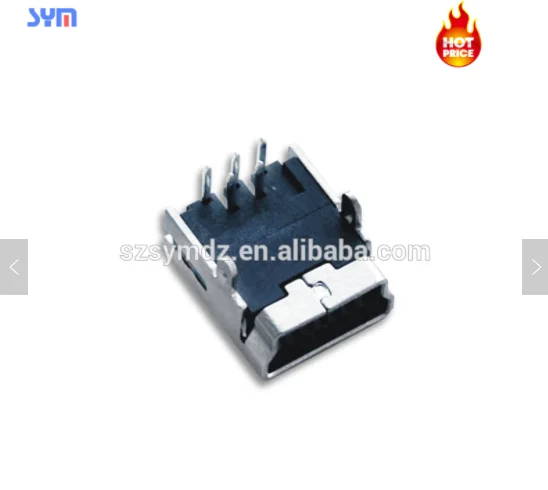

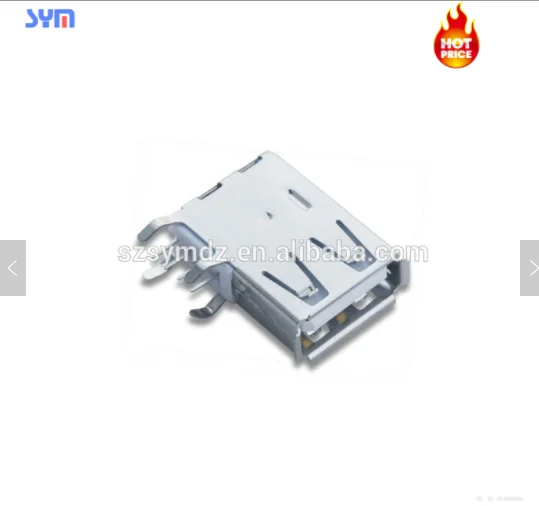

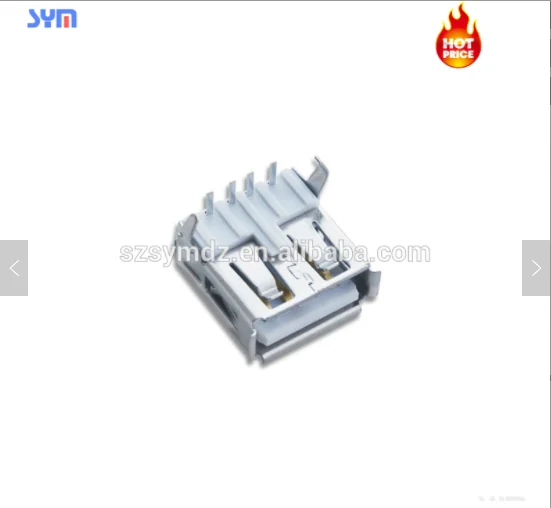

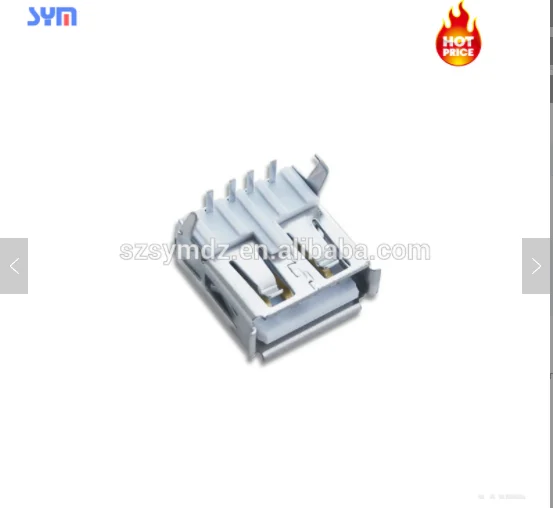

pcb cable 2.0 3.0 5 6 8 pin female micro usb mini usb connector
- Category: >>>
- Supplier: Shenzhen Shenyangming Electronics Co. Ltd.
Share on (62088970386):
Product Overview
Description
Product DescriptionSpecifications:
1, Dielectric Withstanding Voltage: AC 500V(RMS)
2, Contact Current Rating: 1.5 Amperes
3, Contact Resistance: 30Milliohms Max
4, Insulation Resistance: 1000 Megohms Min
5, Mating Force: 35N Max
6, Unmating Force: 10N Min
Materials:
1, Housing: LCP.Nylon or PBT(94V-0), color: White or Black
2, Contact: Copper alloy
3, Shell: Copper alloy or SPCC
Plating:
1, Contact: Au Plated on contact area
Tin Plated on Solder area
Nickel underplating over all
2, Shell: Nickel Plated
FAQ
Q: Do you have stock?
A: We don’t have stock; we’ll start production after receiving PO.
Q: How can I get quotation?
A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
