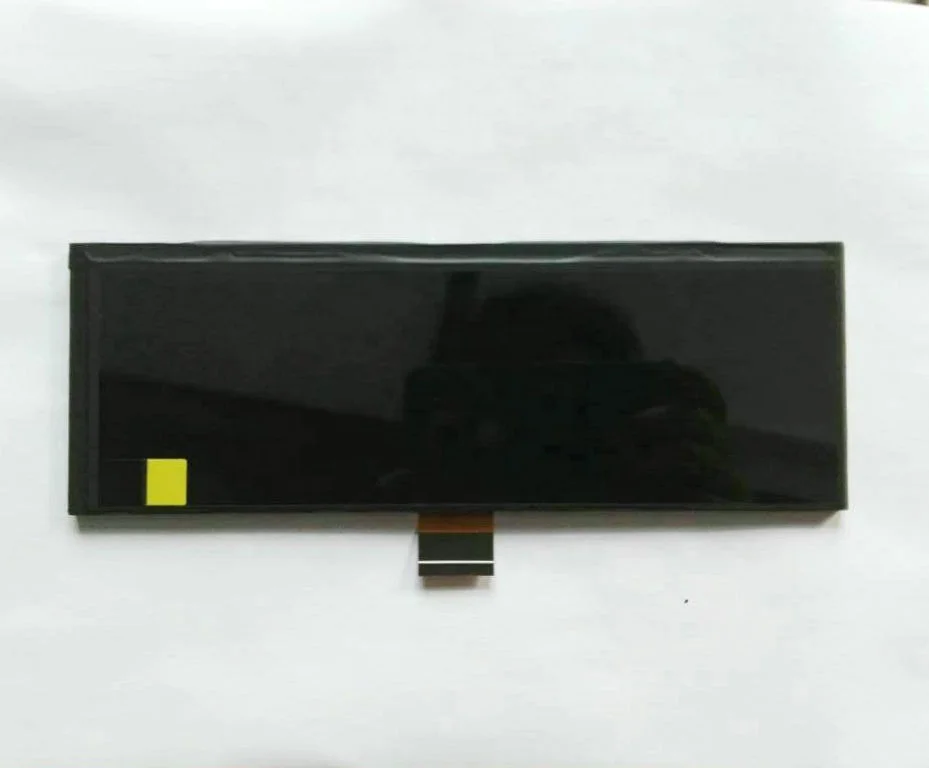

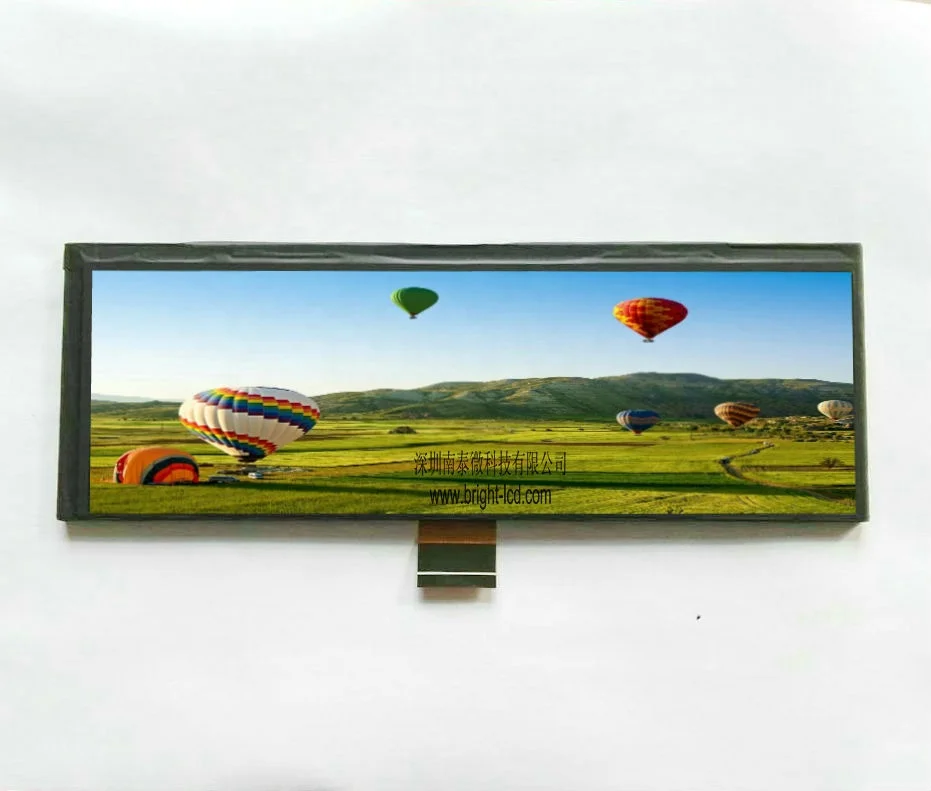

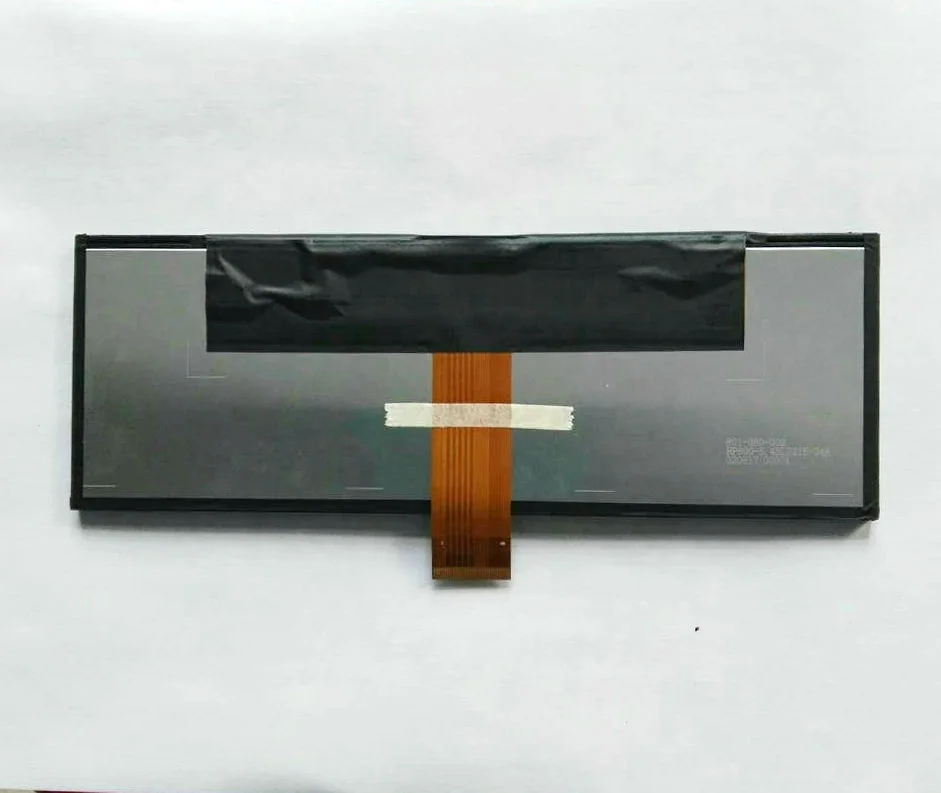

Bar Type TFT Display 8inch 1600x480 LCD for Smart home
- Category: >>>
- Supplier: Shenzhen Nantaiwei Technology Co. Ltd.
Share on (62089068112):
Product Overview
Description
Product Description
| Size | 8.0" |
| Resolution | 1600x480 |

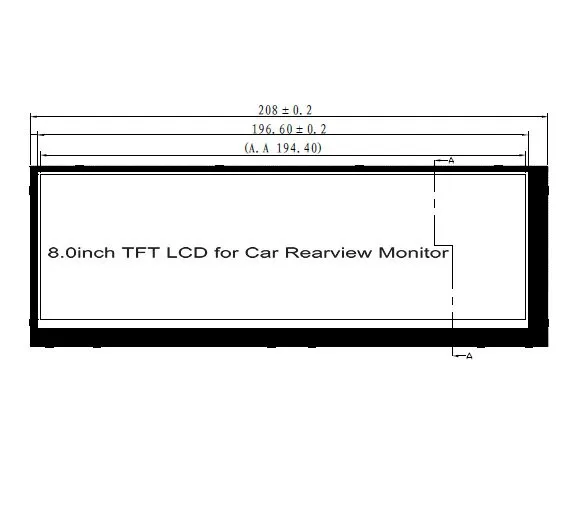

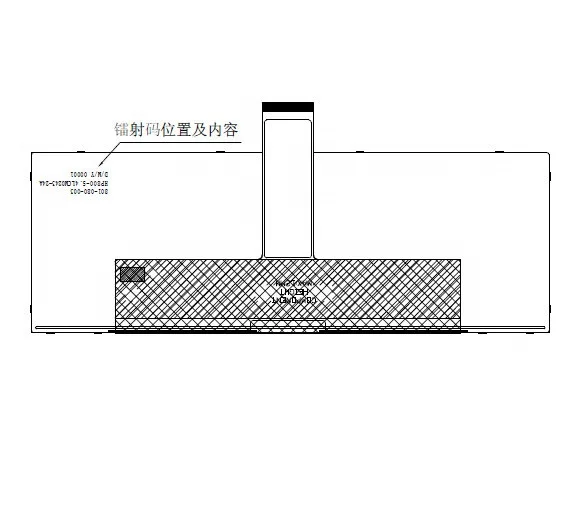

| Outline size | 208×73×1.0 |
| Active Area | 194.4×58.32 |
| Viewing Direction | ALL |
| Driver IC | HX8249 |
| Interface | LVDS |
| Touch panel | Capacitive touch optional |
| MOQ | 1 PC |
| Remark | IPS,40PIN, 500nits, 24 LEDs |
| Trade terms | FOB Shenzhen |
| Payment | 30% deposit and |
| 70% T/T before delivery | |
| Lead time | 15-25 days |
| Other Products | 1-15inch TFT, OLED, IPS, Driver board |
Advantages:
1. Special bar type tft lcds give you different products.
2. IPS screen give you better viewing angle.
3. 1600x480 high resolution brings you clearer image.
4. Can with Capacitive touch panel.
5. Can with HDMI input controller board.
Application:
Smart home, Car rearview monitor, Price tags , Supermarket advertising ,Slot machine,gambling machine.
Smart home tft lcd display:

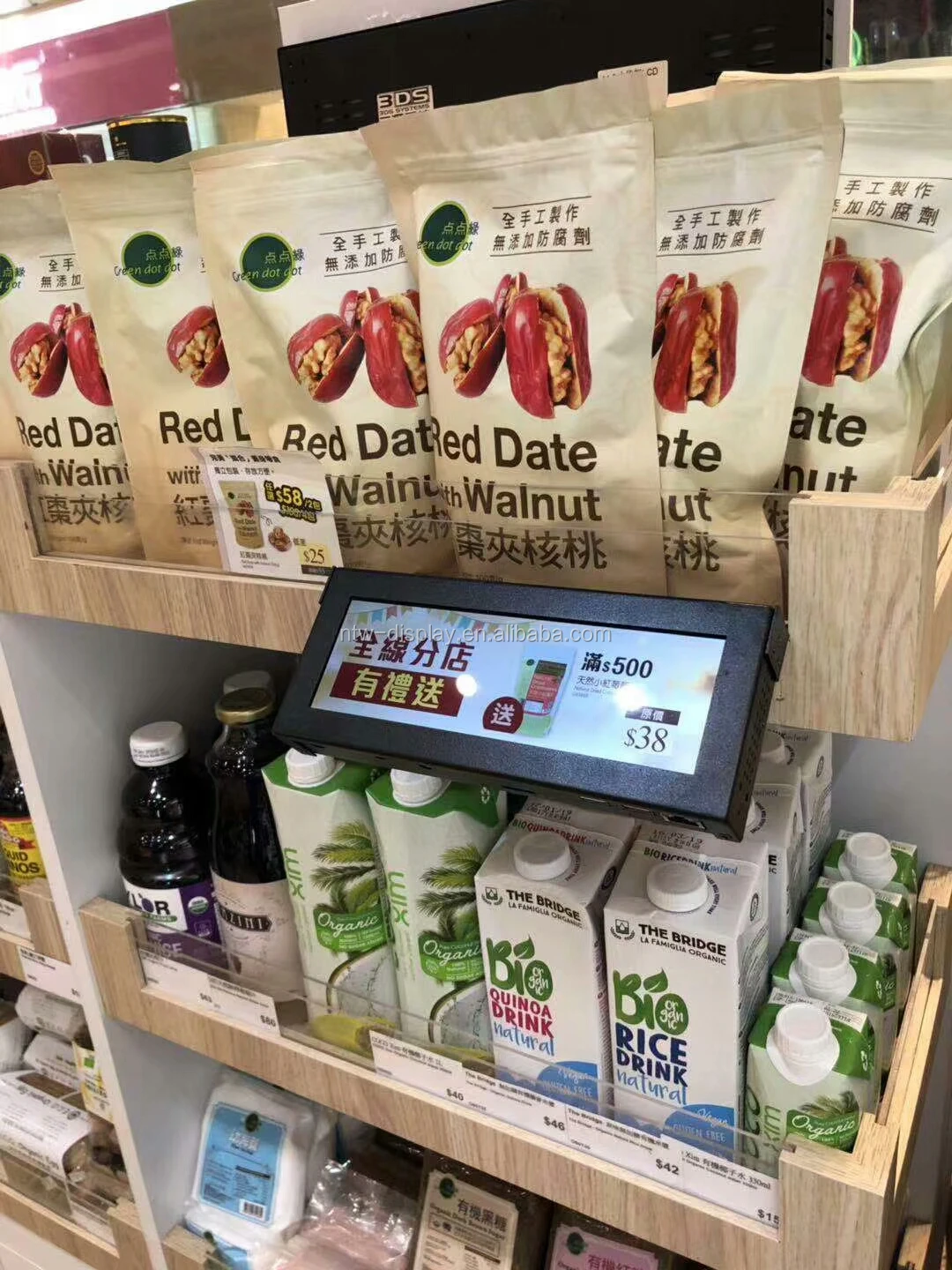

Price tags lcd:

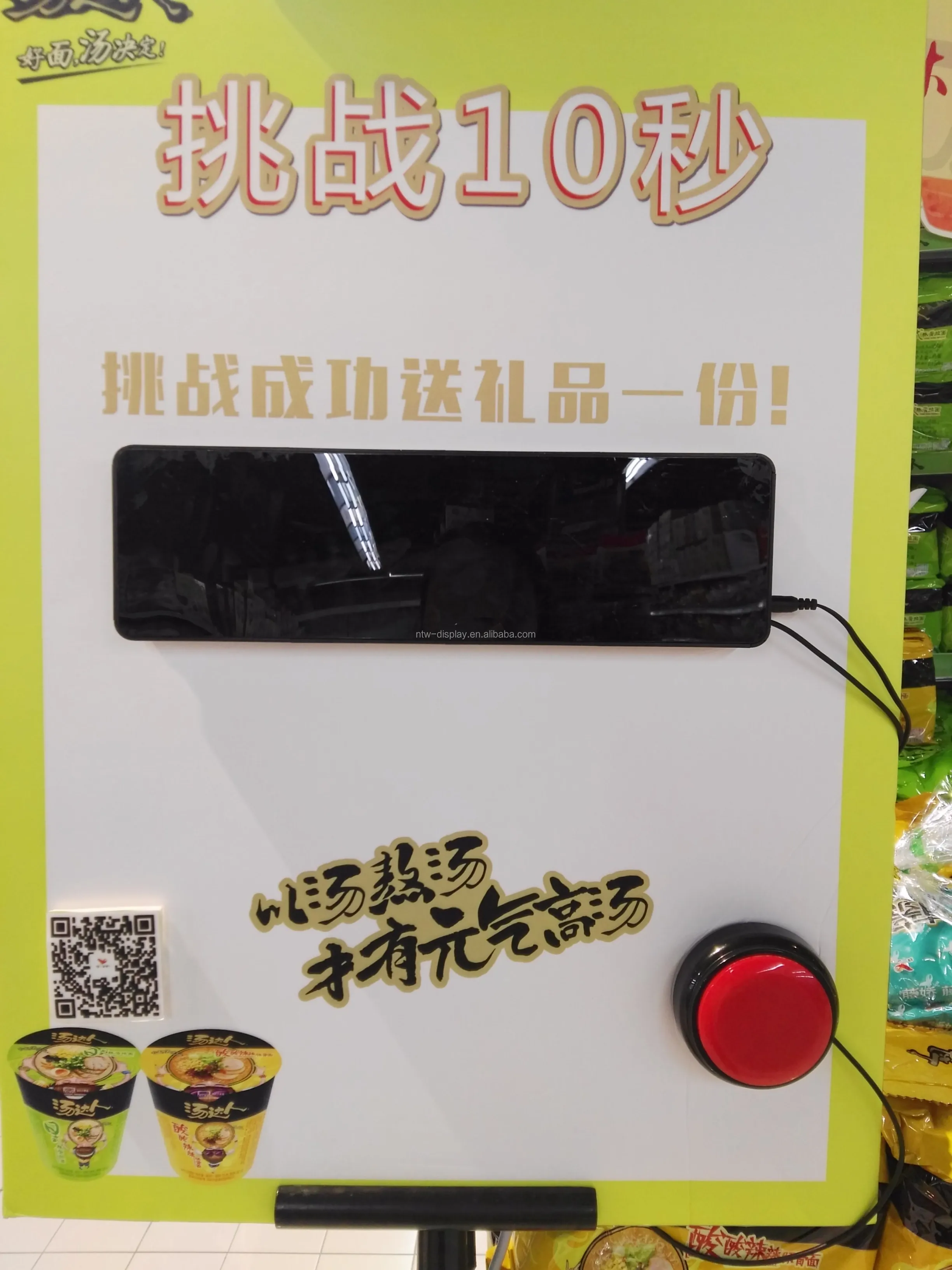

Supermarket Advertising lcd:
| Size | Model | Resolution | Outline size | Active Area | Viewing Direction | Driver IC | Interface | Touch panel | MOQ | Remark |
| 6.86" | NTW686M40 | 480x1280 | 66.5 x 180.8 x 7.15 | 60.22x160.59 | ALL | EK79030 | MIPI | / | 1 PC | IPS,40PIN, 550nits, 12 LEDs |
| 6.86" | NTW686L40 | 480x1280 | 66.6 x 181 x 7.15 | 60.22x160.59 | ALL | EK79030 | LVDS | / | 1 PC | IPS,40PIN, 500nits, 12 LEDs |
| 7.84" | NTW784B30 | 400x1280 | 67.6 x 205.78 | 59.4x190.08 | ALL | EK79030 | MIPI | / | 1 PC | IPS,30PIN, 500nits, 24 LEDs |
| 8.0" | NTW800L40 | 1600x480 | 208×73×1.0 | 194.4×58.32 | ALL | HX8249 | LVDS | CTP | 1 PC | IPS,40PIN, 500nits, 24 LEDs |
| 8.8" | NTW880M30 | 480x1920 | 64.3x231.1 x 4.8 | 54.72x218.88 | ALL | MIPI | / | 1 PC | IPS,30PIN, 600nits, 10 LEDs |
Packing term
- Protect product with polyfoam and multiple layer paper board
- Special protect carton for exporting product
- As Per customer's requirement
Delivery term
- For samples, we usually will keep a few stocks and ship within 3-7 working days
- We usually arrange DHL, UPS, FedEx express to ship samples
- For bulk orders, usually 25-30 working days
- For bulk orders, we support shipping by air or by sea as per customers requirements
Custom design solutions
- We support both standard and customized products and can put your logo on the products
- Our experienced R and D team will support technical questions
Our advantages
- Prompt reply within 12 hours
- Products with top quality
- More than 8 years of experience in LCD R and D and manufacturing
- Strong R &D team supports customized projects
- Fabulous after-sale service
