brick making machinery with German technology and produced in Shandong Province,China
- Category: >>>
- Supplier: Shandong Mine Machinery Cosmec Construction Materials Co. Ltd.
Share on (62089073434):
Product Overview
Description

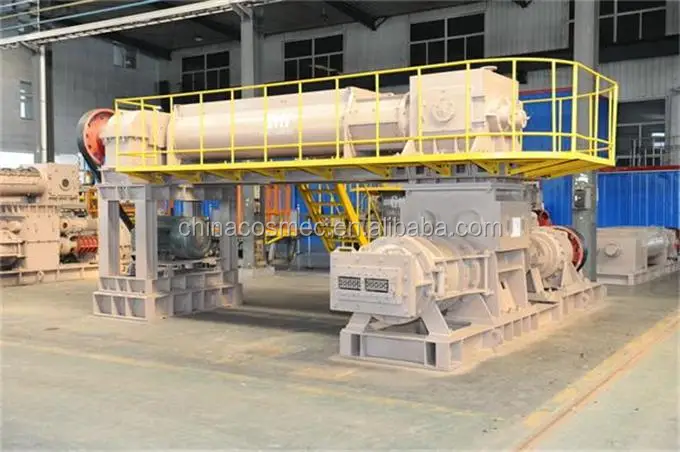

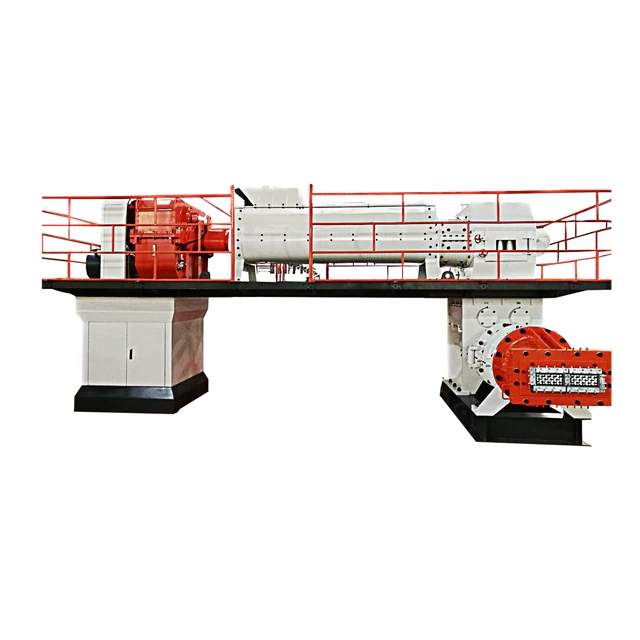

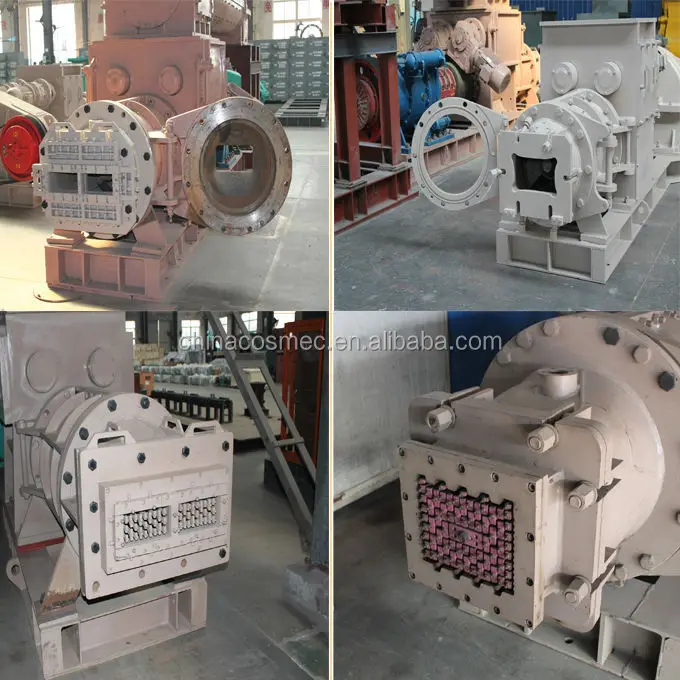

Vacuum Extruder for brick making production line with German technology
Technical Parameter
| Model No | Capacity (pcs/gh) | Power(kw) | Extruding pressure(Mpa) | Vacuum pressure(Mpa) | Dim(mm) |
| VP45A | 10000-15000 | upper55 lower110+7.5*2 | ≤4 | ≤0.092 | 7300*2700*2500 |
| VP45B | 10000-15000 | upper55 lower110+7.5*2 | ≤3 | ≤0.092 | 7300*2700*2500 |
| VP50A | 12000-16000 | upper55 lower132+7.5*2 | ≤4 | ≤0.092 | 7300*2700*2500 |
| VP50B | 12000-16000 | upper55 lower132+7.5*2 | ≤3 | ≤0.092 | 7300*2700*2500 |
| VP70A | 15000-21000 | upper90 lower250+2*15 | ≤4 | ≤0.092 | 7000*2500*2500 |
| VP70A- Ⅱ | 20000-28000 | upper90 lower250+2*15 | ≤3 | ≤0.092 | 7590*2920*2885 |
| Notes | 3.5kg/pcs | (L.W.H) |
The following is part of brick sample which auto brick making machine can produce .
Production Line

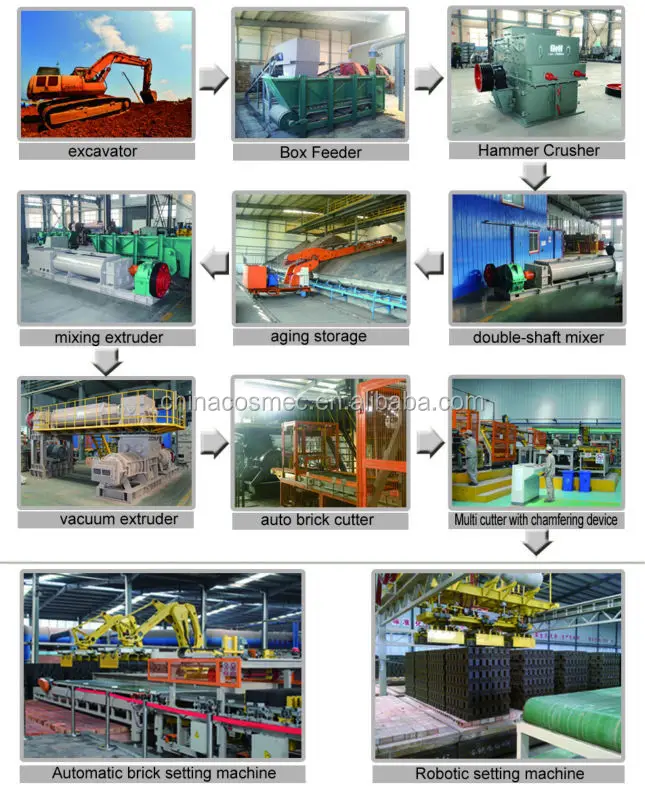

The whole set of machinery of clay brick production line
No. | Machinery |
1 | Box feeder |
2 | Belt conveyor |
3 | Primary roll crusher |
4 | Belt conveyor |
5 | Double shaft mixer |
6 | Belt conveyor |
7 | High speed roll crusher |
8 | Belt conveyor |
9 | Double shaft mixer |
10 | Belt conveyor |
11 | Double stage de-airing extruder |
12 | Vacuum pump |
13 | Air compressor |
14 | Auto brick cutting system |
15 | Belt conveyor (waste brick return to mixer) |
16 | Control panels |
17 | V Belt |
18 | Spare parts |
19 | dryer |
20 | kiln |

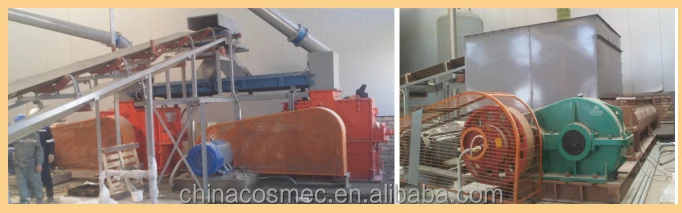

Clay brick production line
1.Box Feeder
This machine is used for constant feeding of raw material before grinding
2.Crusher
This machine is used for crushing the raw material.
3.Mixer
This machine is used for mixing the raw material and the water.
4.Brick making machine
It is used for making the green brick strips.

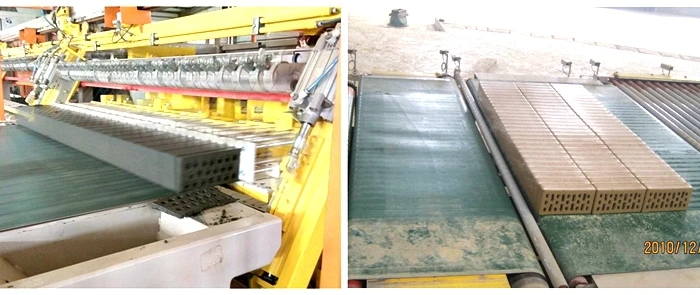

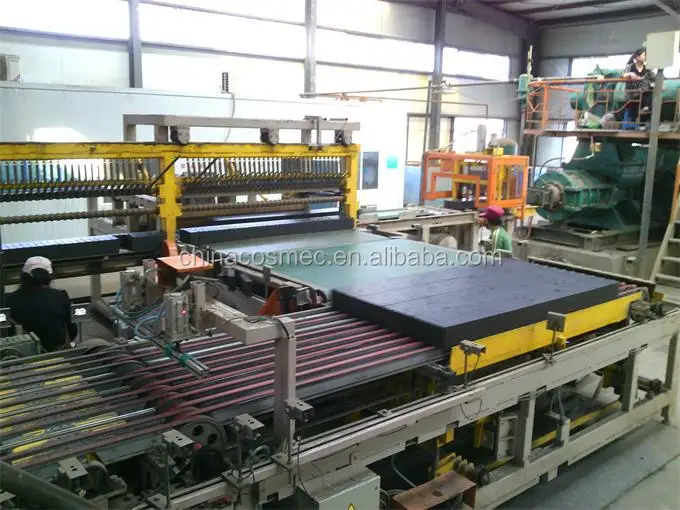

5.Cutter
It is used for cutting the adobe strip into the green brick according to different size requirement
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Packaging & Shipping
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete brick making machine for clay parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will
be new when arriving at customer hand.
3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
Contact Us
I am here waiting for you.
Our website: www.chinacosmec.cn
Moblie Phone:+8618660688260
Whatsapp or Wechat :0086 18660688260
E-mail:anqiyuli at 163.com
How to visit us or check brick machine quality
If you want to visit our Chinese factory, please note our city name, Weifang city.
Our air port name is : Qingdao orJinan International air port.
Train station name is: Qingdao,Jinan or Weifang train station
