CF 3LKH Alumina Zirconia powder wax kneading machine for CIM
- Category: >>>
- Supplier: Dongguan C Fine Machinery Technology Co. Ltd.
Share on (62089212063):
Product Overview
Description
Products Description

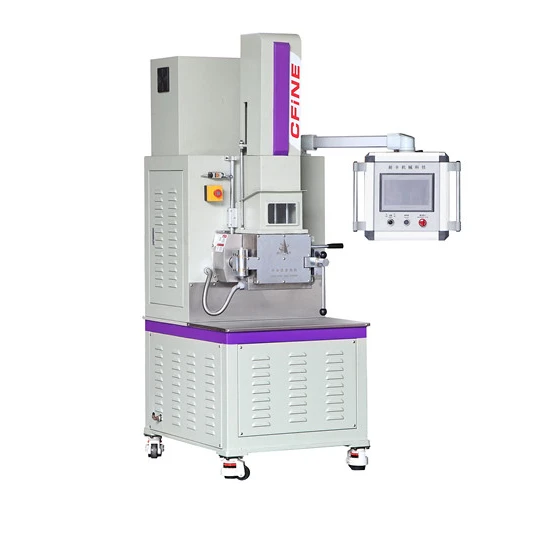

CF-3LKH Alumina Zirconia powder wax kneading machine for CIM

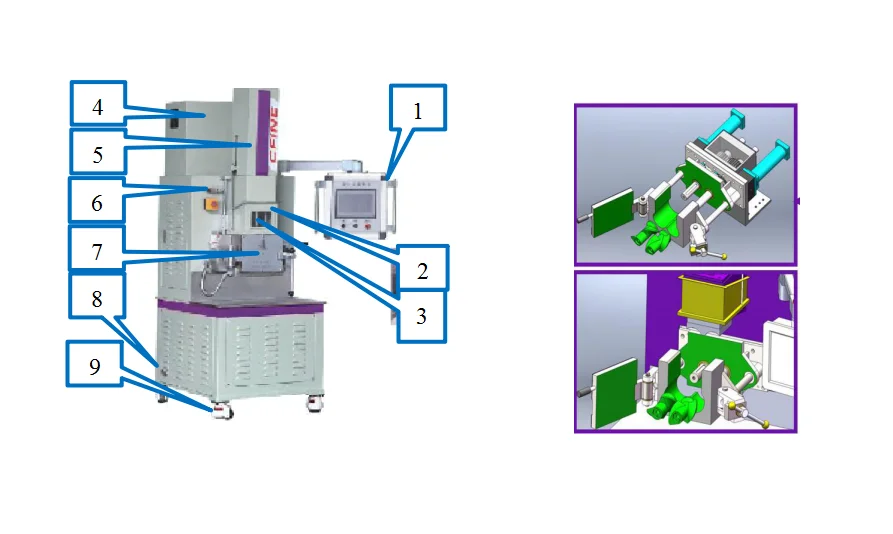

1: Operation panel 2: Dust cover 3: Pressing ram 4: Electric control box 5: Cylinder 6: Interlock switch 7: Mixing chamber 8：Cooling water inlet and outlet. 9: Caster
Applications:
1. Alumina.
2. Zirconia.
3. Zirconia Toughened Alumina.
4. Nitride, carbide ceramics, etc.
3. Zirconia Toughened Alumina.
4. Nitride, carbide ceramics, etc.
End Products：
1. For small precision components which would be costly to produce by alternative methods.
2. It is capable of producing in both large and small volumes
3. Complex shapes
4. From almost all types of material s including metals, ceramics, intermetallic compounds, and composites.
2. It is capable of producing in both large and small volumes
3. Complex shapes
4. From almost all types of material s including metals, ceramics, intermetallic compounds, and composites.
Details Images
Heating rods
The mixing chamber is heated by heating rods.
It takes 30 minutes from room temperature to 200 degrees.

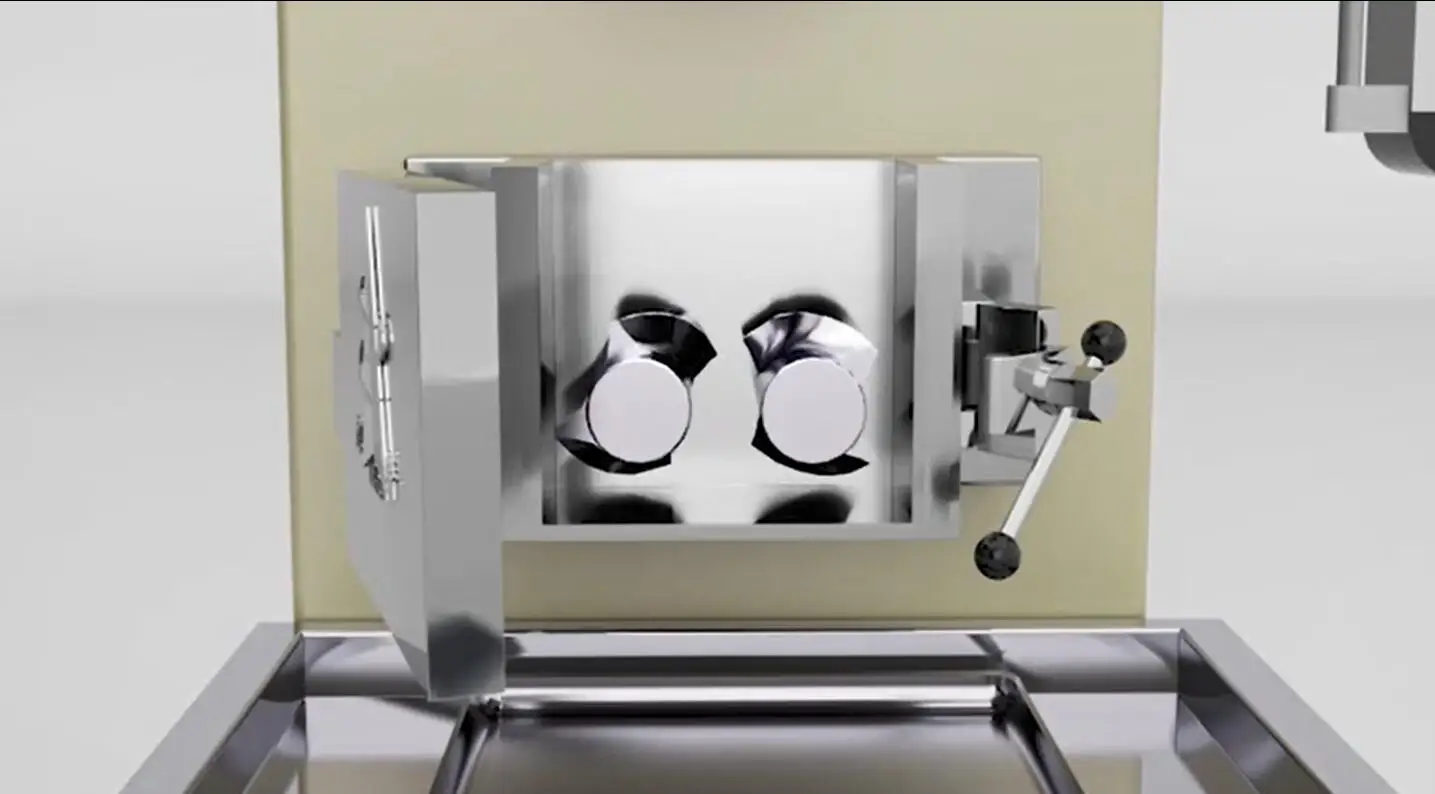

Rotors
The mixing chamber can be opened and the rotors can be taken off when cleaning.
Great performance in cooling
Sealing ring.
Mechanical shaft seal .
The sealing rings are made of Special materials.
No leakage of powder and additives.

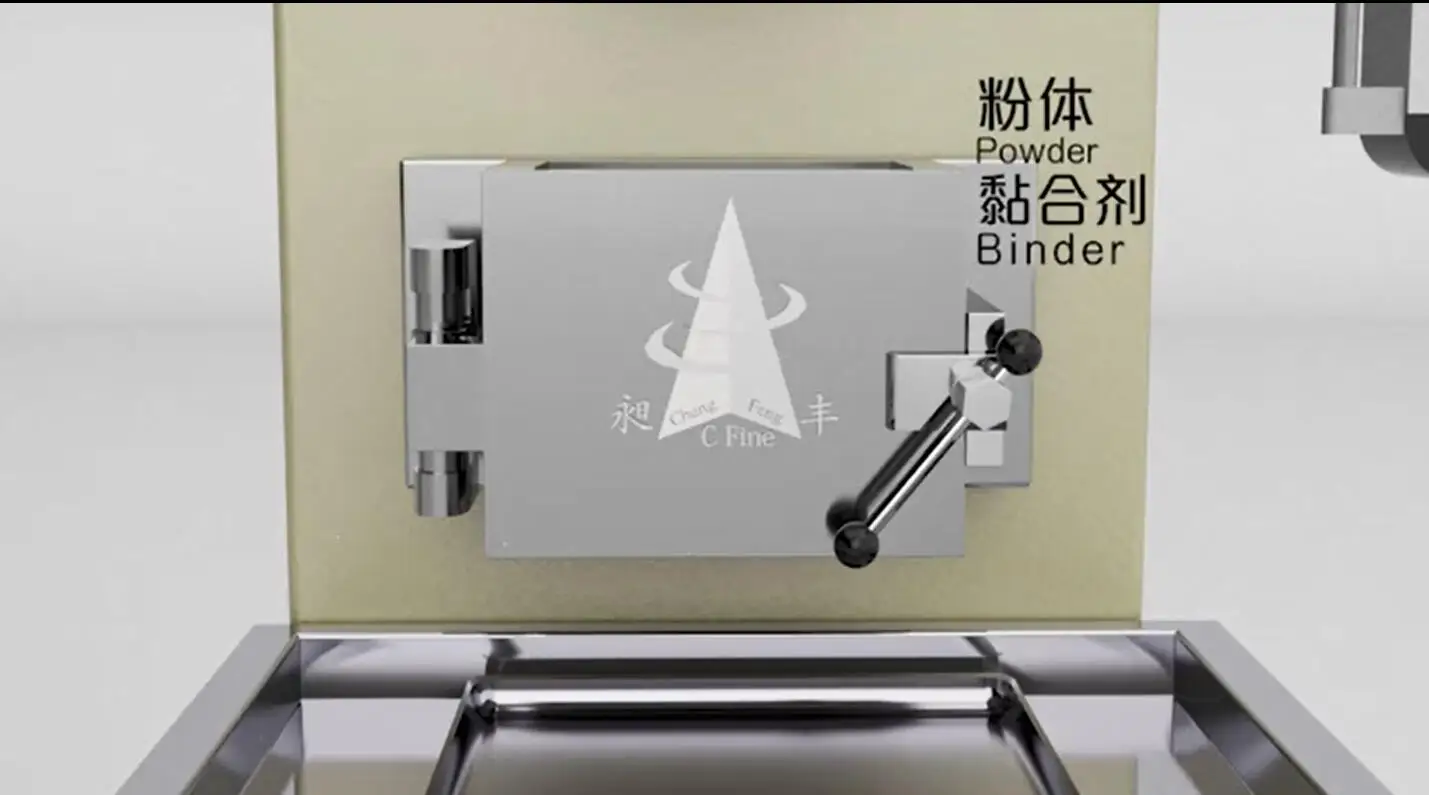

Pressing ram and Mixing chamber.
The pressing ram, rotors and mixing chamber are made of special alloy.
Wear-resistant ,Long service life, High strength.
Frequency converter
TECO Frequency converter is equipped.
The speed of the rotors is adjustable to prevent the powder from flying.
Temperature probe.
The temperature probe is placed at the bottom of the mixing chamber.
Direct measurement of the material temperature, accurate temperature control.
Why Choose Us:
1) High uniformity, no differences between batches.
2) High efficiency, 120-180 minutes per batch. Easy to clean. Shorter interval between batches.
3) Wide range of usages, suitable for mixing of multiple ceramic powders materials and binders.
4) Save time, save money, better end products.
2) High efficiency, 120-180 minutes per batch. Easy to clean. Shorter interval between batches.
3) Wide range of usages, suitable for mixing of multiple ceramic powders materials and binders.
4) Save time, save money, better end products.
5) We are a manufacturer, have independent R & D capabilities, and provide lifelong technical support.
Equipment model and parameters:
Model | Working volume | Motor | Cylinder | Bearing | Speed of rotors (L/R) | Weight （Kgs） | Dimension |
CF-1LKH | 1 L | 4KW | ￠63mm | NSK | 40/31 r/min | 950 | L1000*W850*H2150MM |
CF-3LKH | 3 L | 7.5KW | ￠80mm | NSK | 40/31 r/min | 2080 | L1300*W1280*H2380MM |
CF-5LKH | 5 L | 11KW | ￠110mm | NSK | 40/31 r/min | 2530 | L1300*W1300*H2370MM |
