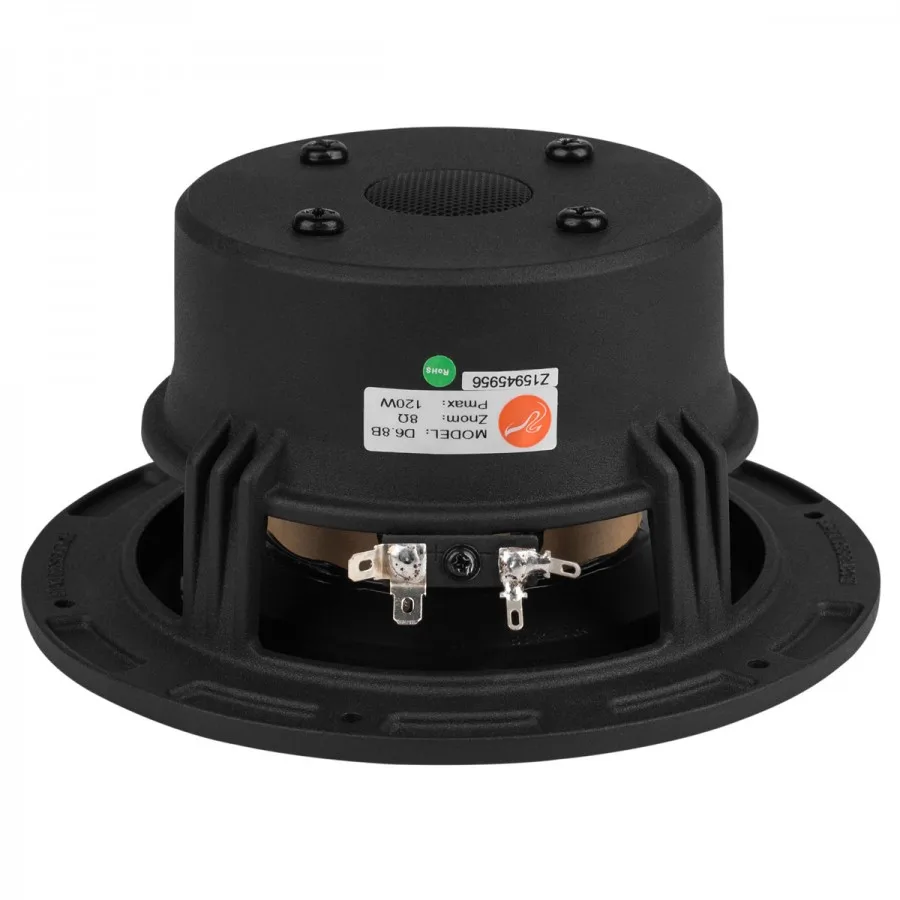

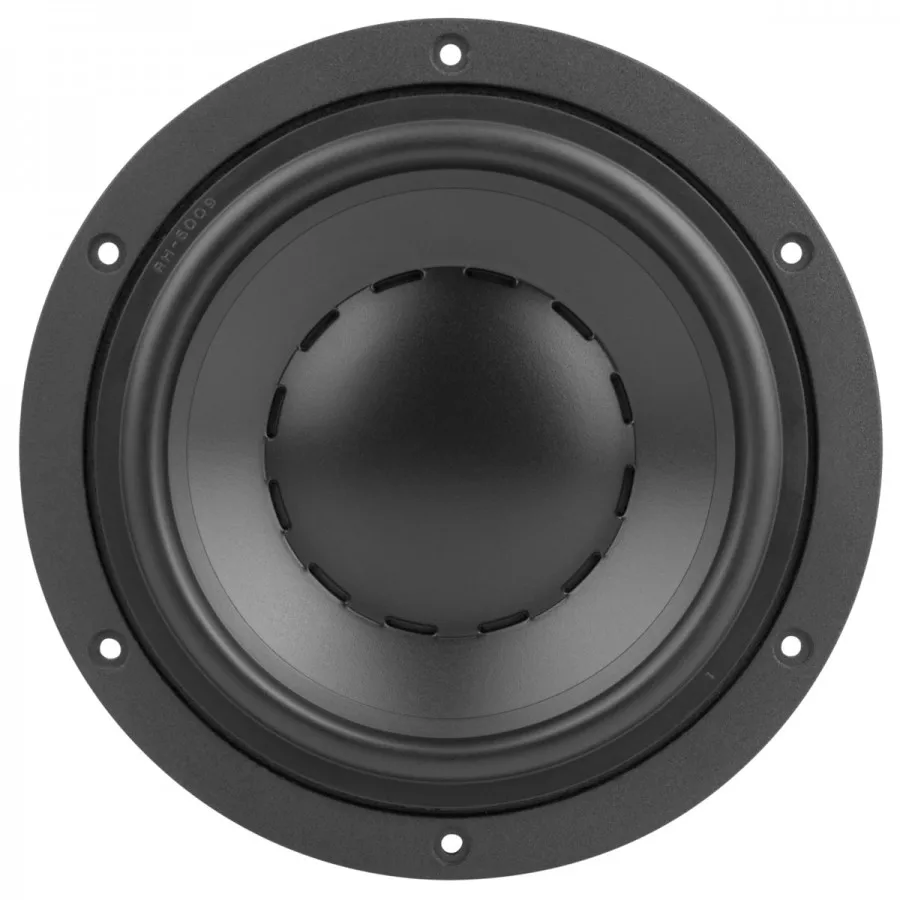

hivi Hi Fi swans D6.8B 6inch home audio midwoofer 120W 8 Ohm speakers heat resistant aluminum wire voice coil
- Category: >>>
- Supplier: Zhuhai Hivi Technology Company Limited
Share on (62089310544):
Product Overview
Description
Details
The "D" loudspeaker range from HiVi synthesizes all the technological advances made in recent years in the field of electroacoustics. It is also the expression of the extraordinary know-how of a team of engineers and music lovers resolutely at the forefront.
Highlights
- Shallow mineral-filled polypropylene cone
- Fatigue resistant foam surround;
- Long-throw symmetrically driving motor structure;
- Extreme power handling voice coil with 76mm diameter
- Black anodized aluminum former
- Progressive spider with decompressed rear volume.
- Unique Dual Magnet System Neodymium and ceramic
| Product type | Woofer / Midbass |
| Nominal diameter | 15.24cm (6") |
| Power | RMS: 60W Max: 120W |
| Impedance | 8 Ohm |

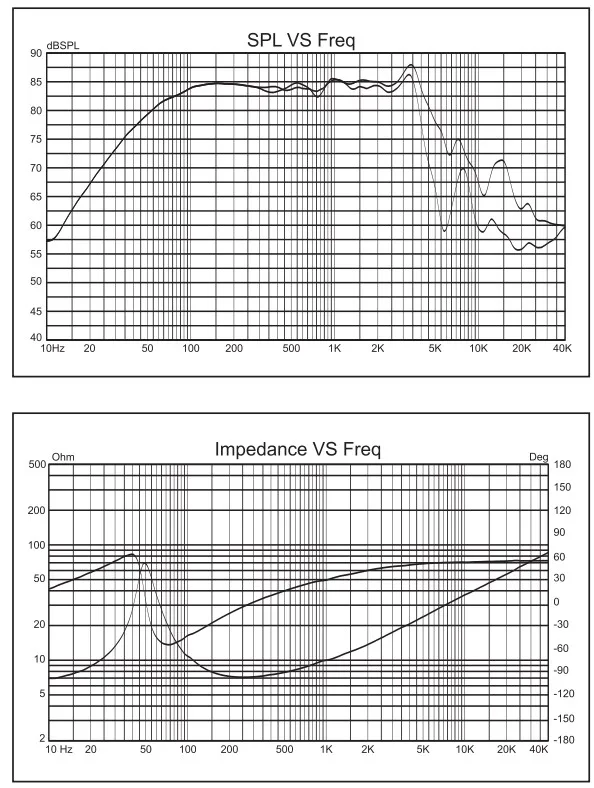

| Frequency response | 43Hz - 4000Hz |
| Sensitivity | 85dB 2.83V/1m |
| Voice coil diameter | 7.62cm (3") |
| THIELE / SMALL PARAMETERS | |
|---|---|
| Resonant frequency (Fs) | 43Hz |
| DC Resistance (Re) | 6.5 Ohm |
| Mechanical Q (Qms) | 5.21 |
| Electromagnetic Q (Qes) | 0.49 |
| Total Q (Qts) | 0.45 |
| Compliance equivalent volume (Vas) | 0.48ft³ |
| Mechanical compliance of suspension (Cms) | 0.647mm/N |
| BL Product (BL) | 8.7Tm |
| Diaphragm Mass Inc. Airload (Mms) | 21.17g |
| Maximum linear excursion (Xmax) | 5.3mm |
| The surface area of a cone (Sd) | 121.2cm² |
| MATERIAL | |
|---|---|
| Cone material | Poly |
| Surround material | Rubber |
| Voice coil wire diameter | CCA |
| Voice coil former | Kapton / Polyimide |
| Frame material | Aluminum |
| Magnet material | Neodymium |

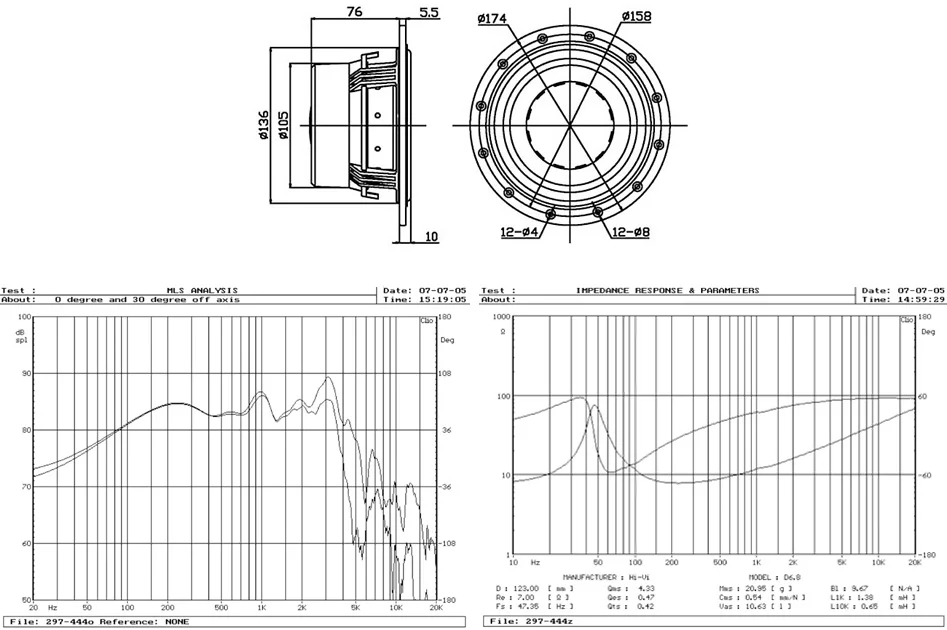

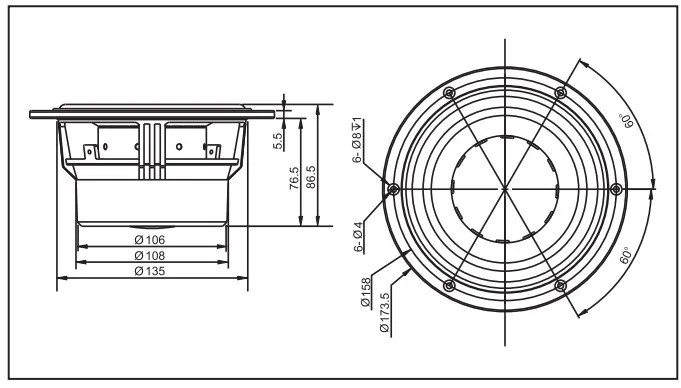

| MOUNTING INFORMATION | |
|---|---|
| Overall outside diameter | 17.35cm (6.83") |
| Cutout diameter | 13.5cm (5.315") |
| Depth | 8.64cm (3.4") |
| Bold circle diameter | 15.8cm (6.22") |
| Fixation holes number | 6 |
| OPTIMAL CABINET SIZE | |
|---|---|
| Sealed volume | 0.2ft³ |
| Sealed F3 | 81Hz |
| Vented volume | 0.53ft³ |
| Vented F3 | 42Hz |
