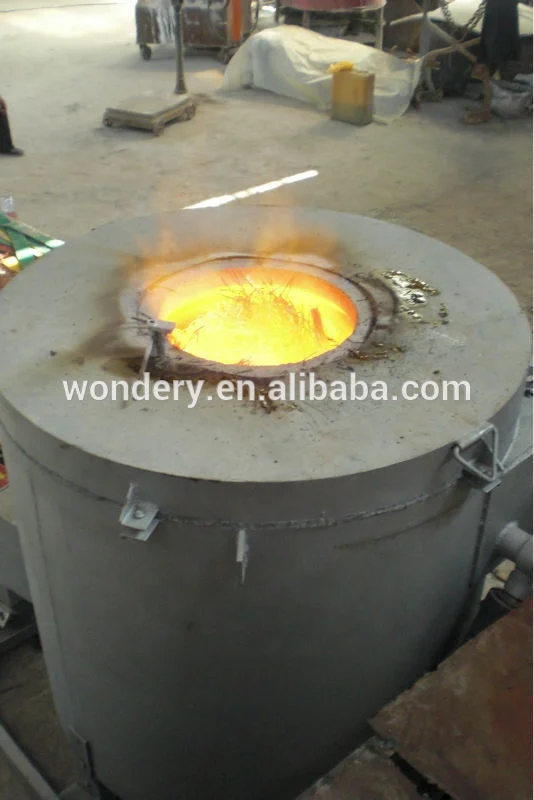

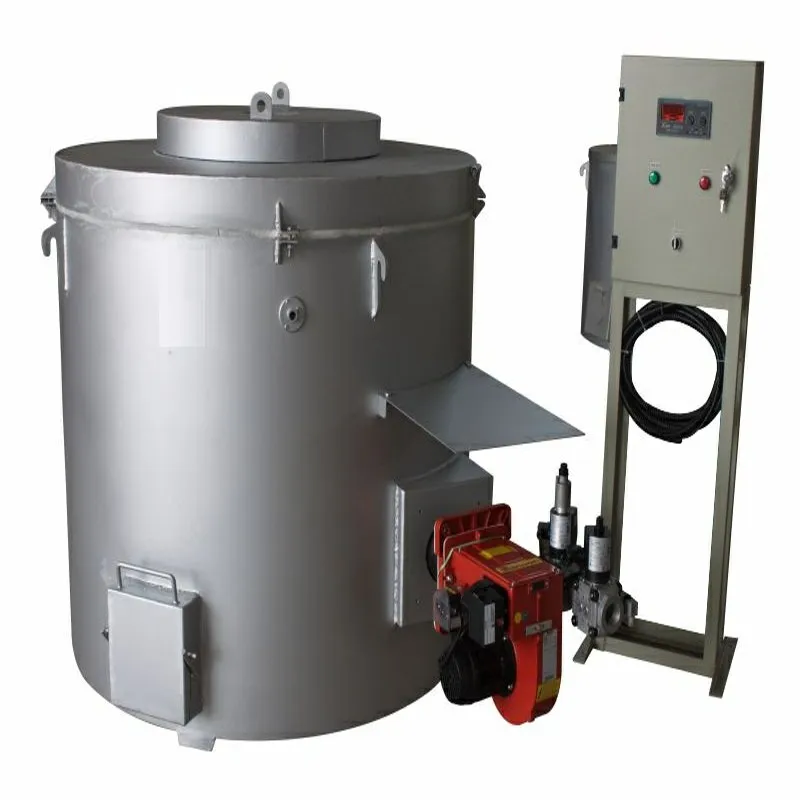

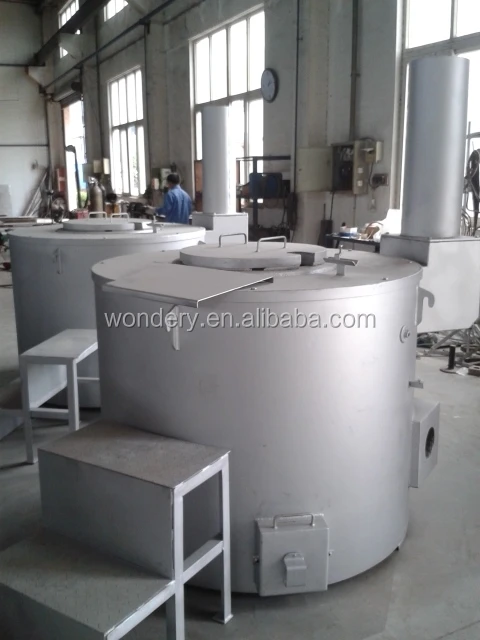

Diesel Oil 100kg Aluminum Crucible Melting Furnace
- Category: Industrial Furnace >>>
- Supplier: Wuxi Wondery Trading Co. Ltd.
Share on (62089550644):
Product Overview
Description
Product Description
Product Application
The Diesel Oil 100kg Aluminum Crucible Melting Furnace is used to melt aluminum at a rated temperature of 850°C.
100kg crucible melting furnace 100kg crucible melting furnace 100kg crucible melting furnace
SPECIFICATIONS FOR Diesel Oil 100kg Aluminum Crucible Melting Furnace | ||||||
Fuel | Diesel | Kcal/kg | 9600 | |||
Diesel consumption | kg/ton aluminum | 80-90 | ||||
Main Performance Parameters | Crucible capacity | kg | 100 | |||
Melting Cycle | hour | 2.5 | ||||
Rated working temperature | °C | 850 | ||||
Temperature uniformity | °C | ±15 | ||||
Crucible brand | Vesuvius or Morgan | |||||
Refractory lining | casting cement, heat preservation fiber, light refractory bricks | |||||
Burner | Riello burner | |||||
Detailed Images

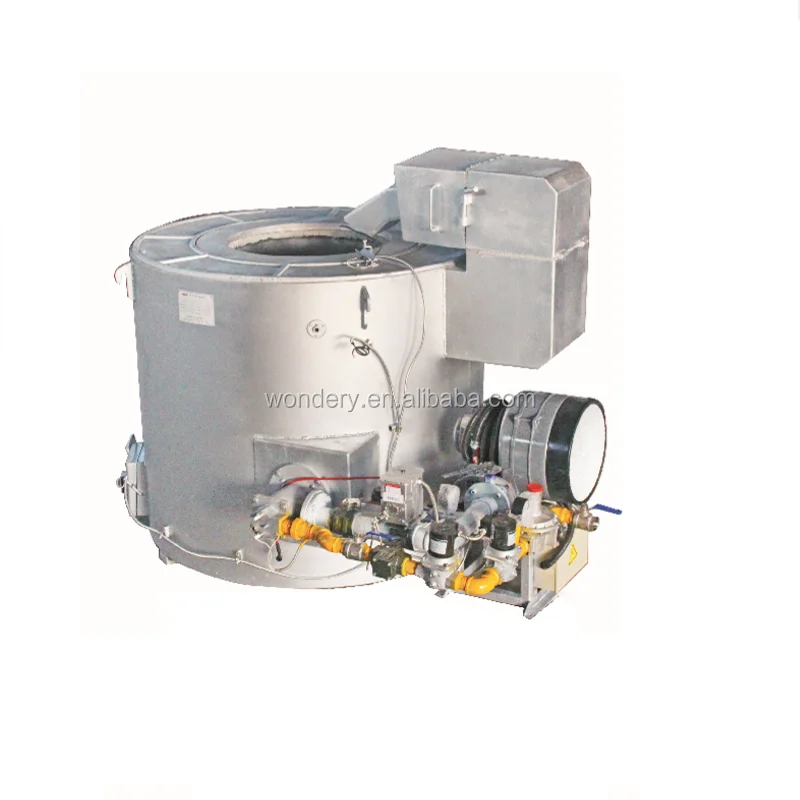

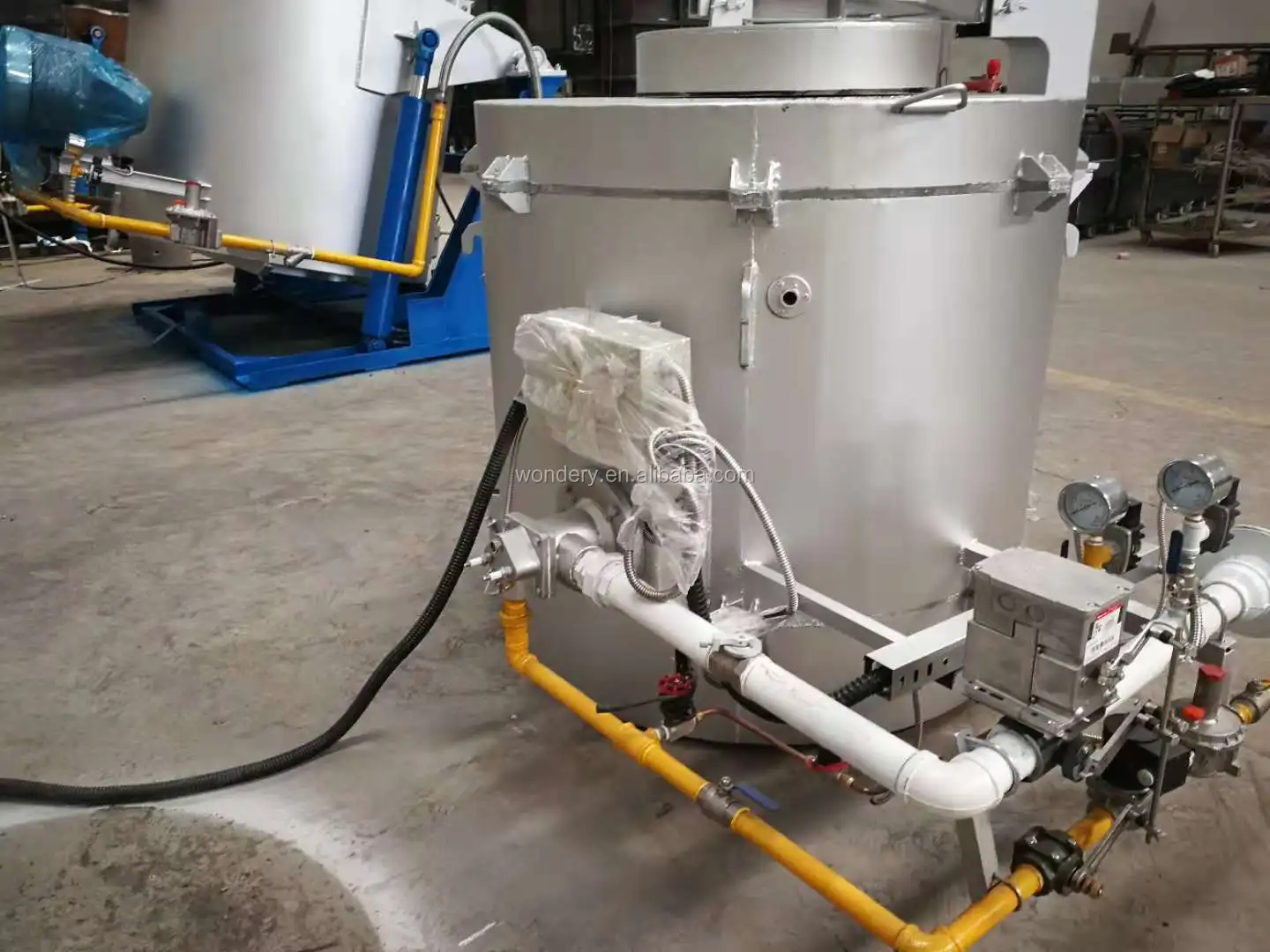

Burning System
Brand: Riello;
Function: temperature control, automatic ignition, flame detection, and automatic start-up or shut-off of the burner based on the temperature upper limit and lower limit.
Furnace lining
Brand: Allied Mineral Porduct Inc or famous domestic brand
Original: USA or China
The casting material has a long service life. It has a life of more than 3 years depending on user's operation conditions.
Emergency outlet hole
The furnace body is designed with an emergency outlet hole in case the crucible breaks.

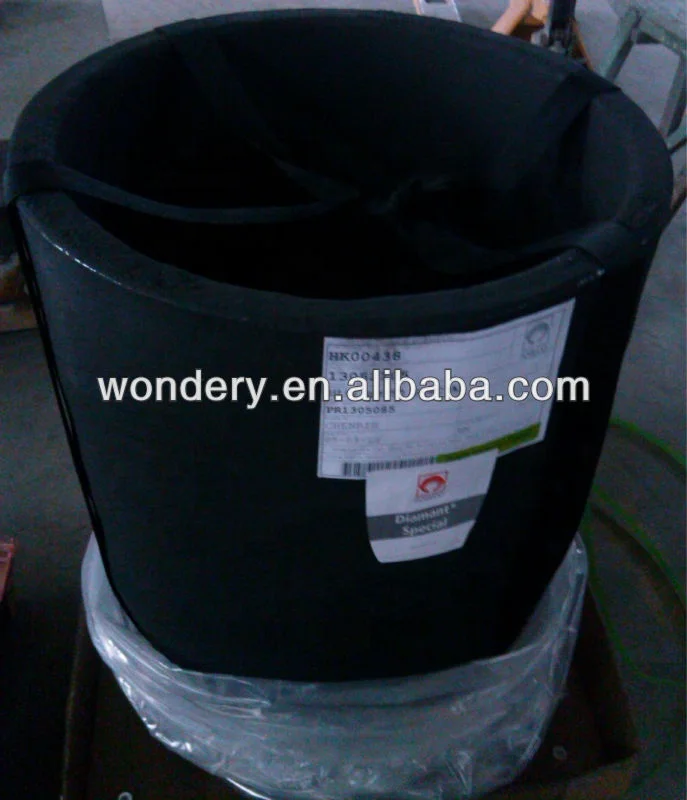

Graphite crucible
The graphite crucible is of quality brand Vesuvius or Morgan.
The capacity of crucible can be customized.
Electrical control system
The electrical control system is of quality brands such as CHINT, Omron, Delixi, etc.
Certifications

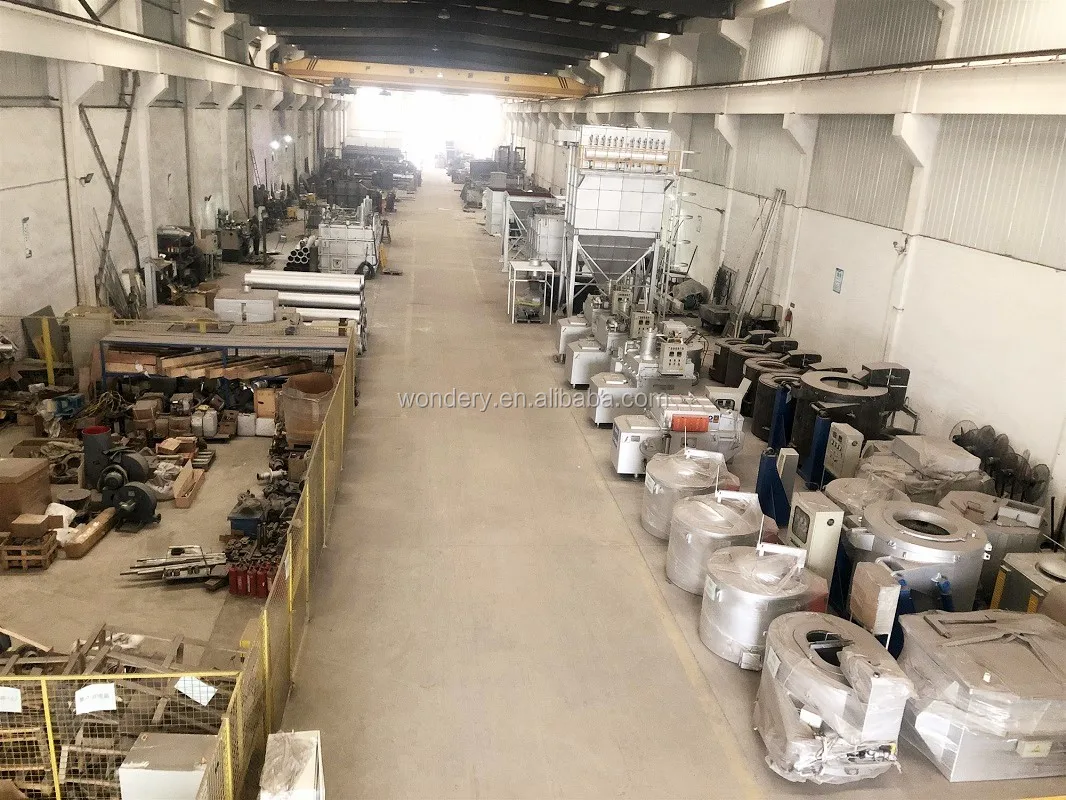

Company Introduction
Wuxi Wondery Trading Co., Ltd is a professional supplier of metal melting furnaces. We can supply the following products: electric resistance aluminum crucible melting furnace (300-1000KG), gas or oil fired crucible aluminum melting furnace (300-1000KG), gas or oil fired reverberatory aluminum melting furnace (max 25000KG), continuous gas or oil fired aluminum melting furnace,gas or oil fired aluminum rotary melting furnace (max 10000kg), electric aluminum holding furnaces, gas fired aluminum holding furnaces,gas or oil fired crucible copper melting furnace, zinc ash rotary melting furnace, lead battery rotary melting furnace.
Our melting furnaces are mainly used for melting metal with low melting point, and the max working temperature of our furnace is 1350 degree celsius. Our furnaces are widely used in the field of aluminum ingot production, high and low pressure die casting, copper industry, zinc ingot production, and lead battery recycling.
Our furnaces have been exported to Qatar, Saudi Arabia, Mexico, Philippine, Kenya, Pakistan, Canada, Egypt,Tanzania, etc.It is our company philosophy to serve every customer with our sincerity, professionalism and full effort. We warmly welcome every customer to come to China, visit us, and build a bright future through our mutual cooperation.
Packing & Delivery
Packaging | ||
Size | Various size | |
Weight | 1.8T | |
Packaging Details | If the customer orders the standby crucibles, the crucible is packed by the carton. The Furnace is protected by putting foam blocks inside and outside the crucible. Energy Saving Tilting Type Oil Fired Melting Furnace For Gold | |
Packaging | ||
Size | Various size | |
Weight | 1.8T | |
Packaging Details | The Diesel Oil 100kg Aluminum Crucible Melting Furnace is packed inside the plywood casebox. And the feet of the case leaves space for the forklift operation. Diesel Oil 100kg Aluminum Crucible Melting Furnace | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the furnace, training how to use the furnace.
* Engineers available to service machinery overseas.
