DG 4(10) Micro Flow DG peristaltic pump head for Atomic fluorescence analyzer
DG -4(10) Micro Flow DG peristaltic pump head for Atomic fluorescence analyzer
DG -4(10) Micro Flow DG peristaltic pump head for Atomic fluorescence analyzer

DG 4(10) Micro Flow DG peristaltic pump head for Atomic fluorescence analyzer

Share on (62089550891):


Price:$135.00 - $192.00

Quantity:


Product Overview

Description



Product Description


Micro Flow Lab design Multiple Channels Peristaltic pump head

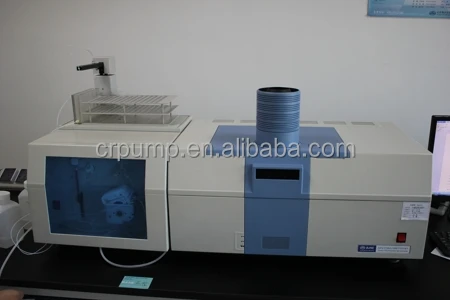

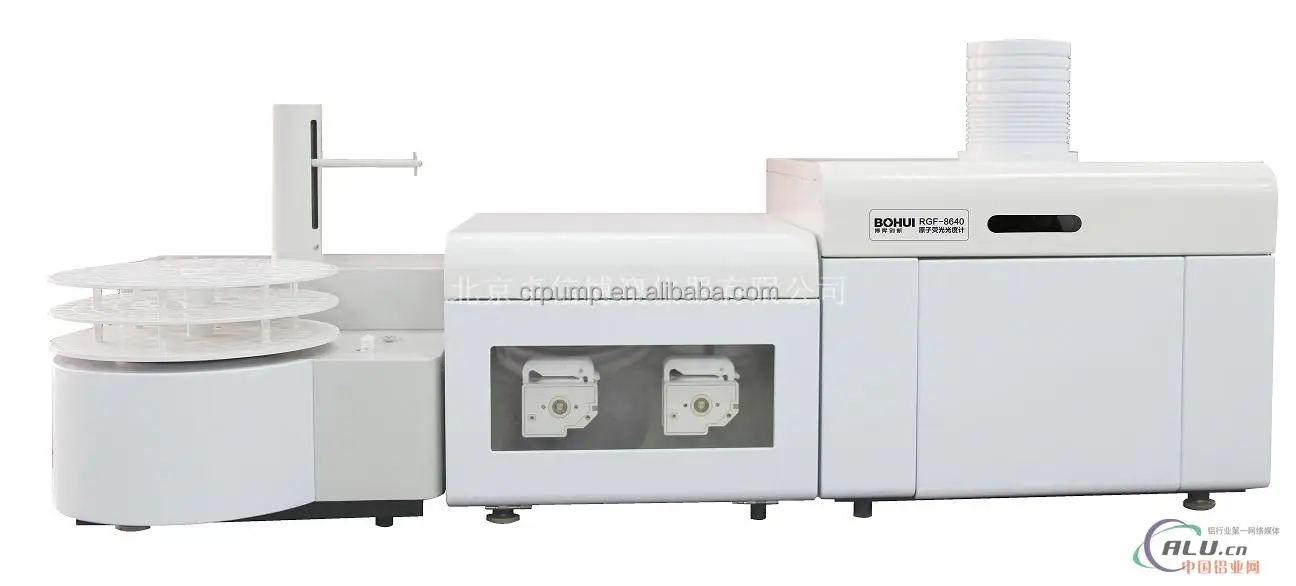

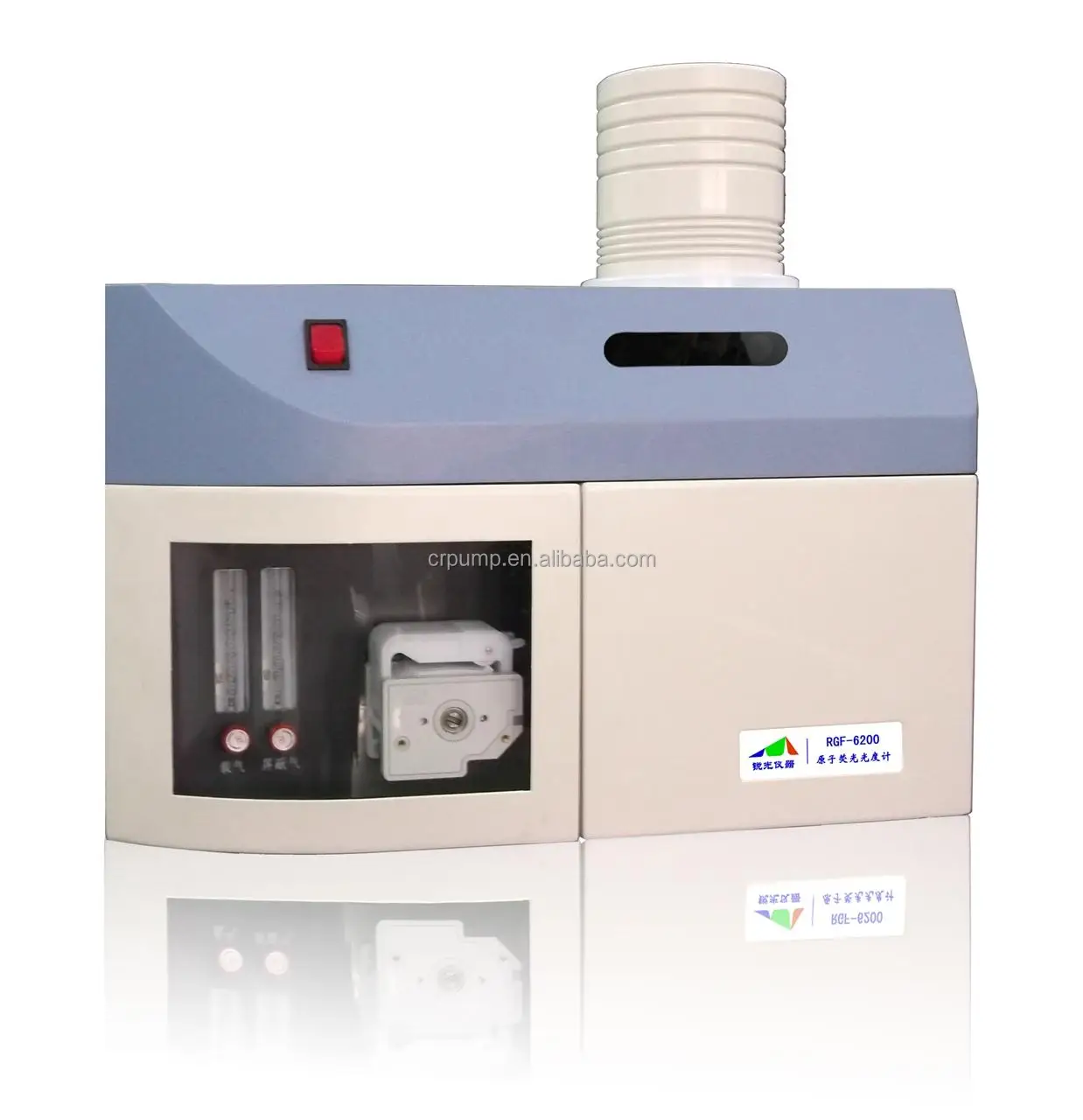

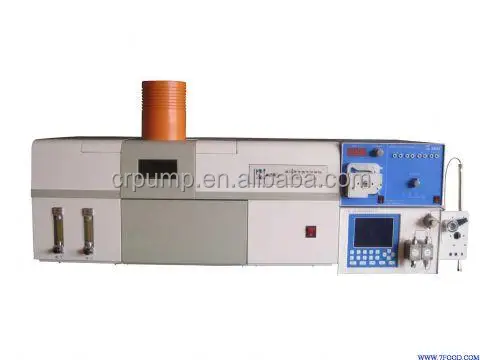

Atomic fluorescence analyzer

The DG series micro-flow multi-channel peristaltic pump head is a separate card installation and special hose; the pressure tube
gap can be fine-tuned to adapt to different wall thickness hoses. Designed for small flow, multi-channel fluid delivery.



Specifications


DG pump heads with 6 rollers
Flow range : 0.002-36 ml/min
DG pump heads with 10 rollers
Flow range :0.0015-27ml/min

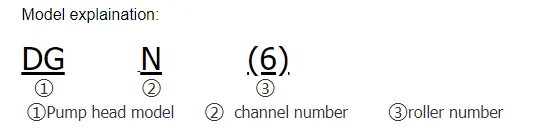

Model explanation
EX : DG-1(6)  means 1 channel with 6 rollers
DG-2(10) means 2 channels with 10 rollers


Model
Roller number
Channel number
Model
Roller number
Channel number
DG-1(6)
6
1
DG-1(10)
10
1
DG-2(6)
6
2
DG-2(10)
10
2
DG-4(6)
6
4
DG-4(10)
10
4
DG-6(6)
6
6
DG-6(10)
10
6
DG-8(6)
6
8
DG-8(10)
10
8
DG-12(6)
6
12
DG-12(10)
10
12


Tube model
ID(mm)
OD(mm)
Speed(rpm)
Flow range for 6 rollers
 (ml/min)
Flow range for 10 rollers (ml/min)
0.5*0.8
0.5
2.1
0.1-100
0.002-0.2
0.0015-1.5
1*1
1
3
0.1-100
0.006-6
0.004-4
2*1
2
4
0.1-100
0.019-19
0.013-13
2.4*0.8
2.4
4
0.1-100
0.024-24
0.017-17
3*1
3
5
0.1-100
0.036-36
0.0.027-27




Order guide OEM


Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?


5, For the OEM pump. pls tell me the model no. you want ? Thanks

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .
