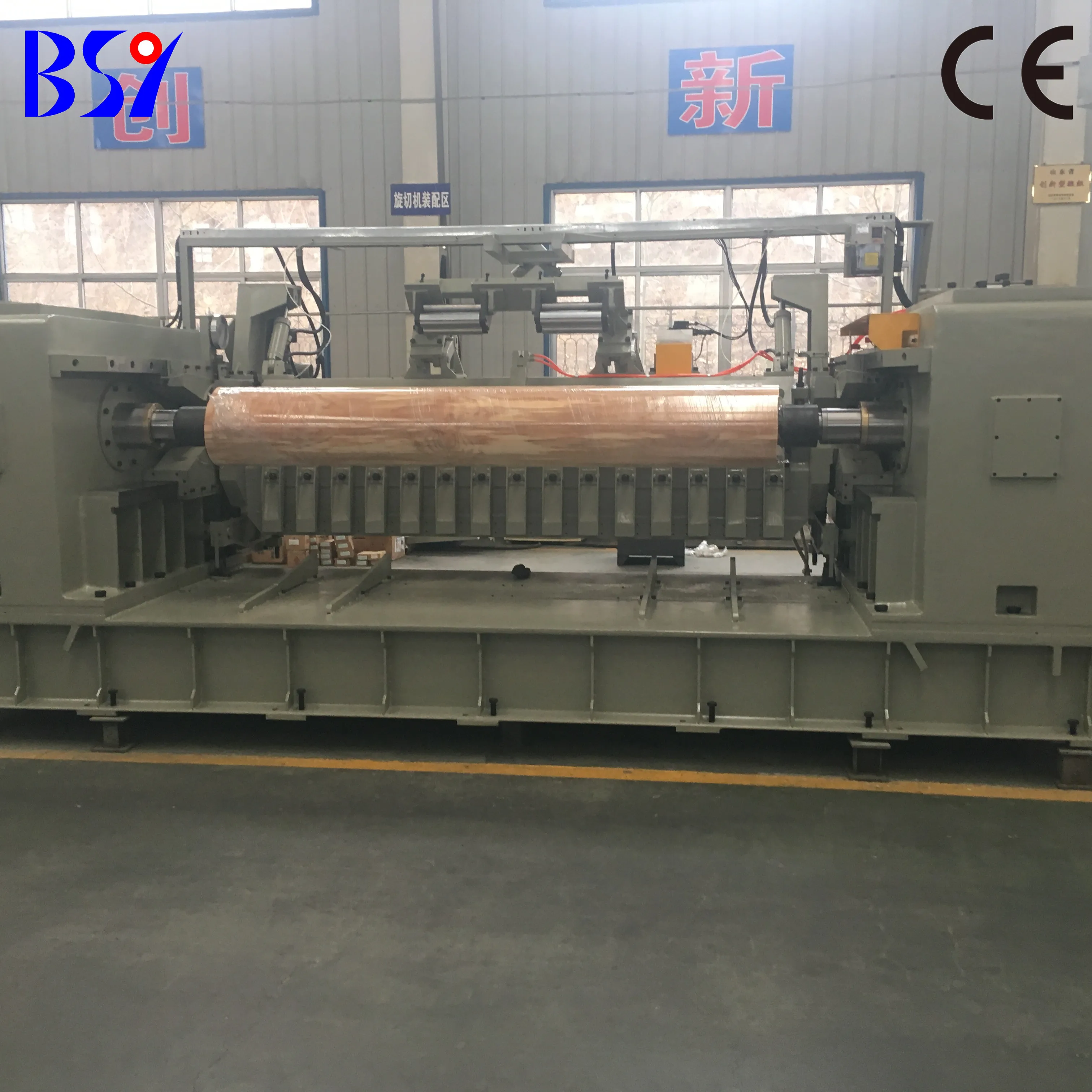

Hydraulic Spindle hardwood veneer peeling machine/hardwood veneer peeling lathe
- Category: >>>
- Supplier: Shandong BSY Group Co. Ltd.
Share on (62089690363):
Product Overview
Description

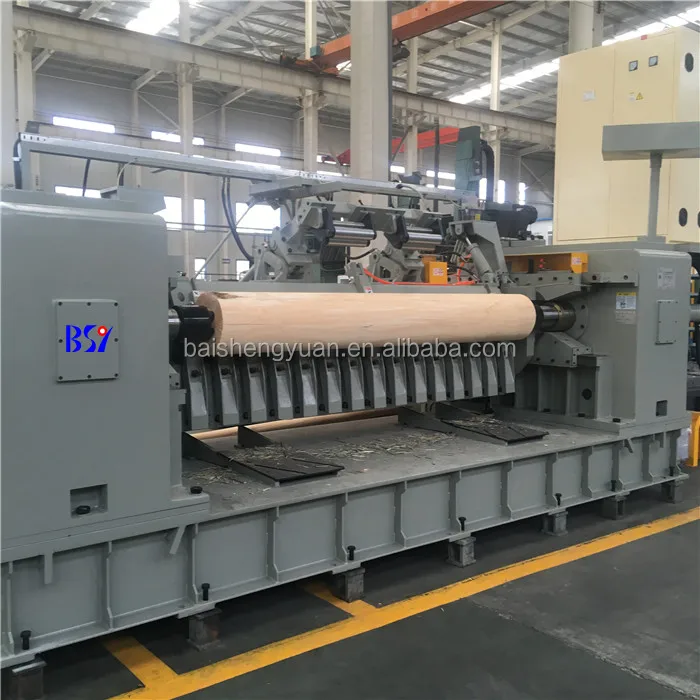

Hydraulic Single Spindle Rotary Veneer peeling lathe
Use:
It is the main machine in processing plywood,suitable for plywood plant,construction material plant and so on.
Technical Parameters:
Model | BQ1226/8F1 | BQ1226/8E1 | BQ1215/8A1 |
Max.cutting diameter | 170-800mm | 170-800mm | 170-800mm |
Max.cutting length | 2150-2700mm | 2150-2700mm | 900-1450mm |
Range of veneer thickness | 0.35-3.9mm | 0.35-3.9mm | 0.35-3.9mm |
Chuck diameter | 130mm | 130mm | 130mm |
Rotating speed | 0-160rpm | 0-160rpm | 0-200rpm |
Quick forward and backward speed of tool carriage | 1.8m/min | 1.8m/min | 1.8m/min |
Motor power | 75kw | 75kw | 75kw |
Rapid feed motor power | 4kw | 4kw | 4kw |
Electric rear angle motor power | 0.75kw | 0.75kw | 0.75kw |
Hydraulic motor power | 7.5kw | 7.5kw | 7.5kw |
Grinding angle of appropriate tool | 18-22º | 18-22º | 18-22º |
Total power | 90.25kw | 90.25kw | 58.35kw |
Overall sizes | 8340x1750x2400 | 8340x1750x2400 | 6800x1750x2400 |
Weight | 15000kg | 15000kg | 13000kg |
Features:
1. Good rigidity,high strength
2. With precision ball feeding screw,ensure the blade carriage for feeding accuracy
3. With hydraulic press blade,convenient to assemble the blade,improve production efficiency,lower the intensity of labor
4. With hydraulic clamping,can adjust hydraulic cylinder press of chuck spindle automatically according to different soft and hard wood
5. With high quality DC Motor
The more detail:

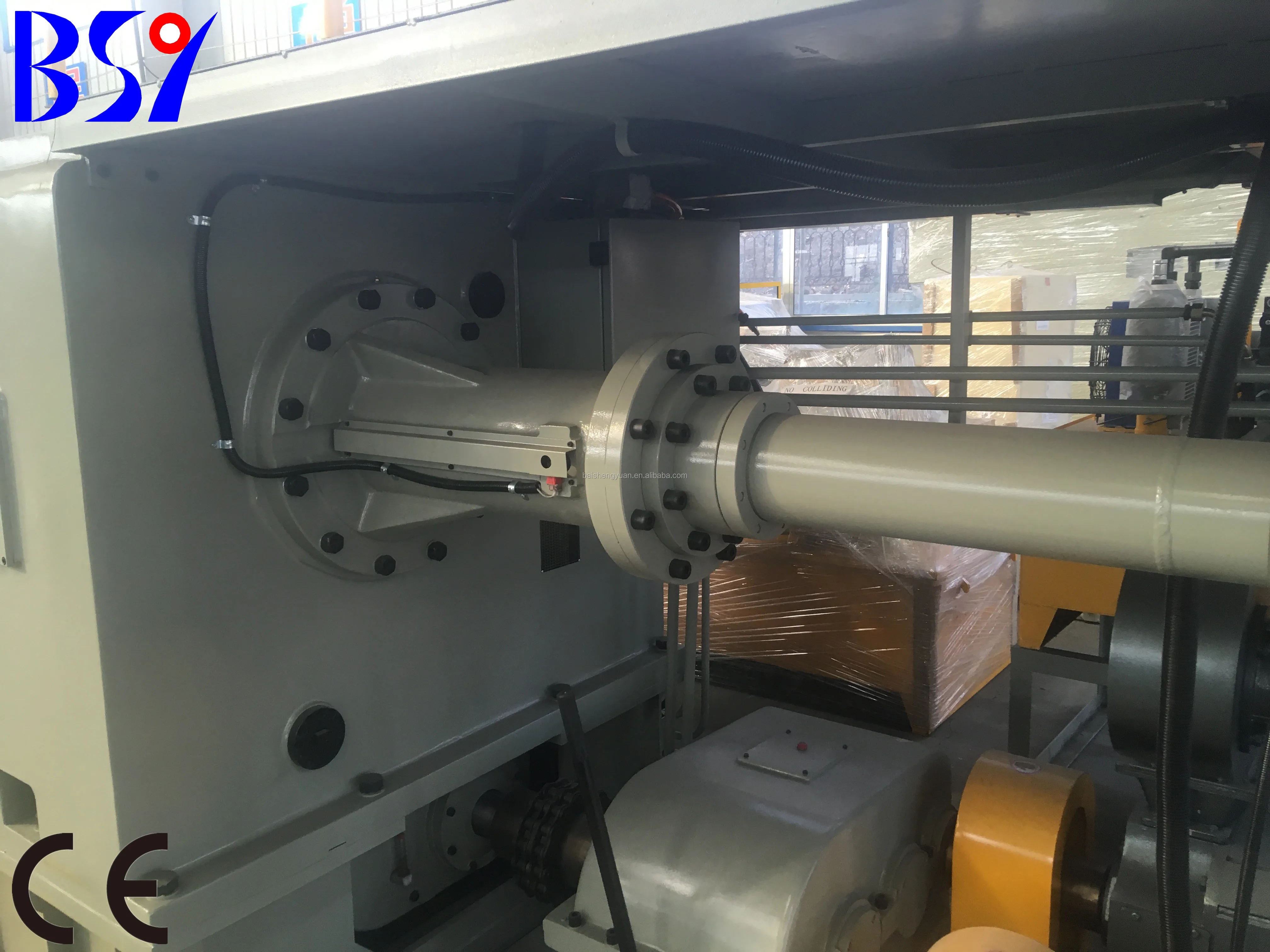

With hydraulic clamping,can adjust hydraulic cylinder press of chuck spindle automatically according to different soft and hard wood
| |

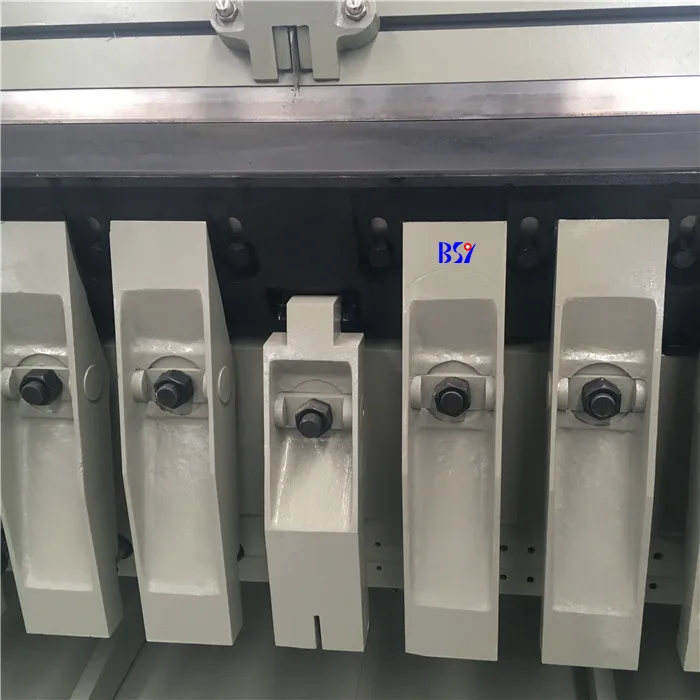

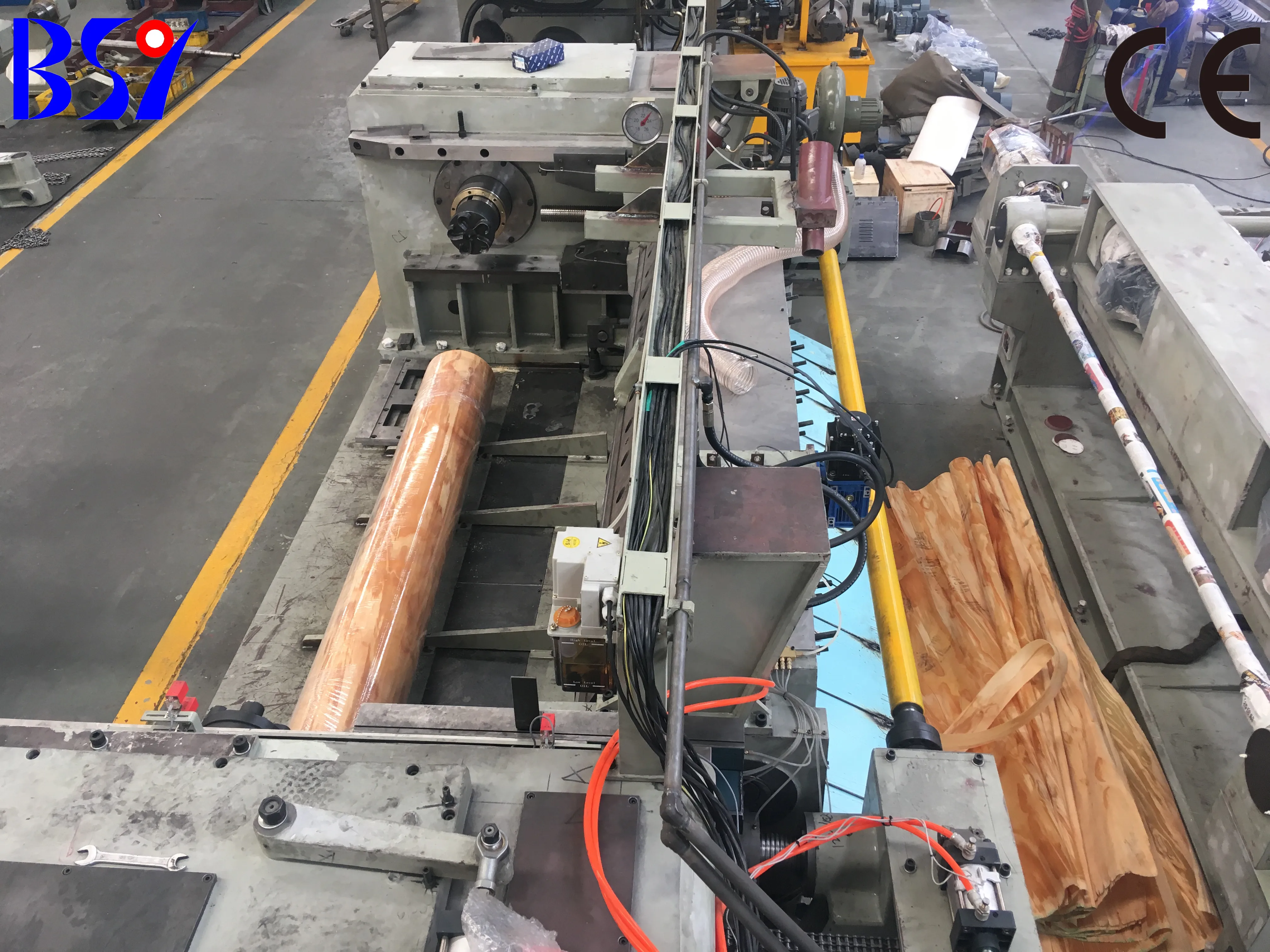

With hydraulic press blade,convenient to assemble the blade,improve production efficiency,lower the intensity of labor
| |

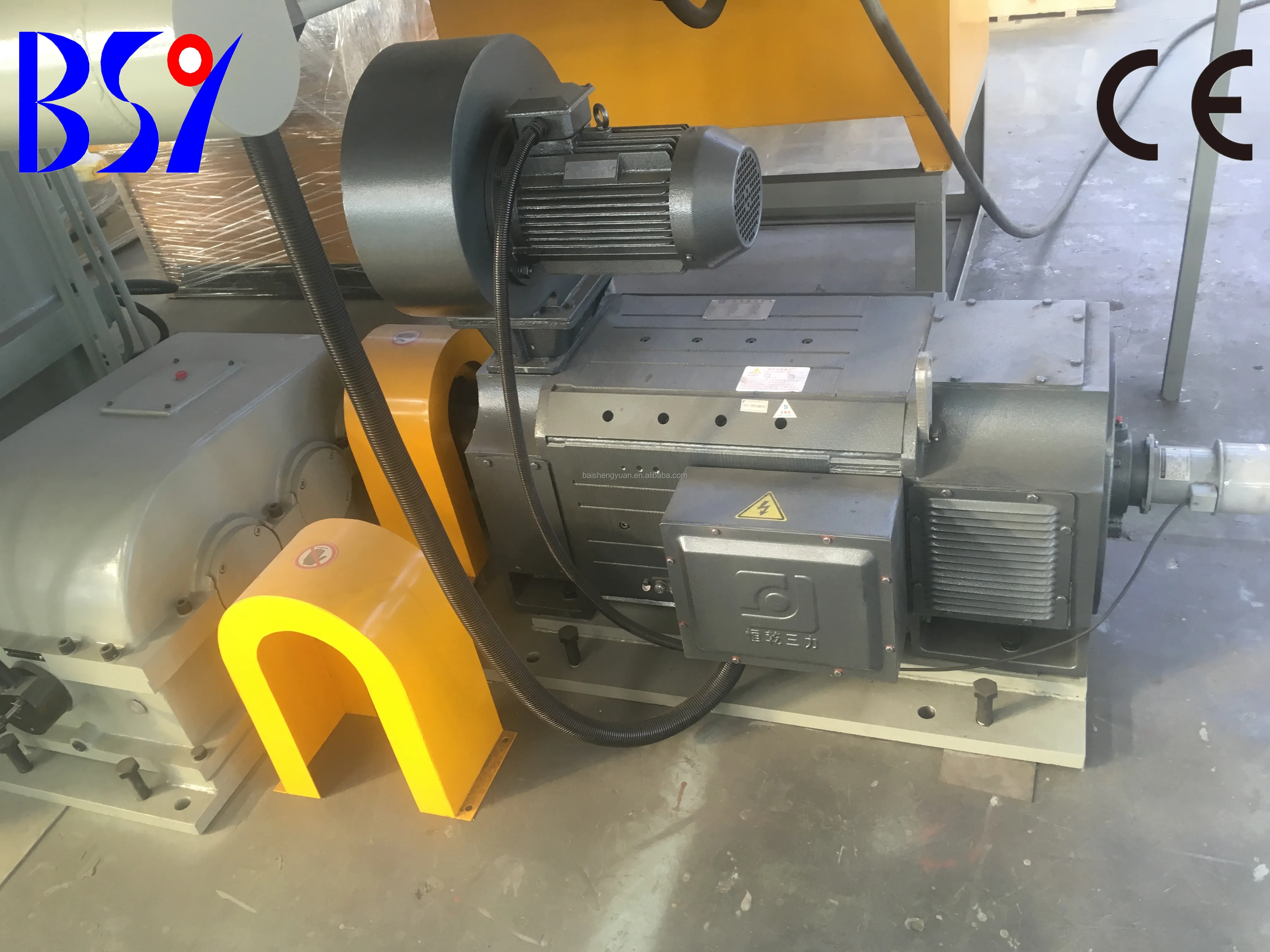

With high quality DC Motor |  |
