Huawei USG6510 02358275 нового поколения брандмауэр с 8 GE
- Category: Firewall & VPN >>>
- Supplier: Shenzhen Cool Life Technology Co. Ltd.
Share on (62089740351):
Product Overview
Description
Product Description
USG6510
The USG6510 is a 1 U desktop device with an integrated structure. The device has no fans and uses natural cooling, provides fixed ports, and uses an external power adapter to supply power. The device does not support port expansion.

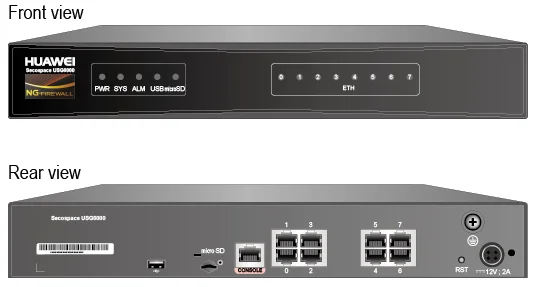

USG6510 Hardware Overview
Ports
The USG6510 provides the following fixed ports:
- 1 console port (RJ45)
- 1 USB 2.0 port
- 1 micro SD card slot
- 8 10/100/1000M autosensing Ethernet electrical ports
USG6510 Technical Specifications
Item | Description | |
|---|---|---|
System specifications | ||
CPU | Multi-core 1.0 GHz processor | |
Memory | DDR3 1 GB | |
Flash | 32 MB | |
NAND Flash | 512 MB | |
Micro SD card | Optional. Purchase one 64-GB micro SD card from Huawei as required. | |
Hard disk | Not supported | |
SPUB (the service engine) | Not supported | |
4G LTE Data Card | Supported | |
Dimensions and weight | ||
Dimensions (Hb x Wa x D) | 44 mm x 300 mm x 220 mm | |
Weight | 1.55 kg | |
Power consumption and heat consumption | ||
Typical power consumption | 8.8 W | |
Maximum power consumption | 10.5 W | |
Typical heat consumption | 30.0 BTU/hour | |
Maximum heat consumption | 35.8 BTU/hour | |
Power specifications | ||
AC power | Supported (external AC power adapter) | |
Rated input voltage (AC) | 100 V to 240 V, 50 Hz/60 Hz | |
Maximum input voltage (AC) | 90 V to 264 V, 47 Hz to 63 Hz | |
Maximum input current/Maximum output power | 0.8 A/24 W or 1.0 A/36 W | |
Heat dissipation | ||
Fan module | Has no fan and uses natural cooling. | |
Port density | ||
Console port | 1 (RJ45) | |
USB 2.0 port | 1 | |
Service ports in standard configuration | 8 10/100/1000M autosensing Ethernet electrical ports | |
Micro SD card slot | 1 | |
Expansion slot | None | |
Environment specificationsc | ||
System reliability | MTBF (year) | 14.08 |
MTTR (hour) | 1 | |
Long-term operating ambient temperature | 0°C to 45°C | |
Storage ambient temperature | -40°C to 70°C | |
Operating ambient relative humidity | 5% RH to 95% RH, non-condensing | |
Storage ambient relative humidity | 5% RH to 95% RH, non-condensing | |
Altitude | 5,000 m | |
Packaging & Shipping
Packing Detail : Huawei orignal packing
- Port : Shenzhen
- Lead Time : 7days
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Warranty
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Huawei product: 1 Year
The Support Contacts:
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
