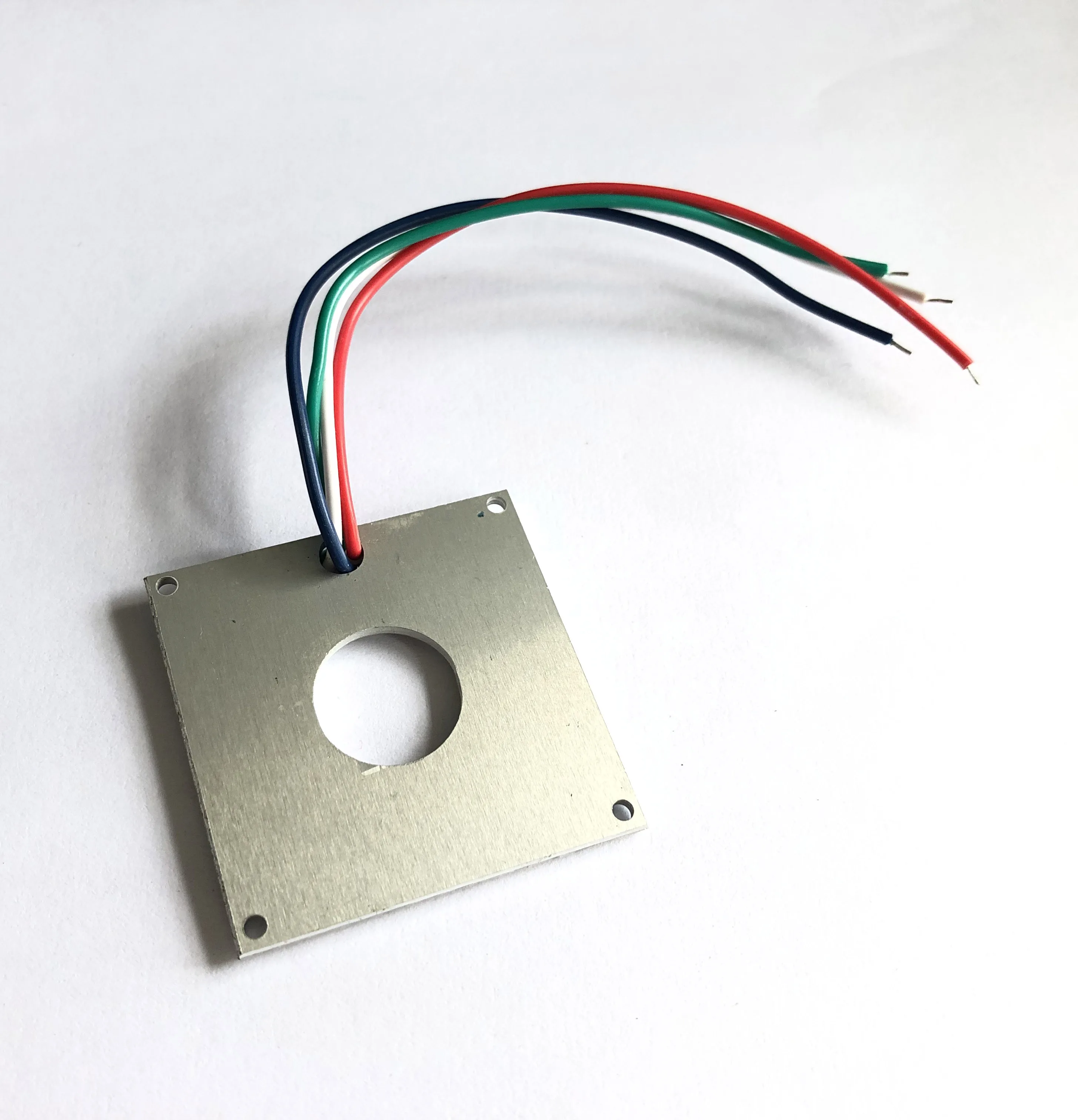

Triple color Medical Camera Custom LED PCB Board with IR 850nm and Blue 470nm 38mm Square
Triple color Medical Camera Custom LED PCB Board with IR 850nm and Blue 470nm

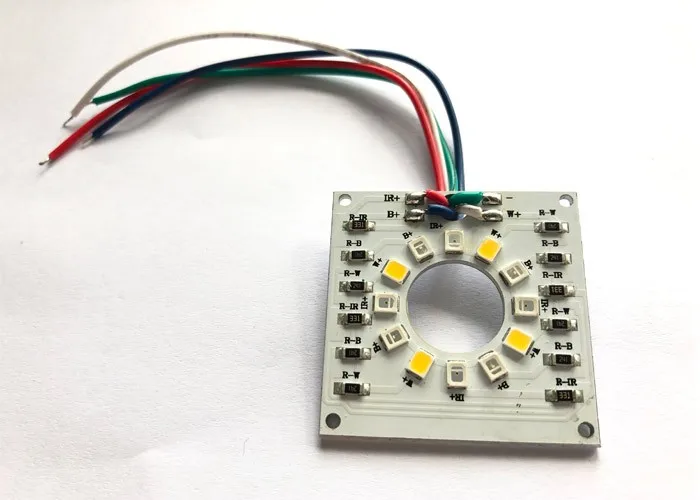

PCB Board with LEDs
Dimension: 38x38mm
SMD 2835 - 4pcs White LEDs (3800K±100, CRI>92), 4pcs 470nm Blue LEDs, 4pcs 850nm IR LEDs,
5V 120mA Input,
10cm Power Cables.
Lead-free, RoHS Compliant.

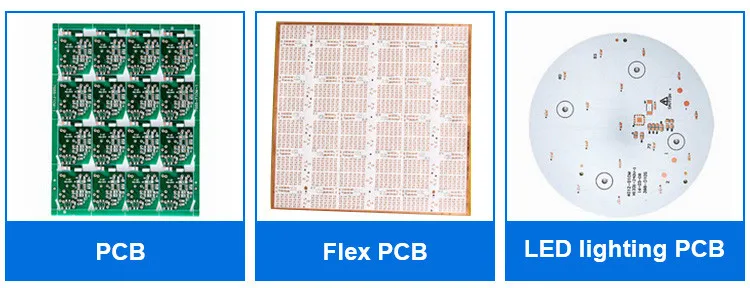

We make custom LED PCB Module in your requirements:
Customized Diameter
Customized Circuit design
Customized LED quantity
Customized Power
Specified LED Chip ( SAMSUNG, CREE, or Other Brand)
Other special requirements on the functions

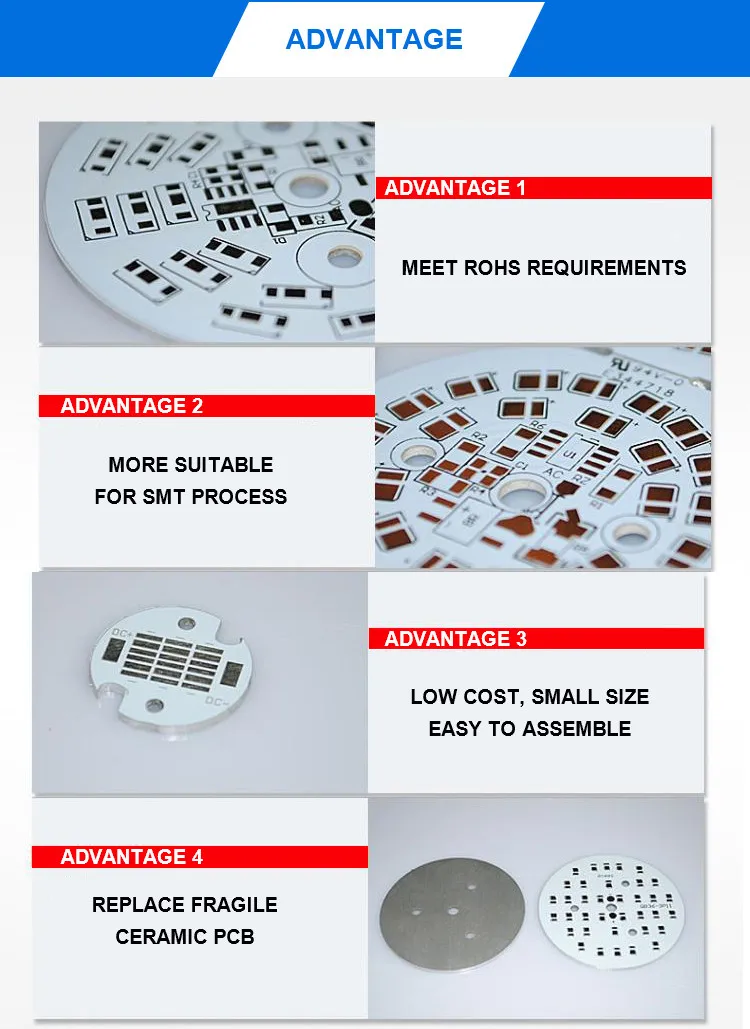

Bergquist Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.
It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.
Setting Information | ||
Emiting Color | CW/NW/WW | |
Package Type | surface mounted | |
Max. Forward Voltage | 3.0-3.2V | |
Max. Reverse Voltage | 5V | |
Power | 0.2w | |
temperature | 20-100 | |
Size | 5630SMD | |
Product Description
Product Details

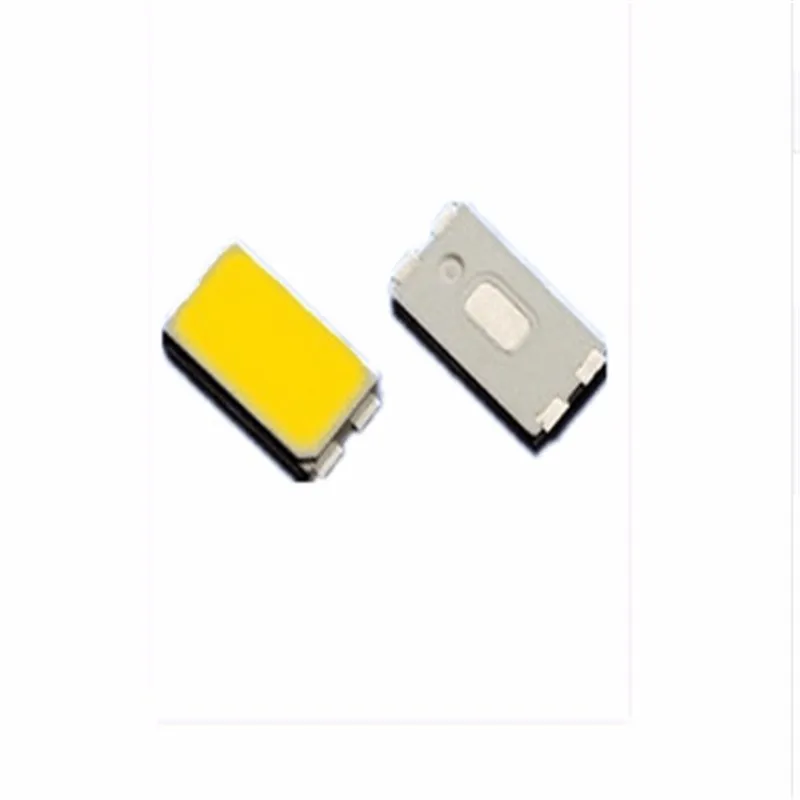

5000 Hours Tested 5630 SMD LED
1. High Lumens Output & Low Brightness Decay
2. Stable Performance & Great CCT Inity.
3. Wid Color Temperature Range
4. High CRI More Than 95 available
5. Good raw materials
6. Taiwan Epistar, Xianmen San'an chips
Applications
Applications of SMD LED chip
All kinds of strip and tube.
Bulb lights,downlight,candle light.
Panel light,reading lamps.
Marker lights,electronic display panel light
External and internal automotive lighting,aquarium lighting.
Emergency lighting,signal and symbol luminaire, Etc.
Catalog
Product | Emitting color | CRI | Power | Voltage | Current | |||||
2835 SMD | White | 70/80 | 0.2/0.5/1W | 3.0-3.4V | 60mA/150mA | |||||
RGB | / | 0.2W | 2.0-2.4V | 60mA | ||||||
RGB | / | 0.5W | 2.0-2.4v | 150mA | ||||||
5730 SMD | White | 70/80 | 0.5/1W | 3.0-3.4V | 150mA/300mA | |||||
RGB | / | 0.5W | 2.0-2.4V | 150mA | ||||||
3030SMD | White | 70/80 | 1W | 3V/6V/9V | 150mA/300mA | |||||
RGB | / | 1W | 2.0-2.2V | 300mA | ||||||
5050SMD | White | 70/80 | 0.2W | 3.0-3.4V | 60mA | |||||
RGB | / | 0.2/0.5W | R:2.0-2.4G B:3.0-3.2V | 60mA/150mA | ||||||
RGBW | / | 0.5W | R:2.0-2.4G B:3.0-3.2V | 60mA | ||||||
3014 SMD | RGB | / | 0.1W | 3.0-3.2V | 30mA | |||||
White | 70/80 | 0.1W | 3.0-3.2V | 30mA | ||||||
4014 SMD | White | 70/80 | 0.2W | 3.0-3.2V | 60mA | |||||
3528 SMD | White | 70/80 | 0.6W | 3.0-3.4V | 20mA | |||||
RGB | / | 0.6W | RY:2.0-2.2V B:3.0-3.2 | 20mA | ||||||
5630 SMD | 80 | 0.5W | 2.9-3.2V | 150mA | ||||||
Serve High Quality LEDs/Customized LED Board | ||||||||||
Quality Control

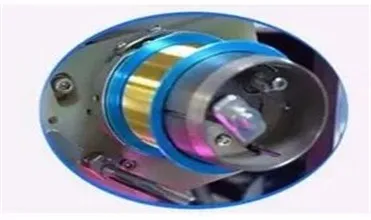

Gold wire
led 3014 smd rgb led light ys==use 99.99% Gold wire, Aolly wire can be supply depend on the customers' requirment.
We choose gold wire with high conductivity, good thermal conductivity, corrosion resistance, good toughness, good chemical stability, stable product performance and other advantages, high-end packaging technology selection.
Lead Frame
Red copper lead frame.
Huanyu use Copper bracket for many years to ensure the quality. and has the technical operation personnel and the first-class equipment in the industry, the elimination of the chip fake solid tin, the adhesion poor, the residual high production.

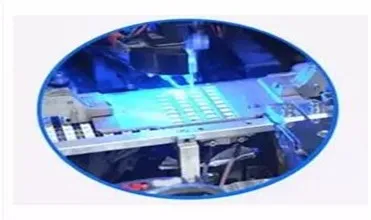

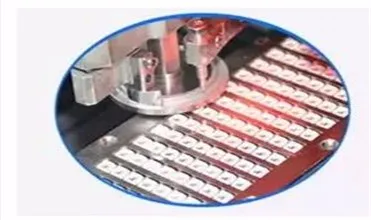

Splitting
Import machines from Japan, high speed splitting,about 60K/hrs.Intelligent full-point identification and positioning system can recognize stents and control the amount of glue, high speed.stability, maneuverability, and durability, which ensures precision and density.

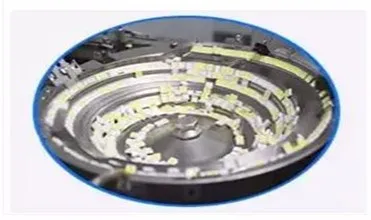

Sorting &Typing
0.1V 0.2V 0.5V sorting, The vibration disc is used to send the material, equipped with a large capacity storage device, and the SMD LED electrical parameters are tested. It can arrange the polarity automatically, automatically select and eliminate the unqualified products, and also cooperate with the workers to control the quality.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
