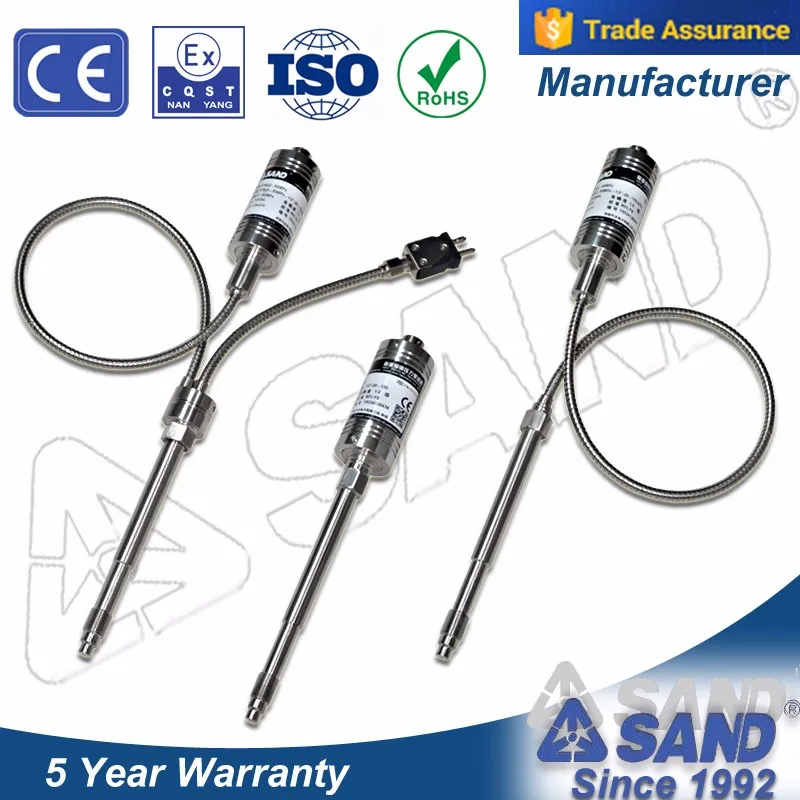

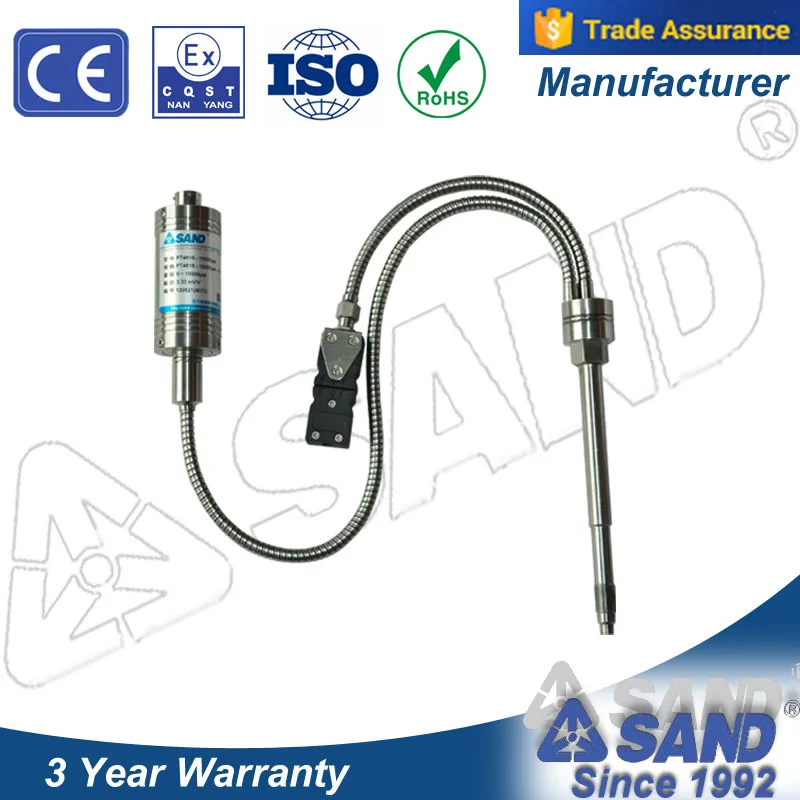

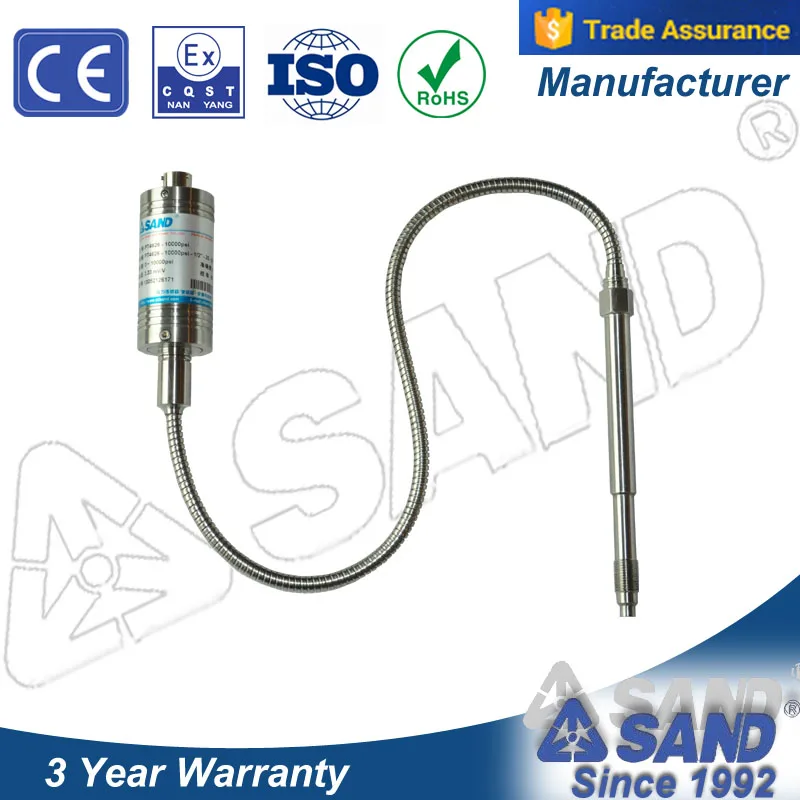

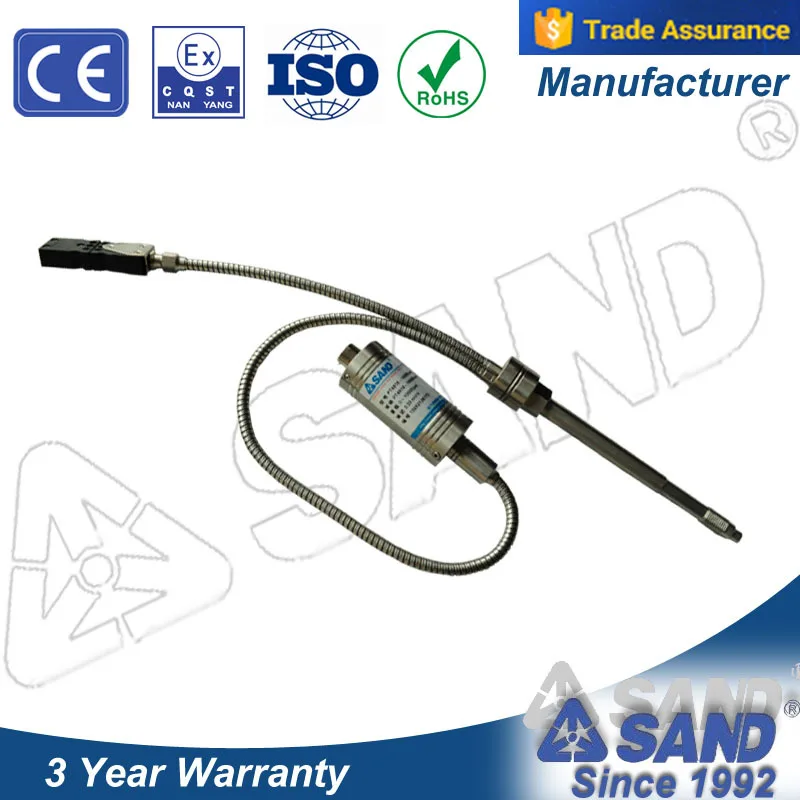

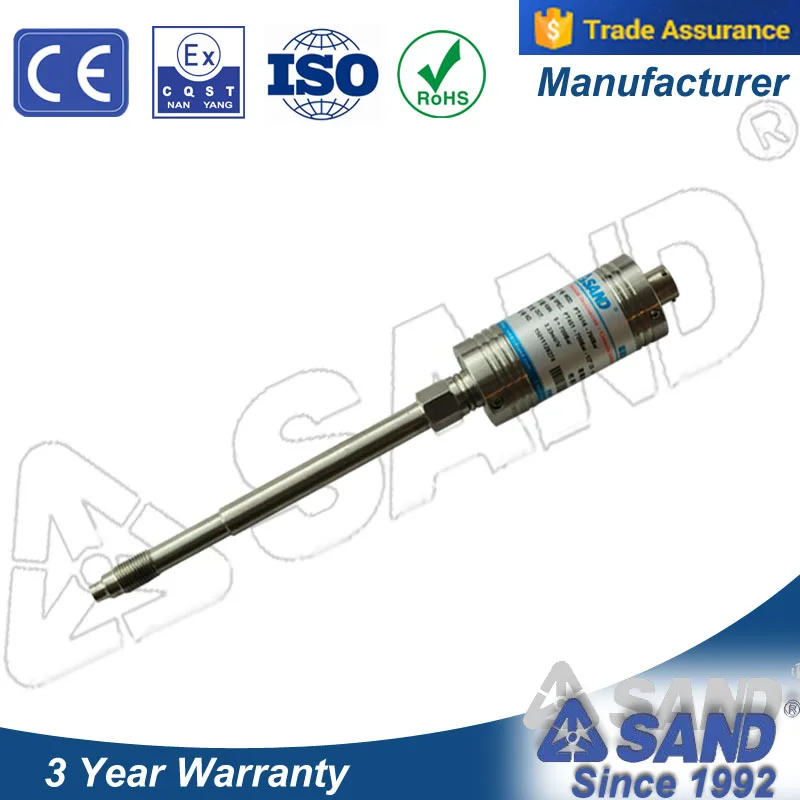

1/2' 20 PT4616B 35MPa high accuracy melt pressure transmitter(0.5%F.S)

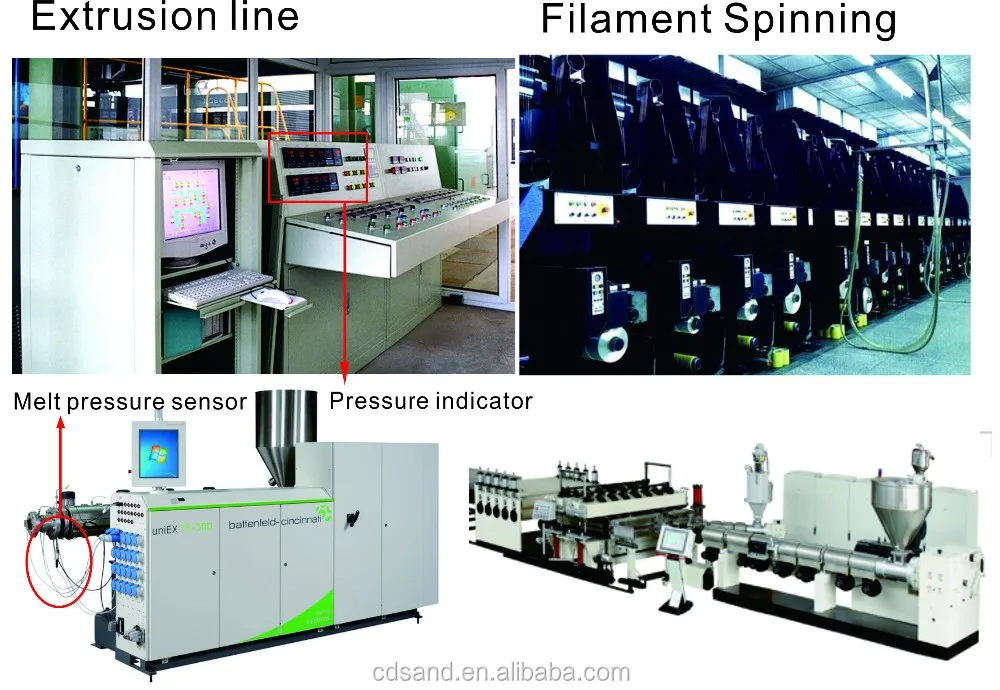

This series pressure transducer/ pressure transmitter is ideal for measurement of melt pressure. We produced them with special materials alloy elastic together with  debugging. It has advantage of high accuracy and low temperature drift in practice,

Performance indicators

1 High accuracy: ± 0.25% FS, ± 0.5% FS ;

2 Low temperature drift: ≤ 0.15MPa/100 ℃;

3 Output signal:

Pressure transducer: 3.0mV / V, 3.33mV / V ; Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;

4 Probe max temperature: 300 ℃ or400 ℃;

5 6PIN mating connectors, more reliable and stable;

6 Stainless steel shell, beautiful, rugged and durable;

7 Corrosion resistant coating to extend the service life of 3to 5 times; (optional)

8 Temperature Config:

Thermocouple: E, J, K type, etc.,

Thermal resistance: Pt100 etc.

Size

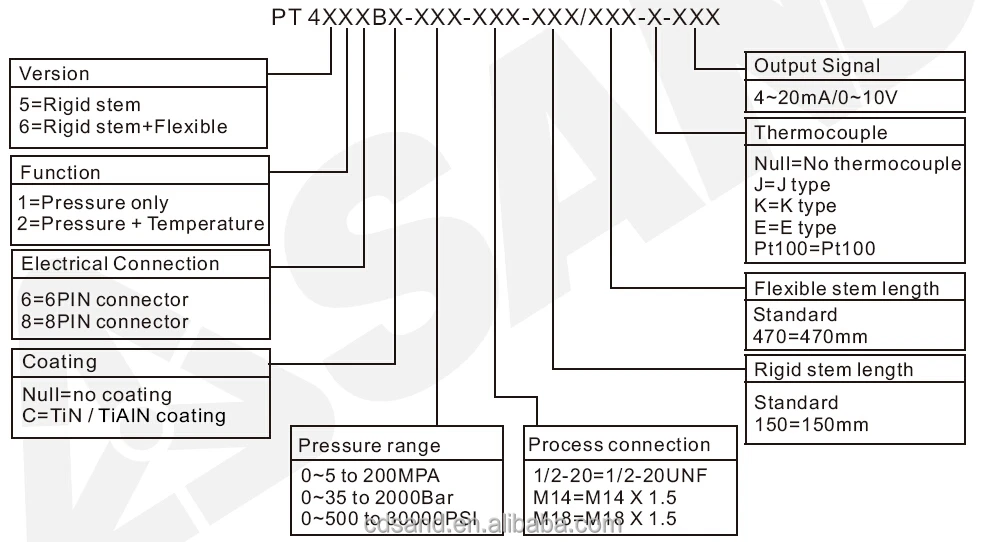

Order format
