Product Overview

Description

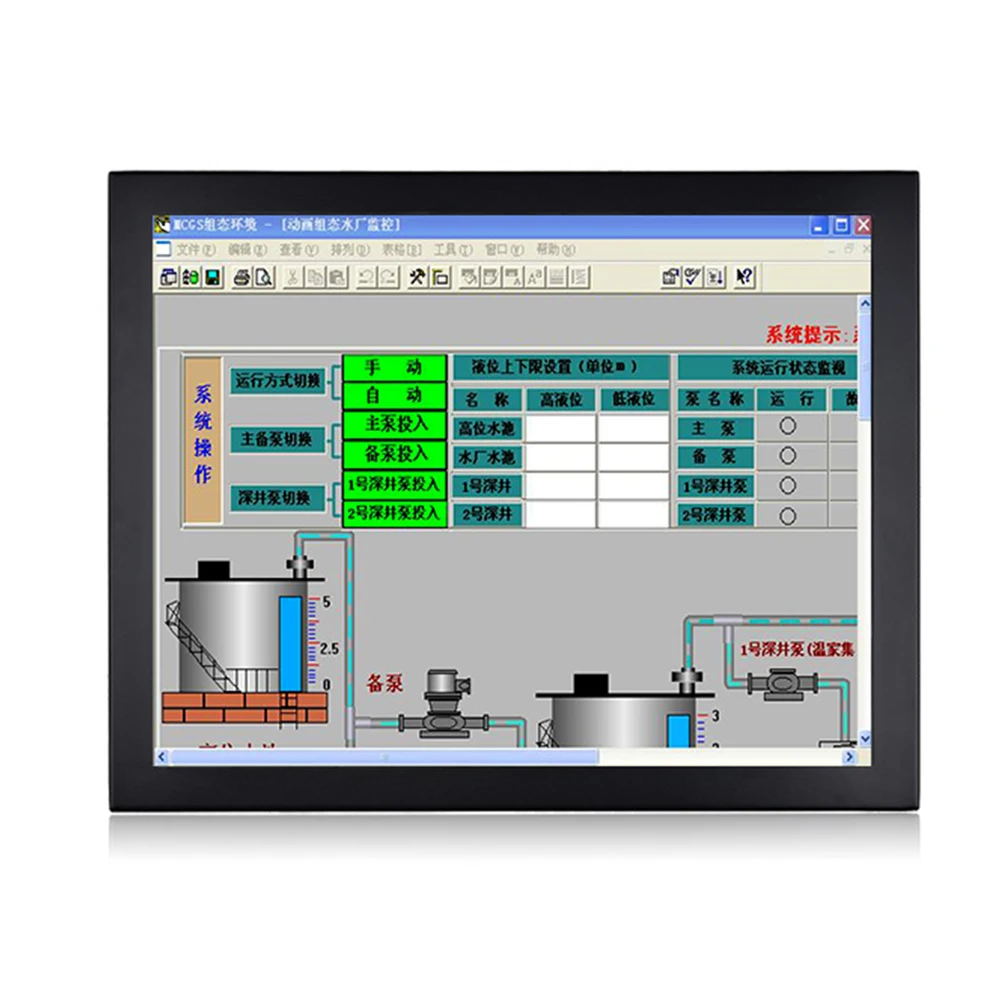

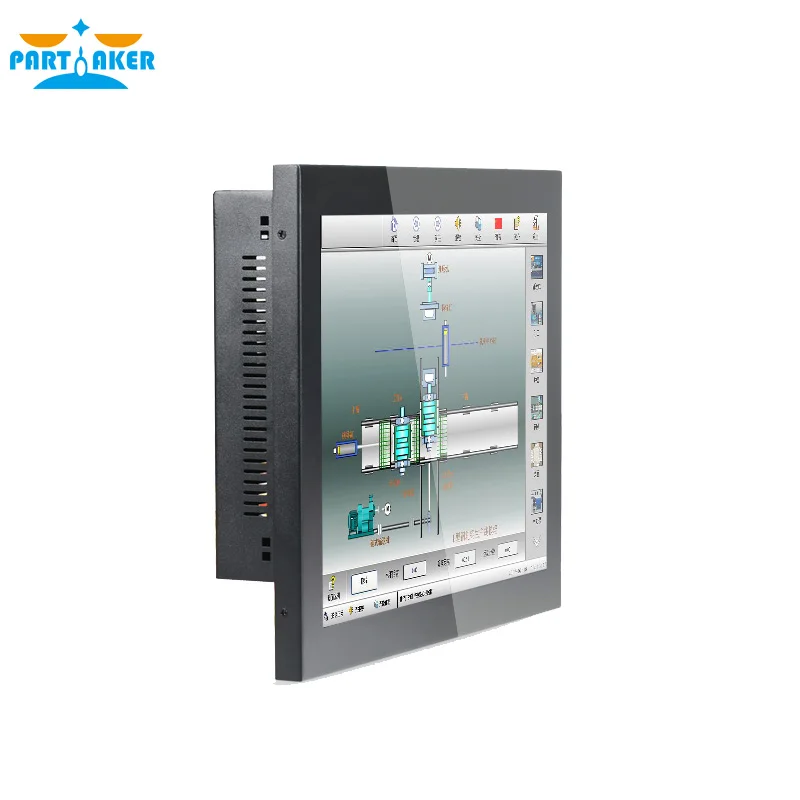

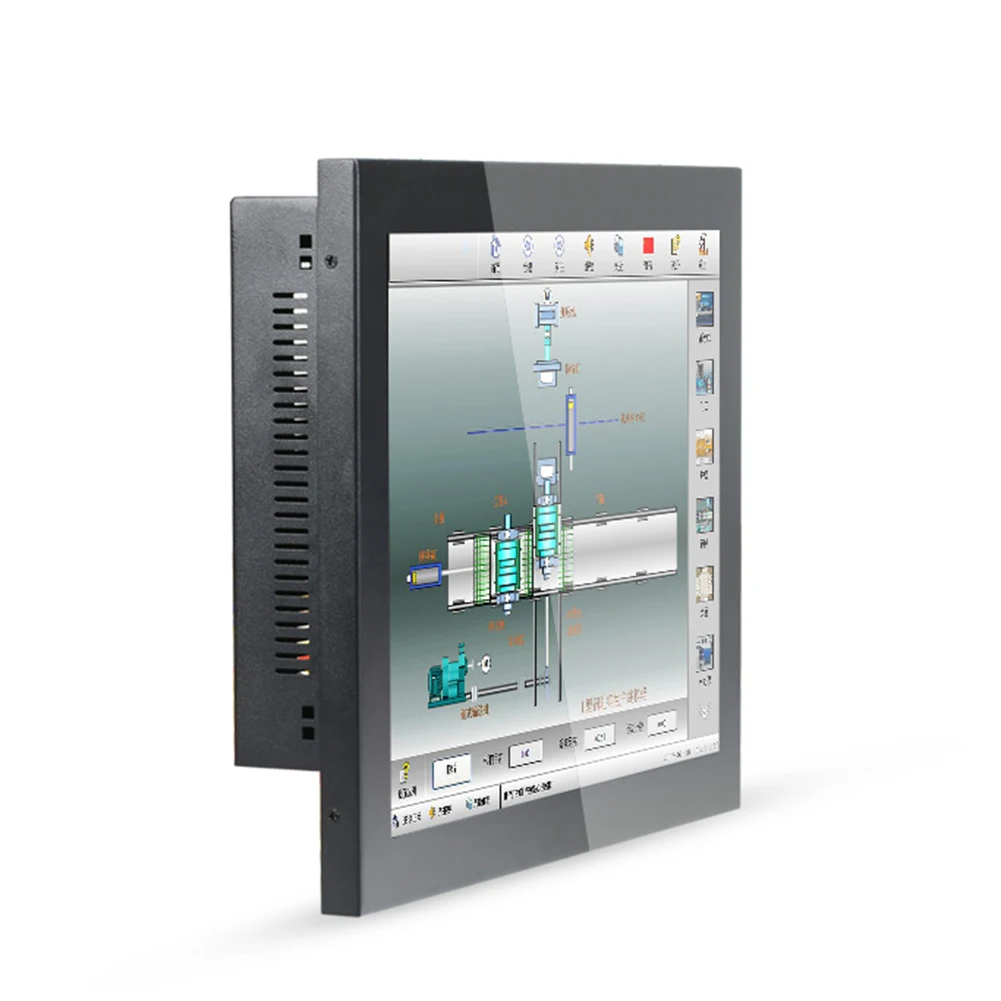

15 Inch Industrial All In One Touchscreen Computer Intel Celeron 3855U Touch Screen All-In-One PC

• 15 inch led touch panel pc. Typical 1024*768 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel celeron 3855u processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.



• Windows 7 Ultimate/10 pro (64-bit) preferred/linux ubuntu as optional, set up is effortless and it's ready to run straight out of the box.allows you to install software, games, apps and enjoy video, music, photo,support most online games and pc games, like warcraft, counter-strike (cs), support some 3d games but this is integrated graphic not independent cards.

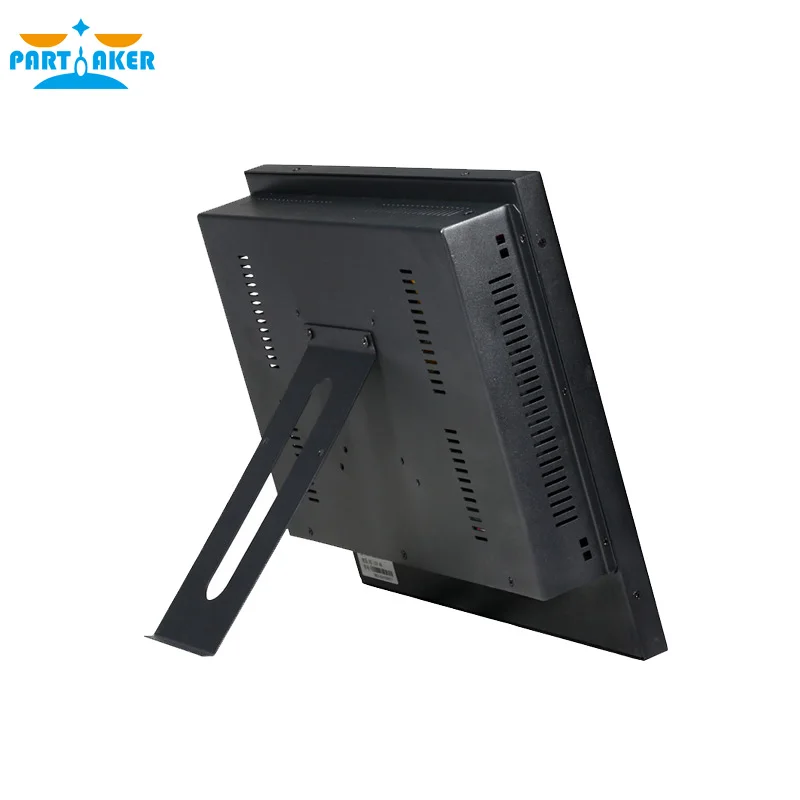

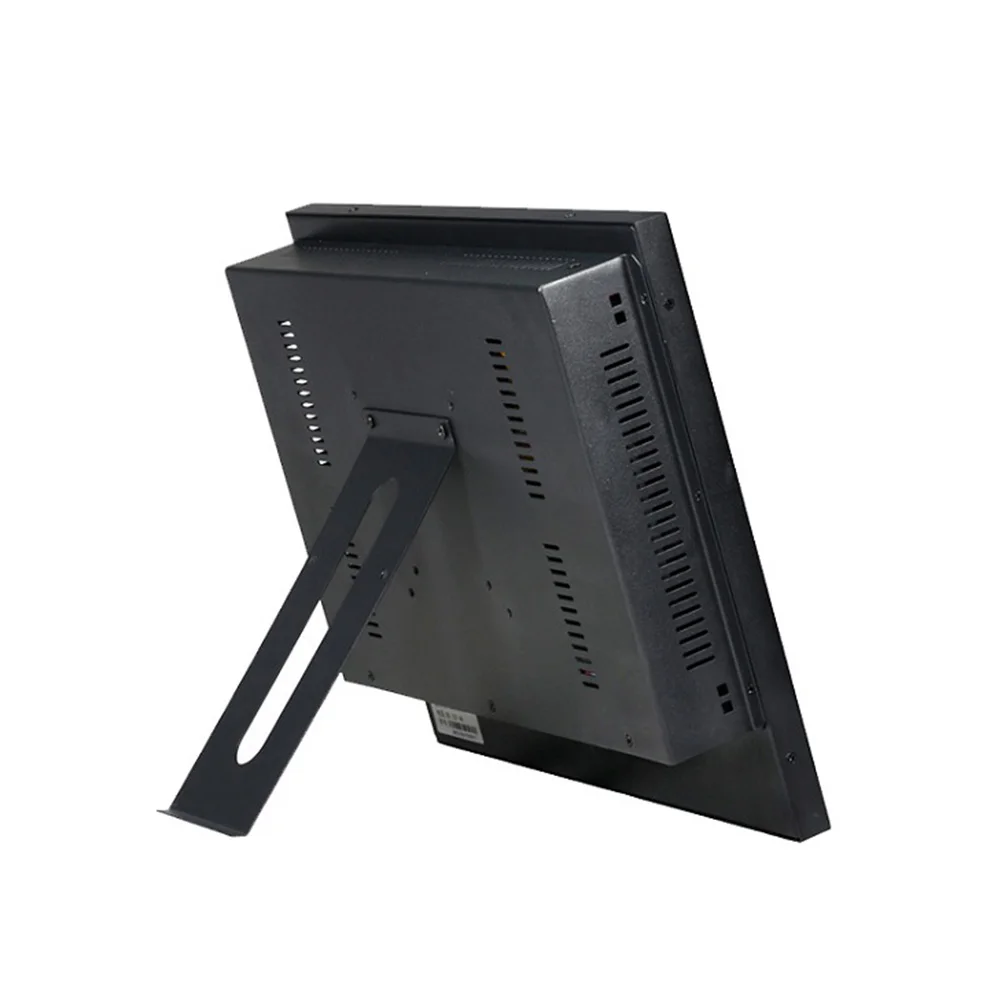

• Low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation and stable heat dissipation. very slim, can stand on desk or embeded/mountable.

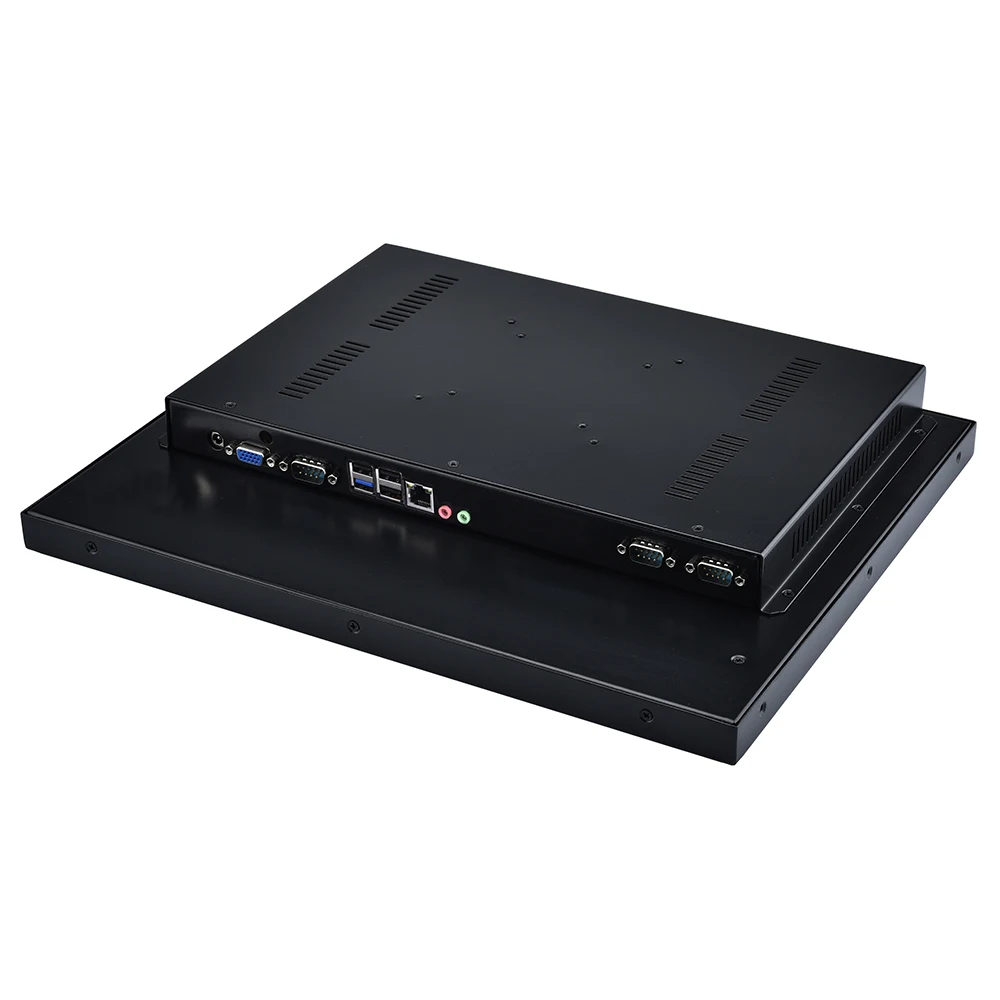

• Designed with 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out,aesthetic design and reasonable interface layout.



• Size at 355.8*287.3*53.6(mm),with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.

This model can install 5 types processor CPU:



1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)

2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)

3: Intel®Core I5 Dual Core(Max. 2.6GHz)

4: Intel® Core I7 Dual Core (Max. 2.8GHz)

5: Bay Trail-D-Celeron J1800 Duad Core 2.41G(Max. 2.58GHz)





Model Number: Partaker Z13
Screen Size: 15 Inch
Opening Hole Size: 334*232mm (Length*Width)
Screen Type: Taiwan High Temperature 5 Wire Touch Screen
CPU: 3855U
OS: Windows Or Linux
RAM/SSD/HDD: Max8G RAM, 1* MSATA + 1*2.5 Inch HDD

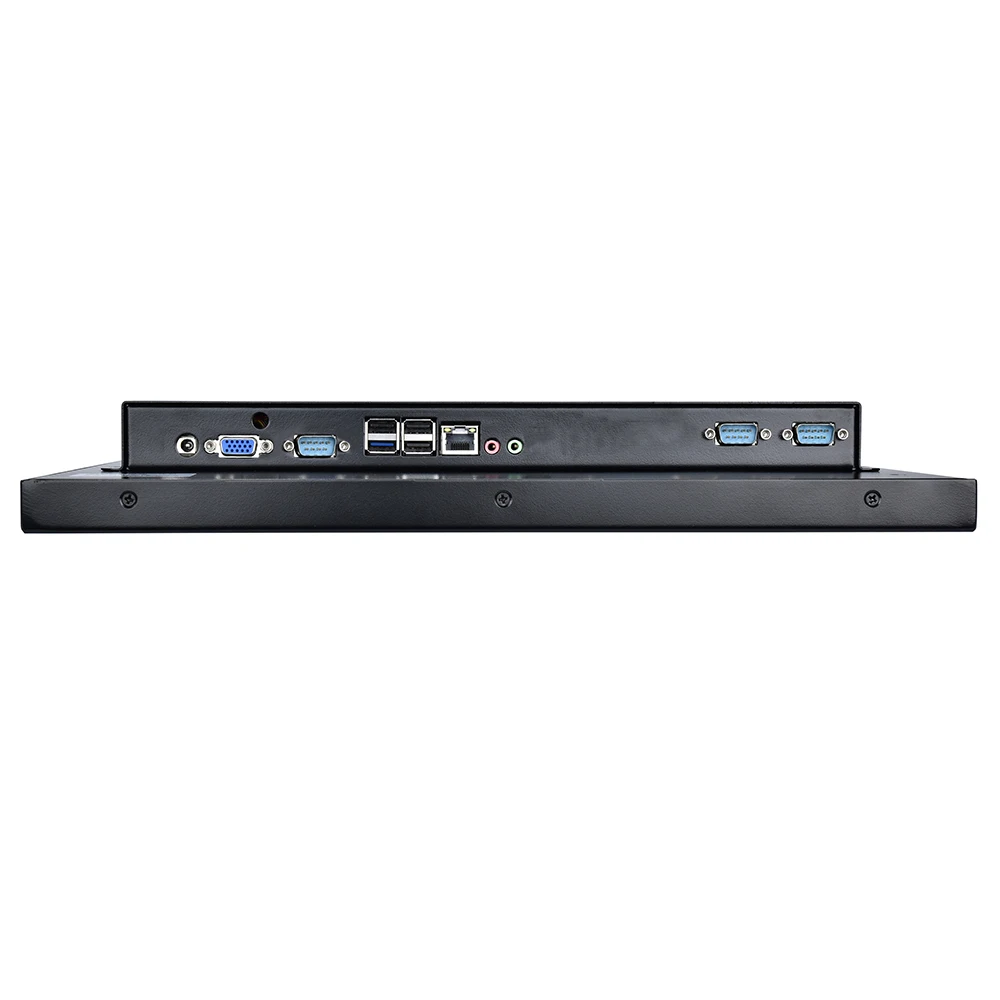

I/O: 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 355.8*287.3*53.6(mm)
Gross Weight: 6.5 KGS
Features: Resolution 1024*768, Screen Ratio 4:3
Panel Structure:
Panel Size: 15 Inch LED Screen
Resolution: 1024*768
Display Brightness: 430cd/m(2)
Contrast: 700 : 1
Response Time: 8ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 44CM(L)*36.2CM(W)*15.5CM(H)
Physical Weight: 4KG / 5.1KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set





Specification:

Model Number:	Partaker Elite Z13
Screen Size:	15 Inch
Opening Hole Size:	334*232mm (Length*Width)
Screen Type:	Taiwan High Temperature 5 Wire Touch Screen
CPU:	Intel Celeron 3855U Dual Core 1.6Ghz
OS:	Windows Or Linux
RAM/SSD/HDD:	Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O:	3*USB2.0/1*USB3.0/3*RS232
I/O:	1*VGA/1*RJ45
I/O:	1*DC/MIC-IN&LINE-OUT
Physical Dimension:	355.8*287.3*53.6(mm)
Gross Weight:	6.5 KGS

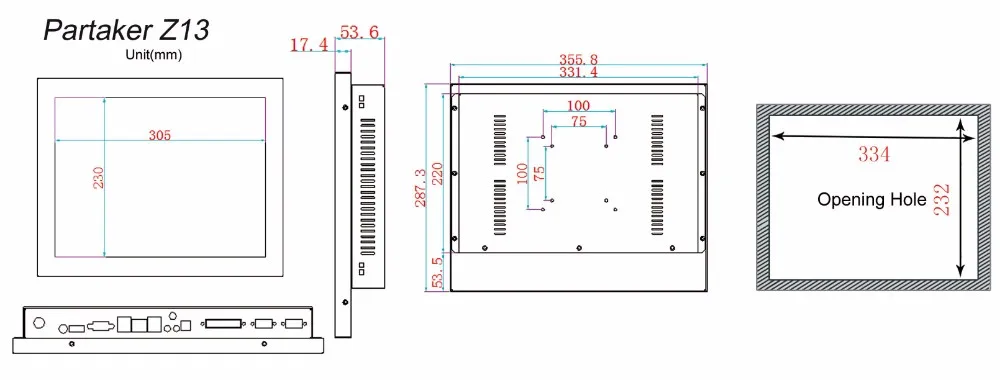

Opening Hole Size Drawing:







Features:

Resolution 1024*768, Screen Ratio 4:3

Optional WiFi module, support for 802.11b / g / n

Support call on boot, network wake-up

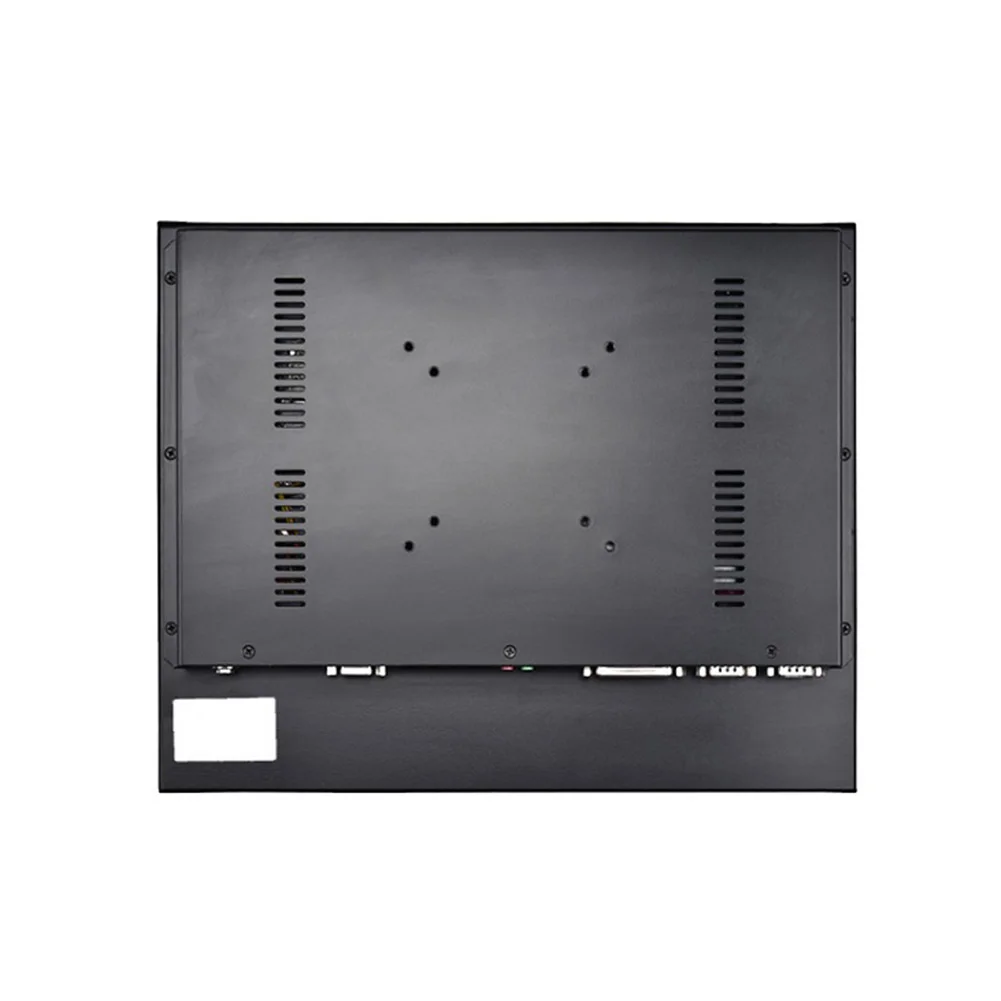

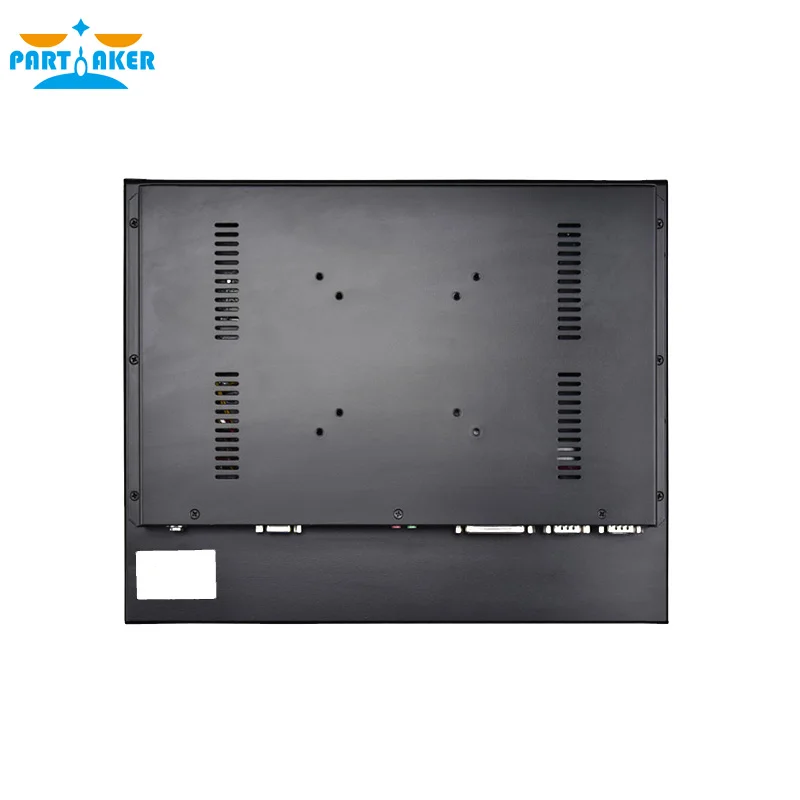

Standard VESA screw hole, can choose the installation method flexibly

Support Win7, Win8, Win10, Linux etc….





Panel Structure:

Panel Size	15 Inch LED Screen
Resolution	1024*768
Display Brightness	430cd/m(2)
Contrast	700 : 1
Response Time	8ms
Touch Type	Using capacitive touch screen 10 point touch click life> 50 million times





Usage Environment:
Operating Temperature:	-10℃~60℃ Surface Air Flow
Operating Humidity:	10% ~ 95% @ 40 ℃ without condensation
Storage Temperature:	-20 ℃ ~ 70 ℃





Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods





Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS, Synchronous / Asynchronous Dual Display

Motherboard:  Fan Design





I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core





Quality Inspection:

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.





Company Profile:

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.





Package Information:

Package Size	44CM(L)*36.2CM(W)*15.5CM(H)
Physical Weight	4KG / 5.1KG(Net/Gross)
Power Supply	Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX
Power Cord	Power Cord*1
Touch Pen	Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle	Embedded Installation Buckle* 1 Set
