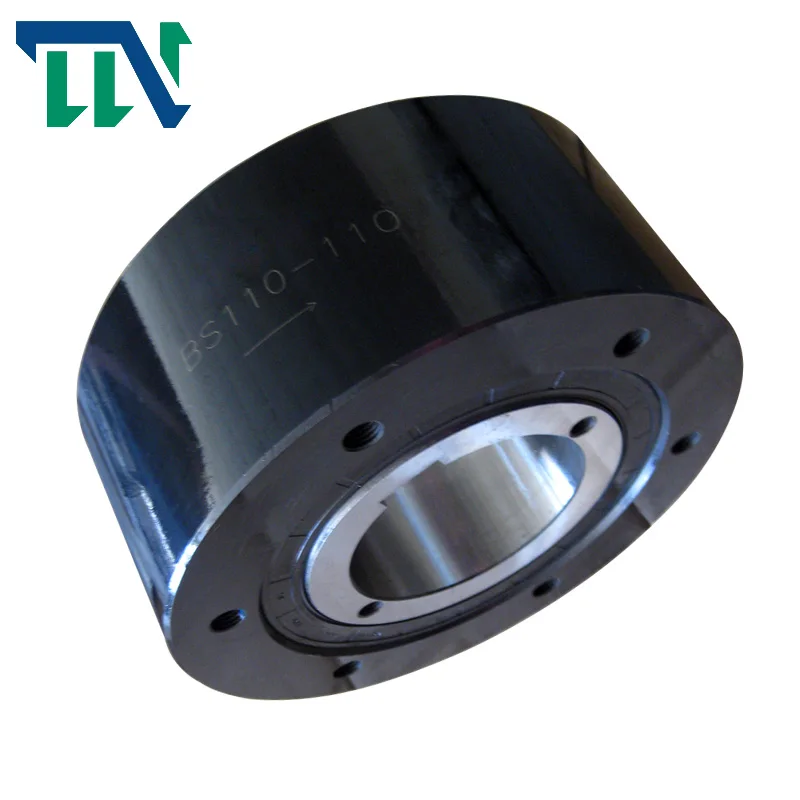

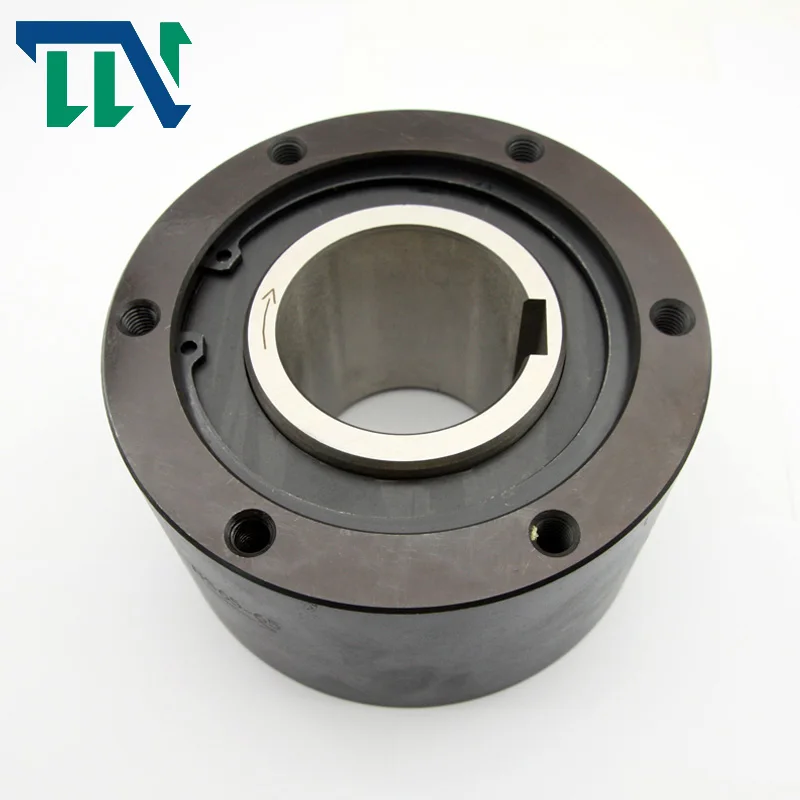

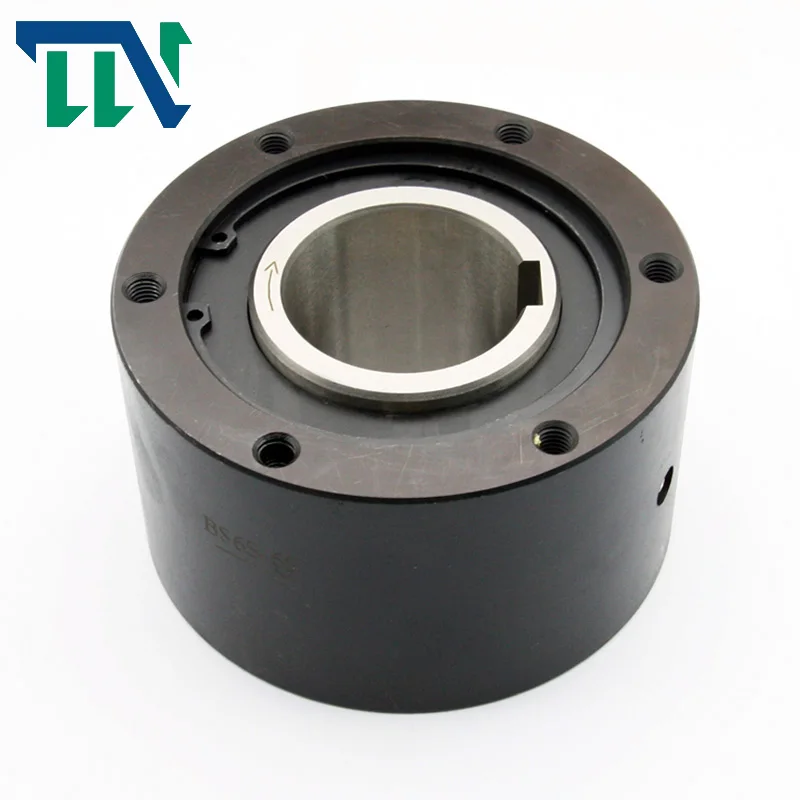

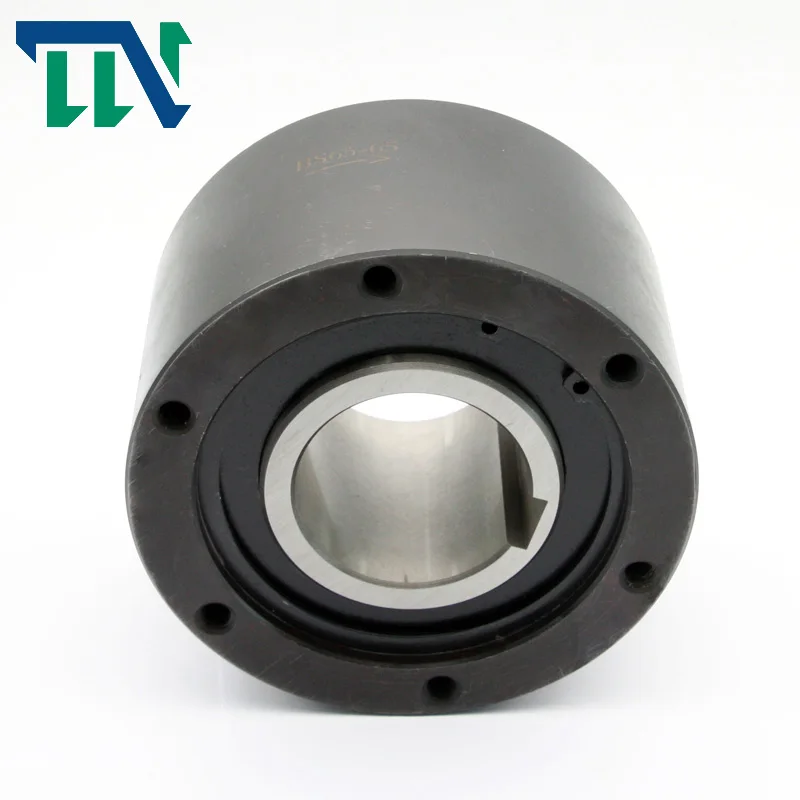

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery.
Medel No.
BS95
Size(ID*OD*L)
95*230*115mm
Bore Tolearance
H7
PCD(mm)
200
Torque Capcity(N.m)
7840
Weight(KG)
29.4
Delivery time
10-15 Days
Torque Arm is also Available
Notes: 1. The tolerance of Stock Finished Bore is H7.
2. Items hilighted in bold type are stock items, the others are built to order.
3. BS Cam Clutch can be bored according to your specification. Specify the bore diameter with
tolerance and keyway dimensions. Please be sure to specify.
Mounting Example
Model
Torque Capacity (N·m)
Max. Overrunning (r/min) Inner Race
Drag Torque (N·m)
A
B
C
PCD D
E
S
H-M Size× Pitch × No.of Tapped Holes
Grease Filler Hole (Size)
Q’ty Grease (kg)
BS30
294
350
0.58
64
90
64
80
45
13
M 6 ×P1.0×4
-
-
BS50
784
300
0.98
67
125
67
110
70
16
M 8 ×P1.25×4
-
-
BS65
1570
340
3.92
90
160
85
140
90
20
M10 ×P1.5×6
-
-
BS75
2450
300
5.88
90
170
85
150
100
20
M10 ×P1.5×6
-
-
BS85
5880
300
7.84
115
210
110
185
115
30
M12 ×P1.75×6
-
-
BS95
7840
250
9.8
115
230
110
200
130
30
M14 ×P2.0× 6
-
-
BS110
10800
250
14.7
115
270
110
220
150
30
M16 ×P2.0× 6
-
-
BS135
15700
200
19.6
135
320
130
280
180
30
M16 ×P2.0× 8
-
-
Model
Torque Capacity (N·m)
Max. Overrunning (r/min) Inner Race
Drag Torque (N·m)
A
B
C
PCD D
E
S
H-M Size× Pitch × No.of Tapped Holes
Bore Diameter Range (mm)
W. Min
W. Max
BS160
24,500
100
33.1
130
360
130
315
220
40
M20 × P2.5 ×10
100 to 160
98.1
85.6
BS200
37,200
100
44.1
150
430
145
380
265
40
M22 × P2.5 × 8
100 to 200
167
140
BS220
49,000
80
73.5
235
500
230
420
290
40
M20 × P2.5 ×16
150 to 220
301
264
BS250
88,200
50
93.1
295
600
290
530
330
50
M24 × P3.0 ×16
175 to 250
580
523
BS270
123,000
50
98
295
650
290
575
370
50
M24 × P3.0 ×16
200 to 270
620
562
BS300
176,000
50
108
295
780
290
690
470
60
M30 × P3.5 ×16
230 to 300
952
885
BS335
265,000
50
137
305
850
320
750
495
70
M36 × P4.0 ×16
250 to 335
1,140
1,040
BS350
314,000
50
157
320
930
360
815
535
70
M36 × P4 ×16
250 to 350
1,600
1,470
BS425
510,000
50
216
440
1,030
450
940
635
70
M36 ×P4.0 ×18
325 to 425
2,450
2,240
BS450
686,000
50
245
450
1,090
480
990
645
80
M42 × P4.5 ×18
350 to 450
2,820
2,580
