Design and manufacture self pressurized vaporizer LNG semi trailer truck in ASME standard

Product Overview

Description

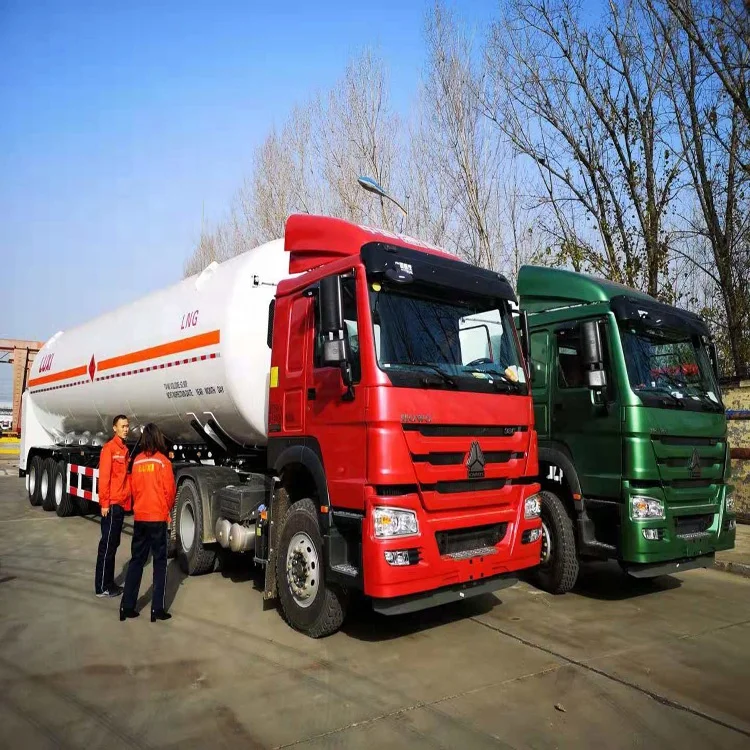

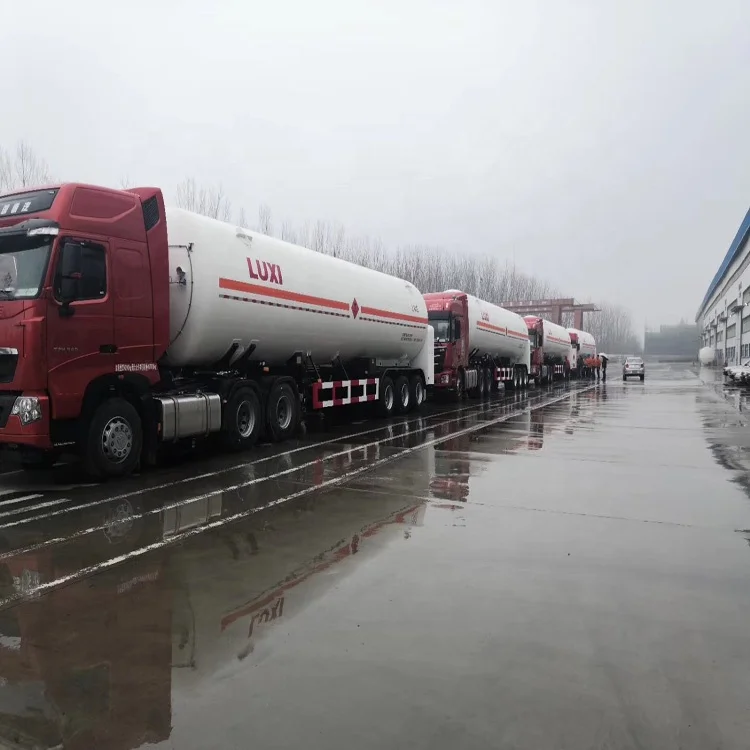

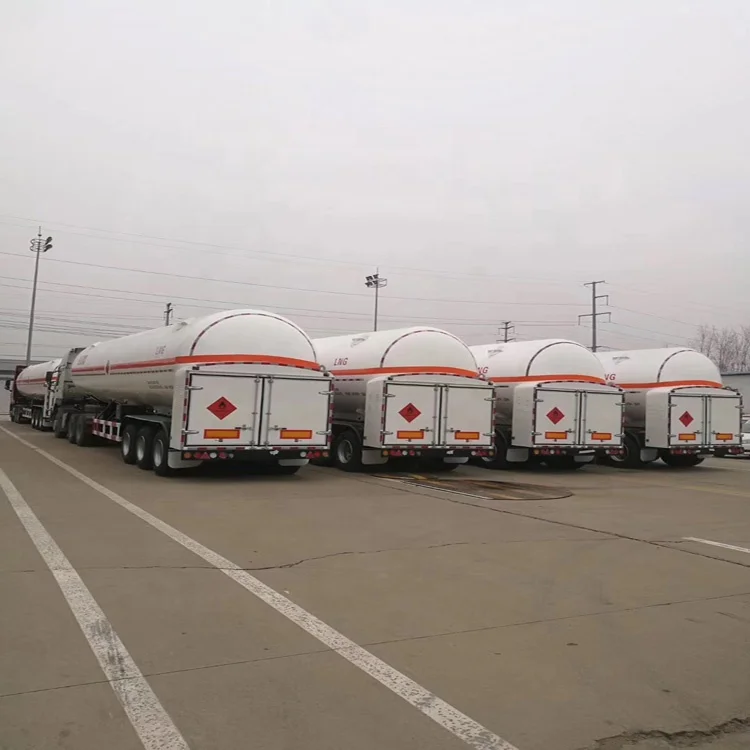

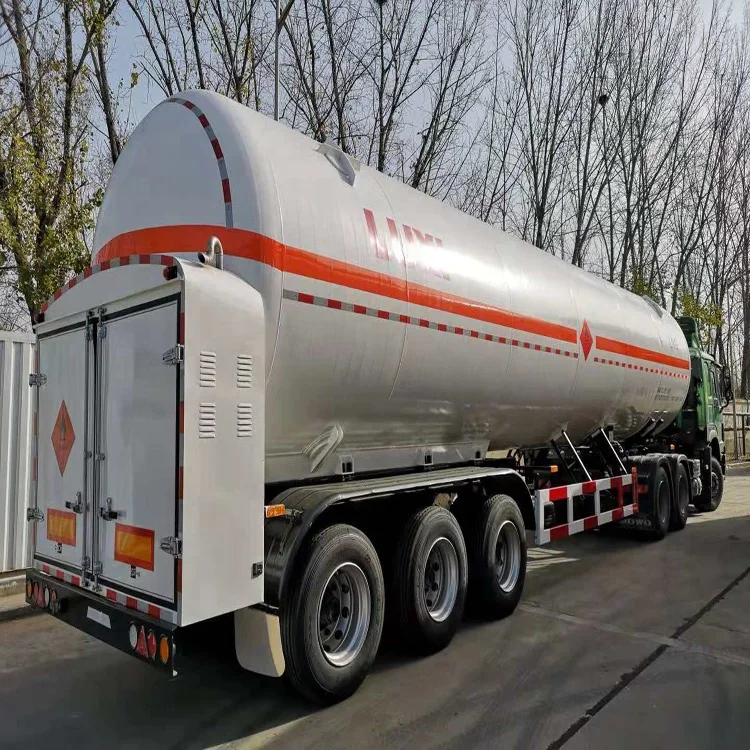

LNG cryogenic liquid transportation semi-trailer

1. The tank vehicle adopts high vacuum multi-layer winding insulation technology, to ensure the process of long distance transport temperature rise within the scope of the standard, pressure is stable, safe and reliable long-distance transportation;
2. The tank vehicle adopts cryogenic technology (-162℃) store, large capacity (the ratio of natural gas in gas and liquid volume for 625:1), transportation cost is low;
3. Large storage capacity, suitable for industrial and urban gas peak use;
4. The overall structure is simple, less valve pipe, convenient operation and maintenance;
5. Cryogenic tank design pressure up to 0.7Mpa, safe opening pressure 0.77Mpa, effectively prevent frequent in the process of charging and transportation safety valve to open;
6. Convenient and quick connection with a variety of tractor, and equipped with the parking brake, so that it is safe and reliable working condition.









1	Working Medium	LNG
2	Design Pressure (Mpa)	0.65
3	Design Temperature (℃)	-196
4	Full Volume (m3)	52.6
5	Effective Volume (m3)	47.34
6	Curb Weight (kg)	17,370.0
7	Max Pay Load (kg)	20,166.0
8	Gross Vehicle Weight (kg)	37,536.0
9	Vacuum Degree of Sealing off	≤1*10-1
10	Static Evaporation Rate (%/day)	≤0.21
11	Insulation Form	High vacuum multi-layer
12	Material (Inner Container)	S30408
13	Material (Out Tank)	Q345R
14	Dimension (L*W*H in mm)	13000*2500*3950





1. LNG cryogenic storage tank from 5-150m3;

2. LNG transportation semi-trailer 52.08m3, 52.6m3, 55.7m3;

3. ISO LNG tank container 20FT or 40FT;

4. LNG mobile refillilng unit;

5. Turnkey solutions including LNG refilling station, L-CNG refilling station, LNG regasification station; LNG/L-CNG combined refilling station.





1. Sales engineer will provide the complete product information and recommend the most suitable solution for your best choice.

2. Onsite training and operation help you be familiar with correct operating methods for the products and avoid the unnecessary losses caused by mistake operating.

3. Professional technical engineer will carry out face-to face technical exchange with you, including comparing all kinds of solutions and products for your selecting.

4. The warranty period is 12 months, starting from the date of the customer’s acceptance to the system. Within the warranty period, we will provide spare parts and after service, free of charge. Beyond the warranty period, we will provide paid repair service.
5. For the special requirement from the client, we will provide sufficient cooperation and support in all aspects, such as technology, commerce and manpower so as to satisfy our client.
