24V 20Ah li ion battery pack for Solar supply system
US $0.50-$280.00
OEM 12V Lithium ion Rechargeable Battery pack 12V Lithium ion Battery Pack for LED Strip and CCTV Camera
- Category: Battery Packs >>>
- Supplier: Shenzhen Lus Technology Co. Ltd.
Share on (62090040690):
Product Overview
Description
Features

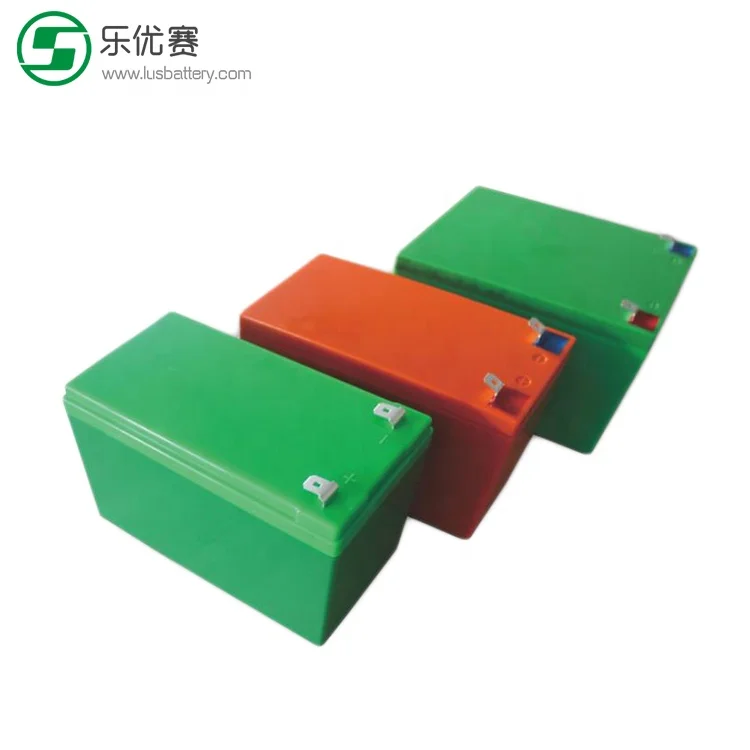

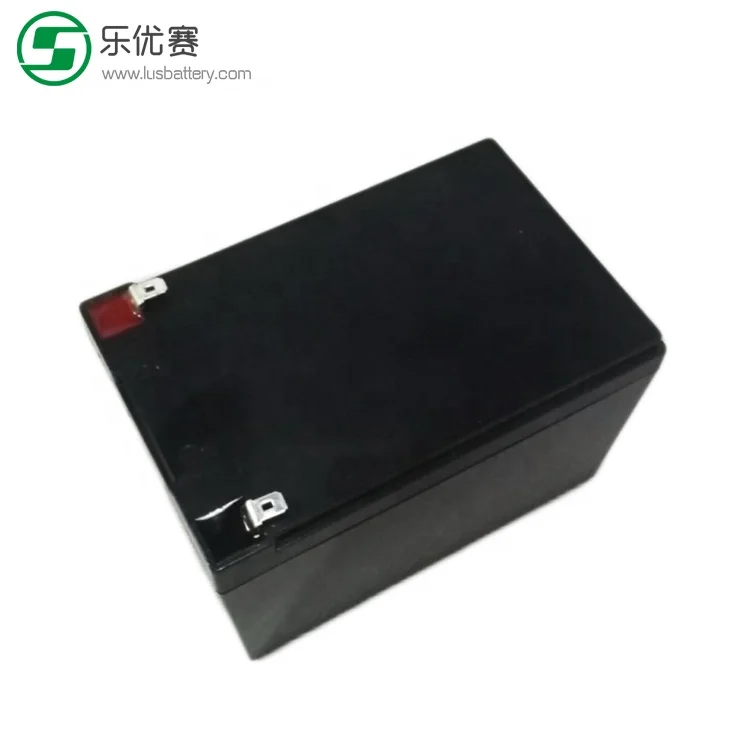

OEM 12V Lithium ion Rechargeable Battery pack 12V Lithium ion Battery Pack for LED Strip and CCTV Camera
32700 4S2P 12.8v 10Ah 12Ah Lifepo4 Battery for Solar Energy Storage
High Performance —High theoretical capacity of 170mah/g and high practical capacity as high as 165mah/g
• Long Cycle Life: up to 2000 cycle life (8x of Lead Acid and 3-4x of Li-ion)
• Extremely Safe/Stable Chemistry: no explosion & will not catch fire under collision over charged or short circuit; hi thermal stability of phases up to 500C
• Long Service Life: Around 5~6 years
• Wide working temperature range: From -4 F to 150 F (-20 C–+70C) • Flexible & Small Form Factor: 1/3 weight of lead acid and 64% of NiMH
• High Rate (Power) Capability • Environmentally Friendly Non-toxic, non-contaminating and No rare metal
Specifications
Specifications | 12V7Ah | 12V12Ah | 12V20Ah |
Nominal Voltage | 12.8V | 12.8V | 12.8V |
Nominal Capacity(C/5,23℃) | 7Ah | 12Ah | 20Ah |
Max output current(30S) | 21A | 30A | 30A |
Max Cont Discharge current | 7A | 12A | 20A |
Discharge Cut-off Voltage | 10V | 10V | 10V |
End of Charge voltage | 14.6V | 14.6V | 14.6V |
Float Voltage | 13.8V | 13.8V | 13.8V |
Recommended charging current | 3.5A | 6A | 10A |
Terminals | VRLA6.3mm | VRLA6.3mm | M6 |
Dimension | 151x65x95mm | 151x98x95mm | 181.5x77x166 |
12V LiFePo4 battery
Lithium ion battery
| Cell model | Voltage /V | Capacity /mAh | Capacity /mAh | Charge current | Discharge current | Plus current | Resistance /mΩ | Size/mm | Weight /g | Power Wh/Kg | |||
| Standard | Max. | Standard | Rapid | Max. | |||||||||
| IFR18650-1600mAh | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C | 10A,5S | ≤40 | φ18.45*65.3 | 39.5 | 130 |
| IFR18650-1800mAh- | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C | 10A,5S | ≤40 | φ18.45*65.3 | 41.5 | 139 |
| IFR26650-3200mAh- | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C | 15A,5S | ≤30 | φ26.2*65.6 | 84 | 122 |
| IFR26650-3600mAh- | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C | 20A,5S | ≤25 | φ26.2*65.6 | 85 | 136 |
| IFR26650-3800mAh- | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C | 20A,5S | ≤25 | φ26.2*65.6 | 87.5 | 139 |
| IFR26650-4000mAh- | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C | 20A,5S | ≤25 | φ26.2*65.6 | 87.5 | 146 |
| IFRP18650-1100mAh- | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C | 40A,10S | ≤18 | φ18.45*65.3 | 39.5 | 89 |
| IFRP26650-3000mAh- | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C | 45A,5S | ≤15 | φ26.2*65.6 | 81.5 | 118 |
| INR18650-2200mAh- | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C | 10A,5S | ≤35 | φ18.45*65.3 | 42.5 | 186 |
| INR18650-2600mAh- | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C | 8A,5S | ≤35 | φ18.45*65.3 | 45 | 208 |
| INR26650-5000mAh- | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C | 15A,5S | ≤30 | φ26.2*65.6 | 92.5 | 195 |
Cost Performance
♦ Long-run Cost: LiFePO4 battery could work at 60°c, with long life 5-10 years.
♦ Smaller Space: 1/3 of the lead acid battery.
♦ Low Maintenance Cost: maintenance free, centralized monitoring and module installatin also to reduce cost for transportation.
♦ Safety Cost: stable discharge platform to avoid euipmet exception.
♦ Save Electricity Power: with same capacity, LiFePO4 battery is more powerful hank lead acid battery, and could support longer.
Outstanding Performance of BMS
Self-Checking
Defect Alerting Function
Capacity (SOC) Calculating
High Voltage Leakage Warning
Charging and Discharging Management
Collection of Voltage, Current and Temperature
Over Current, Over Volt, Temperature Protection
Communication: display / car can bus communication, data transferring
Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
Intellectual Robots
Power tools: electric drills, toys
Energy Storage
Solar-Wind Power System
City Grid (On/Off)
Community and Family
Back-up System and UPS
Telcom Base, CATV system, Computer Server Center, Medical Instrumnt
Other Applications
Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Cells part number
18650 26650 18500 18350 17500 17650 16340 14500 14430 10440 10280 20700 21700
OEM lithium battery packs
Li ion Application
Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, flashlight, high-end flashlight, high power flashlight, brightflashlight;
Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight;
Customer electronics: MPS, Tablet PC. laptop, Blue tooth earphone, power bank, portable DVD player, speaker, microphone, sound equipments, audio, Digital camera, vidican;
Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes, electric blanket;
Medical devices;
Instruments and meters: water meter, gas meter;
Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor;
Power tools: electric drill, mower;
UPS, GPS;
Customized Battery Pack Solutions for windly range.
Hot model:
Company Information
LUS OFFER YOU :
1: NICE QUALITY.
2: QUICK SHIPPING WITHIN 7 DAYS.
3: NO MOQ, 1PC OK, SMALL ORDER WELCOME.
4: ONLINE PAYMENT.
5: SPECIAL CUSTOMIZED
About LUS
3000 square meters of production workshop + 120 staffs + 500,000 pcs/month production capacity + 15 years experiences
Welcome to be one of our top "VIP" customers. We believe that " THE QUALITY IS THE SOUL OF AN ENTREPRISE".
"with us your MONEY in safe; your BUSINESS in safe"
Trust you will like our QUALITY& PRICE.
