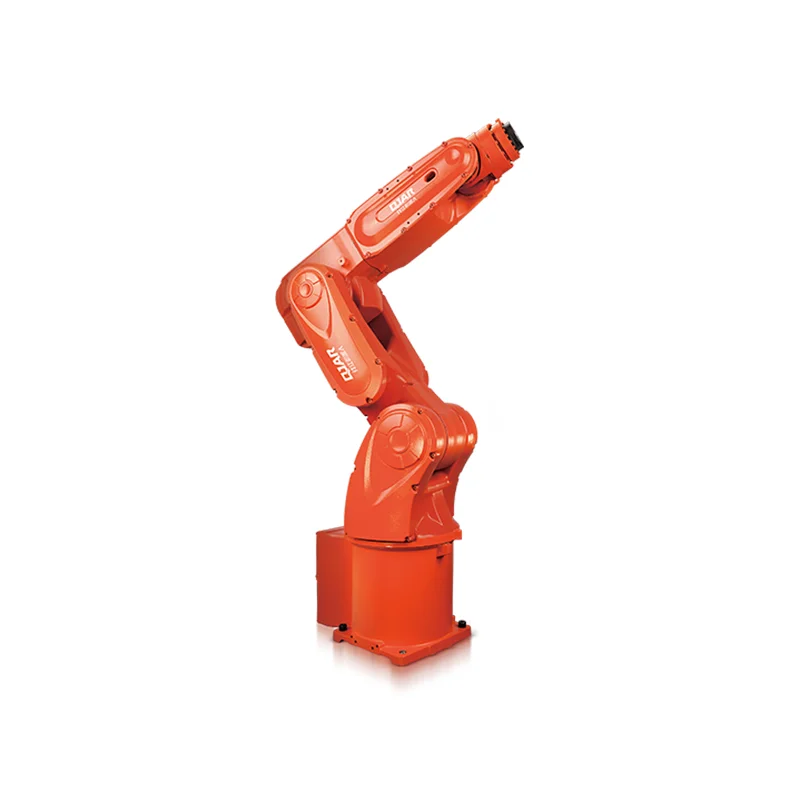

Multifunction Automation Welding Humanoid Robot 6 Axis Robot Arm
- Category: >>>
- Supplier: Evs Tech Co. Ltd.
Share on (62090061752):
Product Overview
Description

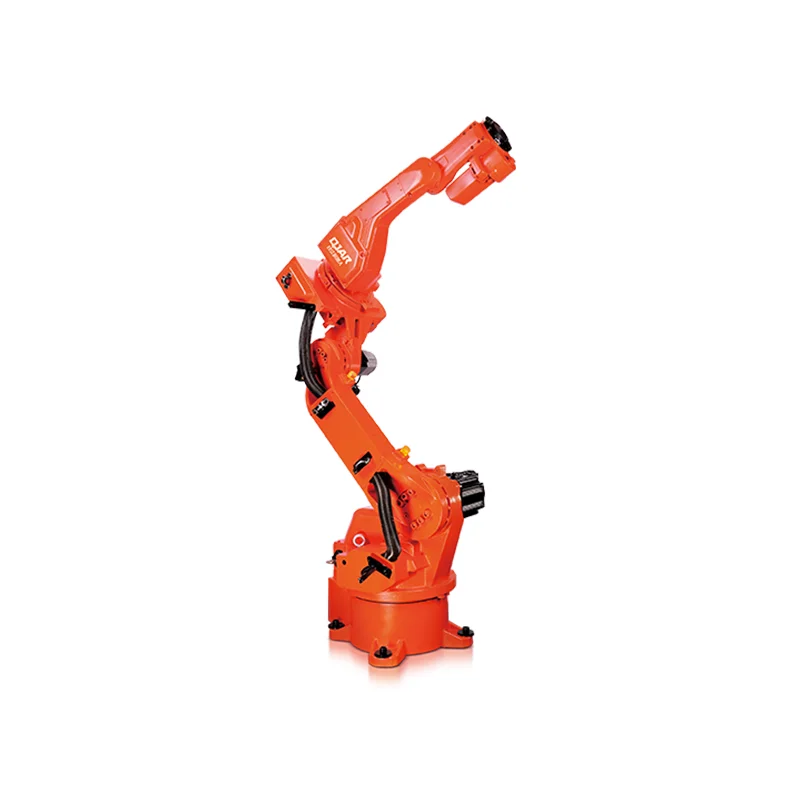

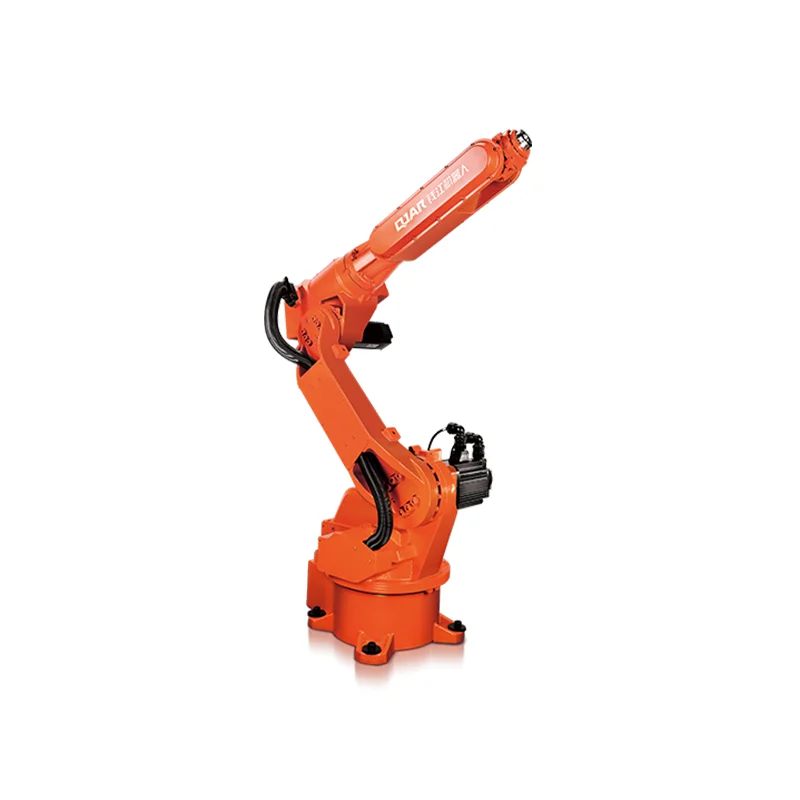

Multifunction Automation Welding Humanoid Robot 6 Axis Robot Arm
We are EVS TECH CO., LTD, an industrial robot supplier in China. We're the exclusive partner for QJAR robot on global market and we're the only team that can sell QJAR robot overseas.
We can supply a wide product range including industrial robots ranging from 3kg to 800kg payload (6-axis robot, 4-axis robot, delta robot, scara robot,explosion-proof robot and other special application robots), welding positioners, robot walking rail, vision system, etc.
Our robots are widely applied in welding, handling, palletizing, polishing, painting, cutting, etc.
The advantages are: super cost-effective, well-knit compact structure, high flexibility, high reliability, high speed, high precision, high expansibility, easy operation, easy maintenance.

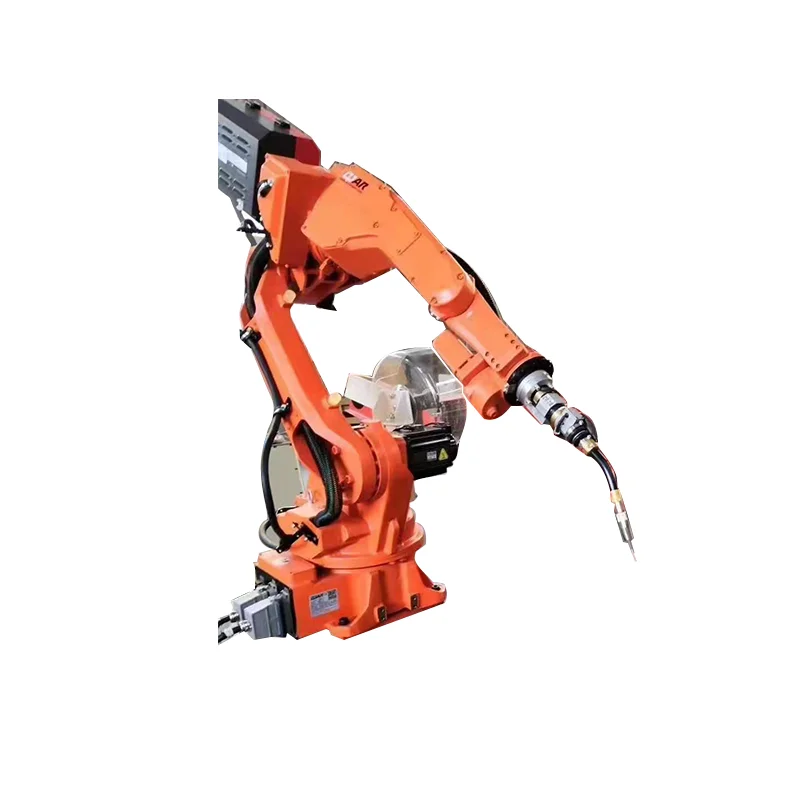

co2 arc welding
Component List

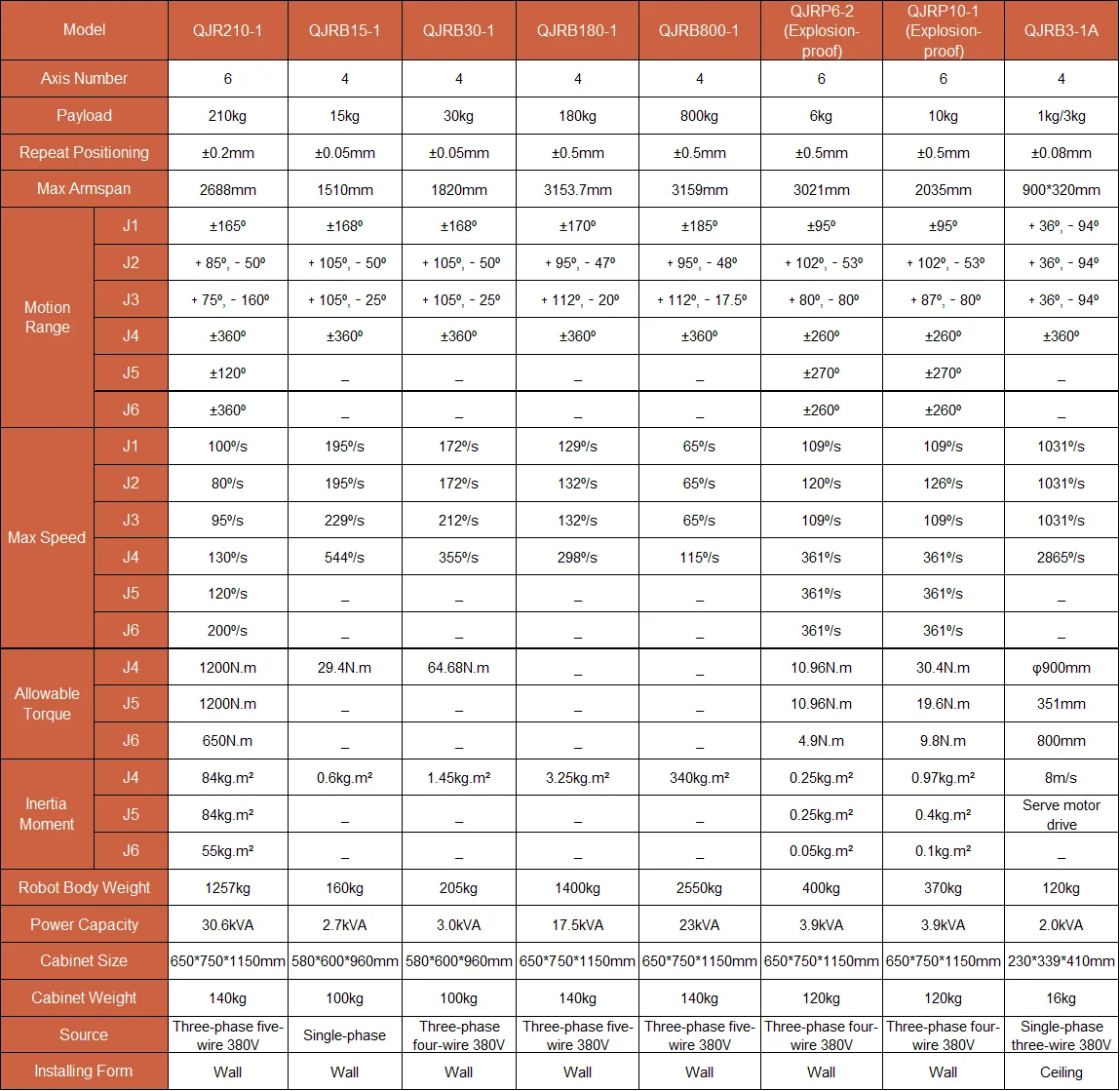

Product Parameters

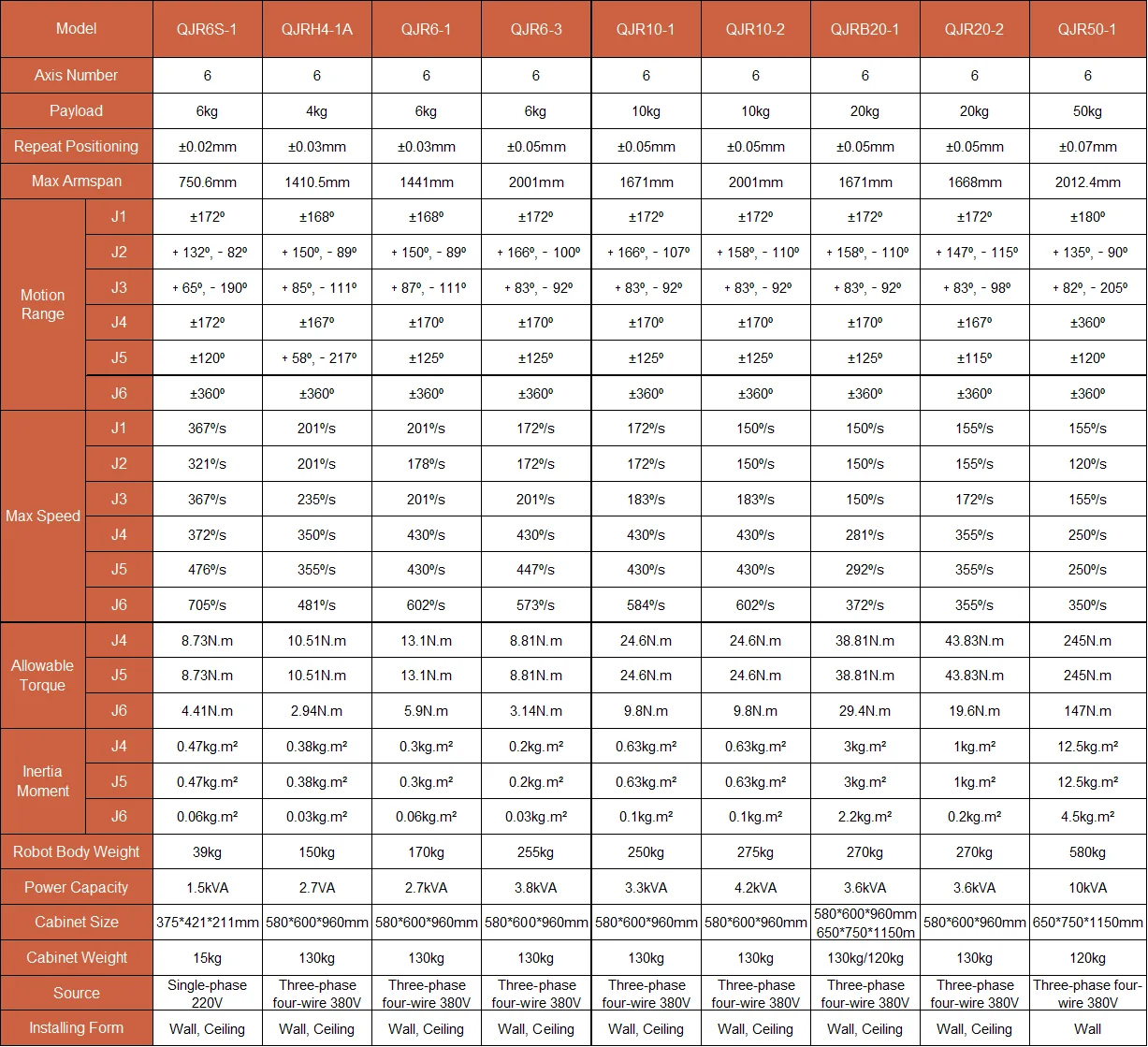

QJAR Series

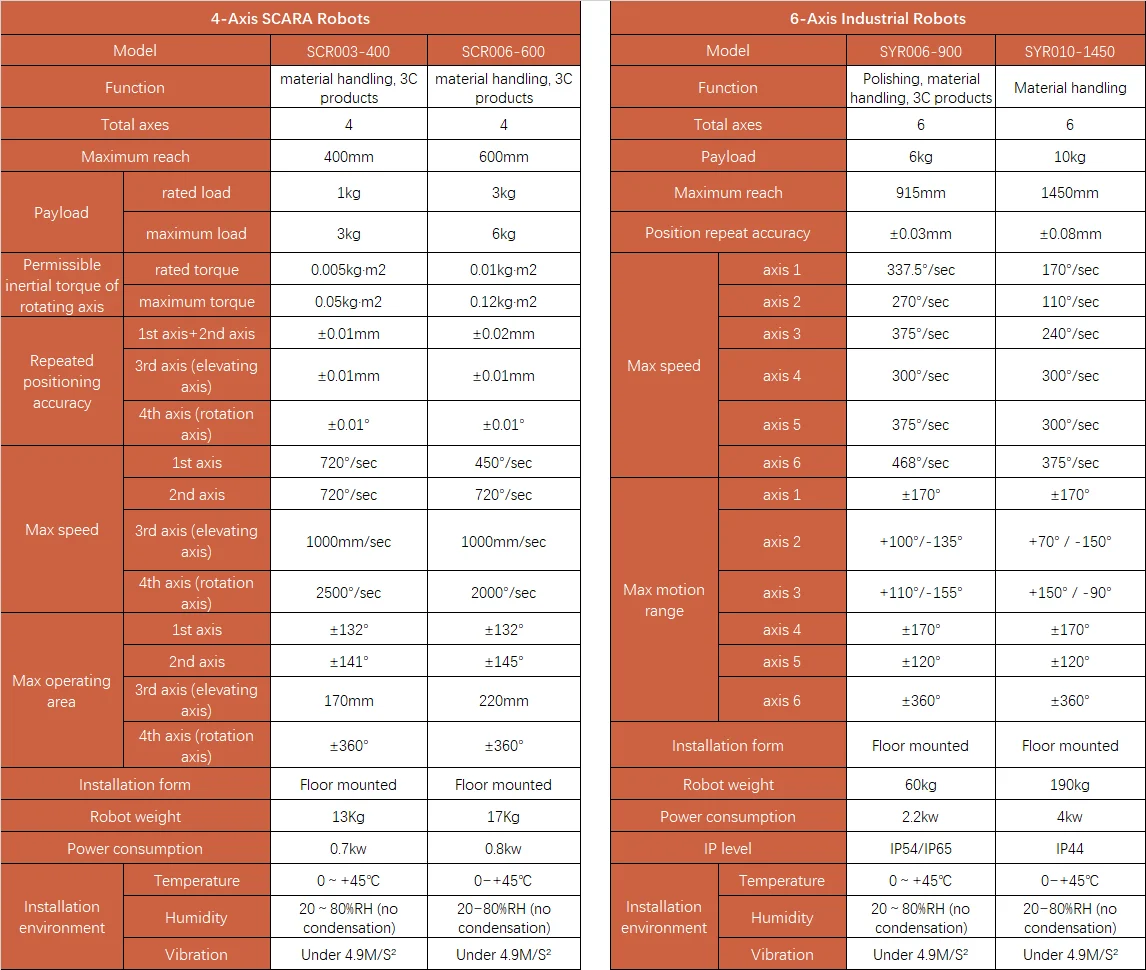

EVS Series

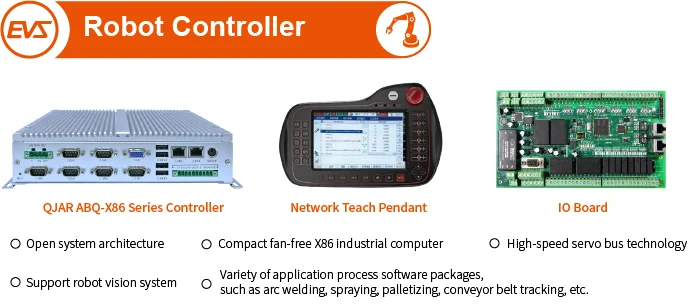

Robot Controller
Controller Parameters
| Product | Specification |
| Hardware Structure | Intel 4-core |
| System | Real-time Linux operating system |
| Memory | Max to 8G |
| Storage | Support SATA storage |
| Communication Port | USB3.0 (4), 1000M Ethernet(2), EtherCAT(1), DIO(8), HDMI(1), RS232(2) |
| EtherCAT Bus | Communication Cycle 1ms |
| Support max to 32 axes | |
| Support extendable IO | |
| Power Input | DC 12V/3A |
| EMC Class | Industrial level III |

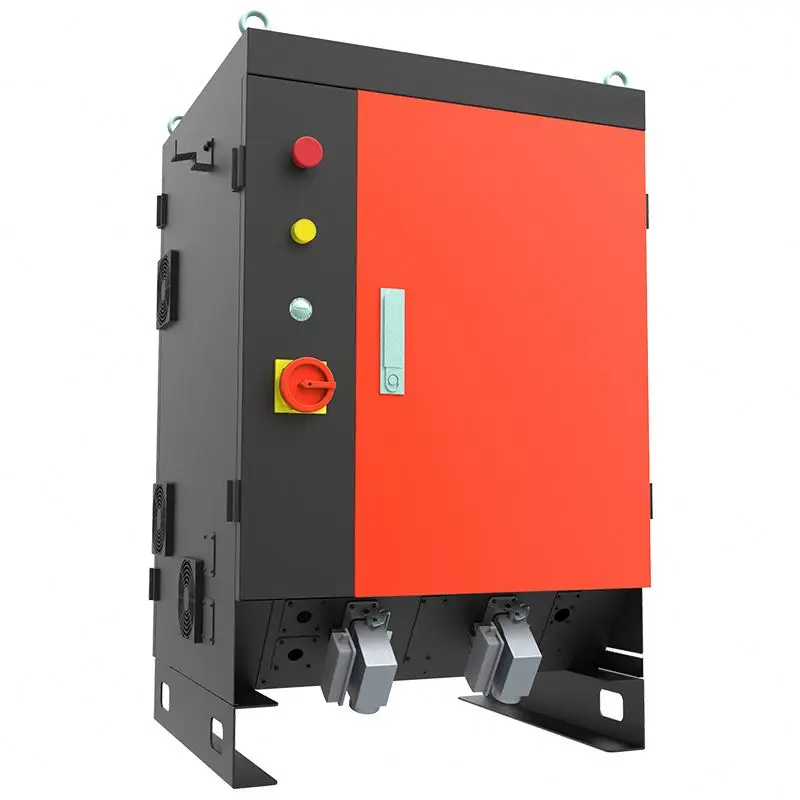

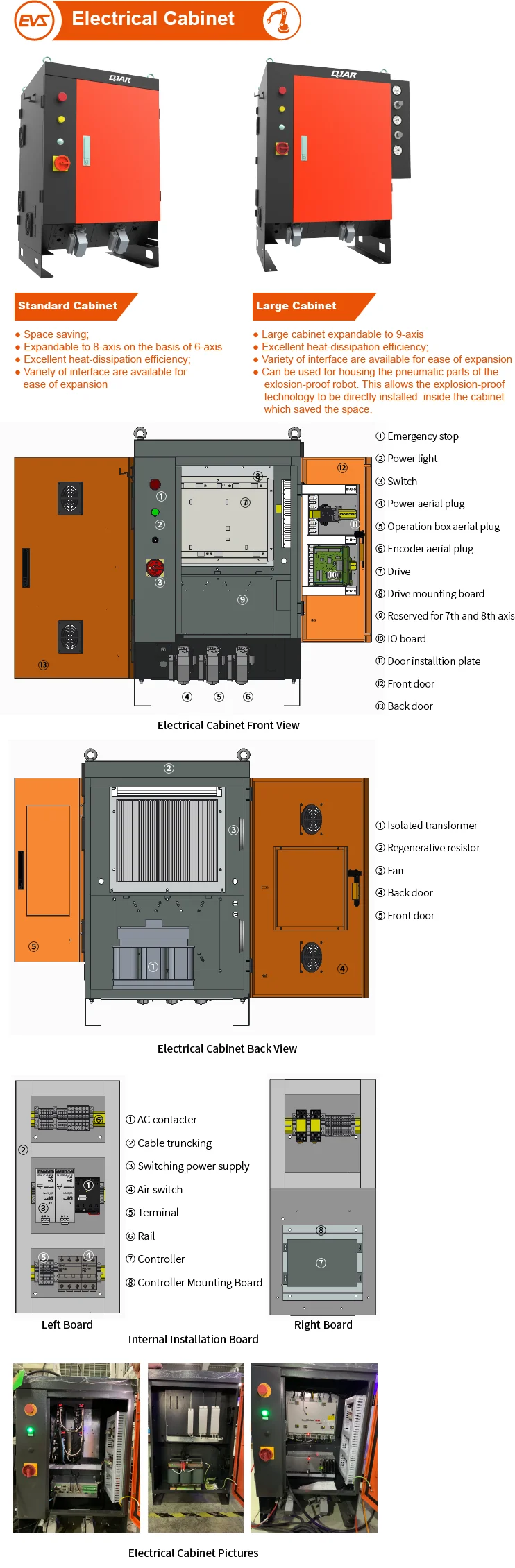

Basic Paremeters of the Electrical Cabinet
| Power Supply | Three-phase 380V±10% |
| Power Capacity | 4.5KW |
| Dimension | 580×600×960mm |
| Temperature | 0~45°C |
| Humidity | 10~90%RH |
| IP Level | IP21 |
| Operating System | QJAR System |

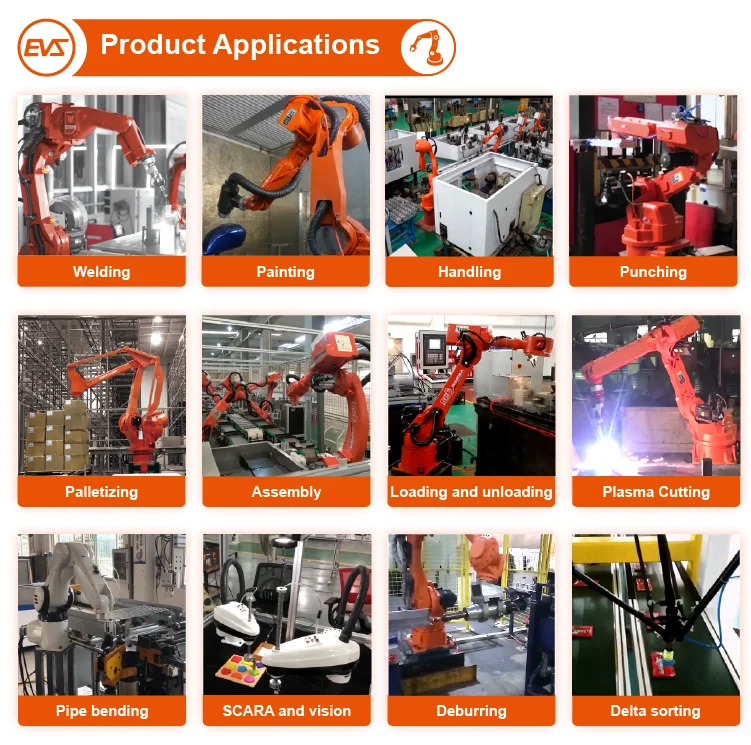

Product Applications
About Us
Compare with Others

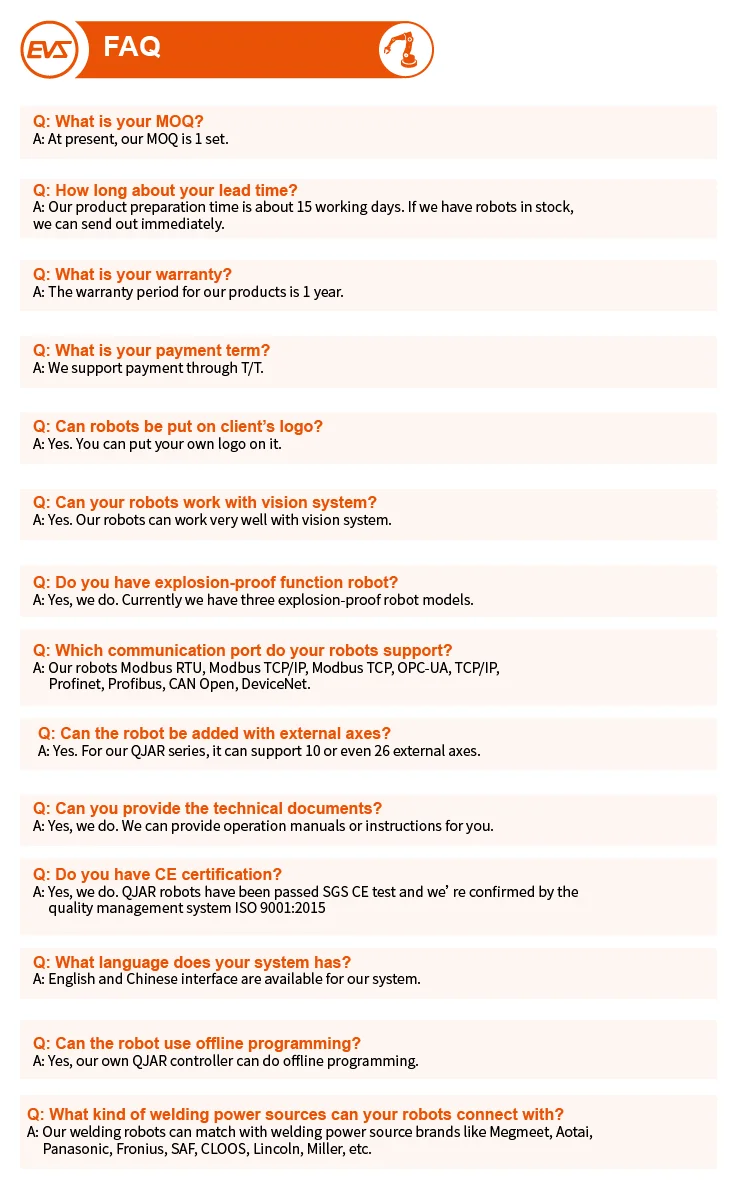

FAQ
