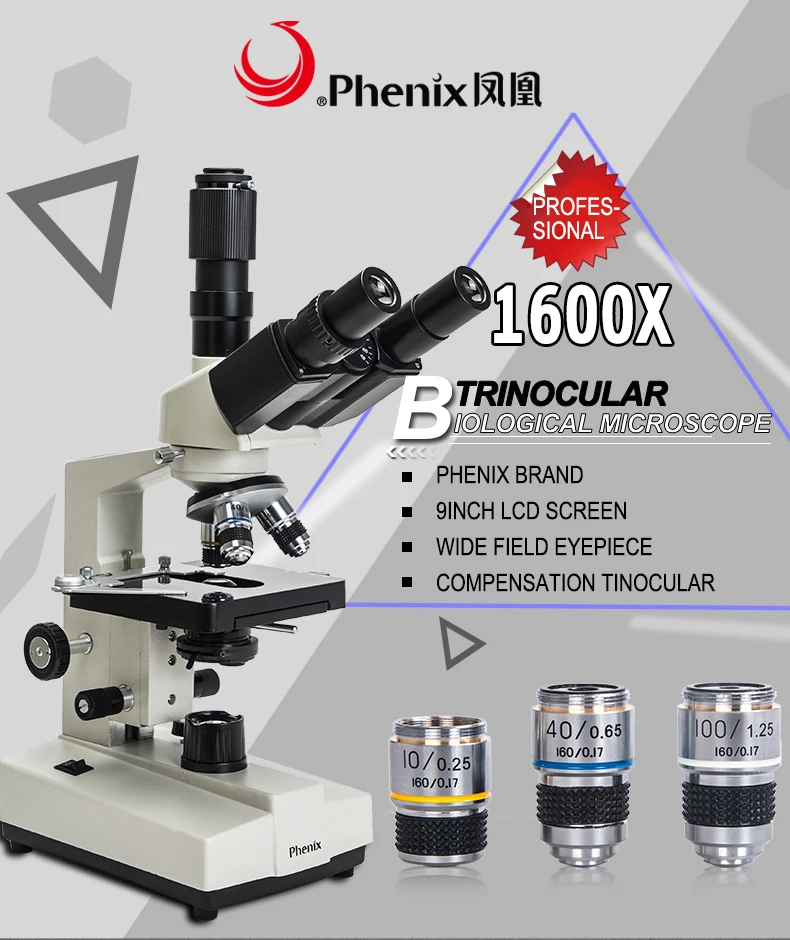

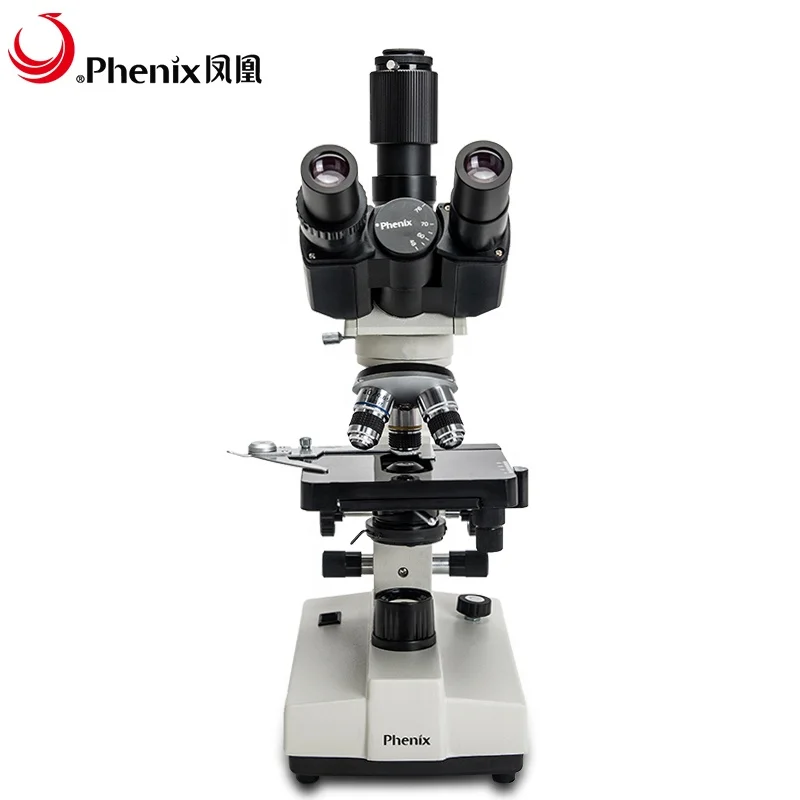

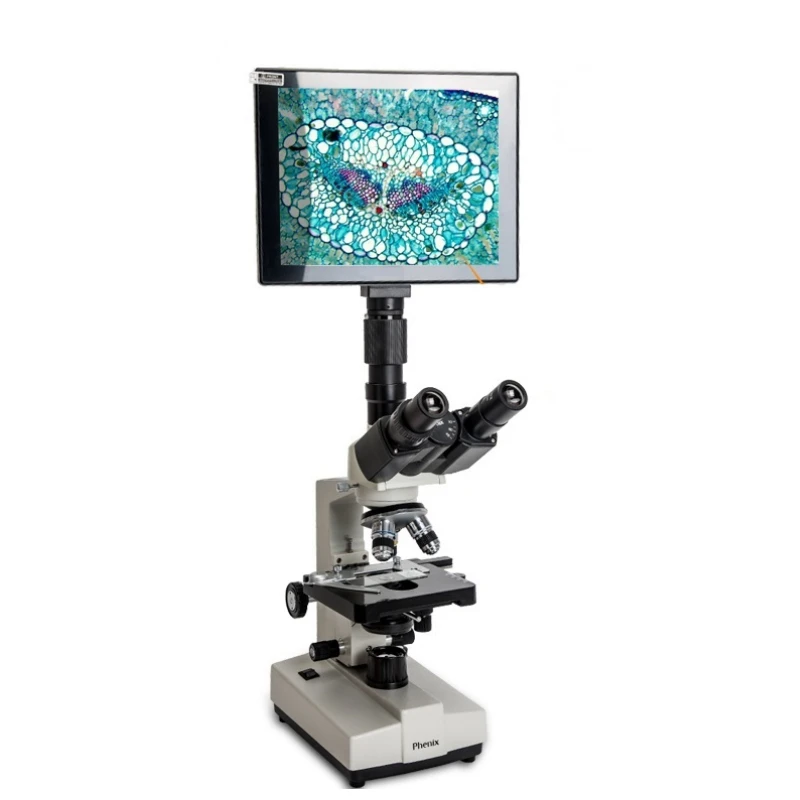

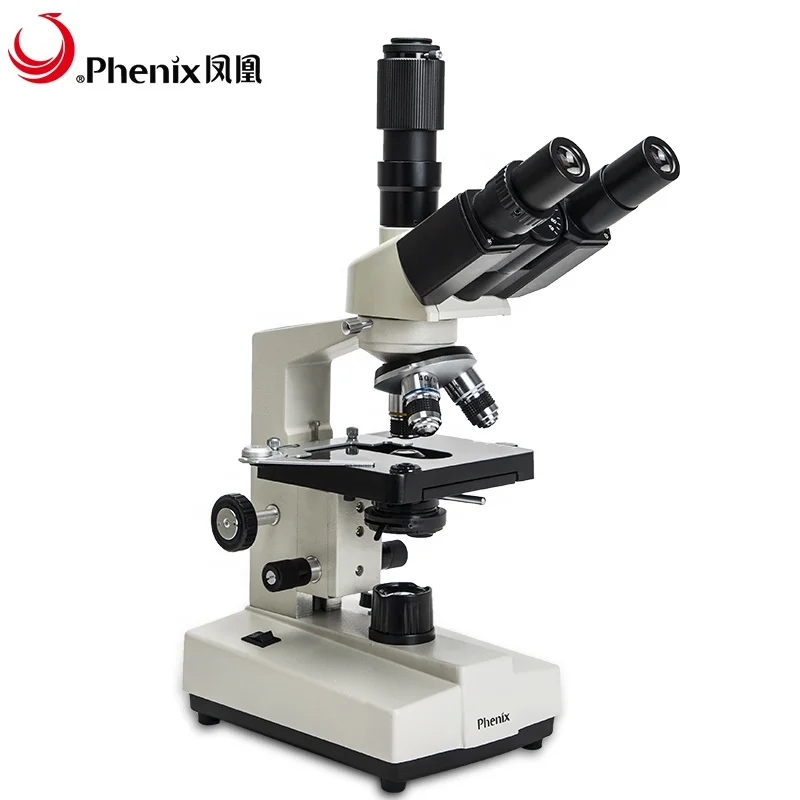

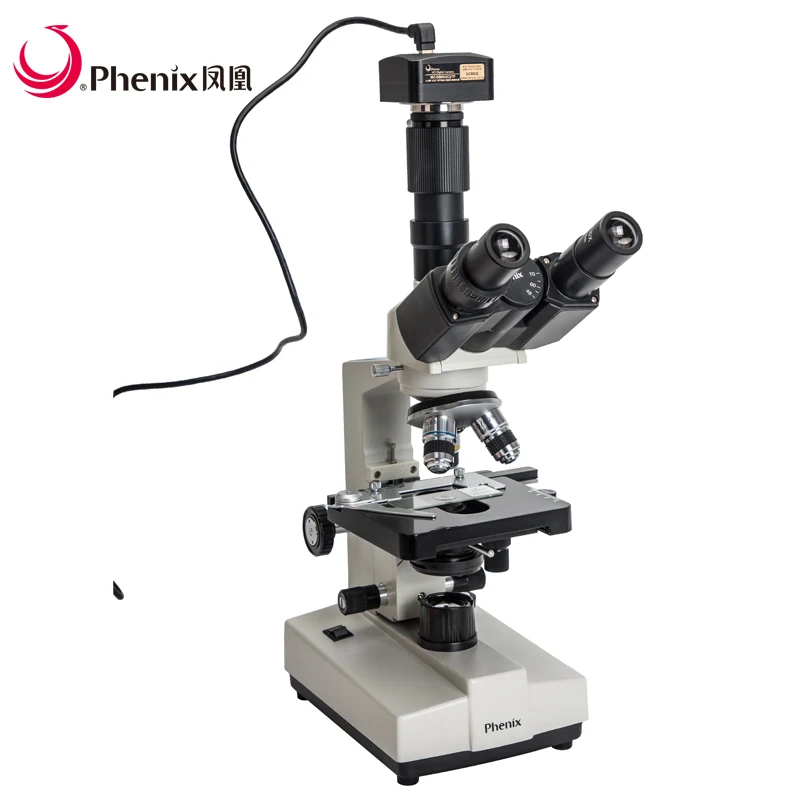

Phenix 100X 1600X Trinocular Biological Educational Microscope with Double layer Mechanical Stage
- Category: >>>
- Supplier: Jiangxi Phenix Optical Technology Co. Ltd.
Share on (62090095300):
Product Overview
Description
Phenix XSP-36TV 100X-1000X Trinocular Biological Educational Microscope with Double layer Mechanical Stage
Product Description
XSP-30 series biological microscope,with modular design,can be recombined with different function modular attachment.It is a microscope with hign cost performance.Most of its components were precisely made of metal.Well designed optical system,fully coatd optical lens,give out excellent and clear image in wide field.

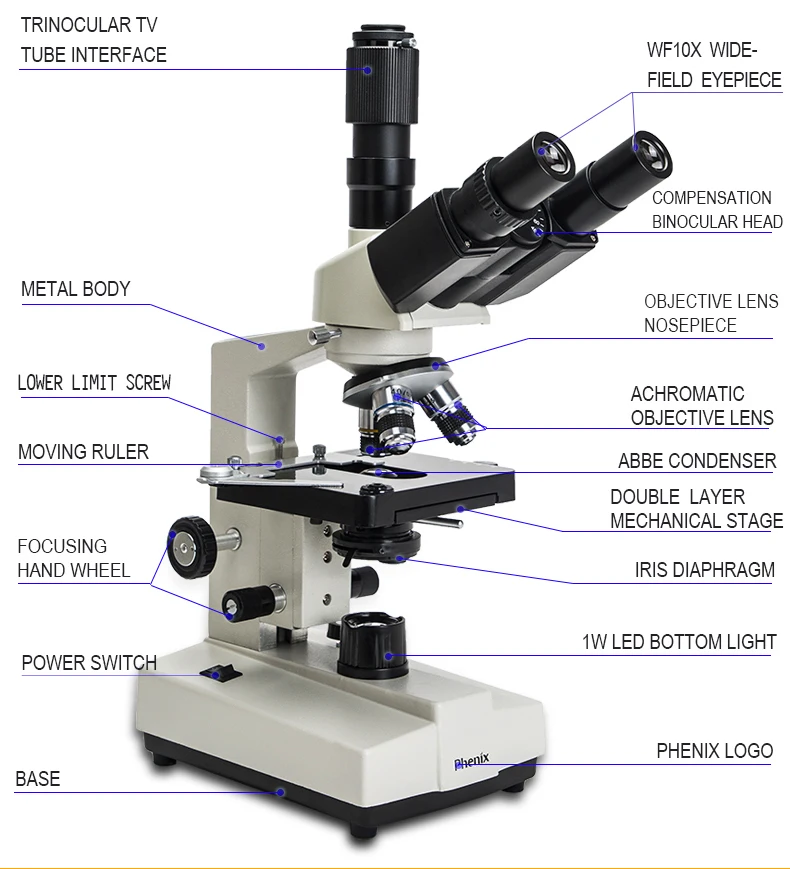

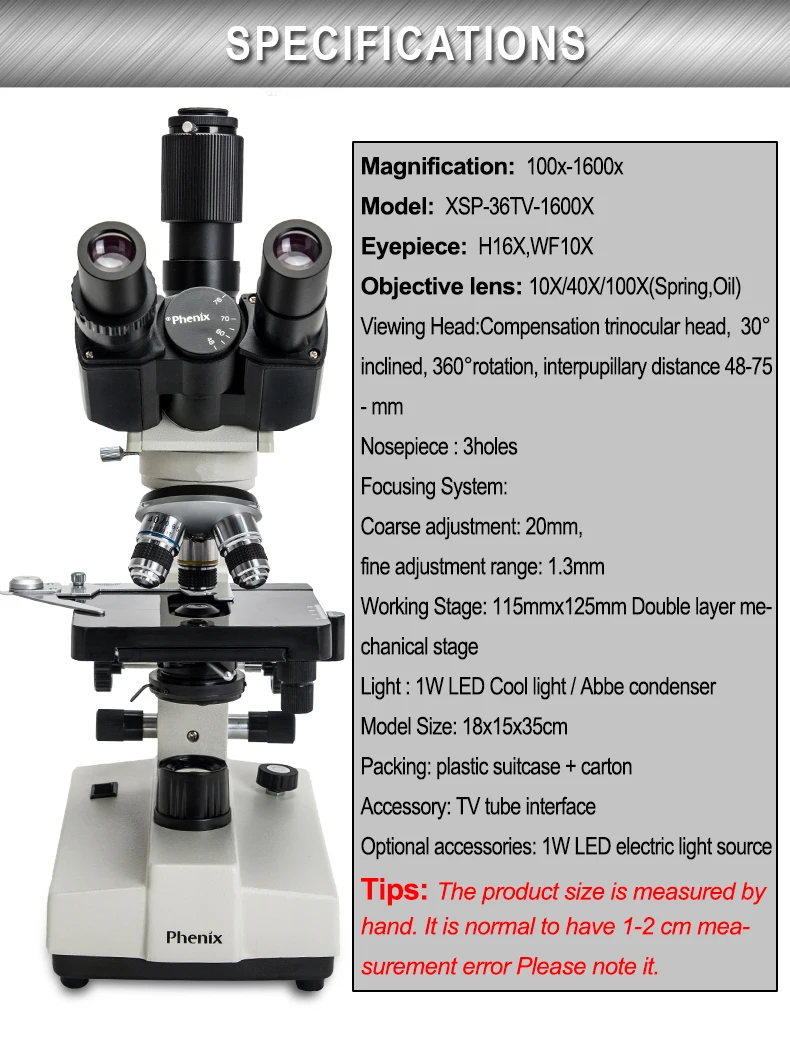

| Part Name | Specification | XSP-36TV-1600X |
| Maginification | 100X-1600X | √ |
| Viewing head | Monocular,30° inclined,360° rotatable | |
| Monocular TV,45° inclined,360° rotatable | ||
| Trinocular head,30° inclined, 360° rotatable,interpupillary distance 48-75mm. | √ | |

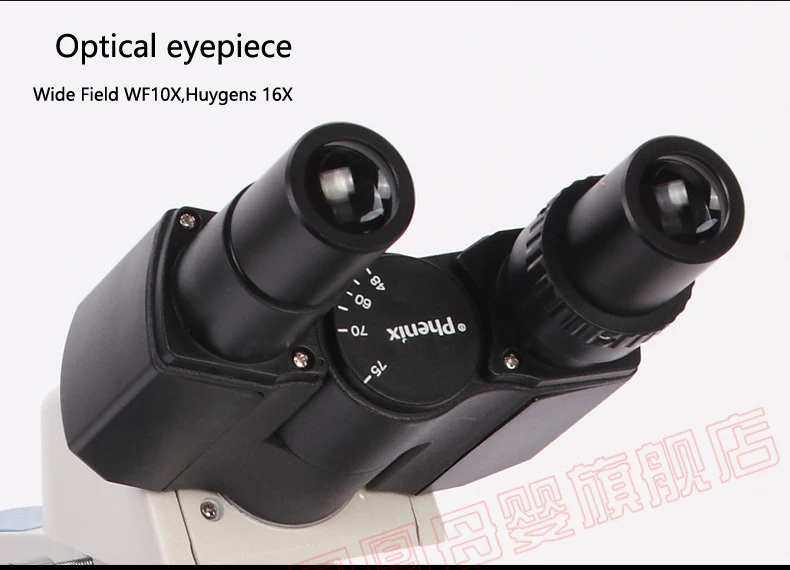

| Eyepiece | WF10X/18mm, H16X/10mm | √ |
| Objective Achromatic | 10X,40X(S),100X(SO) | √ |
| Nosepieces | 3 holes | √ |

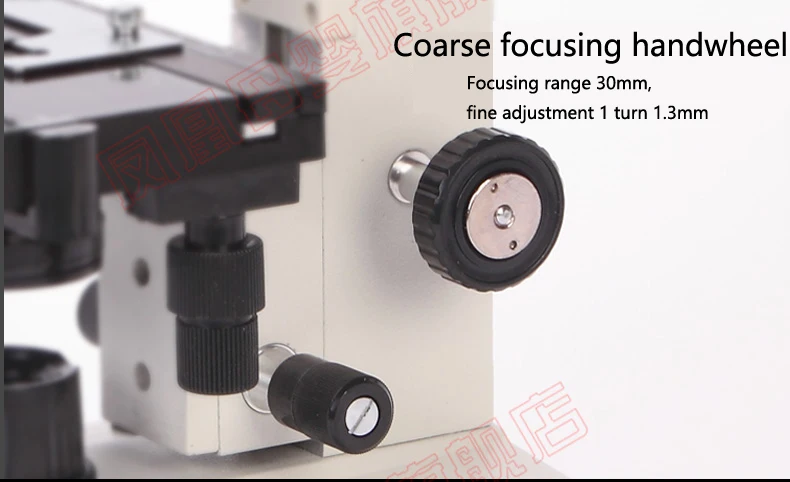

| Focusing system | Coaxial coarse&fine focusing knob,coarse focusing range 22mm,fine focusing graduation 1.3mm | √ |

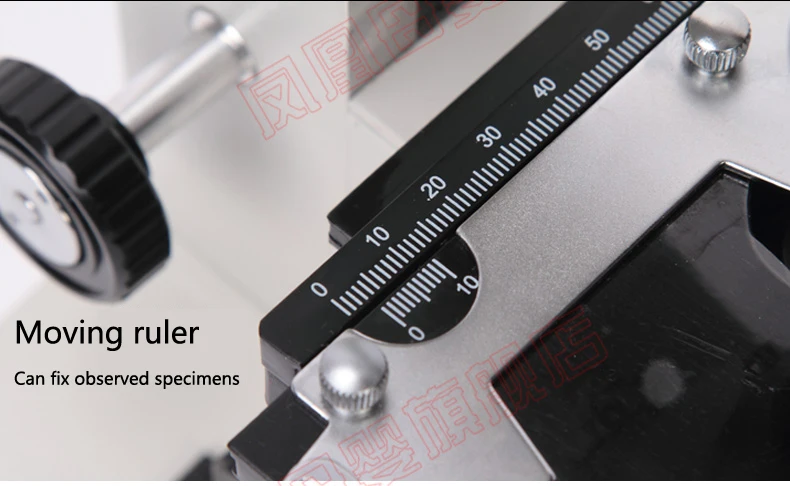

| Working Stage | Double layer mechanical stage,size 125*115mm,moving range 76*52mm. | √ |

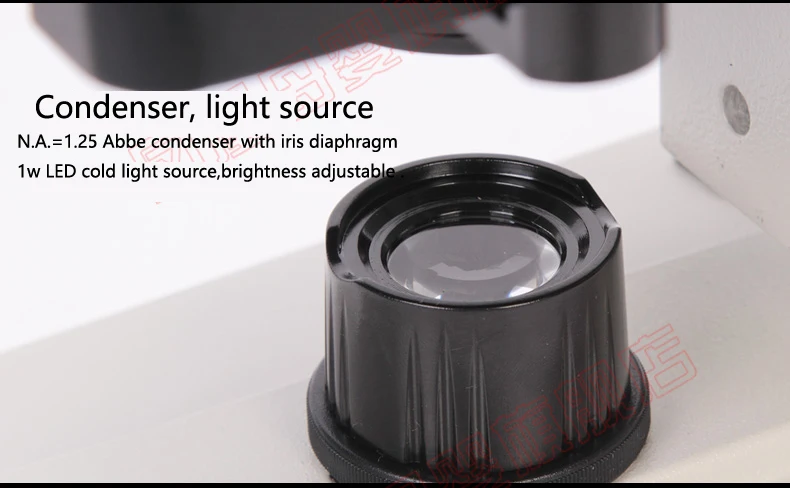

| Condenser | Abbe condenser N.A.=1.25,with iris diaphragm,and filter stand. | √ |
| Light | LED 1W,brightness adjustable,rechargable | √ |
| Power | External power supply(adpter),input AC 100V-240V.putout:DC 5V/2A | √ |
| Voltage plug | 220V/50Hz,China standard | √ |
Detailed Images
