Disposable Napkin Wooden Fork Knife Spoon Cutlery Four Side Packing Machine
Application

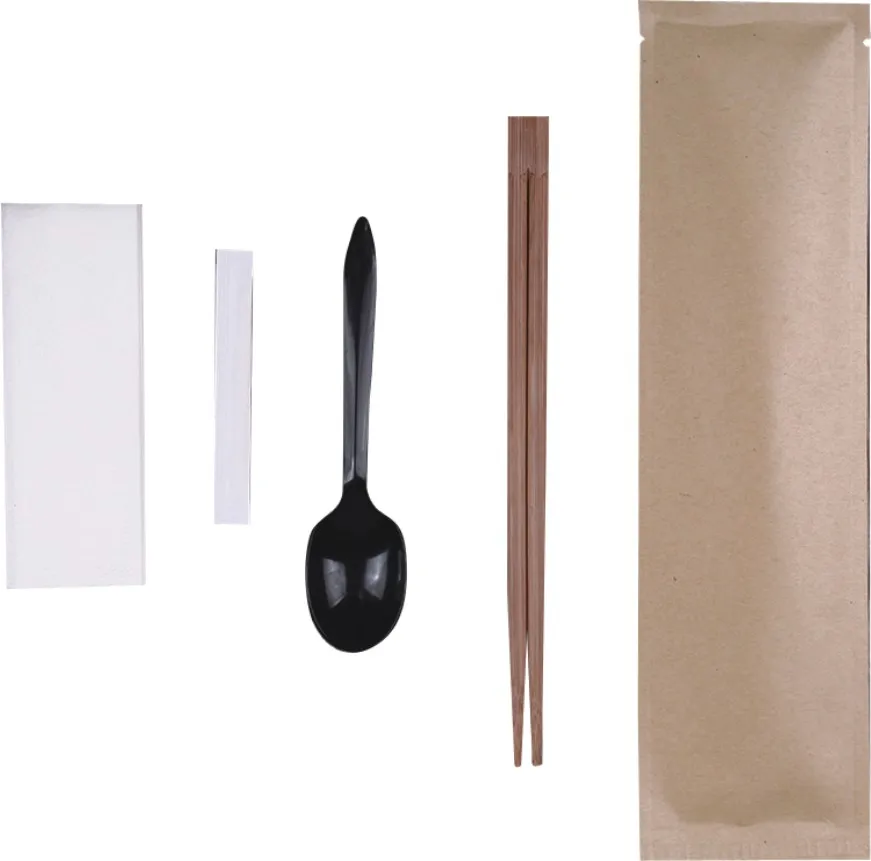

Disposable tableware, plaster machine, antipyretic paste, warm baby, tooth paste, non-woven fabric, mask and other sheet products with a height of less than 20mm and four sides.
Detail display
Product Description
Napkin machine parameter
Machine Model
BN-8300
speed
20-150(bag/min)
folding width
6-12
scroll max-dia
900
scroll max-width
450mm
4-side Seal packing machine
Machine Model
BN-8300
Film max-width
250mm
Film thickness
0.012-0.05mm
Bag dimensions
100-300(L)X50-80(W)X30(H)
packing speed
20-150(bag/min)
Knife fork spoon machine
Machine Model
BN-8300
delivery max-speed
80-120times/min
bag dimensions
(L)
60-150mm
(w)
40-130mm
H
0.1-3mm

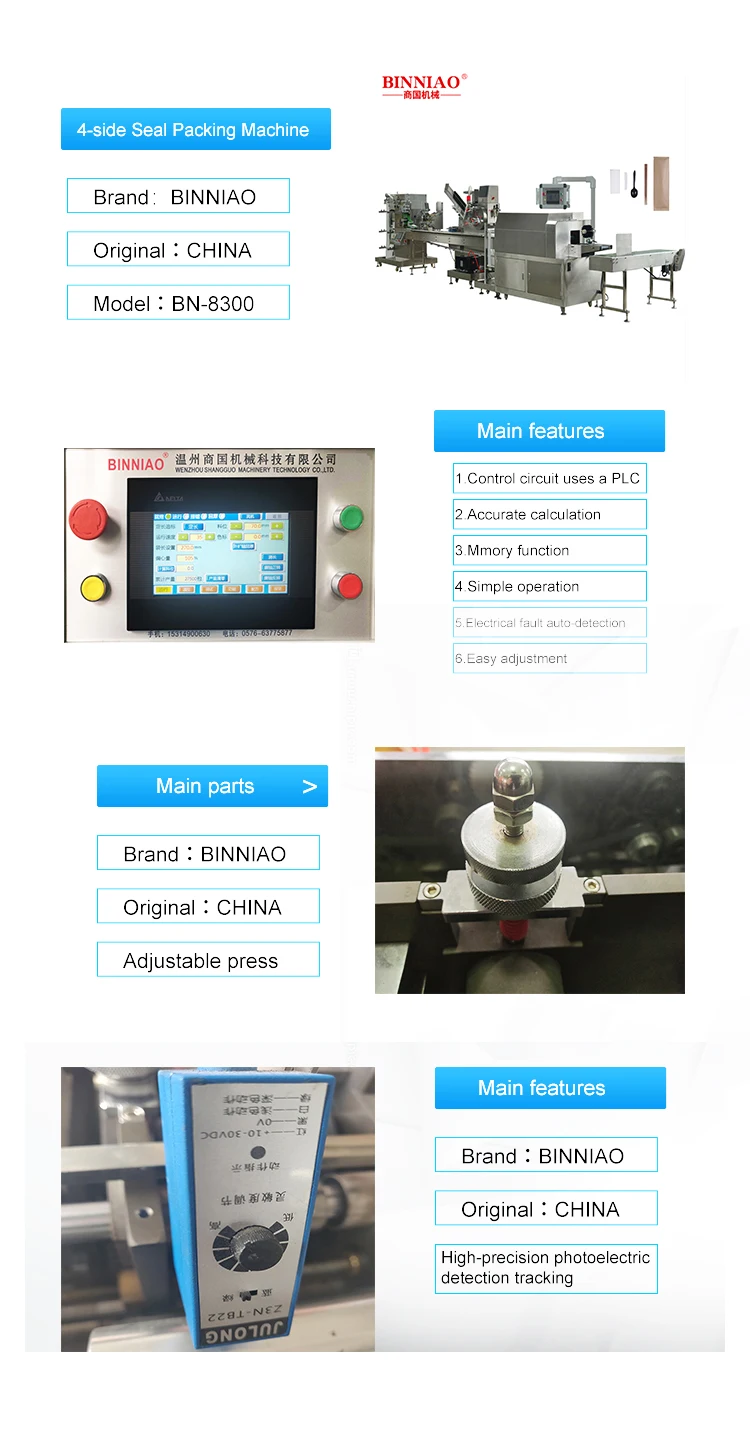

1. Programmable control: PLC programmable control and servo motor are used to program the whole machine.
2, touch screen display: host running speed, set bag length, actual bag length, compensation amount, output will be displayed on the screen, at a glance.
3, the bag length automatic adjustment: the change of the package length is set on the touch screen, there is a computer program to automatically adjust the length, very convenient.

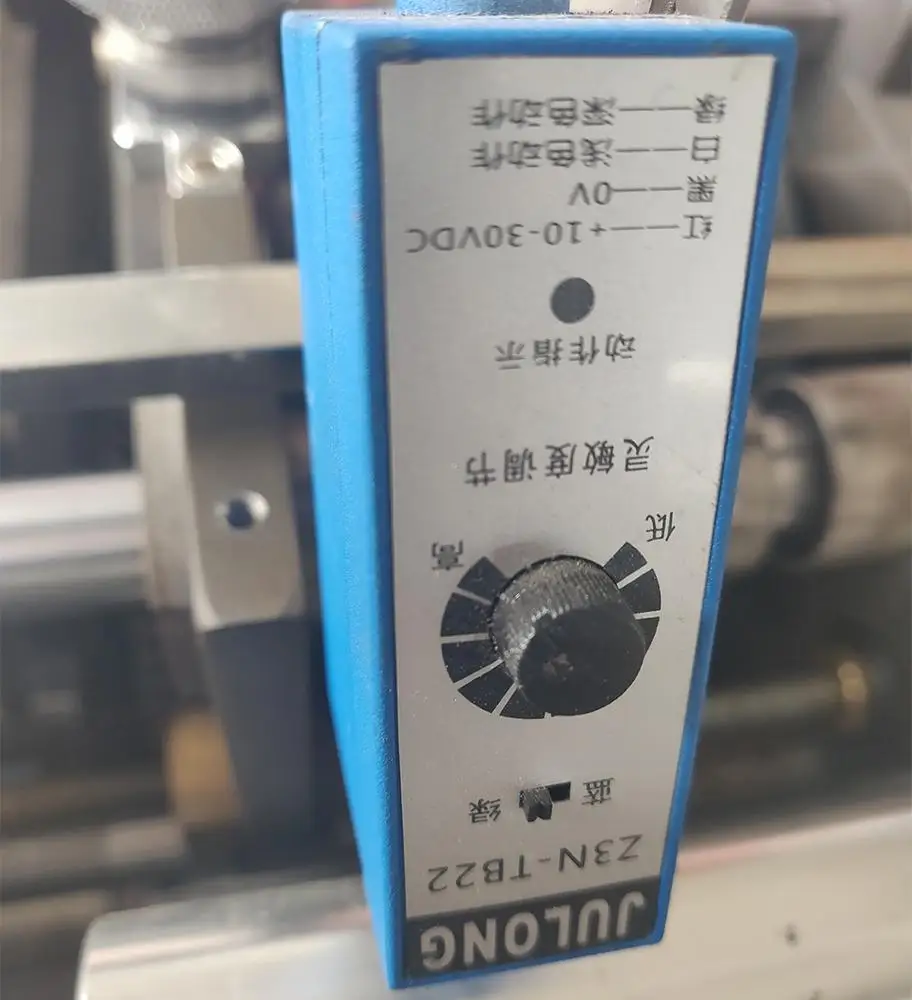

4, two-way compensation benchmark: photoelectric detection color standard, controlled by PLC computer program combined with servo motor, automatic tracking, so that the standard speed, accurate.
5. Waste collection device: The exhaust material can be used to balance the tension of the packaging material, so that the waste can be quickly eliminated.
6, automatic feeding of tableware: can be suitable for a variety of spoons, chopsticks, toothpicks, and paper towels, packaging efficiency, stable performance, easy operation, low failure rate, continuous long-term operation.
7. The left and right seals are sealed by contact, and the length is up to 300mm, which is not only beautiful, but also has good sealing.
8, according to customer needs, you can install the printer, print the production date.
9. It is a domestic advanced technology and solves the problem of manual packaging of sheet products.
Our company
Over the years, automatic packaging machines for disposable tableware, horizontal packaging machines, wet tissue making and packing machines, shrink packaging machines, cupcake paper packaging machines and some other machines designed and produced by our company have been in great demand in over 30 provinces and cities in China, and in more than ten other countries, including Korea, India, and Thailand we'e won the heart of customers with faster, finer, and better products.
