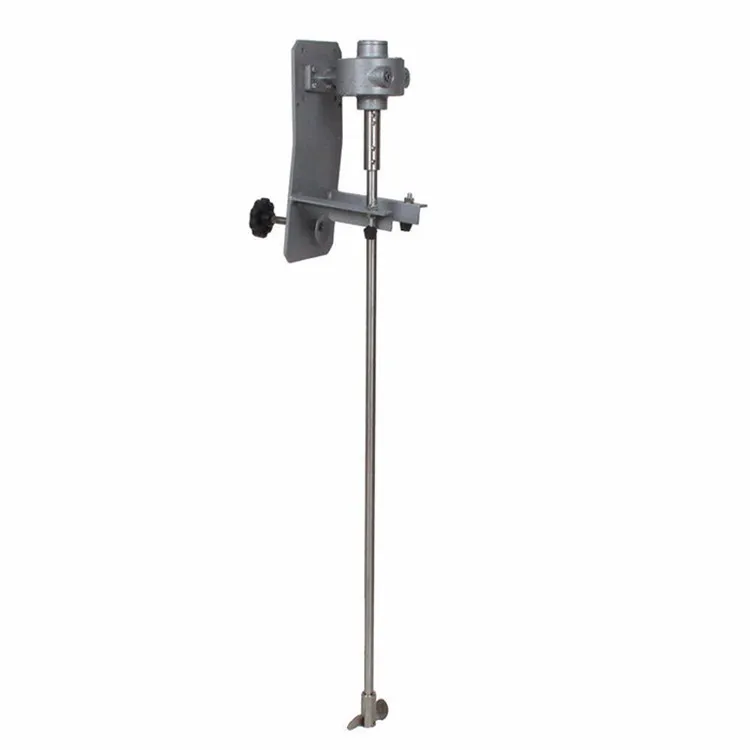

ADM124 Pneumatic Agitator, Stirrer Air Mixer for Liquid Mixing for Food, Pharmaceutical, Chemical Industry
- Category: >>>
- Supplier: Rudong Hongxin Machinery Co. Ltd.
Share on (62090114955):
Product Overview
Description
Product Description
ADM124 | ||||||
Descripition | Open Drum Mixer | |||||
Motor Type | 2AM | |||||
Power | hp | 1/4 - 1/2hp | ||||
Shaft Dia. | in | 5/8'' | ||||
Shaft Length | in | 32'' | ||||
Impeller Dia. | cfm | 3 3/4'', 2 blade | ||||
Air Motor in/out Thread | in | NPT 1/4 | ||||
Speed | rpm | 500-2000 | ||||
Air Pressure and Consumption | PSI / CFM | 20-40PSI / 12-20CFM | ||||
N.W. | kg | 10 | ||||
Packing & Delivery
Packaging | ||
Size | 1000 (L) * 220 (W) * 255 (H) mm | |
Weight | 11kg | |
Packaging Details | Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers.It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard). | |
