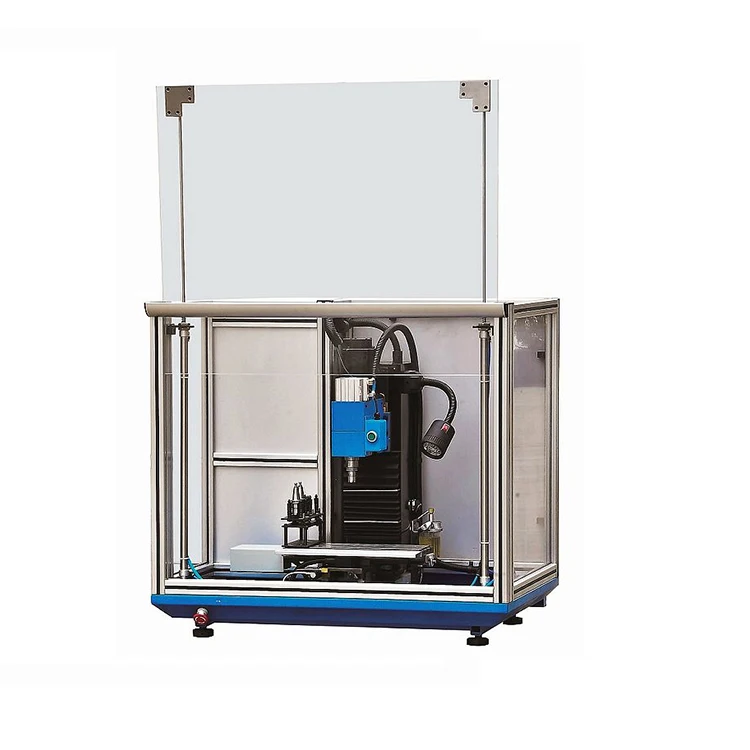

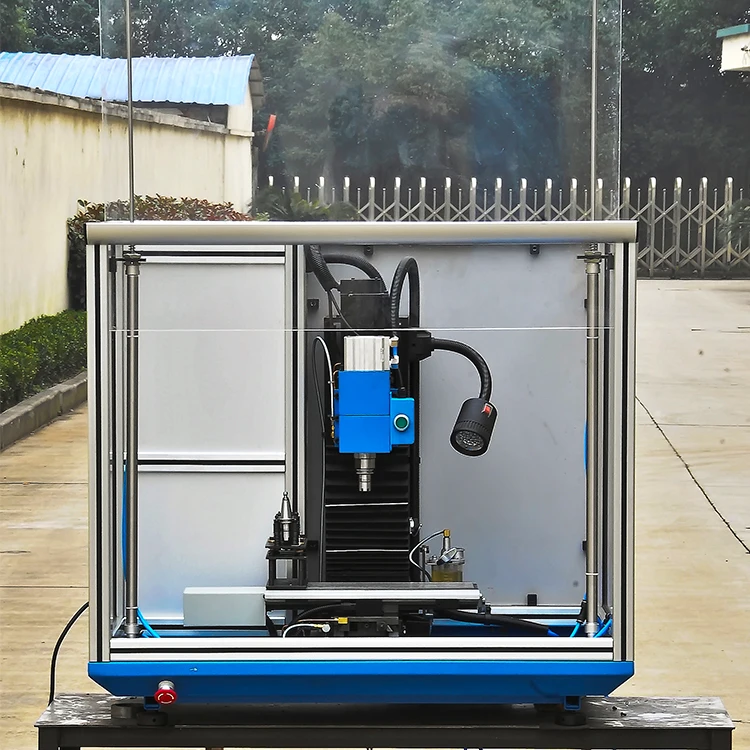

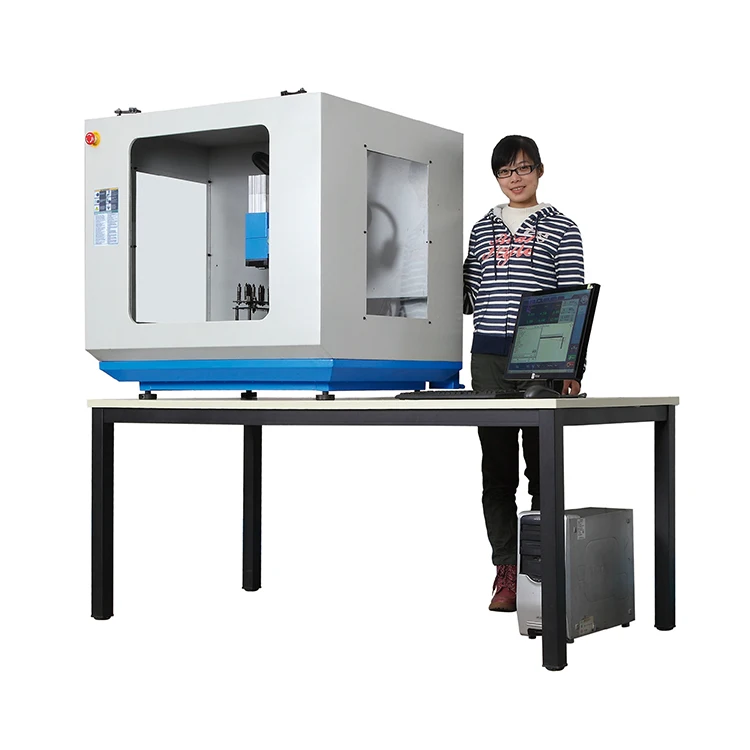

iKX1 SIEG 3axis Educational Low cost cheap vertical cad cam dental milling machine for metal

Share on (62090285177):


Price:

Quantity:


Product Overview

Description


iKX1-SIEG 3axis Educational Low cost cheap vertical cad cam dental milling machine for metal

Product Description

Technical Specification



TABLETable size400×145mm
T slot (amount×width×distance)3×12mm×40mm
Max. load20kg
TRAVELX travel260mm
Y travel152mm
Z travel180mm
Spindle nose to table60-240mm
Spindle center to column200mm
SPINDLESpindle taperISO20
Spindle motor1000w
Spindle speed5000r/min
FEEDThe max moving speed2000mm/min
The max feeding speed500mm/min
Power of X/Y1.35Nm
Power of Z2.2Nm

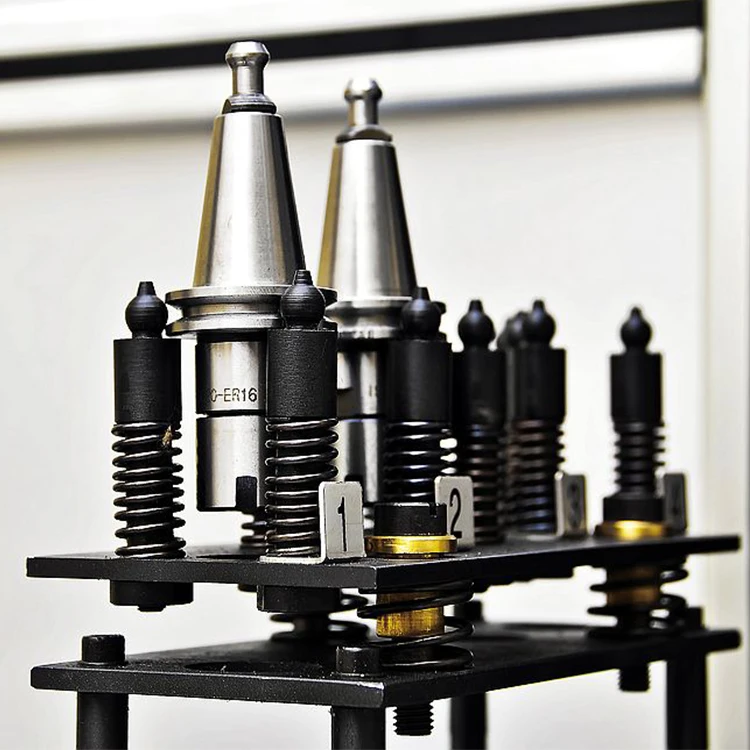

TOOL CHANGERTool number4
Max.tool diameter10mm
Max.tool length110mm
Max.tool weight0.5kg
Time of tool changing10s
ACCURACYPositioning accuracy±0.015mm
Repeatability accuracy±0.01mm
OTHERSPneumatic supply 0.6 MPa
Power 230V/120V
Weight(NW/GW) 280/340kg
Overall dimension 1040×860×940mm
 Packing size 1170×960×1100mm
Product Name:iKX1-SIEG 3axis Educational Low cost cheap vertical cad cam dental milling machine for metal

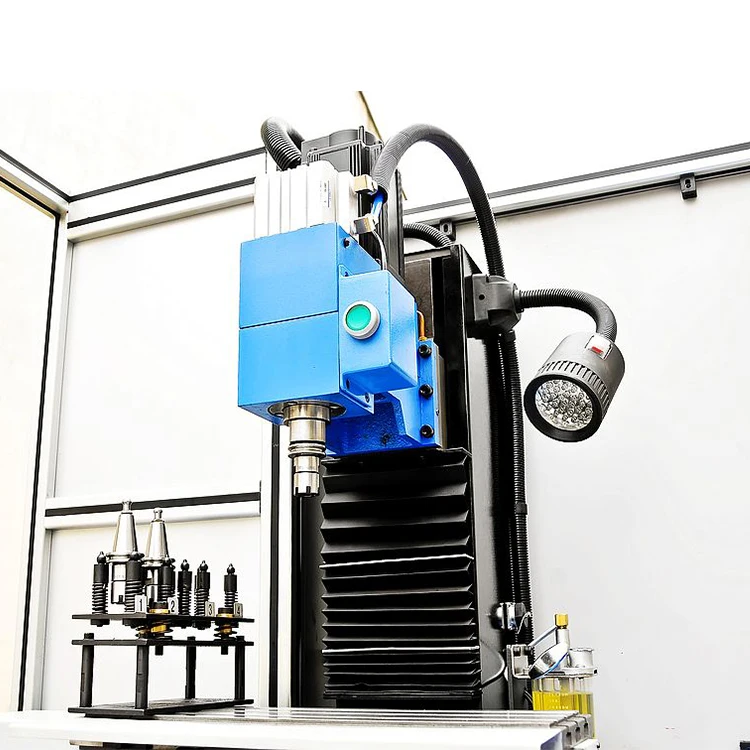

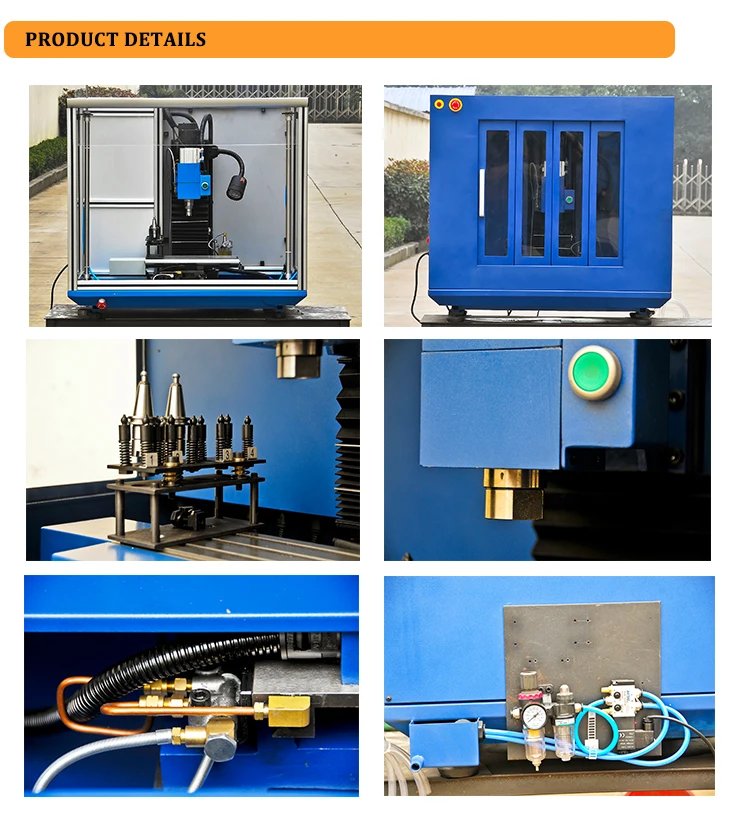

PRODUCT DETAILS PICTURES

cad cam dental milling machine



iKX1-SIEGiKX1-SIEG High precision mini cnc milling machine made in China Mini High precision cnc milling machine 3 axis for hobby

MOQ:1 PCS

Main Market:USA/EUROPE/UK etc..

universal milling machine/mini cnc milling machine
cnc milling machine/hobby cnc milling machine
China cnc milling machine/cnc milling machine price/vertical milling machine/milling drilling machine/milling machine vertical/milling machine tool/drilling and milling machine

iKX1-SIEG 3axis Educational Low cost cheap vertical cad cam dental milling machine for metal

Package size :1170×960×1100mm

Weight(N.W/G.W):280/340kg

cad cam dental milling machine
cad cam dental milling machine
Packaging & Shipping

cad cam dental milling machine

Our Services

cad cam dental milling machine

cad cam dental milling machine

Company Information

cad cam dental milling machine

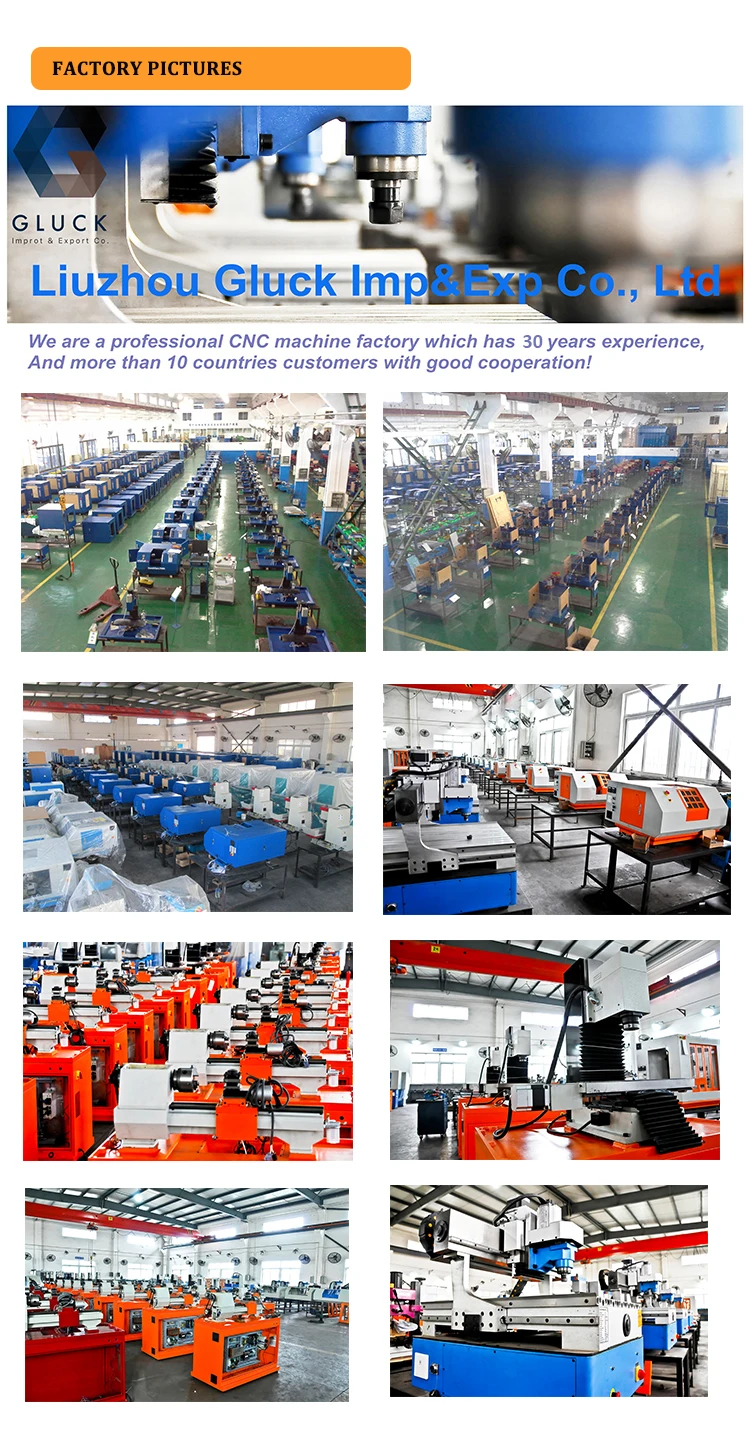

      Liuzhou Gluck Imp.&Exp.Co.Ltd ,Specializing in CNC Milling Machine /CNC Lathe machine with 30 years ,We have a team of well qualified technicians and service personnel, who are well geared to produce some of the world's hottest machines. We also provide an extensive range of accessories ideally matched for use with our machines

     There are many activities in every year, Such as New year's Day party,Appreciation Annual Meeting,fun sports meeting,Spring Festival Evening Show,BIRTHDAY CELEBRATION,Annual travel!!!which can enrich employee life, increase the affection between the colleague, make the job more passionate, make good products, good services to our clients......

     iKX1-SIEG 3axis Vertical CNC Drilling Cutting cnc milling machine metal made in China

cad cam dental milling machine

Our Exhibition

cad cam dental milling machine

FAQ



Q1: Is your company a factory or trading company?
A1: We are factory and have more than 12 years production experience. And have an office in Liuzhou City,Guangxi province,China.

Q2: Where is the factory located? How can I visit there?
A2: Our factory is located in Shanghai City,China.And warmly welcome you to visit us.

Q3: Do you have CE certification?
A3: Yes, we have CE certification,machine quality is guaranteed.

Q4: What's your payment terms?
A4: Our payment term is 30% T/T in advance,70% T/T before shipment.

Q5: What is your delivery time?
A5: Machines order takes 40-45days after deposit payment received. Please inquiry sales.

Q6: What is the Control of your lathe? Can I change it to other brand?
A6: The standard control of our lathe is GSK. You also can change other controls, such as FANUC,Siemens and so on.

Q7: How can I get the quotation?
A7: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.

Q8: What's the main products of your company?
A8: We specialized in many kinds of CNC machines, such as CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center..

Q9: How can I choose the most suitable machines ?
A9: Please tell us your requirement of the machine, or you can also send us the products drawing,our engineer can help to choose the best model for you.

Q10: If still confused. What can I do?
A10: Please feel free to contact us via Email or trade manager.



Product Title :iKX1-SIEG 3axis Educational Low cost cheap vertical cad cam dental milling machine for metal
