Bag Drawing Cartoon Box Type Facial Tissue Converting Machine Production Line
CIL-FT-AC-AD
Video Link:
https://youtu.be/VBgS7DRQE1Y
https://youtu.be/DXlCQZ6WKvU
Product Description

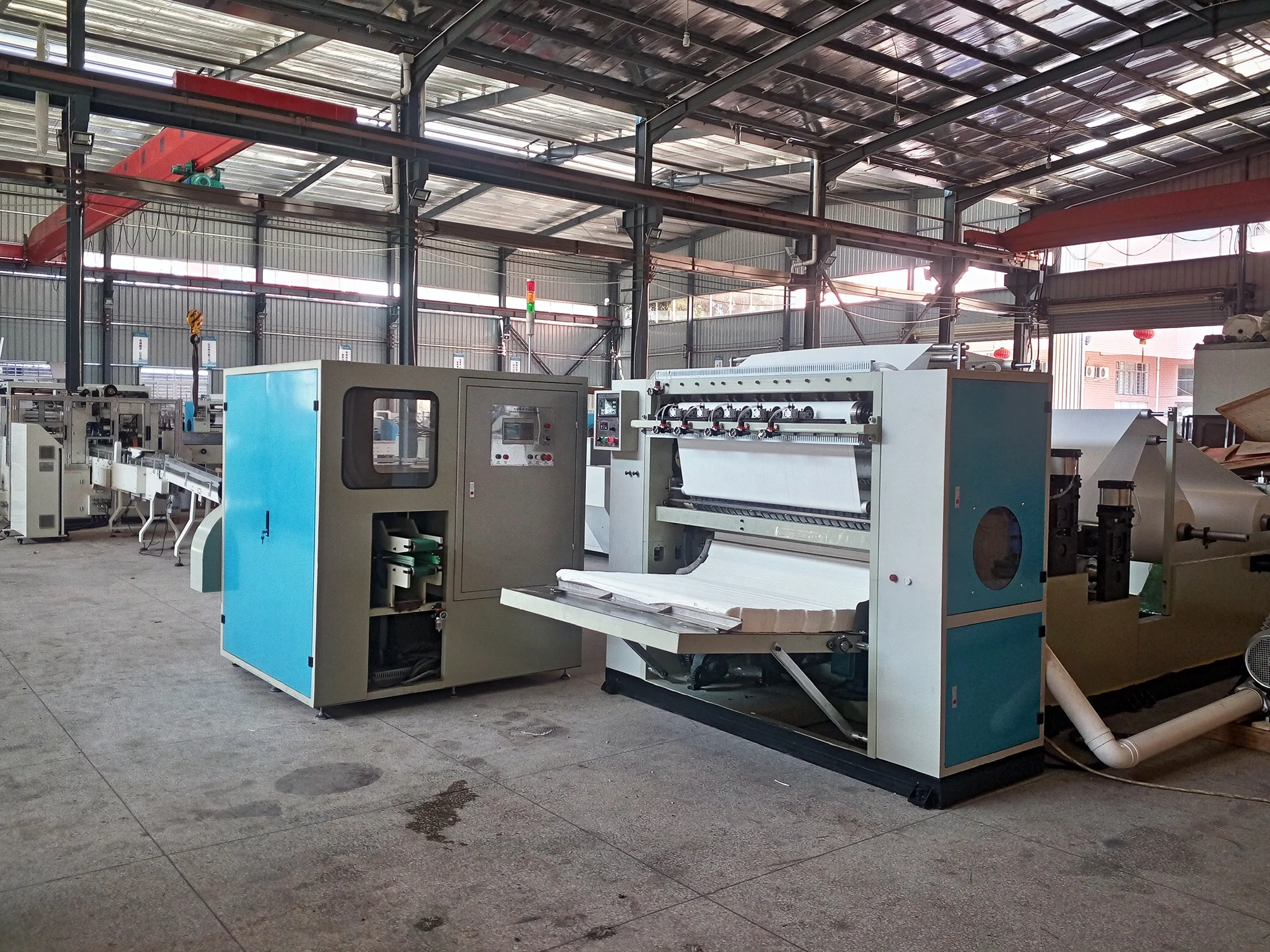

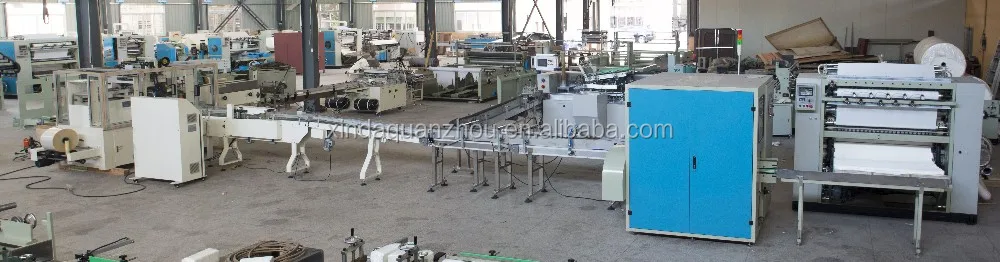

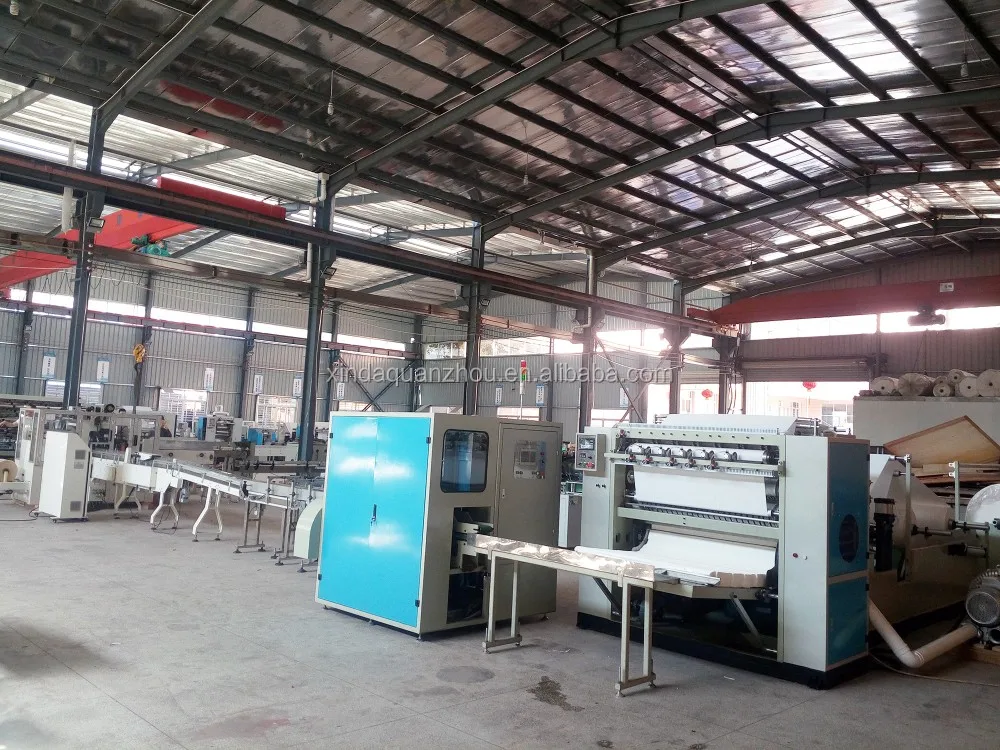

CIL-FT-AC-AD Bag Drawing Cartoon Box Type Facial Tissue Converting Machine Production Line
which composed of one set of CIL-FT-281 Facial tissue machine and one set of CIL-FT-258 Full-automatic high-speed carton packing machine.
CIL-FT-AC-AD Facial tissue production line combined embossing, folding, counting, match with high-speed paper cutting machine, conveying, automatic box, automatic seal box. It much save manpower. This machine adopt PLC computer programming technology, frequency control, servo feeding control, match with touch type screen man-machine interface operating system. The whole machine adopts synchronous belt drive. Folding machine can match with automatic tension control system, to suitable various kind of raw material, greatly improve quality and efficiency. This production enjoy with easy operation flow, high production efficiency, perfect product , moreover, it can match with full-automatic heat shrink packaging machine.

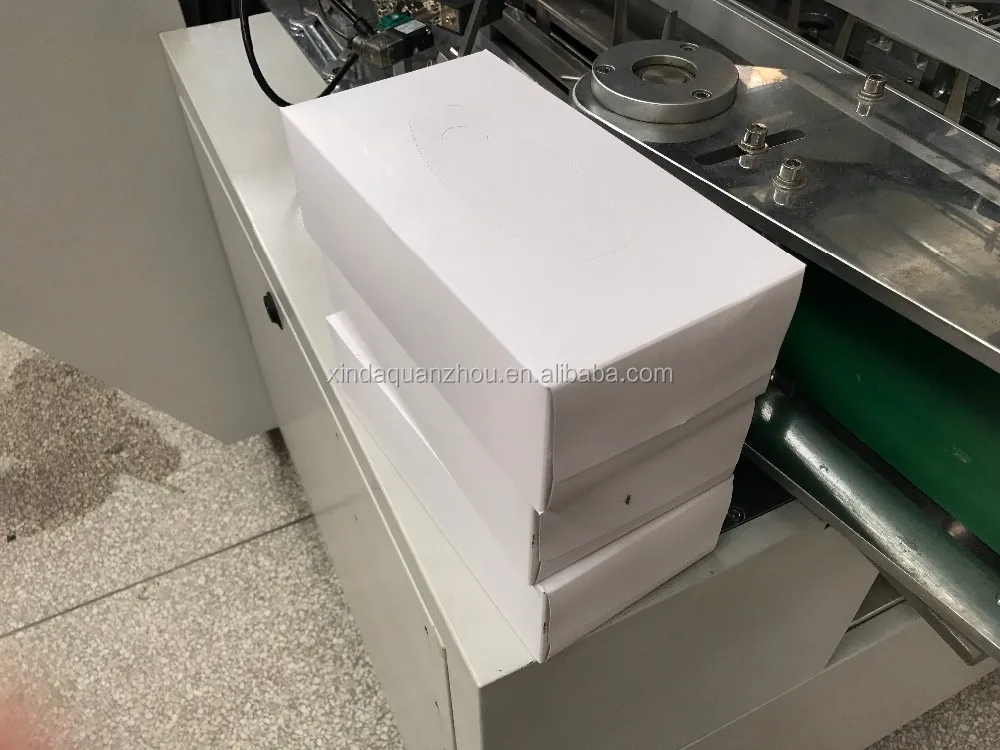

CIL-FT-258 Full-automatic high-speed carton packing machine.
Speed of packing : 35-100 boxes/min
Product Name | Bag Drawing Cartoon Box Type Facial Tissue Converting Machine Production Line |
Speed | 100m/min;60-70boxes per min |
Width of jumbo roll | 1000-1600mm |
Size of production(mm) | 200x200mm ,100x200mm (other sizes ,please specify) |
Pneumatic system | 3P air compressor, Min. pressure 5kg/cm2 Pa(prepared by buyer ) |
Power | 20-30Kw ,380V ,50/60HZ |
Overall size | 13x10x2m |
Weight | 8000KG |

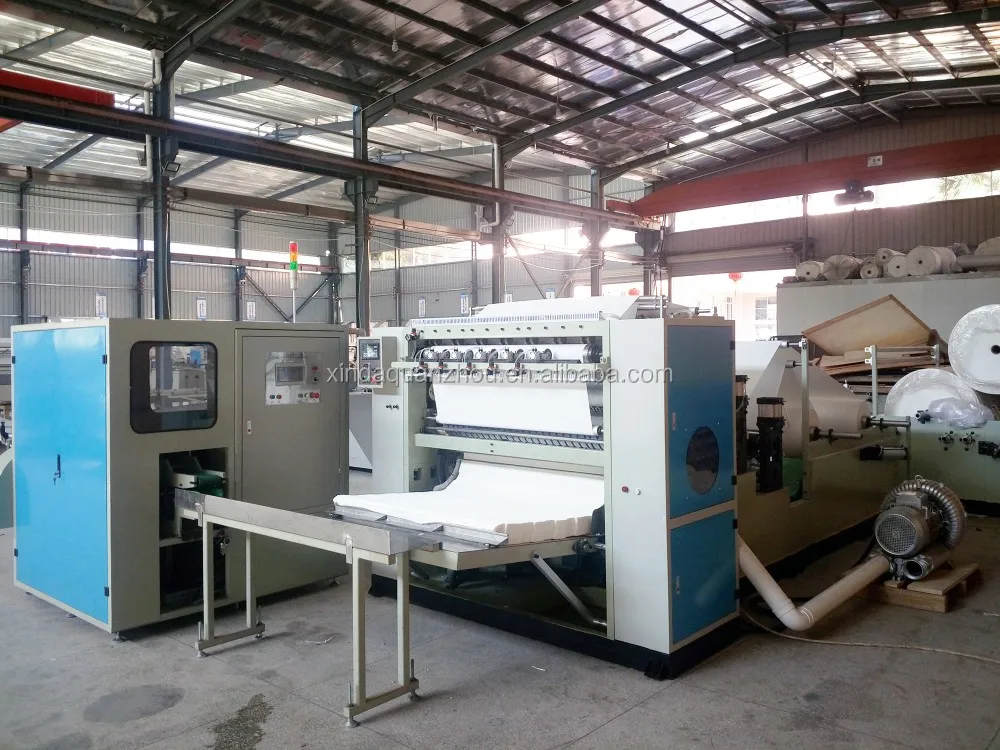

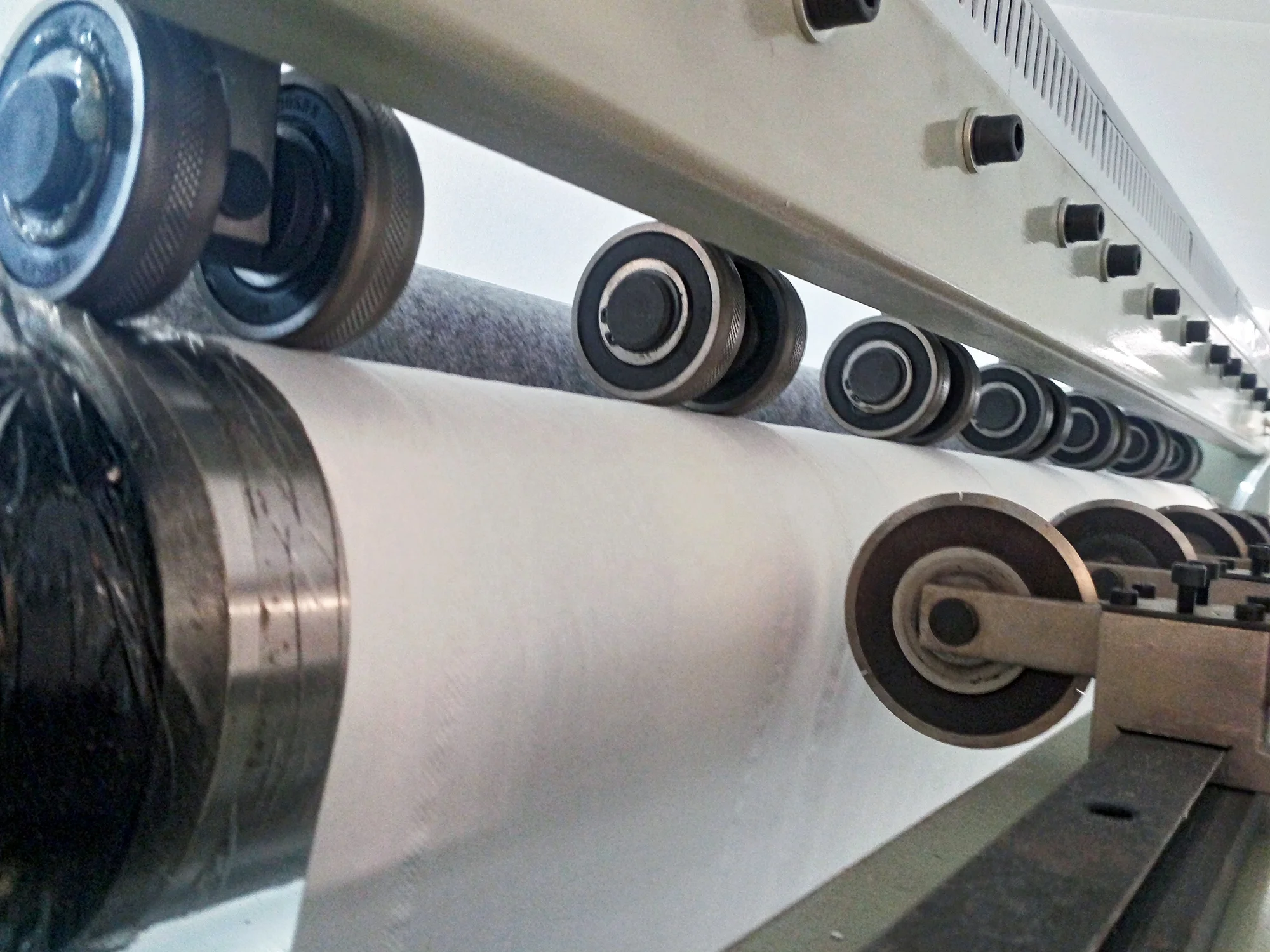

NO1.CIL-FT-20A Facial tissue paper machine
final product size (mm) | 200×200±2mm(Other specification, please specify) |
Diameter of jumbo roll(mm) | 1200(Other specification, please specify) |
Core inner dia. of jumbo roll | 76.2mm(Other specification, please specify) |
Production speed | 60-100 meter/min |
Power | 3 phase, 380V/50HZ, |
Cutting system | point cut by pneumatic type |
Vacuum system | 22 KW Roots vacuum system |
Pneumatic system | 3P Air compressor ,minimum pressure 5kg/cm2Pa( prepared by customer) |
Host power | 7.5 KW |
Overall dimension | 6000×2600×1920 mm |
Machine weight | 3T |

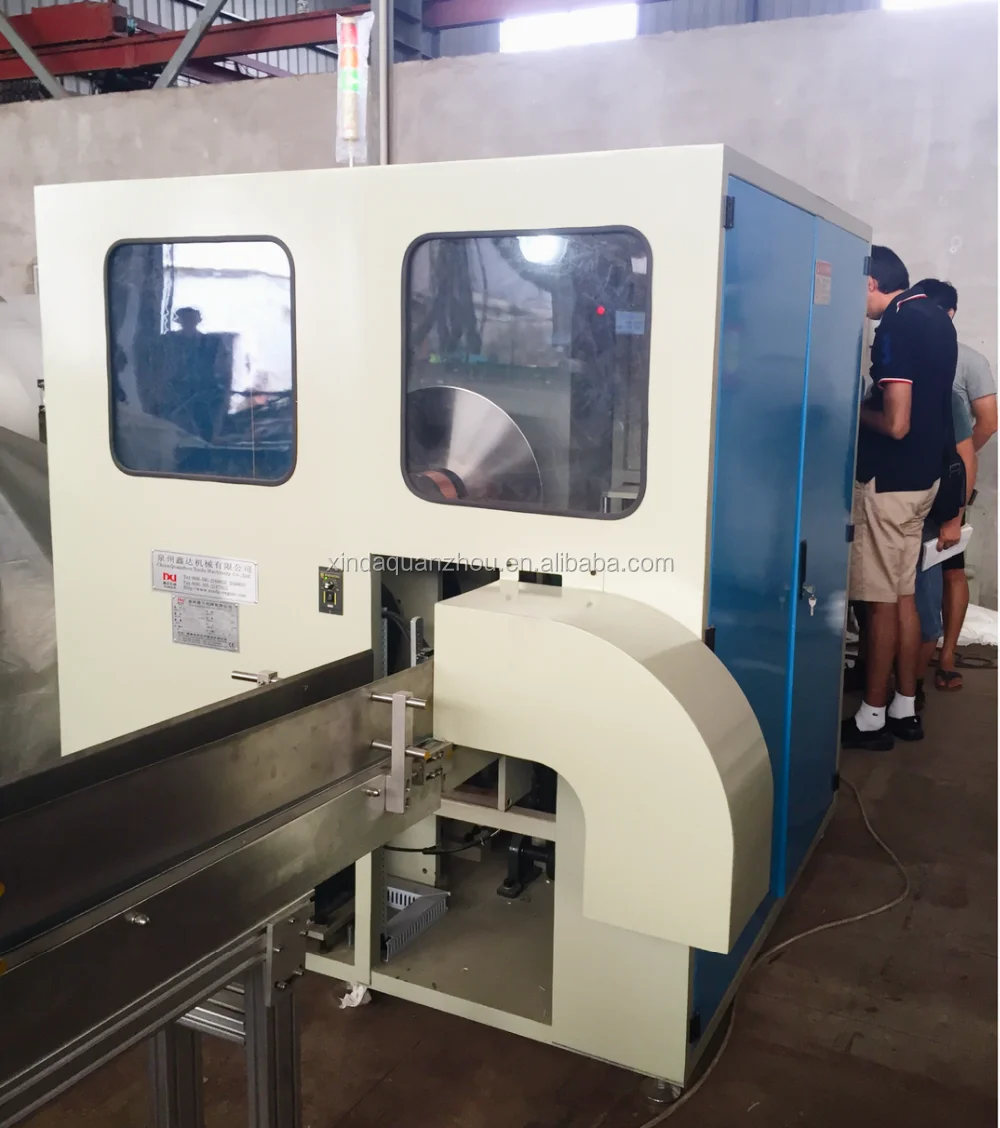

NO2.FT-281 Facial tissue cutting machine
Specification of jumbo roll(mm) | Width 45-110mm adjustable,thickness 80-120mm adjustable |
Cutting specification | Adjustable |
Production speed | 50-100 cut/minute |
Power | 3 phase, 380V/50HZ, |
Cutting system | 610mm round knife |
Pneumatic system | 3P Air compressor ,minimum pressure 5kg/cm2 Pa( prepared bycustomer) |
Host power | 6.4 KW |
Overall dimension | 6800×1500×1920 mm |
Machine weight | 2T |

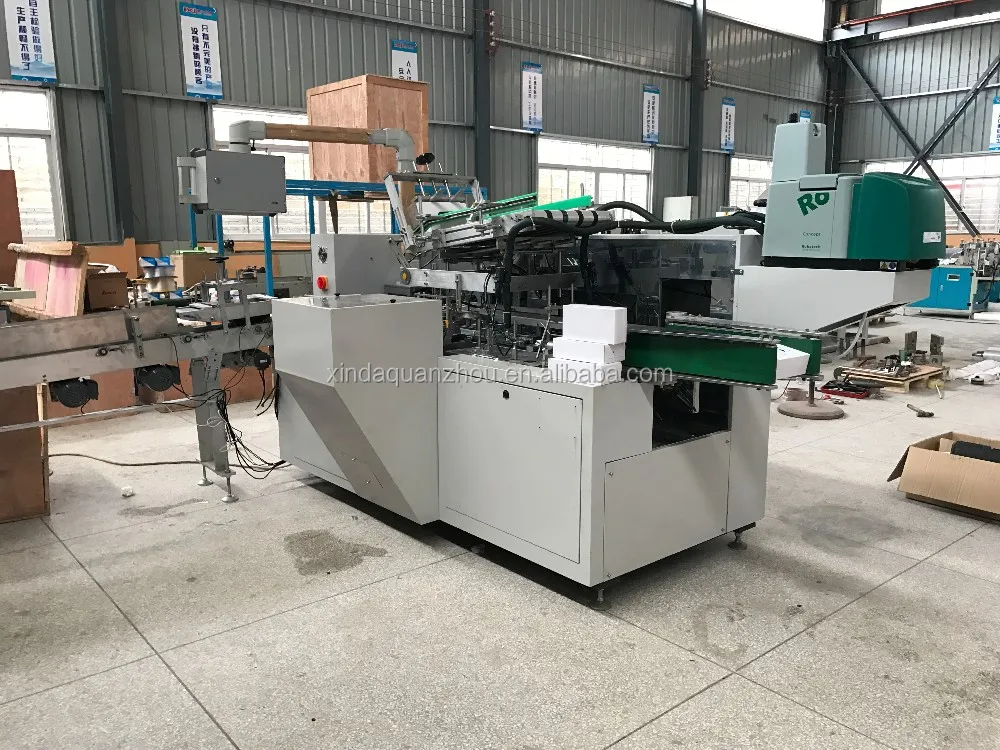

NO3.CIL-FT-258 Full-automatic high-speed carton packing machine
Packing speed | 50-80(boxes/minute) |
Hot melt machine power | 2.32KW |
Main machine | L3100×W1550×H1810mm |
Conveying mechanism | L4000×W660×H1280mm |
Machine weight | 1500Kg |
Maximum packing specification | L240mm×W120mm×H90mm |

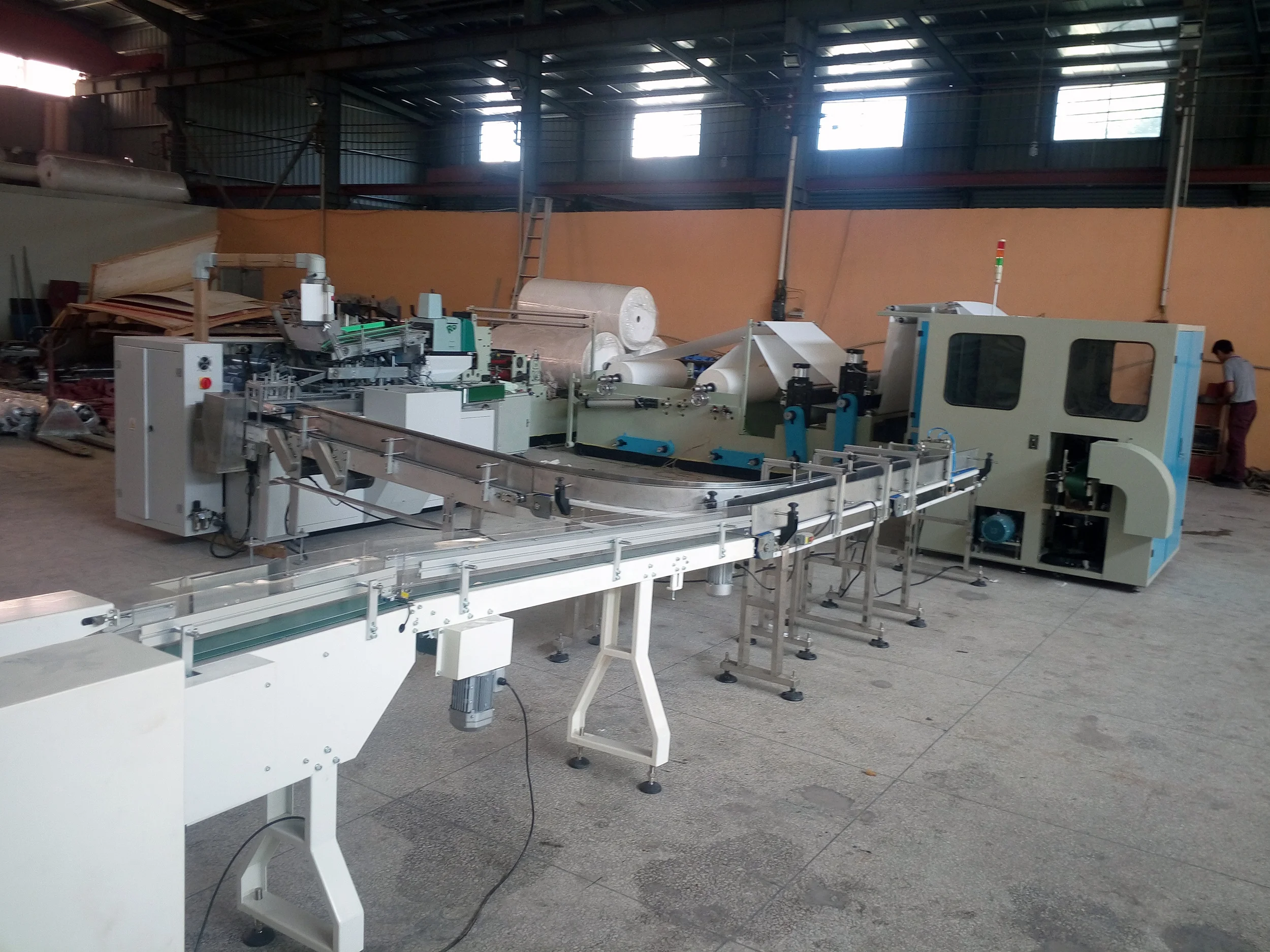

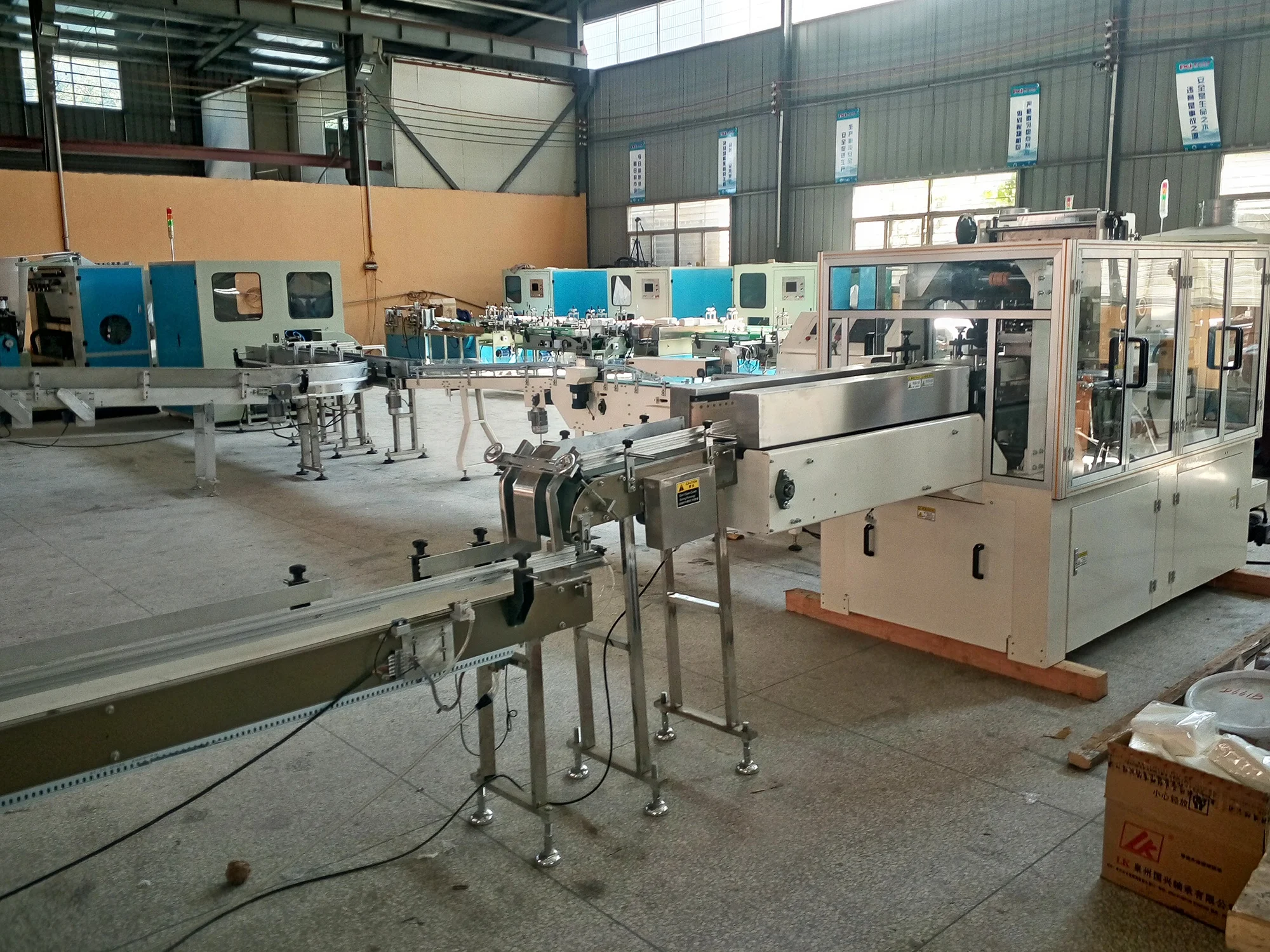

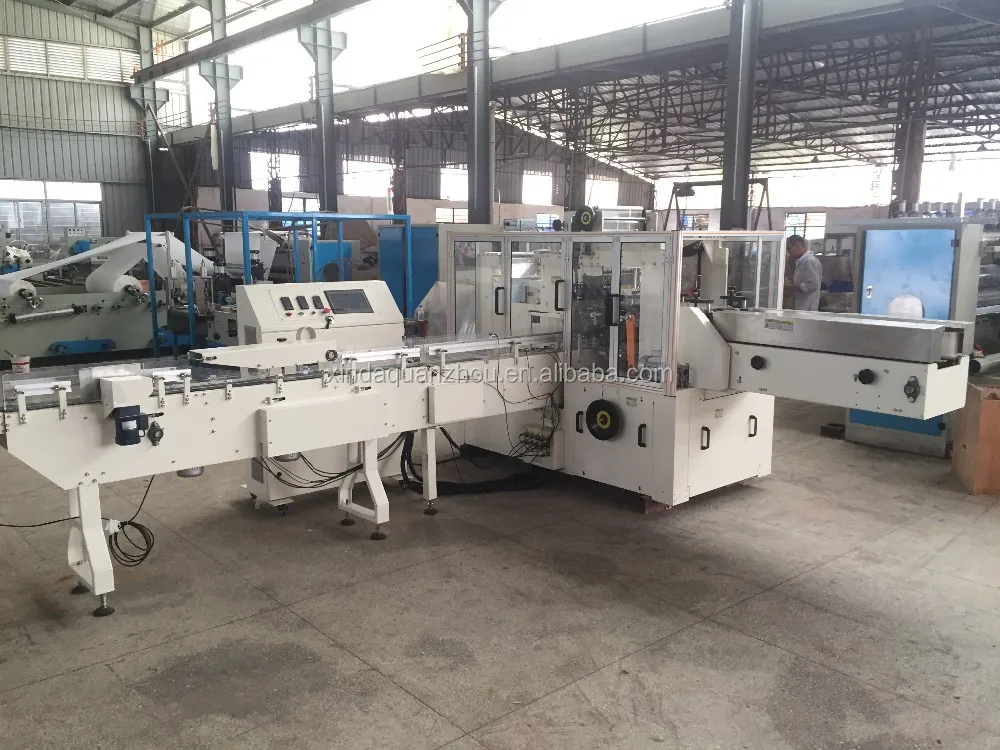

CIL-FT-602 Full-automatic soft paper packing machine
Packing speed(bags/min) | 25-50 |
Packing specification(mm) | 100-220x100-120x40-100 |
Power supply | 220V 50Hz |
Motor power(Kw) | 3.66 |
Heating power (Kw) | 3.6 |
Air pressure (MPA) | 0.5 |
Overall size (mm) | 3560X5885X1925 |
Machine weight (Kg) | 3000 |
Available shrink film type | CPP,PE/CPP.PT/KOP.CPP |
