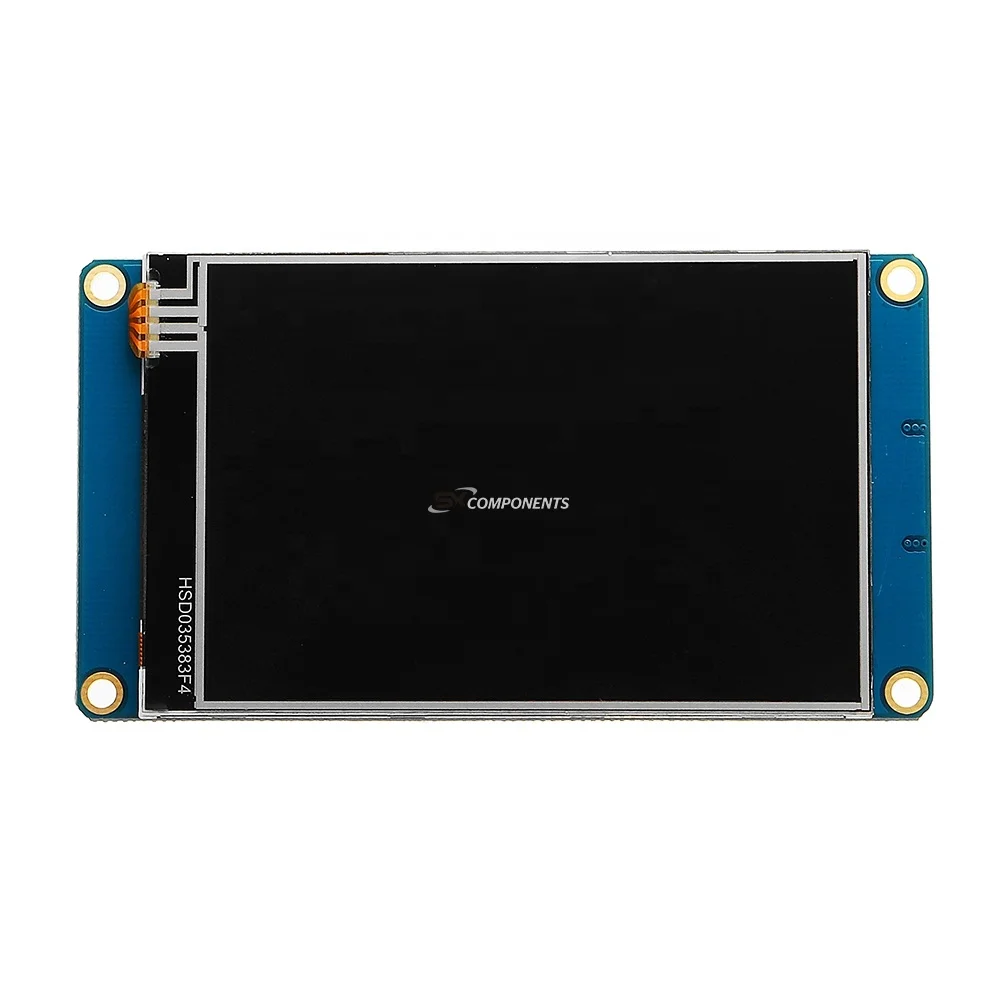

Nextion NX4832T035 3.5 Inch 3.5Inch 480x320 HMI TFT LCD Touch Display Module Resistive Touch Screen
- Category: >>>
- Supplier: Shenzhen Baoan Shajing Sixiang Electronic Firm
Share on (62090683765):
Product Overview
Description
Product Description

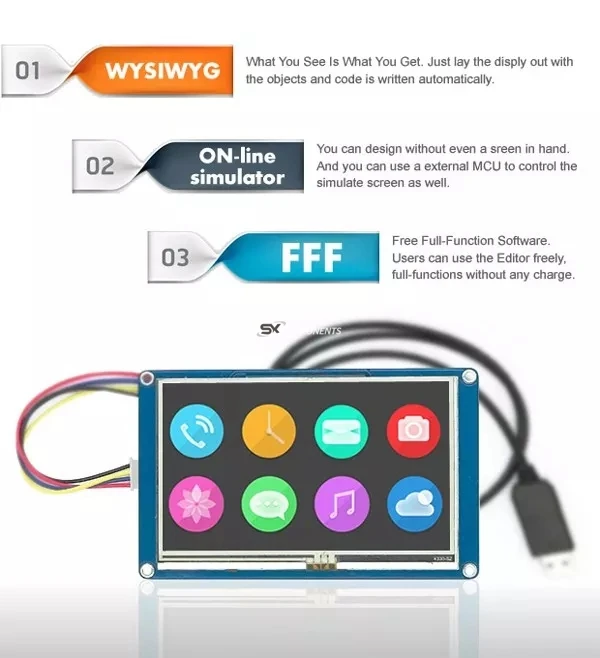

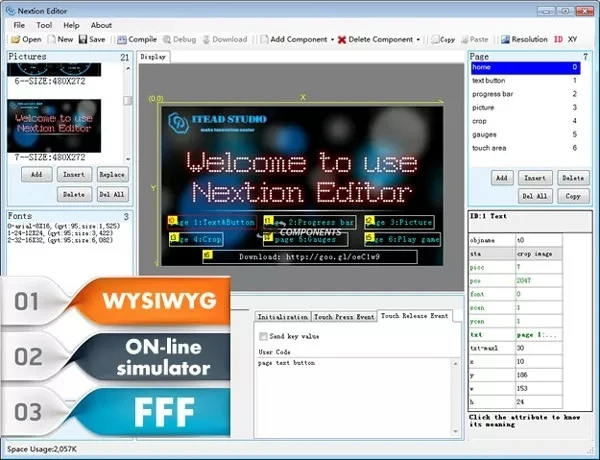

NX4832T035 includes a hardware part (a series of TFT boards) and a software part (the NX4832T035 editor). The NX4832T035 TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, NX4832T035 editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYS IWYG editor, designing a GUI is a piece of cake.
It's easy to adapt NX4832T035 family HMI to existing projects. Users just need to provide it a UART.

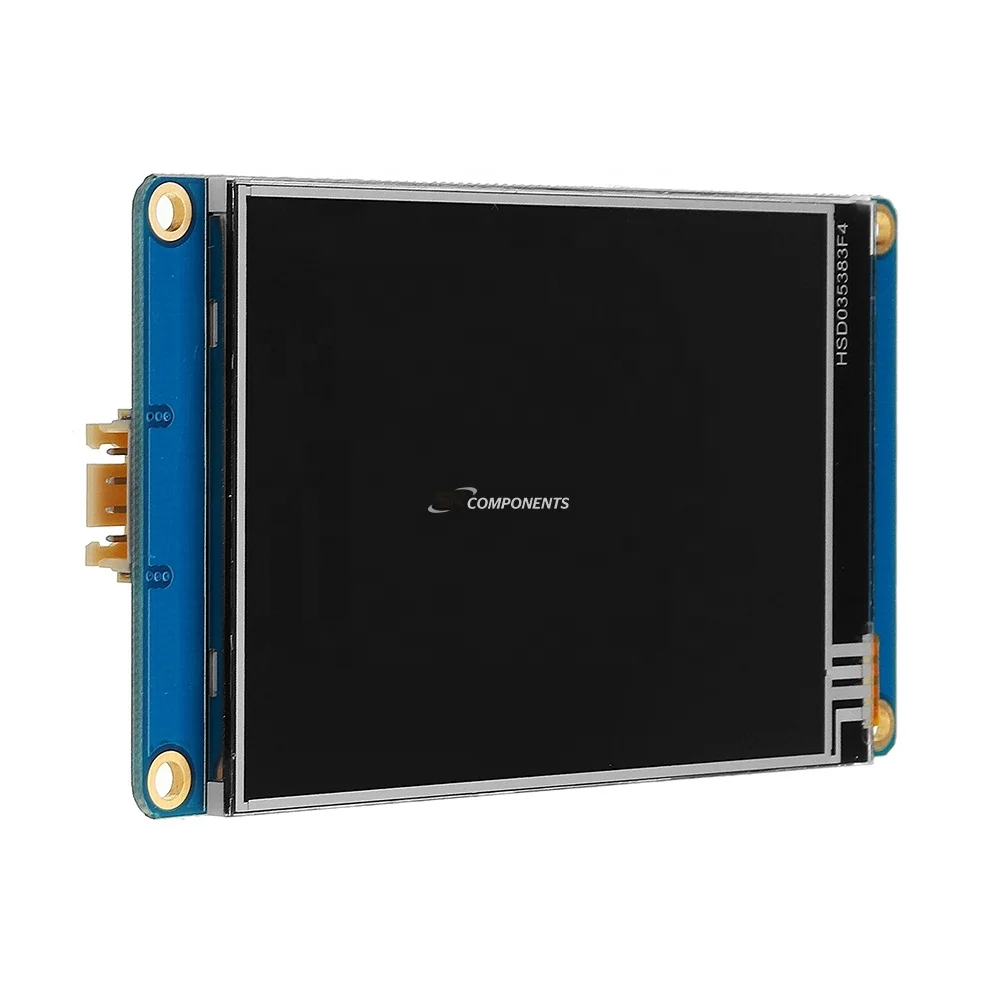

3.5" Basic NX4832T035 NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5'' HMI, which is member of NX4832T035 family. Features include: a 3.5" TFT 480x320 resistive touch screen display, 16M Flash, 3.5KByte RAM, 65k colors.
Features:
480 x 320 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel

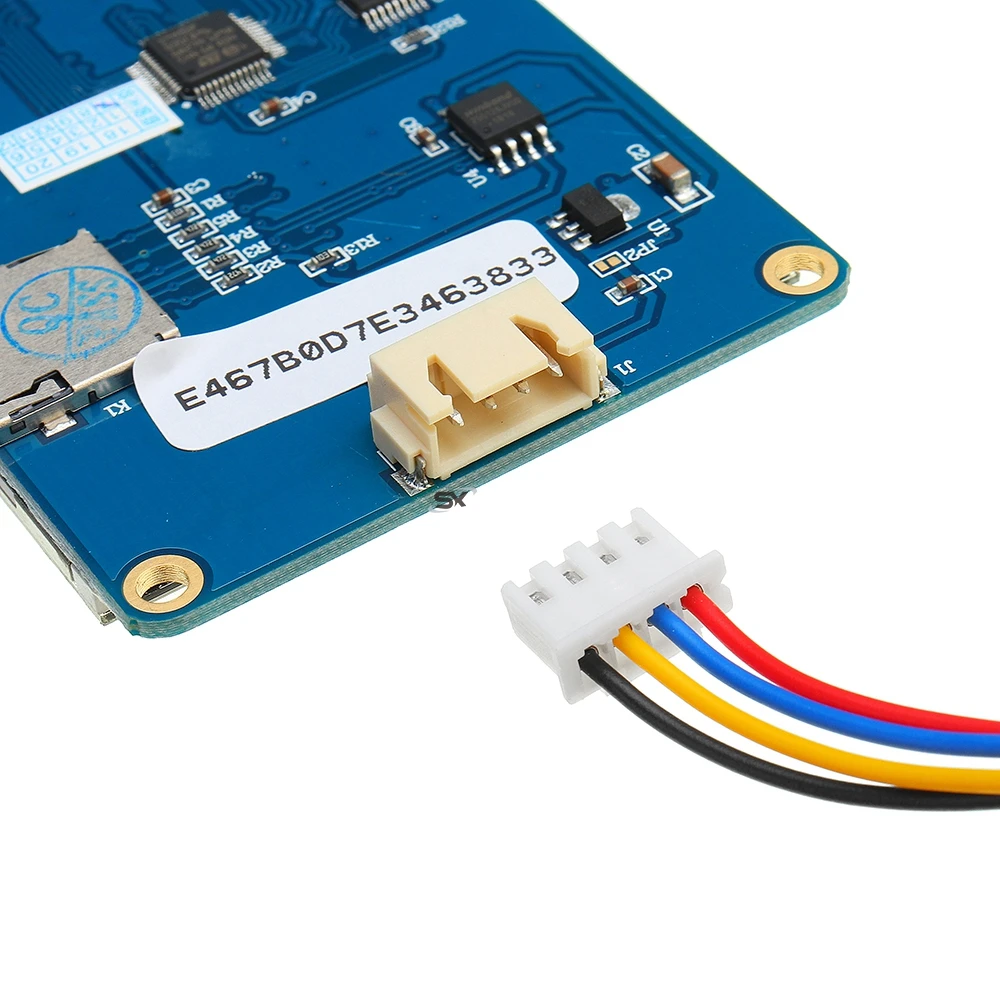

Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data

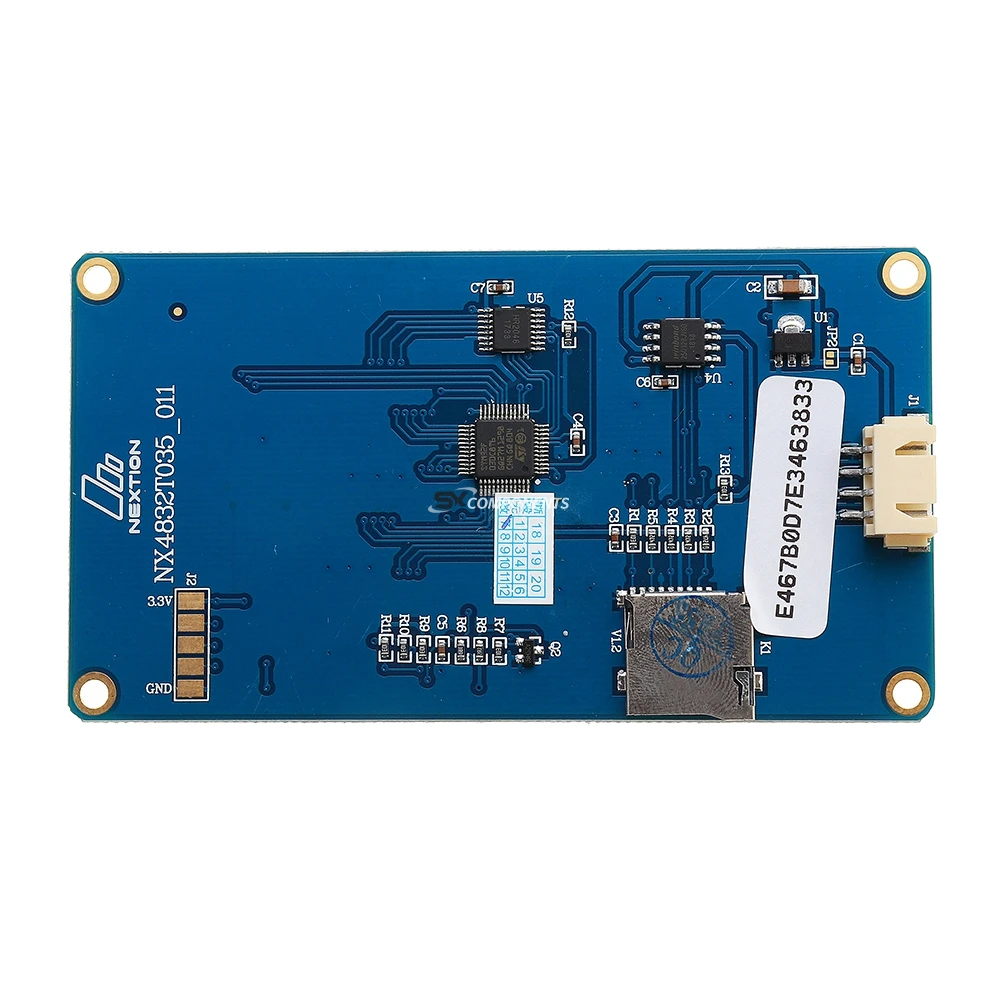

On board micro-SD card for firmware upgrade

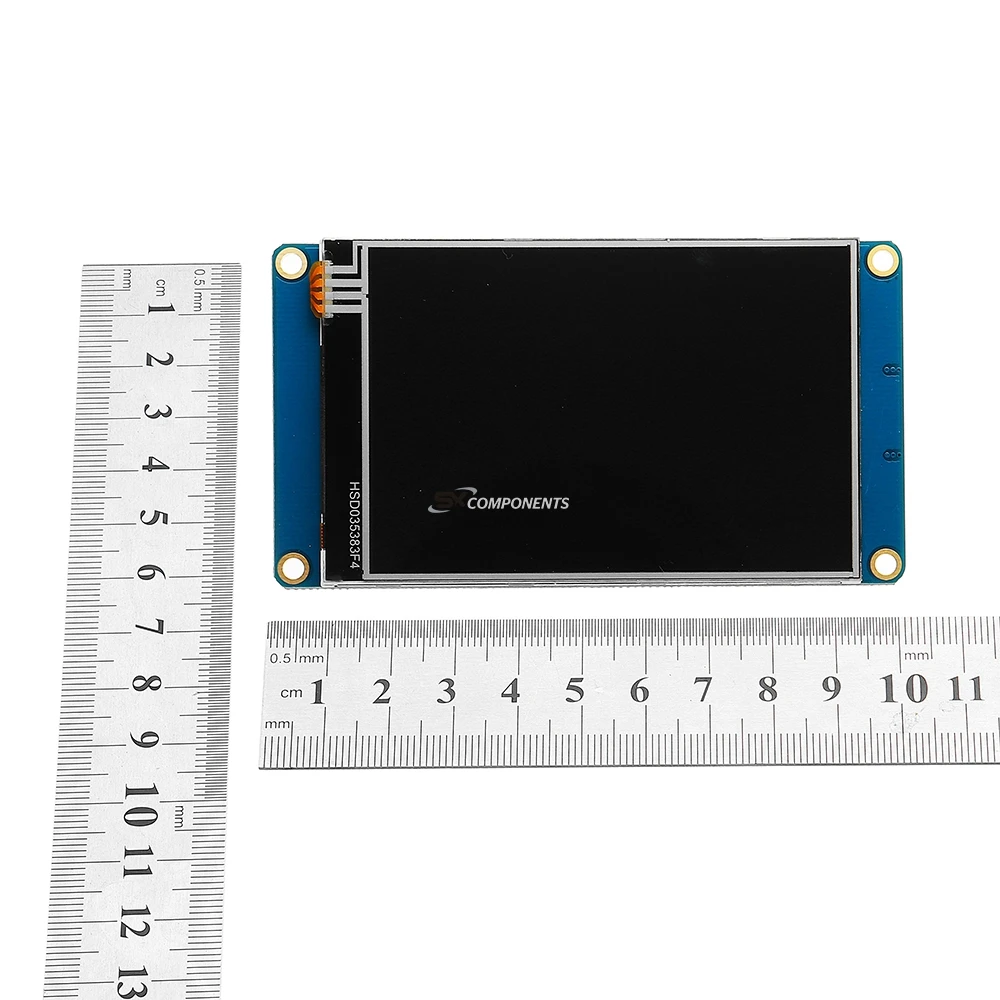

Visual Area:73.44mm(L)×48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%

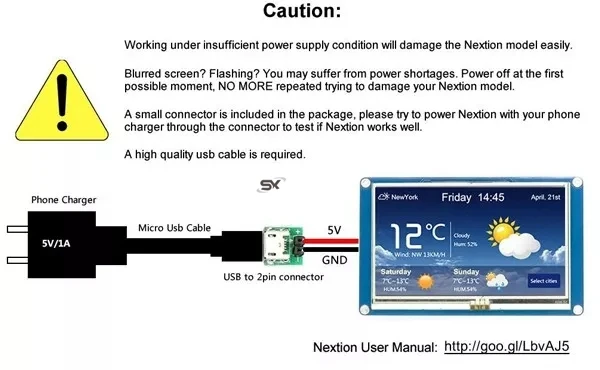

5V500mA DC recommended power supply
5V145mA power consumption
Package included:

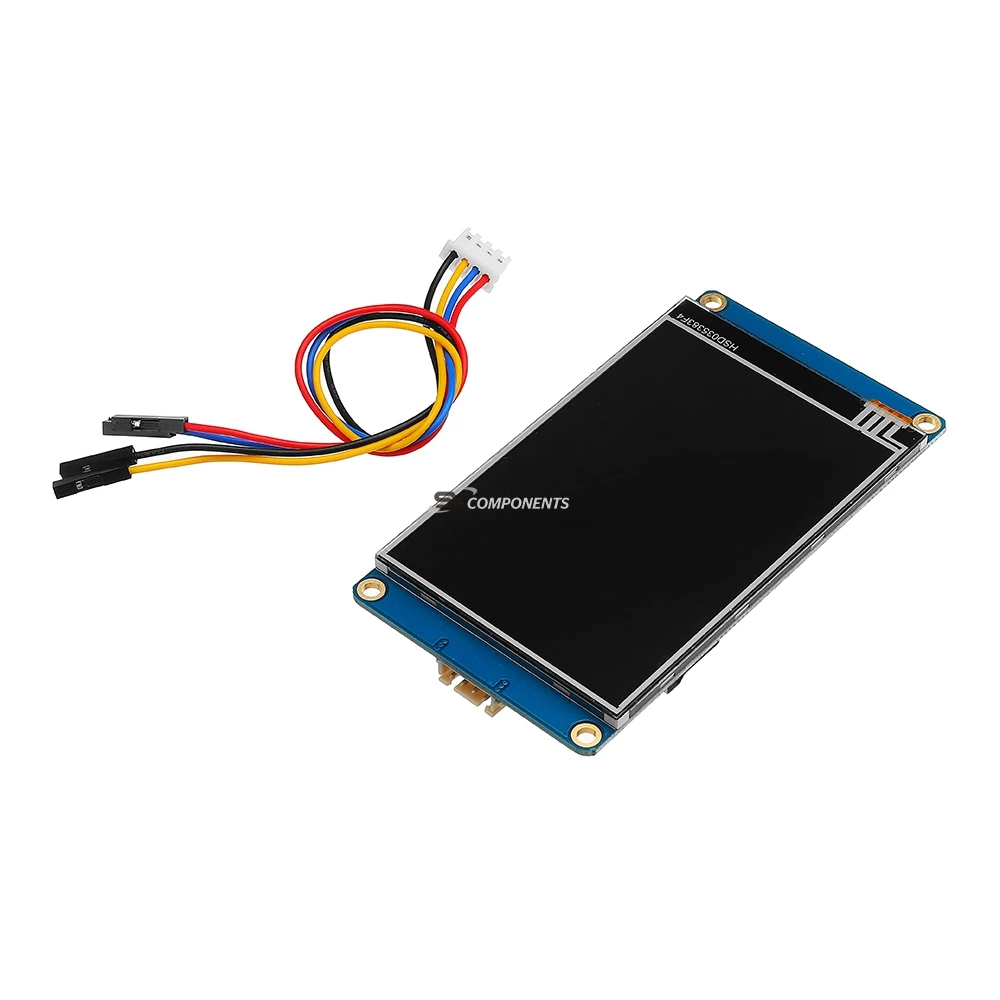

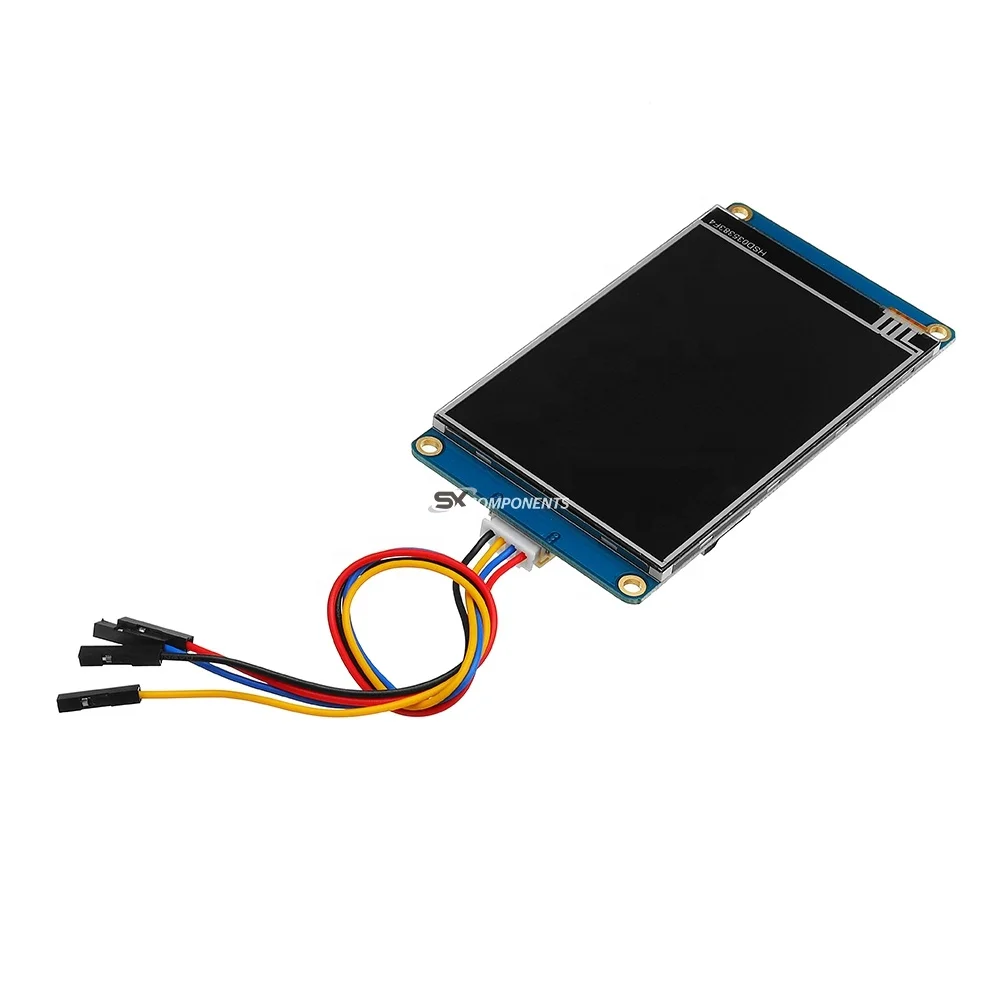

1 x 3.5 Inch Serial Touch TFT LCD Screen

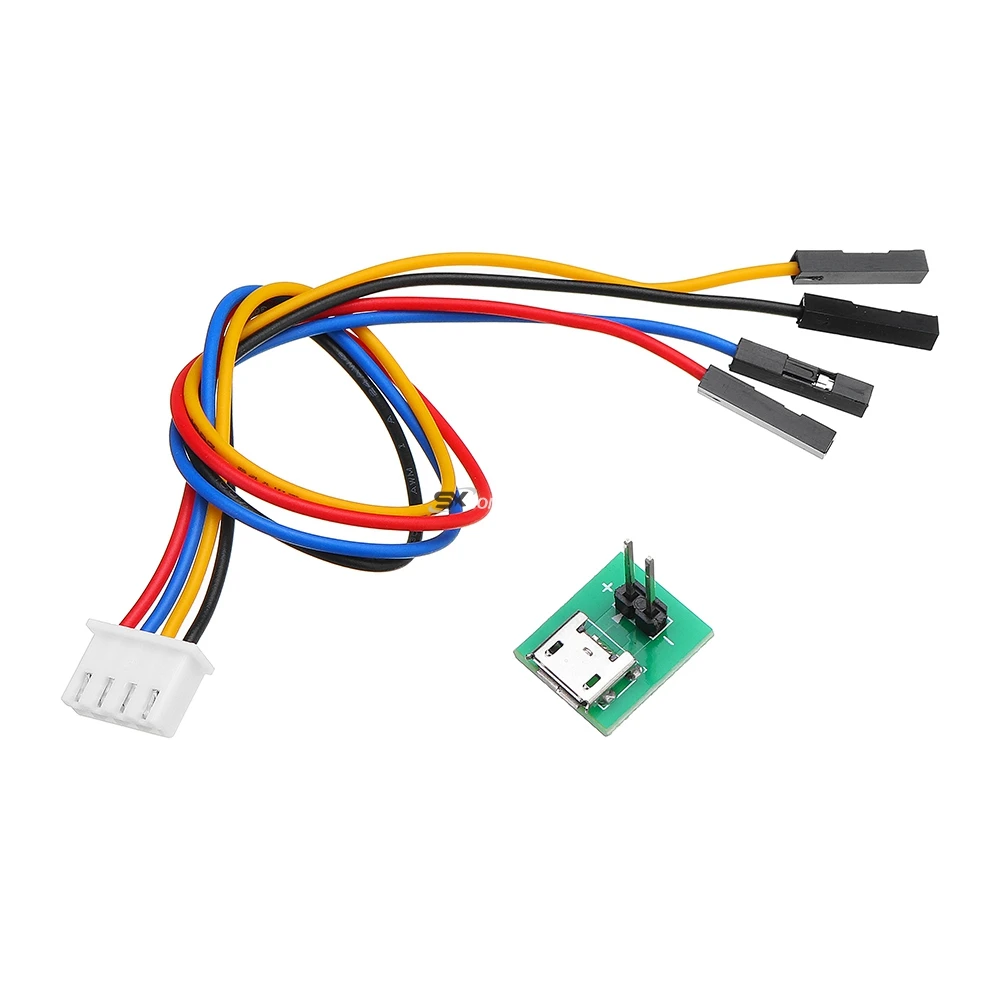

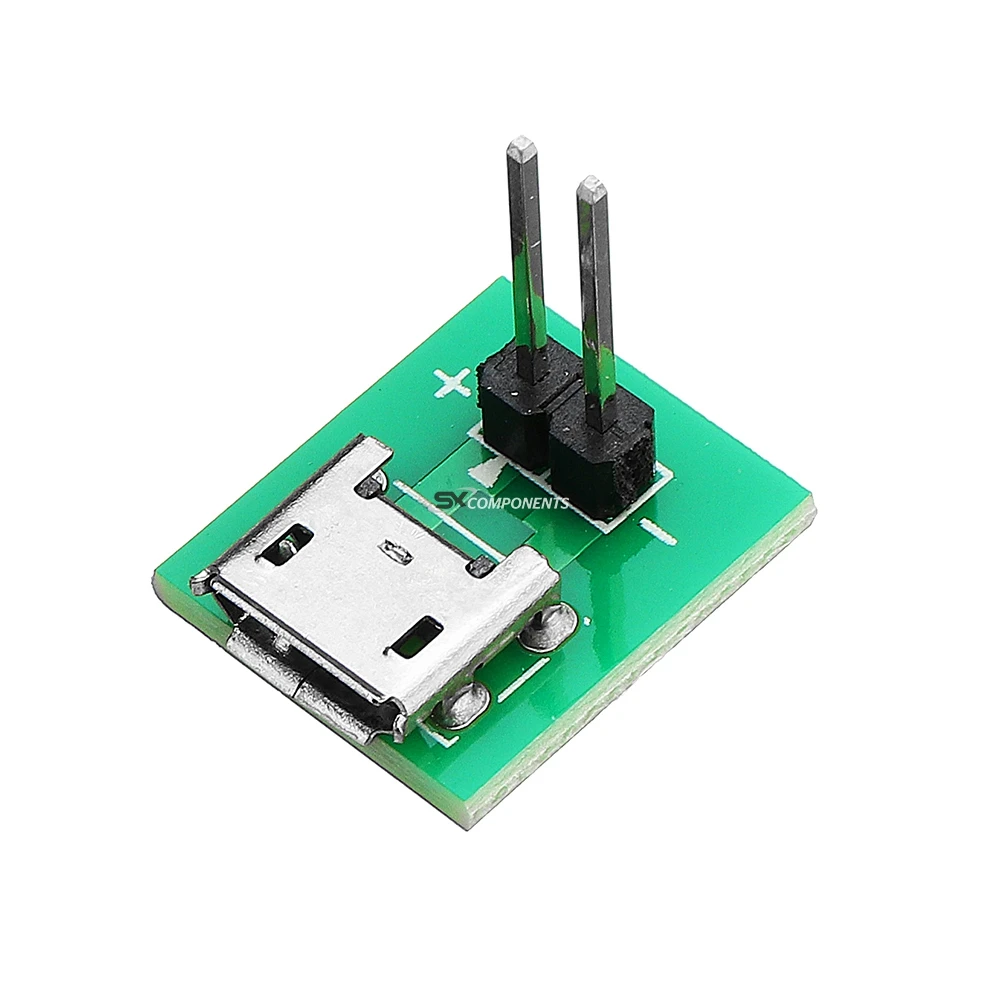

1 X Micro USB to 2P Connector Board
1 X 4-Pin Grove Cablb
Packaging & Shipping
All products will be checked carefully and packed in good condition with high quality carton before shipping.
We e-mail all customers with tracking. information immediately after the shipment for status tracking.
Buyer Notice:Customs fees and import duties for exports are buyer's responsibility.
