Корпус фильтра из нержавеющей стали 304 316
- Category: Water Treatment Machinery >>>
- Supplier: Peide,Water,Treatment,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet
pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
Product Parameters
Standard | GB, American Standard, German standard, Japanese standard, customized; single bag, parallel bag, multi-bag, cartridge |
Working pressure | 0.05Mpa-1.6Mpa |
Material | SUS304,SUS316L |
Working temperature | 5-40 degree(Special temperature can be customized) |
Filtering accuracy | 1um-800um |
Operation mode | Manual or automatic control cylinder |
High-strength support basket | By uniform pore size of high-strength stainless steel mesh manufacture of 3.5mm; |
Inlet and outlet | 1-14 inch or customized |
Inlet and outlet Location | Side into and side out, side into and bottom out,top into and bottom out, top into and side out or customized |
Interface Type | flange, screw thread or customized |
Bag model | and non-calibration |
Filtration precision | 1-800um (microns) relative or absolute precision |
Bag filter housing Internal structure
with no side leakage opportunities.
2.Integrated design of precision without
distortion.
3.Integrated precision with lifting device.
4.O-ring seal, high-strength and quick bolts.
Equipment Model
Model | Filter diameter (mm) | Filter bag quantity | Filter area( m2 ) | Inlet and outlet (mm) | Flow rate (m3/H) | Withstand pressure (Mpa) |
DLQ02-2# | φ400 | 2 | 1 | DN80 | 80 | 0.6-1.6 |
DLQ03-2# | φ500 | 3 | 1 | DN100 | 120 | 0.6-1.6 |
DLQ04-2# | φ600 | 4 | 2 | DN125 | 160 | 0.6-1.6 |
DLQ05-2# | φ650 | 5 | 2.5 | DN125 | 200 | 0.6-1.6 |
DLQ06-2# | φ700 | 6 | 3 | DN150 | 240 | 0.6-1.6 |
DLQ08-2# | φ800 | 8 | 4 | DN200 | 320 | 0.6-1.6 |
DLQ10-2# | φ1000 | 10 | 5 | DN250 | 400 | 0.6-1.6 |
DLQ12-2# | φ1000 | 12 | 6 | DN250 | 480 | 0.6-1.6 |
DLQ16-2# | φ1200 | 16 | 8 | DN300 | 640 | 0.6-1.6 |
DLQ20-2# | φ1400 | 20 | 10 | DN300 | 800 | 0.6-1.6 |
DLQ24-2# | φ1400 | 24 | 12 | DN350 | 1000 | 0.6-1.6 |

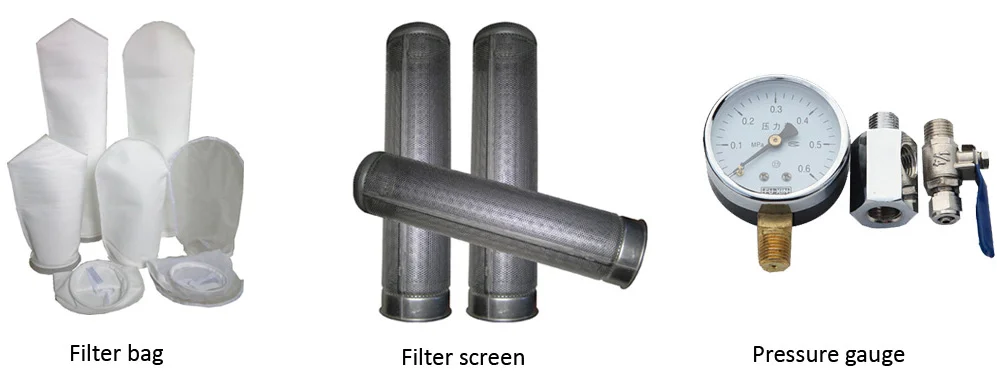

Details Images

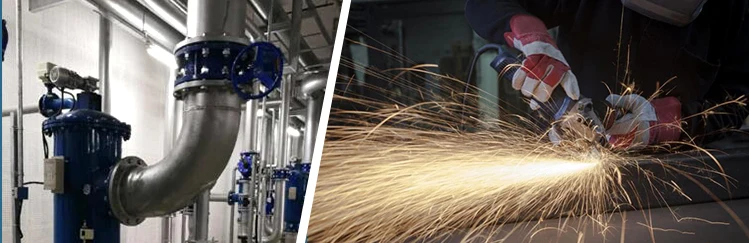

Production Process
Company Profile
Established in 2004, Jiangsu PEIDE Water Treatment Company began to focus on physical ways to treat circulating water. We research and develop patented ways to remove scale, kill bacterial, prevent corrosion, filter water, constantly makeup water equipment, vacuum degassing machine. So far, we’ve achieved at least 10 patents, won great reputation from clients.
Company Exhibition
We actively participate in the organization of exhibitions and actively cooperate with partners from various countries to promote economic development.
