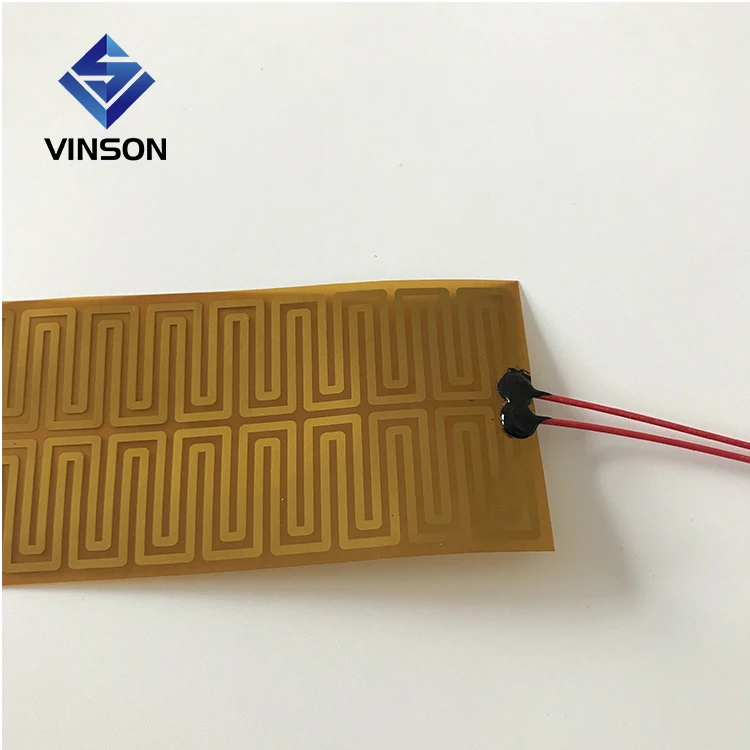

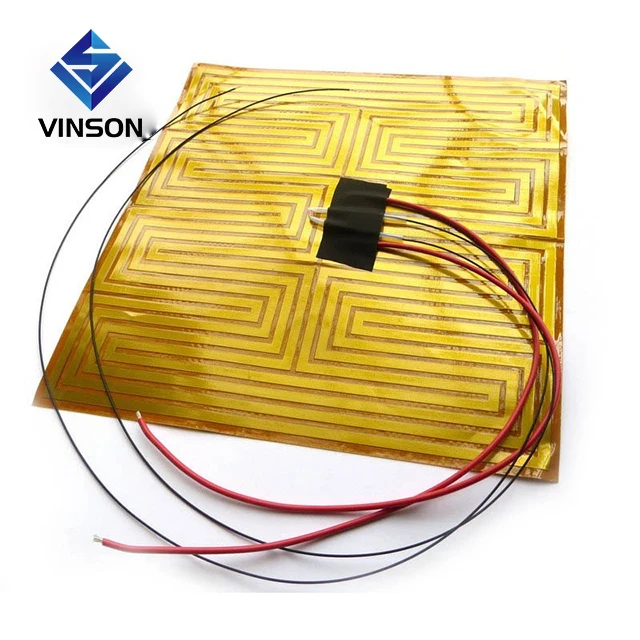

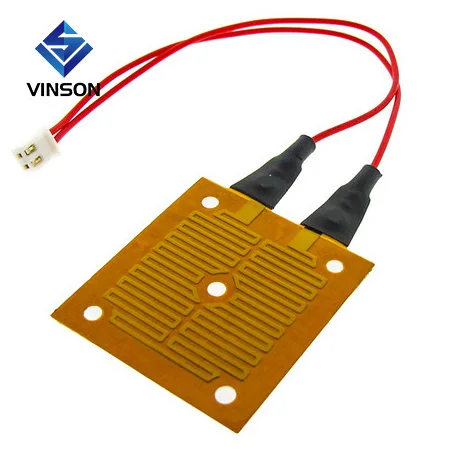

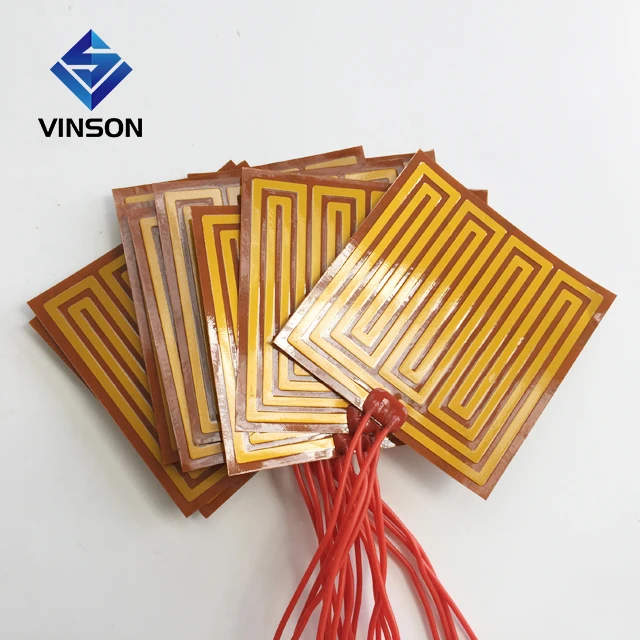

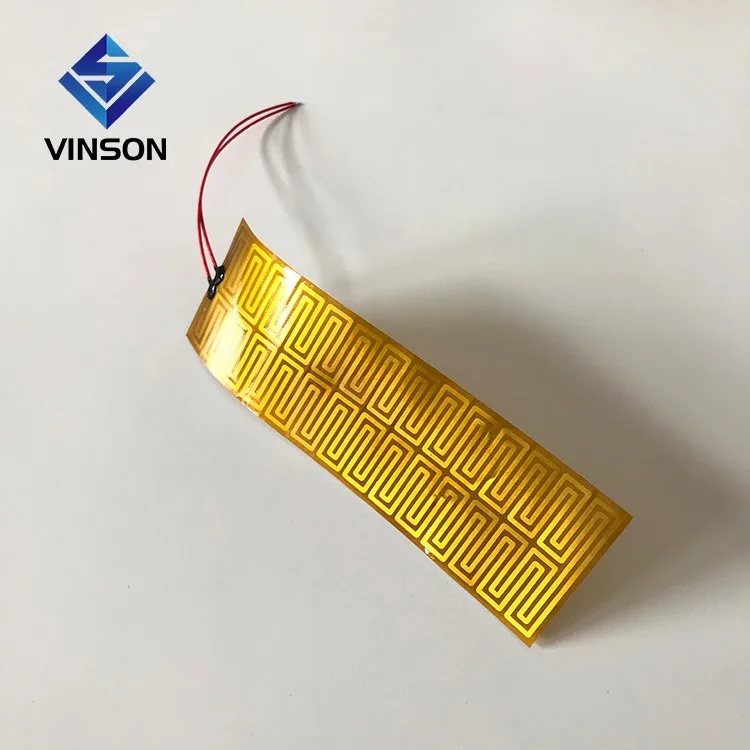

Kapton Polyimide Foil film Heater for Aluminum Heating plate

Kapton Foil Heater are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.

Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.

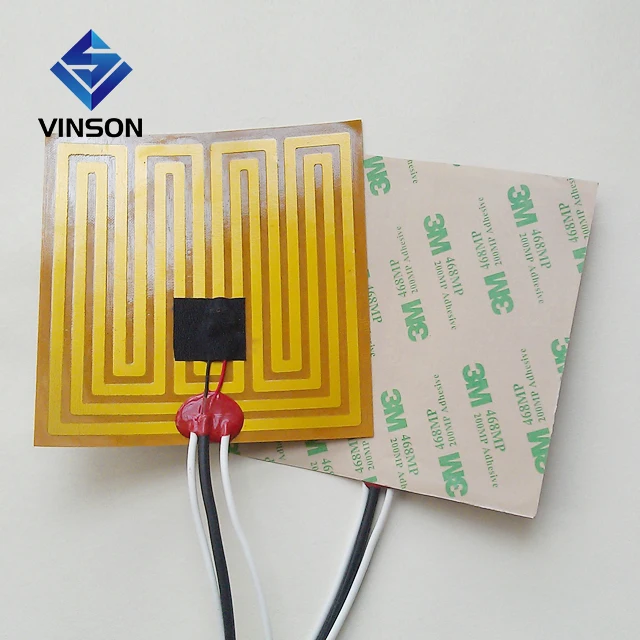

Kapton Foil Heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.

Applications.

• Medical applications that require a clean, sterile environment
• Laboratory research
• Semiconductor processing equipment
• Optical equipment
• LCD displays
• Computer equipment
• Photographic equipment
• Aerospace/defense, where low outgassing properties
are required

\t
Specifications
\t
Flexibility (min. radius)
\t
1⁄32 in. (0.8 mm)
\t
Watt density rating on stock units
\t
5 W/in2 (0.8W/cm2)
\t
Voltage range
\t
1.5v~400v
\t
Thickness
\t
Standard:0.126~0.266mm(0.005"~0.01")
\t
Weight
\t
1.5 oz./ft2 (0.05 g/cm2)
\t
Using temperature range
\t
-60~200°C(-140~392°F)
\t
Exit
\t
Teflon, kapton or silicone insulated leads
\t
Dielectric strength
\t
Min. VAC: 1000

Maximum Allowable Watt Density Versus Temperature.

Note:


The maximum watt density (W/in2) in open air is 5 W/in2. The chart right assumes bonding the polyimide heater to a part.



Certifications
Related Products

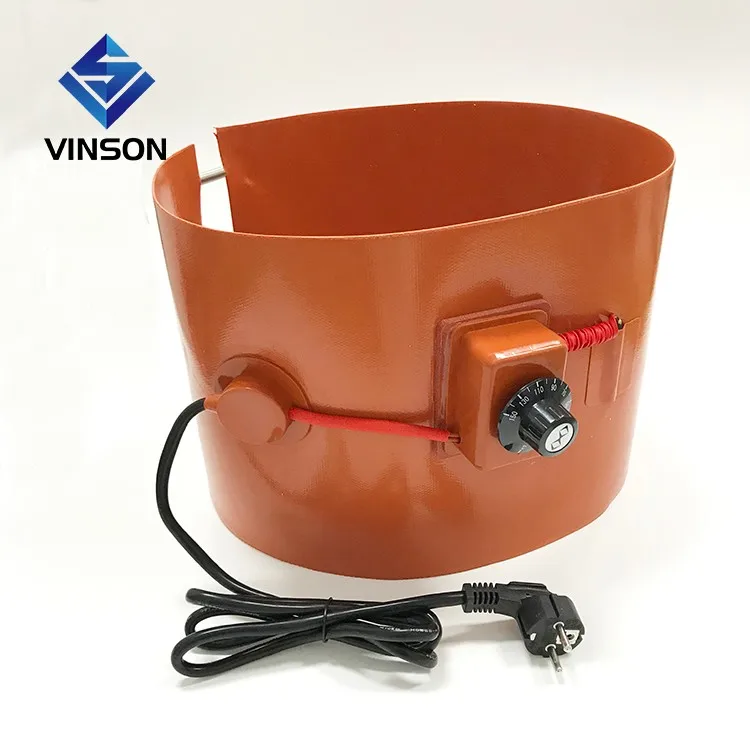

Silicone drum heater

91.8% Response Rate

Round silicone rubber plate

91.8% Response Rate

Flexible ceramic heating pad

91.8% Response Rate

Packing & Delivery
\t
Packaging
\t
Size
\t
40(L) * 28(W) * 28(D)
\t

Weight
\t
20KG of  Kapton Polyimide Foil film Heater for Aluminum Heating plate
\t

Packaging Details
\t

The normal package is Caton box(Size: L*W*H) for  Kapton Polyimide Foil film Heater for Aluminum Heating plate
\t\t\t\t\t\t\t\t\tOur Factory \t\t\t\t\t\t\t

Yancheng Vinson Technology Co., Ltd was established in 2001 and has about 20 years' production history. We have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development.
"Quality is in my hand, Customer is in my heart" Quality is our culture, Our products have been exported to Europe, America, Asia, Mid East etc more than 200 countries. We are extensively used in electric heating and other industries. We hope our products and services can benefit your company, and our cooperation can be mutually beneficial win-win situation.
