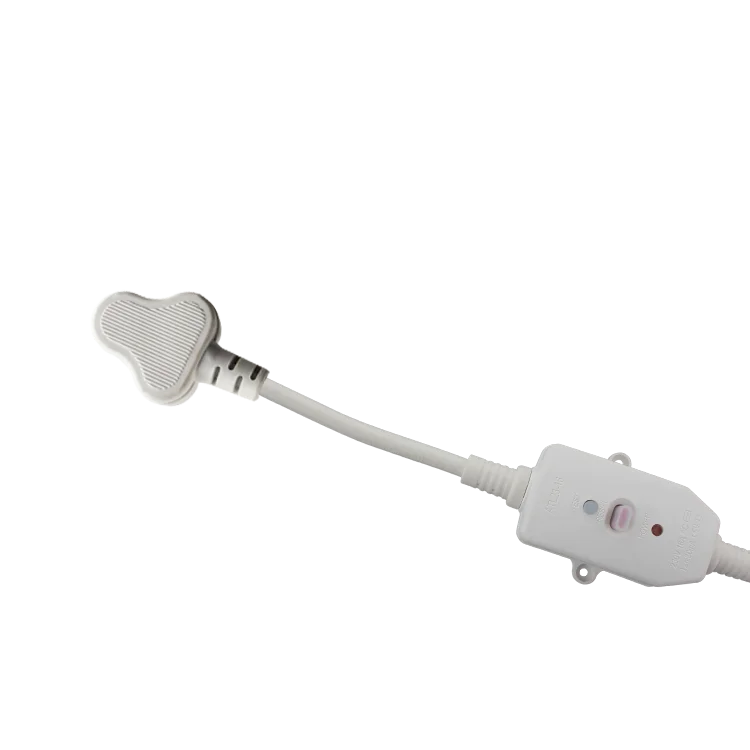

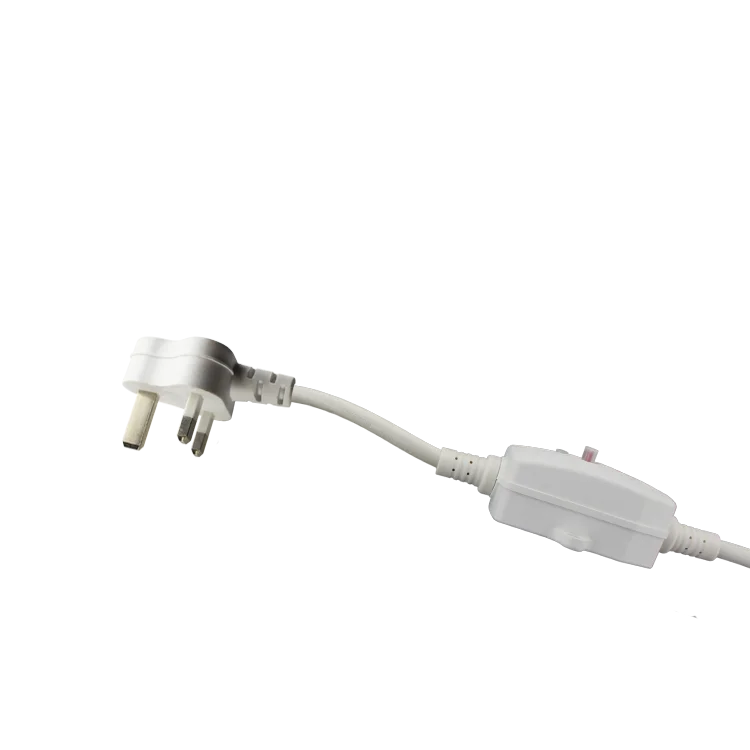

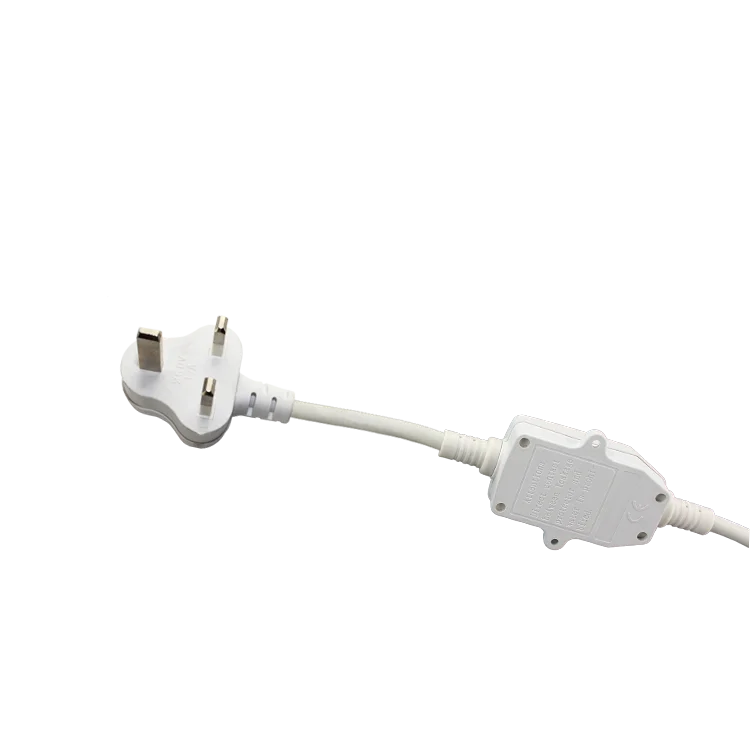

10A RCD Socket 30mA RCD Protection

Product Overview

Description





Product features:

1, Patented product, super waterproof function, beautiful appearance.



2, The product shell is selected with special engineering plastic PBT material,

molded, very good waterproof performance, flame retardant grade from V to 0.



3, Applicable to three-wire (2P plus ground) power supply lines.



4. With power indication, the use of free trip mechanism to make the offline action is not affected by the reset button, the use of imported patch electronic components, leakage protection dedicated IC, with low power consumption, high sensitivity, wide range both in temperature and voltage.



5. Specification on wire depends on customers’requirements.















Product use:

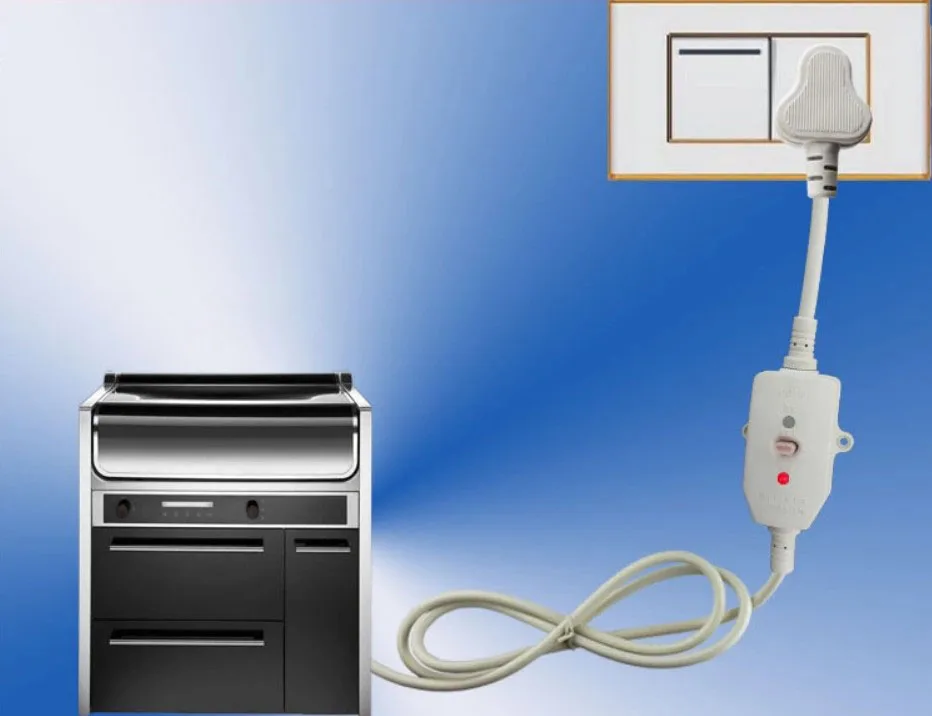

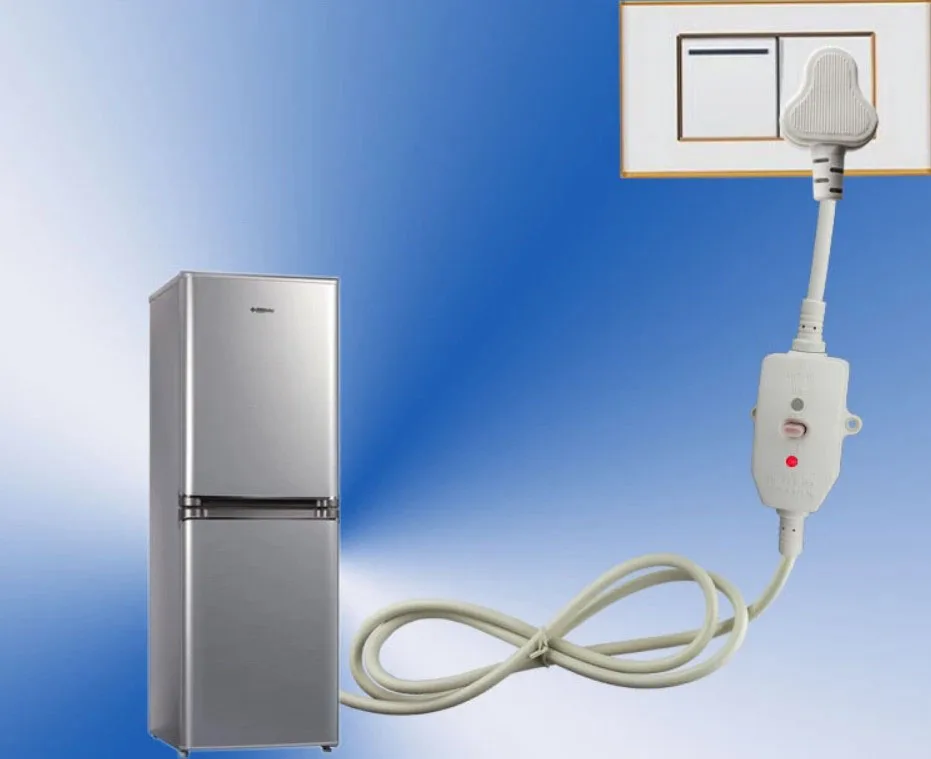

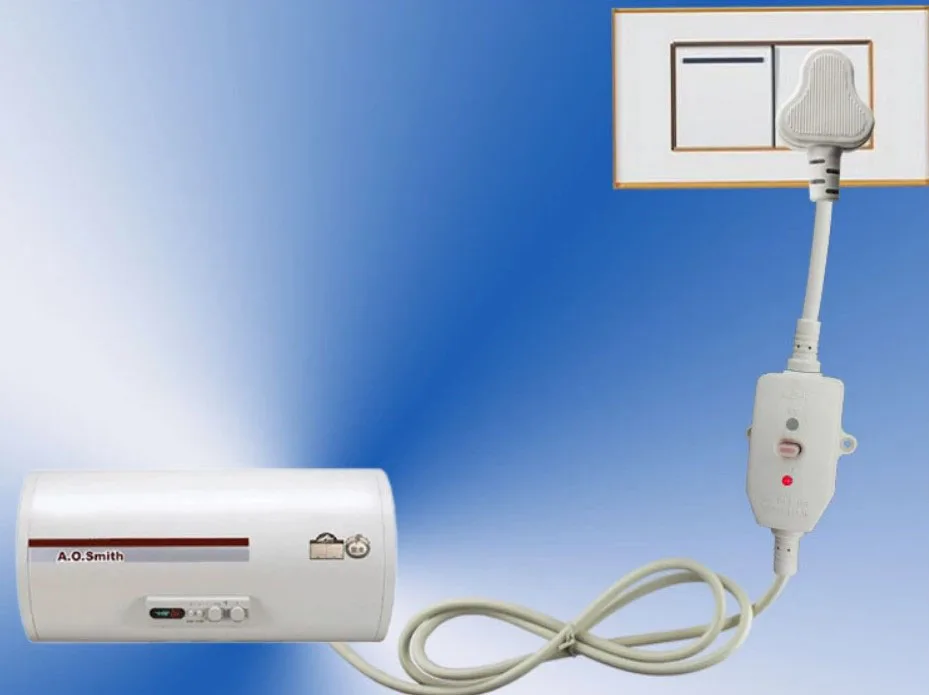

Widely used in: electric water heaters, rapid thermal water heaters, gas water heaters, solar water heaters, air conditioners, refrigerators, microwave ovens, dishwashers, disinfection cabinets, water dispensers, washing machines, hair dryers, electric clips, electric scissors, vacuum cleaners, foot baths tube, bath basin,rice cookers, electromechanical equipment, agricultural electric tool,electrical tools and instrumentation, provides leakage protectionof above all terminal appliances.

Main Technical Specifications
l Rated Voltage:	240VAC~/50Hz
lMax. Load Current:	13A
lRated trip Current:	10mA
lLeakage no tripping Current:	5mA
lMax Tripping Time:	40mS
l Work Environment Temperature:	-25°C~+40°C
l Protection Class:	P20
lStandard:	BS7071, BS1363
lUnit Size:	123*49*57mm
Packing Details
l Packing:	White box
l Meas.:	45cm×26cm×30cm (50PCS/CTN)
l N.W.:	9KG
l G.W.	10KG
