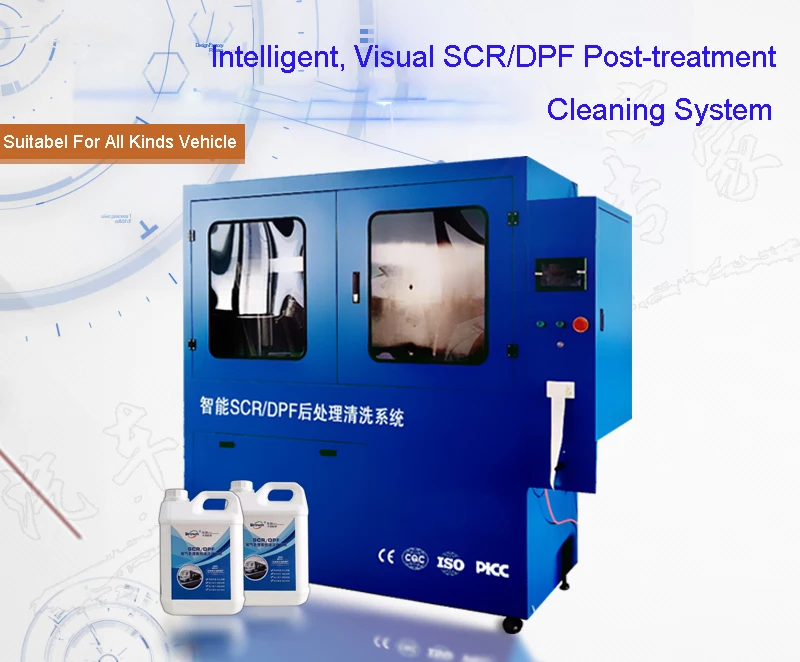

2019 new automatic DPF filter cleaning machine

Share on (62091168176):


Price:$20,000.00

Quantity:


Product Overview

Description


SCR/DPF post processing intelligent system cleaning machine

dpf cleaning machine .jpg



Product Description

Only one such machine can clean all kinds of filter, complete entire cleaning cycle (washing and drying).Don't need to cut filter, don't need bake it and weld it. After finish whole cycle, it is possible to compare original and final parameters in order to verify the cleaning results. It can print the data. The cleaning workshp is made of stainless steel which can support 200kg weight. There is adjustable platform to clean different size and weight of DPF. Equipped with filtering cartridges to collect PM10 which comes out from the filter during cleaning process.




filter cleaning machine.png

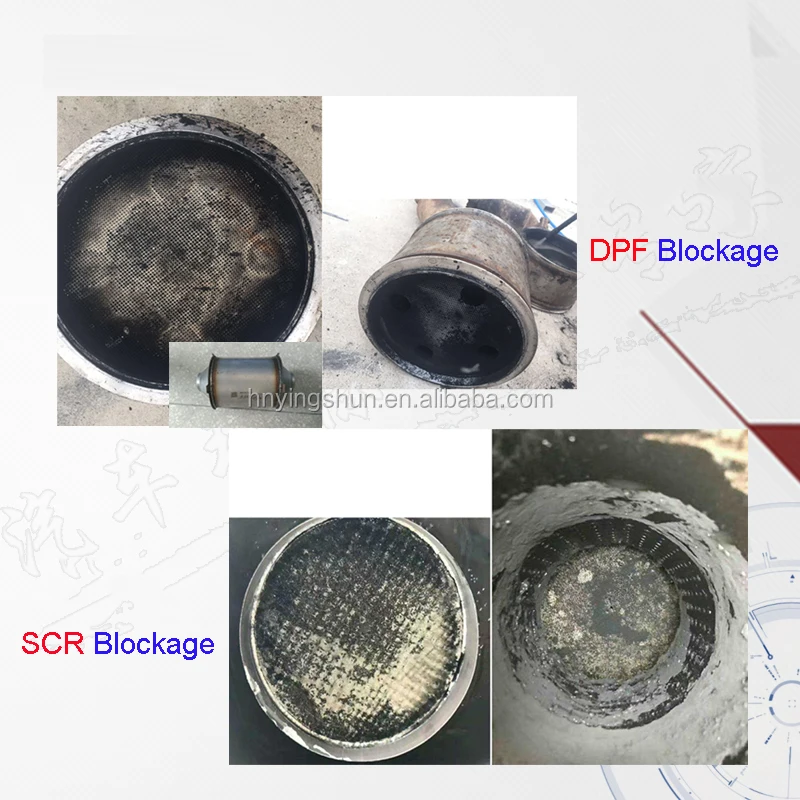

Clean DPF.jpg



An investment equals a lifetime return !!!





What is the benefits after SCR/DPF cleaning?



1. eliminate carbon deposits
2. dredge blockages
3. reduce back pressure
4. increase power
5. save fuel
6. purify exhaust gas



Product Parameter



DPF= Diesel Particulate Filter, which installed at diesel vehicle exhaust system.

Our SCR/DPF cleaning machine is a machine that cleans all kind of air filters of industrial vehicles (buses, trucks, construction equipment, air conditioners and dust collectors). Learning from advanced experience in the international and China market, it is the professional machine which uses the force of the water and air to solve in a definitive way all the filters cleaning problems.





EXTERNAL DIMENSIONS

2100 x 1200 x 2100 MM

INSIDE WASHING CAPACITY

1700 x 850 x 700 MM

FLOOR LOAD CAPACITY

KG 200

TANK CAPACITY

200L

POWER SUPPLY

380V

POWER CONSUMPTION

12KW

AIR COMPRESSOR (NOT SUPPLIED)

0.4Mpa ~ 0.8Mpa

WEIGHT

KG 600

Configuration

Heating system, vapour extraction, drying system, illuminating system, frequency conversion circulating pump, DPF intelligent fixture, water-air mixing device, loading & unloading auxiliary device, liquid level sensor, touch screen, printer.





Our machine advantage:



1. Intelligent touchscreen operation



2. visual cleaning



3. cyclic pulse cleaning



4. data printing before and after cleaning



SCR cleaner.jpg

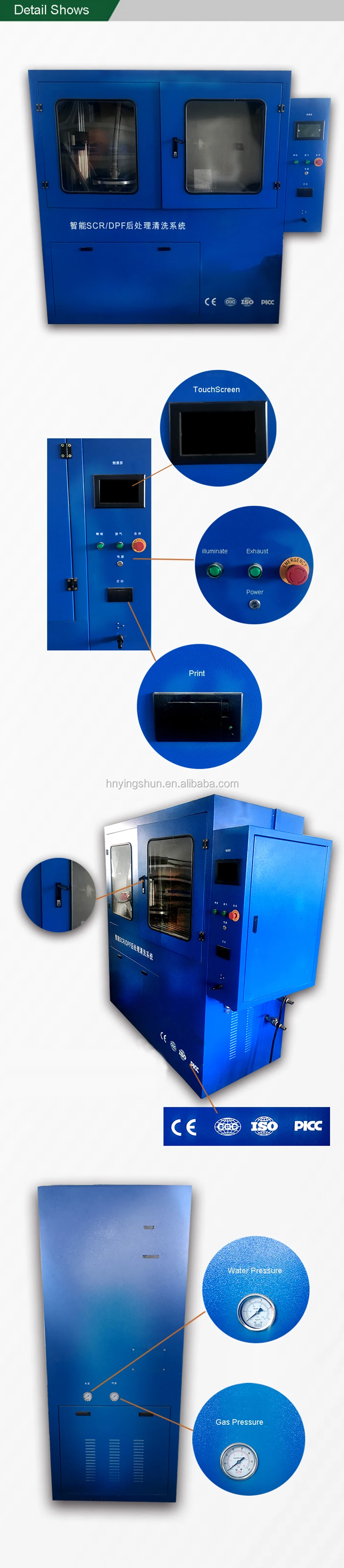

 DPF wash.jpg

DPF washing.jpg

Dpf cleaning machine.jpg

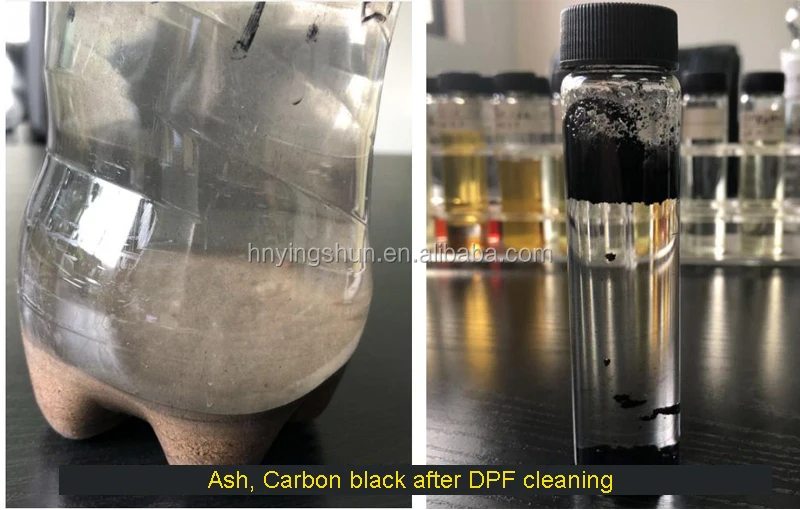

SCR washing.jpg

Company Information

 Our carbon removal facotry is specilized in this field for more than 10 years. Please contact with us for solution and quote.
