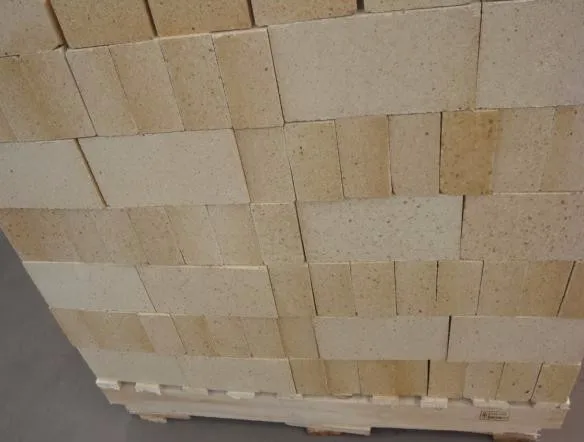

Insulating Refractory Brick Standard size refractory bricks used For Steel Furnace

Share on (62091576773):


Price:RUB 74.33

Quantity:


Product Overview

Description

DAYA produce a comprehensive range of Fire brick consisting of 30~80% Alumina all of which exhibit excellent strength .

For more arduous environments we offer a hard fired "Super duty"Fire brick with a very high mechanical strength.

Features

Low thermal conductivity;Good thermal insulation performance
Refractory category allow direct contact of fire,suitable for various atmosphere
Good integrity with furnace lining,long service life,easy operation,could be shaped freely
Low iron content;Good eroding resistance

Typical Applications

Steel Furnace;Iron making furnace;Glass kiln;Ceramic tunnel kiln;Cement kiln;Lime kilns;Suspended roofs;Reheating furnaces;Blast furnaces;Coke ovens;Insulation for glass tanks;Preheat zones and cyclones of rotary cement kilns ;Carbon bake furnaces in the aluminium industry;Furnaces of metallurgy industry heat treatment furnace;Furnaces of chemical industry and construction industry.;Tunnel kiln car,shuttle kiln car

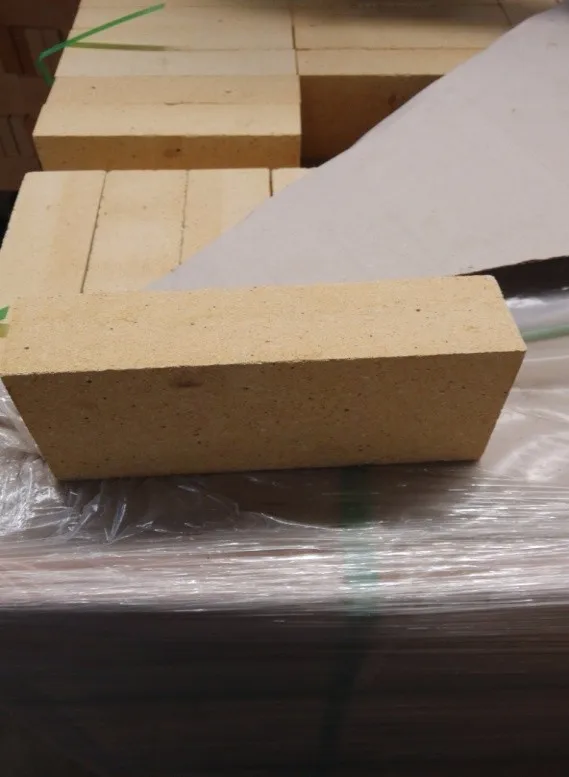

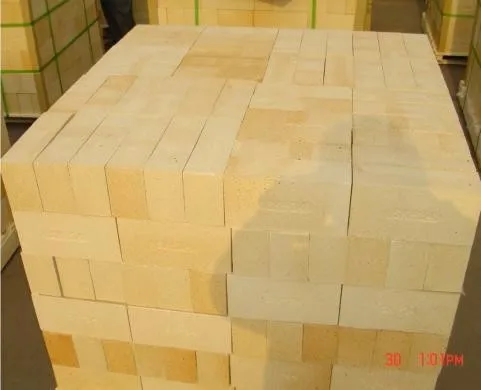

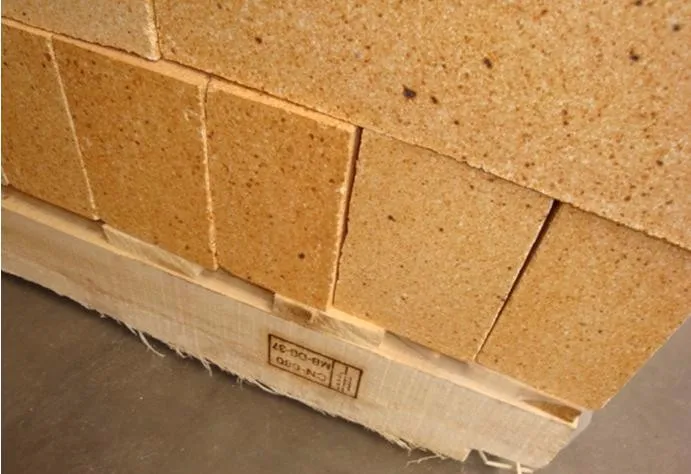

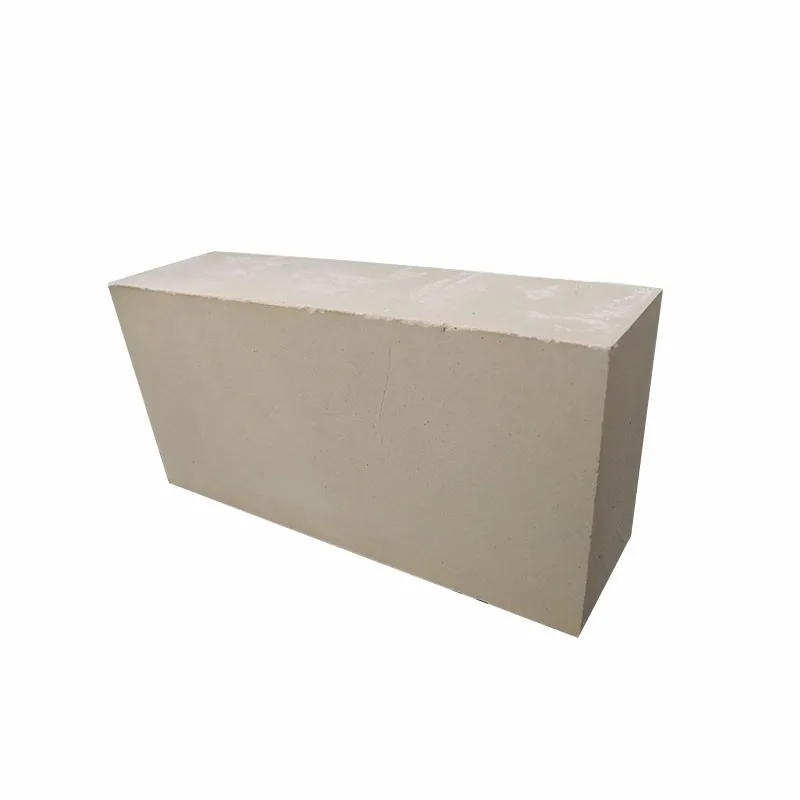

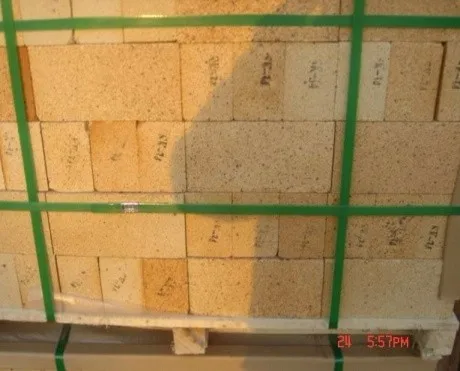

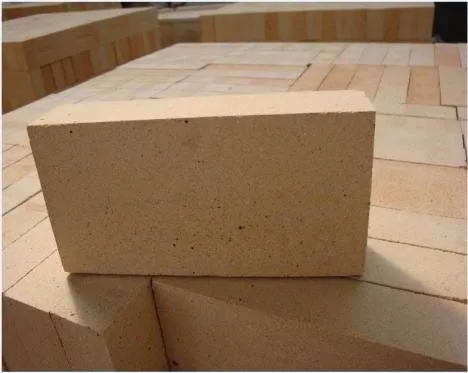

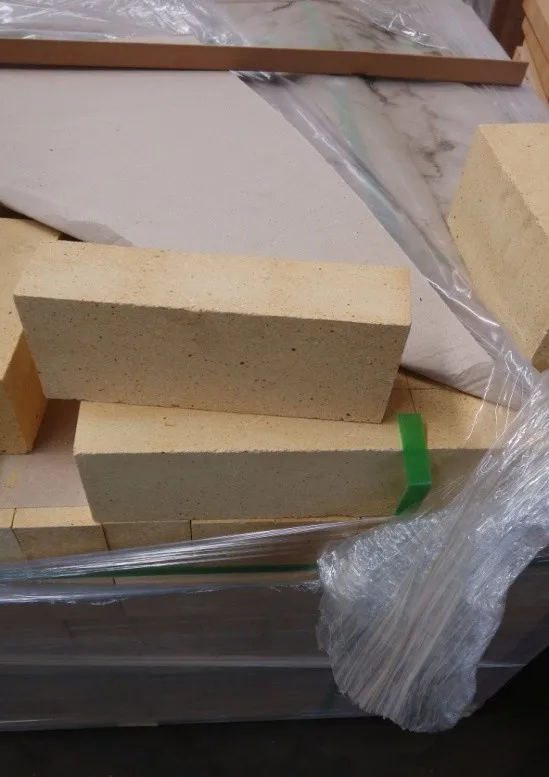

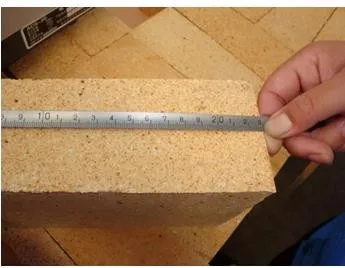

Detailed Images

SK-32

SIZE:230*114*76MM 230*114*65MM 230*114*65/45MM 230*114*65/50MM

Other size depend on the users.

The specification is for the standard size.

Item
Sk-32
AI2O3(%)
35
Fe2O3 (%)
3
Refractoriness (SK)
32/ 1710℃
Refractorines under load, 0.2MPa, Ta, (°C)
1300
Porosity(%)
19-22
Bulk density (g/cm3)
2.10-2.15
Cold crushing strength (Mpa)
25-30
Thermal expansion at 1000℃ (%)
0.6

SK-34

SIZE:230*114*76MM 230*114*65MM 230*114*65/45MM 230*114*65/50MM

Other size depend on the users.

The specification is for the standard size.

Item
Sk-34
AI2O3(%)
40
Fe2O3 (%)
2.5
Refractoriness (SK)
34/ 1750℃
Refractorines under load, 0.2MPa, Ta, (°C)
1350
Porosity(%)
19-23
Bulk density (g/cm3)
2.15-2.20
Cold crushing strength (Mpa)
30-40
Thermal expansion at 1000℃ (%)
0.6

SK-36

SIZE:230*114*76MM 230*114*65MM 230*114*65/45MM 230*114*65/50MM

Other size depend on the users.

The specification is for the standard size.

Item
Sk-36
AI2O3(%)
50
Fe2O3 (%)
2
Refractoriness (SK)
36/ 1790 ℃
Refractorines under load, 0.2MPa, Ta, (°C)
1450
Porosity(%)
20-24
Bulk density (g/cm3)
2.25-2.30
Cold crushing strength (Mpa)
35-45
Thermal expansion at 1000℃ (%)
0.3

Sk-37

SIZE:230*114*76MM 230*114*65MM 230*114*65/45MM 230*114*65/50MM

Other size depend on the users

The specification is for the standard size.

Item
Sk-37
AI2O3(%)
60
Fe2O3 (%)
2
Refractoriness (SK)
1790 ℃
Refractorines under load, 0.2MPa, Ta, (°C)
1450
Porosity(%)
20-24
Bulk density (g/cm3)
2.30-2.35
Cold crushing strength (Mpa)
40-50
Thermal expansion at 1000℃ (%)
-

SK-38

SIZE:230*114*76MM 230*114*65MM 230*114*65/45MM 230*114*65/50MM

Other size depend on the users

The specification is for the standard size.

Item
SK-38
AI2O3(%)
70
Fe2O3 (%)
2
Refractoriness (SK)
38/1800
Refractorines under load, 0.2MPa, Ta, (°C)
1500
Porosity(%)
21-24
Bulk density (g/cm3)
2.35-2.40
Cold crushing strength (Mpa)
50
Thermal expansion at 1000℃ (%)
-

AL 75% 80%

SIZE:230*114*76MM 230*114*65MM 230*114*65/45MM 230*114*65/50MM

Other size depend on the users

The specification is for the standard size.

Item


AI2O3(%)
75
80
Fe2O3 (%)
2
2
Refractoriness (SK)
1800℃
1800℃
Refractorines under load, 0.2MPa, Ta, (°C)
1500
1500
Porosity(%)
21-24
21-24
Bulk density (g/cm3)
2.40-2.45
2.50-2.60
Cold crushing strength (Mpa)
50-60
50-65
Thermal expansion at 1000℃ (%)
--
--
