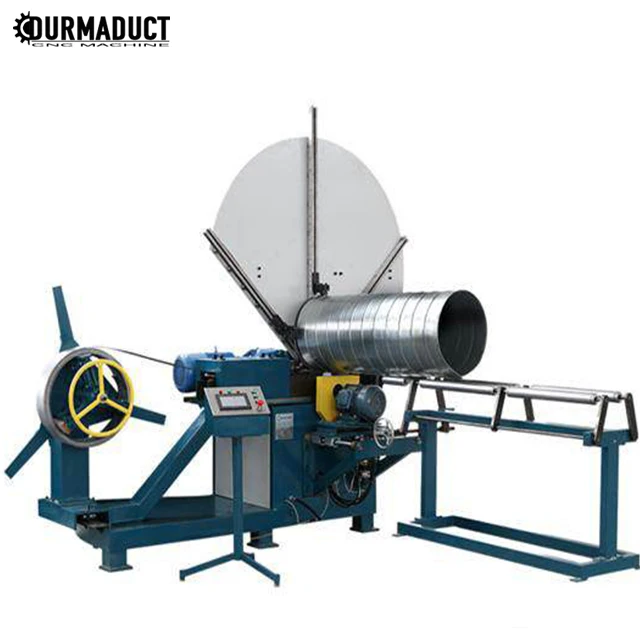

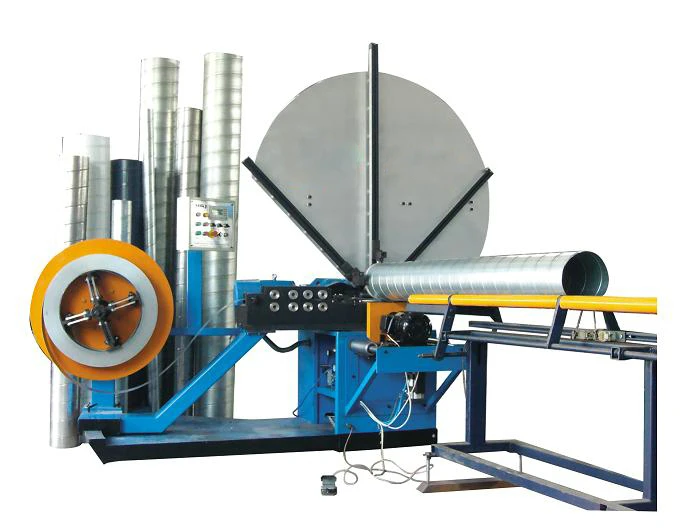

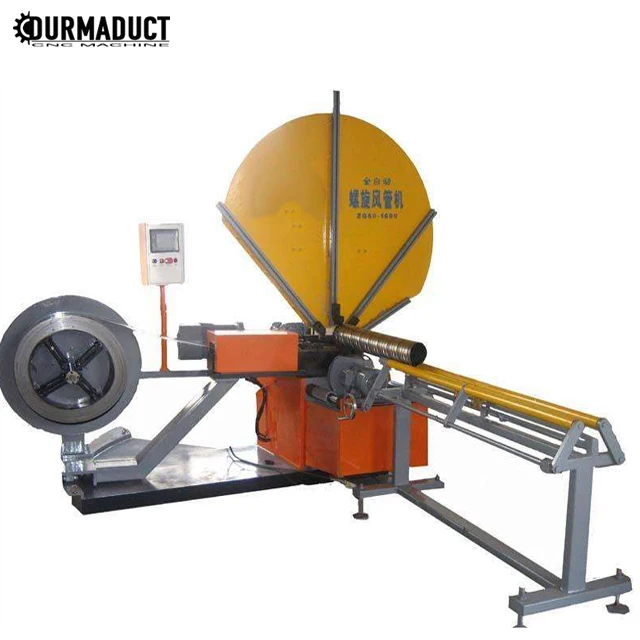

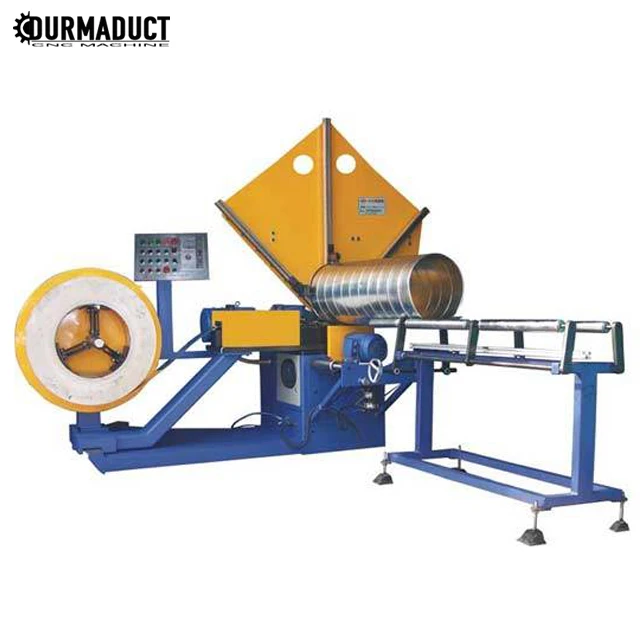

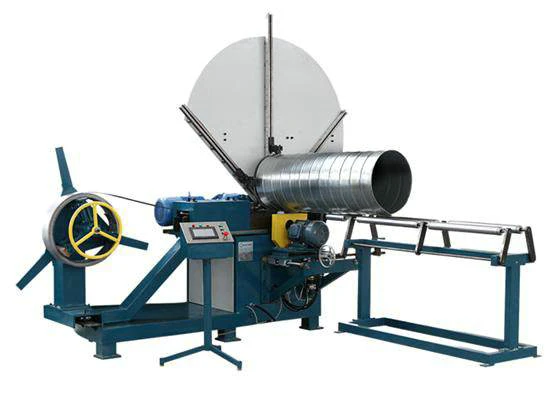

1500mm Spiral Forming machine/ Spiral Tube former round duct forming machine
- Category: >>>
- Supplier: Maanshan Durmapress Machinery Technology Co. Ltd.
Share on (62091706383):
Product Overview
Description
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
Diameter range | Φ100-Φ1500mm |
Tube Length | 120-8000mm |
Thickness of Strip | 0.4-1.2mm |
Width of Strip | 137-140mm |
Strip Speed | |
Dimension (L x W x H): | 3800*2200*2700mm |
Lock seam | Outside tube, on the inside on request |
Weight | 2200kg |
Control System | PLC automatic control |
Compressed air power | 0.5-0.7kmp |
Electrical | 380V/3PH/50HZ(According to customer’s request) |
Main Motor Power | 5.5kw |
The power of cutting motor | 4kw |
Suitable Material | Aluminum, Stainless steel, Galvanized steel |
