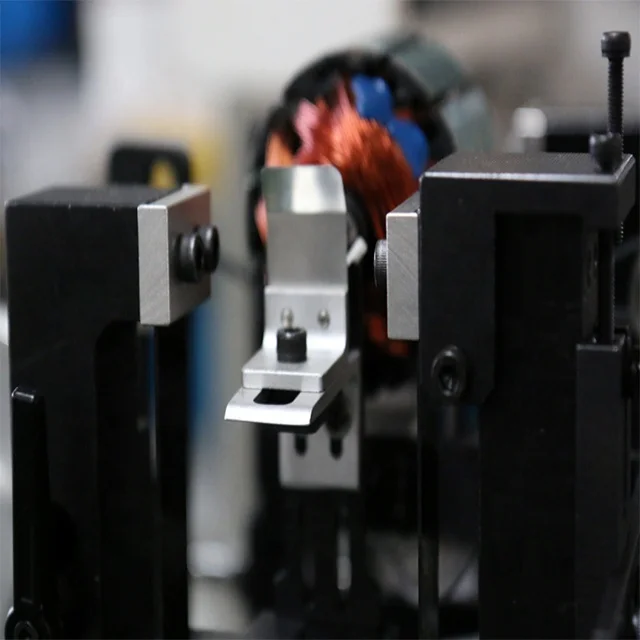

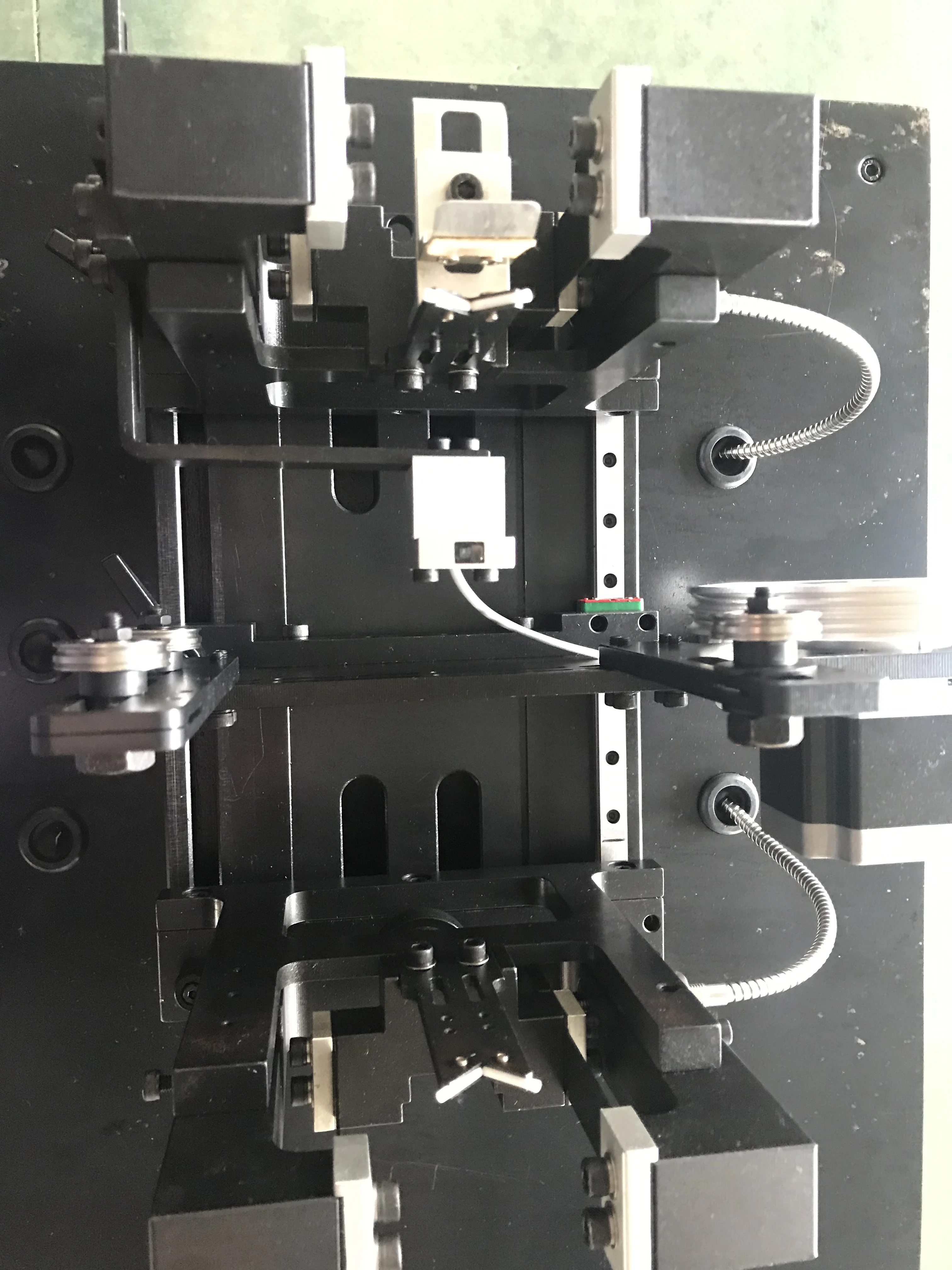

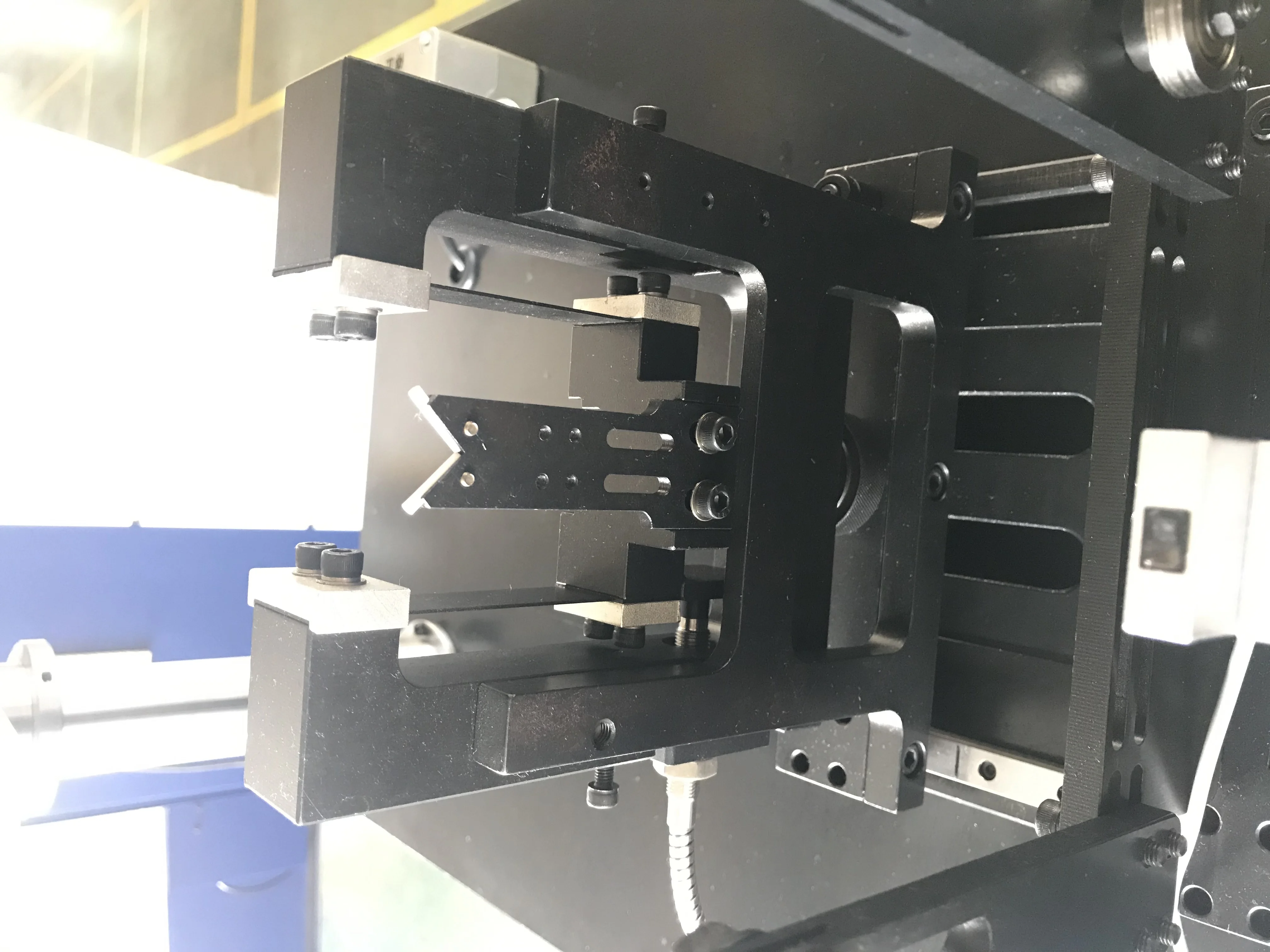

Device for Quick changeover Manual Testing Machine for Alternators Rotors
Production Parameters
Item
Technical data
Equipment name
Testing machine
Model No.
T-A
Main components
Cylinder: SMC
Servo motor: Mitsubishi
Sensor: Contrinex
Touch screen : KEYENCE
Control PLC: KEYENCE
Stepper motor: Oriental motor
Rotor diameter
20-80mm
Balancing speed
1400-2100rpm
Power
Single-phase AC220V
Pneumatic
0.4-0.6Mpa
Cycle time
Less than 10s
Weight
0.2T
Dimension
1250 x 400 x 700 mm
Consumption
1.5W
Production Details
Applications: Armatures for DC servomotors, Assembled motors, Automotive Components, Balancing machines, Brushless rotors, Grindstones, High power alternators rotors, Industrial electric motors, Machine tools, Rotors for asynchronous motors, Rotors for brushless motors.
Rotor sample:
Features

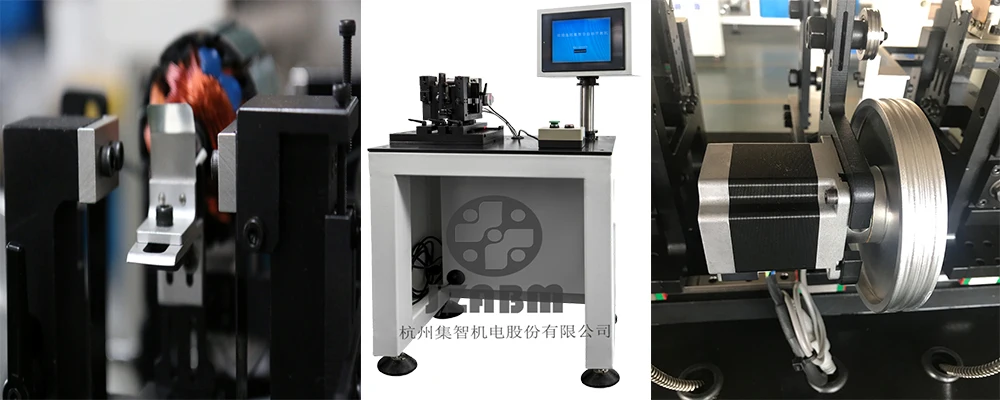

T-A is a manual machine suitable to measure the unbalance of rotating parts on two planes (dynamic) or on one plane (static). The unbalance correction is carried out manually by adding or removing material.
The main use of this machine is to balance rotors/armatures of electric motors in general, as well as car alternators or fans, turbines, brushless rotors, shafts, spindles, etc.
This machine can be interfaced to manual milling/drilling units to rectify the unbalance by removing material.
Operator interface by industrial PLC.
High level of flexibility and quick changeover.
Advantage
Compact
High level of flexibility
High measuring precision
High balancing precision
Quick changeover
User friendly
Ambient parameters
The equipment can be used continually and normally in 72 hours under below condition.
1,Working temperature:- 5℃~45℃
2,Humidity: 83~95%RH(+40℃),68~74%RH(-15℃)
Why Balancing? 1) Balancing creates and enhances quality! Unless it is corrected, the effect of unbalance will often only become noticeable in the finished product. If rotors are not balanced, they can cause undesired or even dangerous vibrations. They can also diminish the practical value of a machine, causing damage to the bearing, or fractures to the casing, suspension or foundation. Excessive noise and vibration may also irritate or annoy the user and lead them to conclude that the product is of poor quality. Thus, a product that is free from noise and vibration is always a sign of quality, precision and craftsmanship. 2) Increasing Demands! More sophisticated technical development have lead to constantly increasing requirements with regard to balancing quality. Higher performance for applications such as high-speed tool spindles, electric motors, turbines, fans, universal joint shafts or paper rolls simply mean higher speed. The trend is clear, and in order to meet these requirements precision balancing is essential. Accurately balanced rotors allow us to safely reach higher speeds and deliver considerably higher performance.
Business partner
Company Information
Hangzhou Jizhi Mechatronic Co.,Ltd,located in Hangzhou, Zhejiang Province, east part of China. The porpular cultural and historical touring city, which successfully held the summit G2O in 2016 and the headquater location of many IT leading companies such as Alibaba. JIZHI was established in 2004, an professional and the only listed manufacturer of balancing machine in China Martket, specializing in R&D of dynamic balancing field for more than 10 years. As one of the national industry standard drafter unit, Jizhi has possessed own intellectual property rights and patent technology. In 2016, Jizhi successfully IPO and turned a new page for the company. The main customers come from the industry leaders such as Bosch, Valeo, Mitsubishi, Mabuchi Motor, Honeywell, Stanley, Mahle, Samsung, Hitachi, Sampo etc. Hope more hands can be held together with us to balance this rotary world. Where there's a rotation, where there's JIZHI.
Jizhi has the following affiliated companies
Shanghai Hengwang Intelligent Technology Co., Ltd
Hangzhou Hehui Intelligent Equipment Co., Ltd
Guangdong Jijie Intelligent Co., Ltd
In the international market, Jizhi is the only listed motor manufacturer of balancing machines in China.
JIZHI---Where there's a rotation, where there's JIZHI.
Company Information
Factory picture

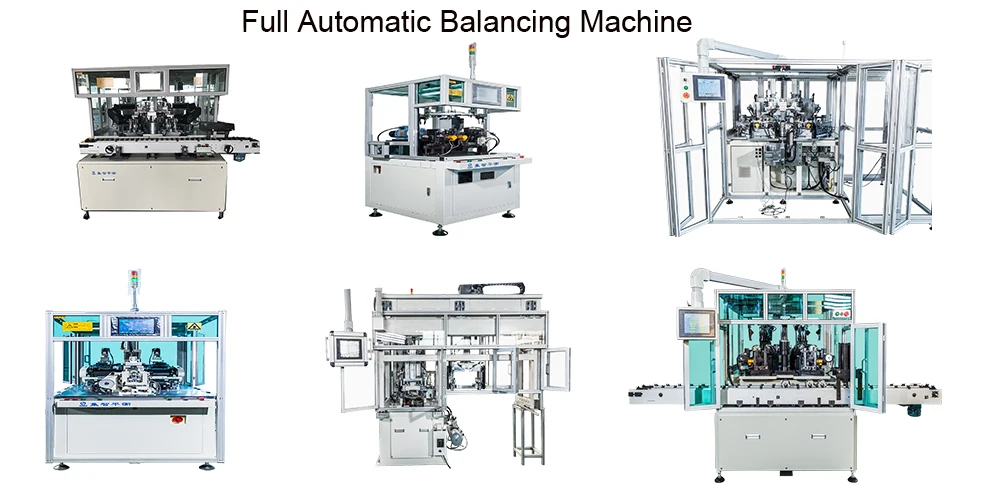

Main product
Certifications
Our Services
Customerized service
1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service
1. Warranty Period: 12 month
2. Indian office and India engineers are available.
3. Engineers and trained operators are available to service oversea.
Packaging & Shipping
FAQ
1.Q: How to confirm which balancing machine moedel is finest for my use?
1. Find which industry you or your company belongs to.
2. Compare your worlcpteces with we provide in the product page.
3. Ensure the power supply voltage and phase.
4. If you don't know the rotor's specific, leave message or send inquiry for us, and then we will guide you immediately.
2.Q:How long of the machine produce after conform the order and how to transport?
1.Small size: one week.
2.Medium size: one month
3.Generator motor: two months
4.Customized machinie: three months
5.By air or sea
3.Q:Do you sell balancing spare parts?
Yes, we do sell spare parts like sensor, stepped motor, belt, main board, fixture, PLC and any other applied in balancing machine.
4.Q: We have a balancing machine in use for many years. Would you provide balancing machine repaire retrofit and upgrade?
Yes, we can repaire, retrofit and upgrade. If you want to buy a new one, the old one can be be recycled for some money to buy the new one.
5.Q: I don't know how to operate balancing machine, is there any tutorals about operating balancing machine?
Yes, we have the trained oversea maintenance staff and some vedio. If you still do not know how to operator we can have a vedio meeting to instruct your operator.
