Product Overview

Description


Product Description

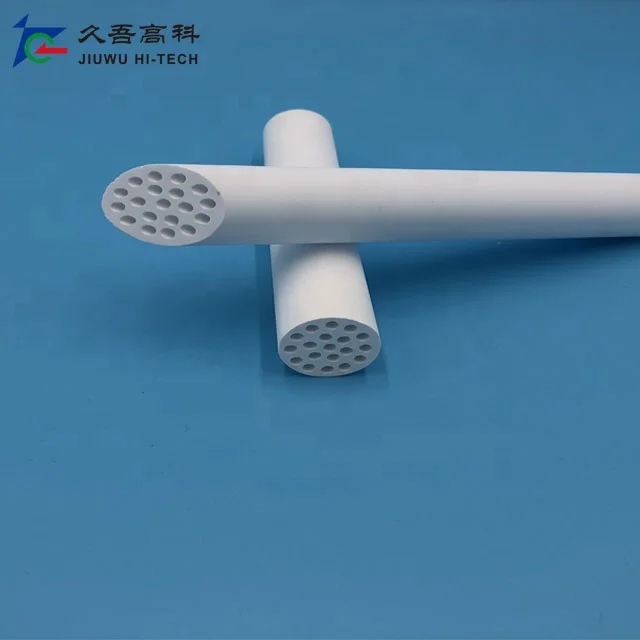

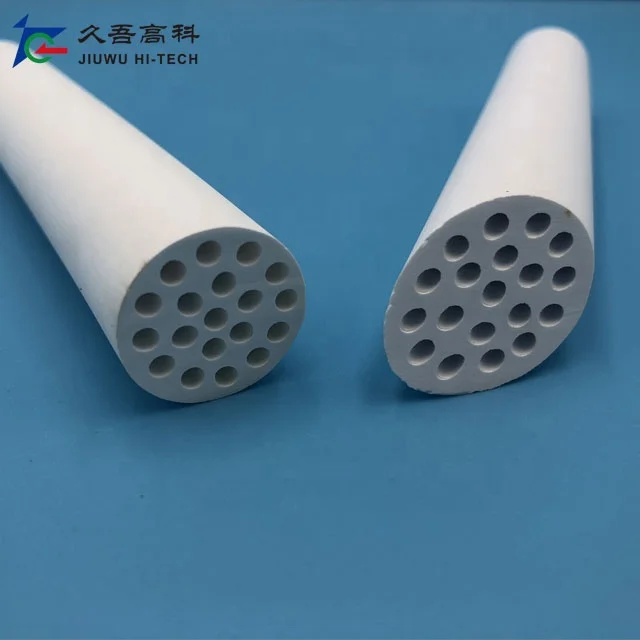

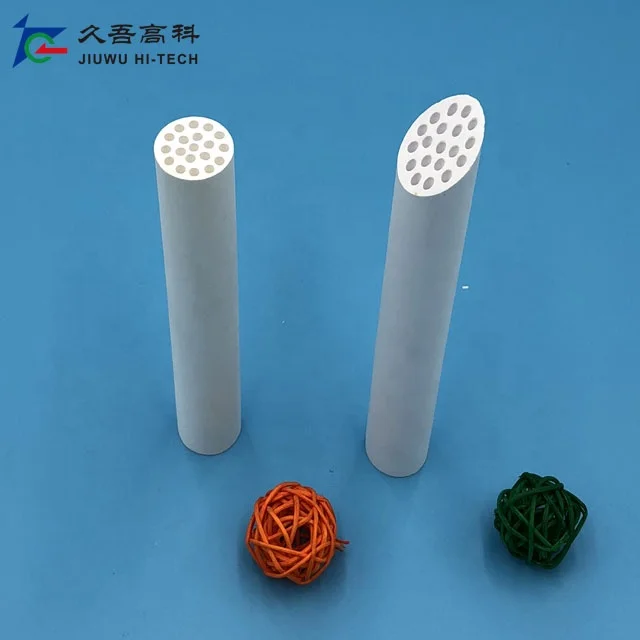

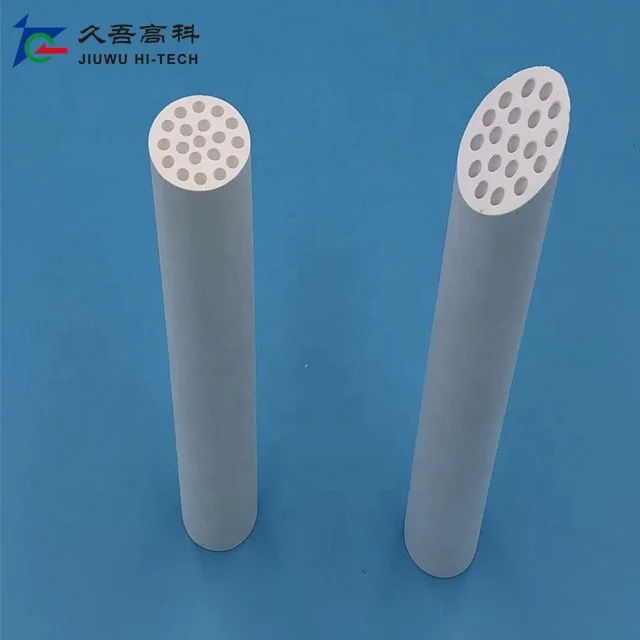

Ceramic microfiltration membrane element is made from alumina and zirconia which is an asymmetric membrane structure with multi-channel tubular shape. The pore is on the channel. Driven by operation pressure, the liquid is running in the membrane. The part less than pore size is permeation, the part lager than pore size is concentrated liquid, so as to achieve the separation, concentration and purification purposes.

\t
Ceramic membrane
\t
Model
\t
CMF19040 CMF37036
\t
Raw Material
\t
α-Alumina/Zirconia
\t
Pore size
\t
50 nm, 100nm,200nm
\t
Length
\t
1200 mm
\t
Membrane area
\t
0.24 m2, 0.29 m2, 0.418 m2, 0.5 m2
\t
Outside diameter
\t
30 mm, 40mm
\t
Channel Diameter
\t
4.0 mm, 3.6mm
\t
Channel Qty
\t
19, 37
\t
Gross Weight
\t
1.5 kg, 2.5kg
\t
Construction
\t
Multi-channel tubular element
\t
Operating conditions
\t
Typical Operating Pressure
\t
29-145 psi (2-10 bar)
\t
Maximum Operating Temperature
\t
302°F (150°C)
\t
Maximum Cleaning Temperature
\t
176°F (80°C)
\t
Allowable pH - Continuous operation
\t
0-14
\t
Allowable pH - Clean-In-Place (CIP)
\t
0-14
\t
Application area
\t
Food & Beverage
\t
Bio- pharm
\t
Chemical & Petro- Chemical
\t
Water & Wastewater treatment
\t
Features
\t
Advantages
\t
Exceptional mechanical resistance
\t
Suited to high fouling liquids, viscous products, high concentration factors
\t
Ability to withstand upset conditions and high frequency backpulsing cycles
\t
Long service life
\t
Wide chemical and pH compatibility(0-14)
\t
Easily sanitizable and sterilizable
\t
Suited to treating acid or alkaline feed
\t
Long service life
\t
Excellent thermal stability
\t
Suited to continuous hot temperature operation and numerous CIP cycles
\t
Long service life
\t
Cross-flow filtration
\t
Continuous process
\t
No filter cake
\t
Easy cleaning, CIP
\t
Excellent inorganic materials
\t
Easy maintenance, low maintenance cost
\t
Long work life


Detailed Images

Ceramic Membrane System

Skid-mounted device (Ceramic Membrane Filtration System) effectively allocates and stores machine for process and modular systems in the field of solid-liquid separation. A CMF skid-mounted device is designed by order and fully optimized as process flow, which includes CMF unit, power part, control part and supporting pipelines, valves and instruments. The device can be designed as a containerized device.

Ceramic Membrane Module

Housing is designed with standard connectors (flange, clamp, whorl coping) to attach with incoming and outgoing piping. This includes a manifold, which directs incoming flow to all ceramic membrane elements in the housing. The housings are produced from different types of stainless steel, coated steel or plastic, titanium, as required by the application. The sealing material holds elements in the weakest place in housings. A wide array of materials (EPDM, Fluoro rubber, silicon) is available by customer's needs.

Ceramic Membrane Element

As a core technology, JIUWU has become the largest ceramic membrane element producer and a world leader in cross-flow filtration. JIUWU ceramic membrane element is tubular composite membranes on an open porous carrier tube made of high purity α-alumina oxide (AL2O3) and titanium oxide (TiO2). The ceramic membrane element is optimized for maximum water permeability and high mechanical stability.

\t\t\t\t\t\t\t\t\tcertificate \t\t\t\t\t\t\t
Packing & Delivery
\t
Destination
\t
Express delivery
\t
Air cargo and ship cargo
\t
America
\t
√
\t
√
\t
Europe
\t
√
\t
√
\t
Southeast Asia
\t
√
\t
√
\t
Africa
\t
√
\t
√
Company Information

JIANGSU JIUWU HI-TECH CO.,LTD (referred to as "JIUWU HI-TECH") was founded in 1997. In 2017, JIUWU HI-TECH has listed on Shenzhen stock exchange (stock code: 300631). Now it becomes the largest ceramic membrane manufacturer in the world.
