Specifications:


Features:

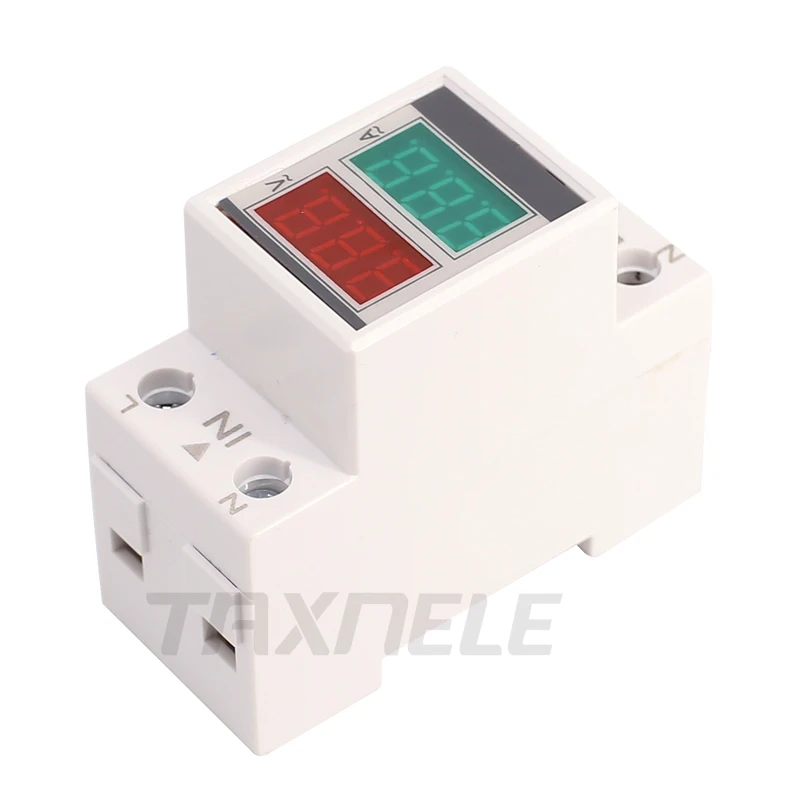

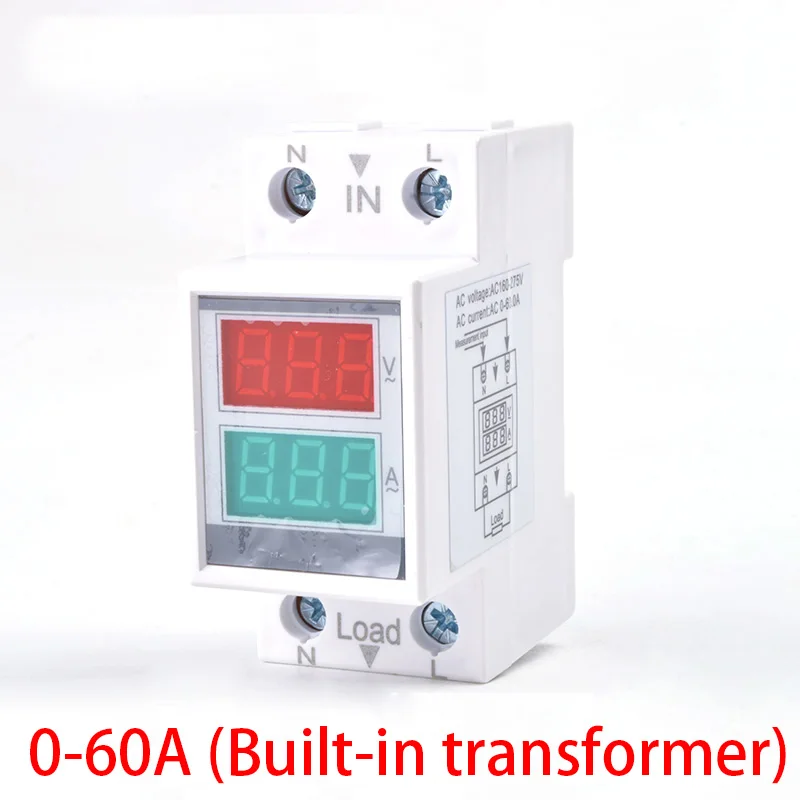

• Din-rail digital meter can measure and display AC voltage, AC current at the same time

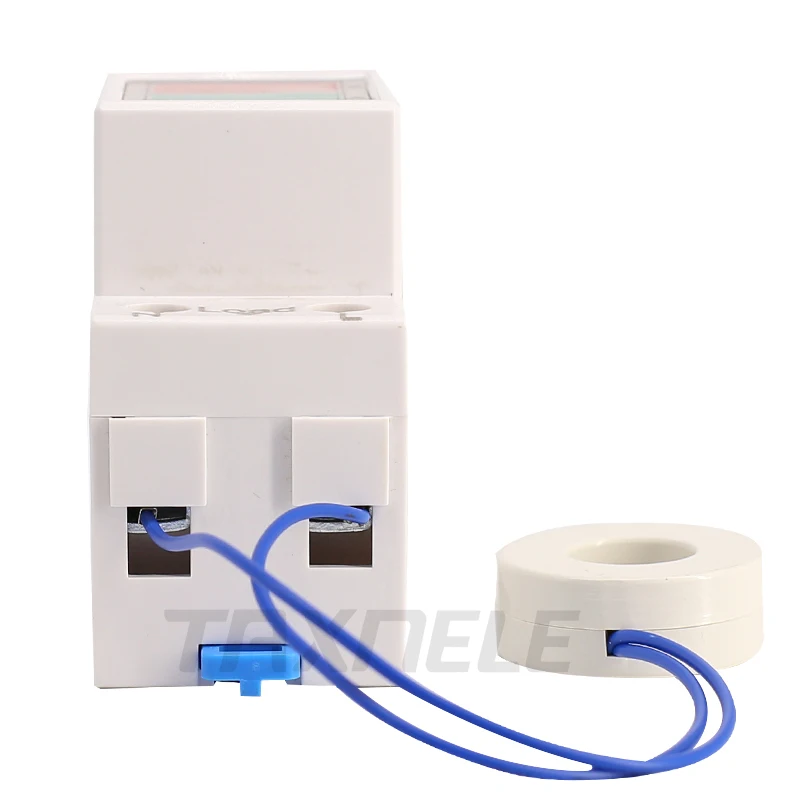

• A precision small current transformer for the meter is provided


•

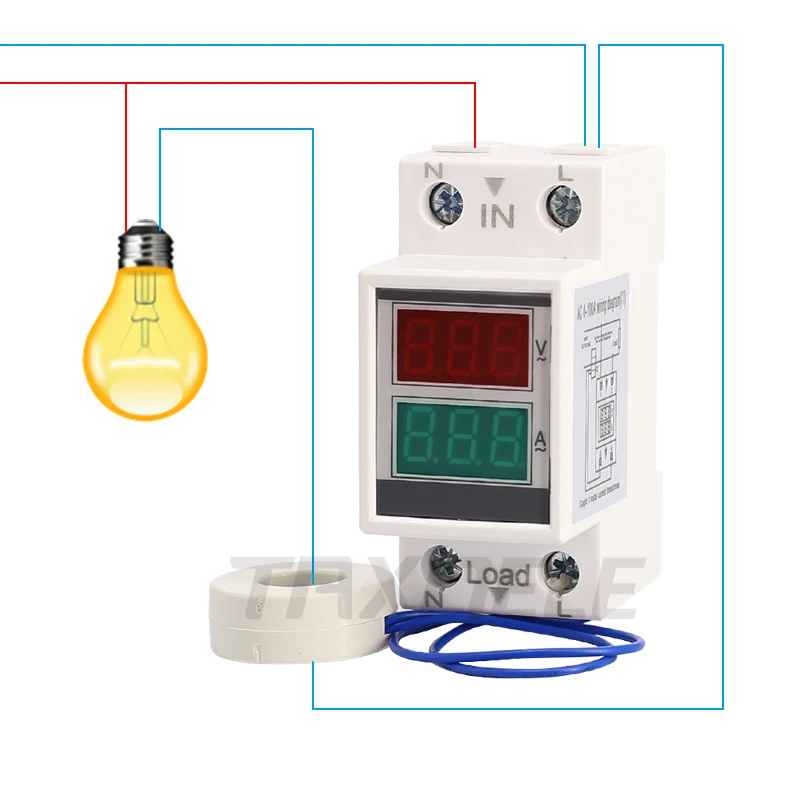

• Wiring:


• 1.Connect the measuring voltage to the 2 and 3 terminal.


• 2.Connect the two green wires of secondary current transformer to the 5 and 6 terminal. make the wire (one of the wire (battle line or zero line ) )which connect to the load ) through the hole of current transformer, the direction do not affect the result.


• The meter can only use to measure 50Hz/60Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave


•


• Specifications:


• Accuracy: 1%±2 words


• Display mode: 0.32-inch Led ( AC voltage with red led and AC current with green led)


• AC voltage Range: AC 80.0-300.0V


• AC Current Range: AC 0-59.9A/  0-99.9A (when measure current lower than 10A, the accuracy is 0.01A, when measure current between 10.0 and 99.9A, the accuracy is 0.1, the accuracy auto-change)


• Power supply:<0.2VA


• Speed: 2 per second

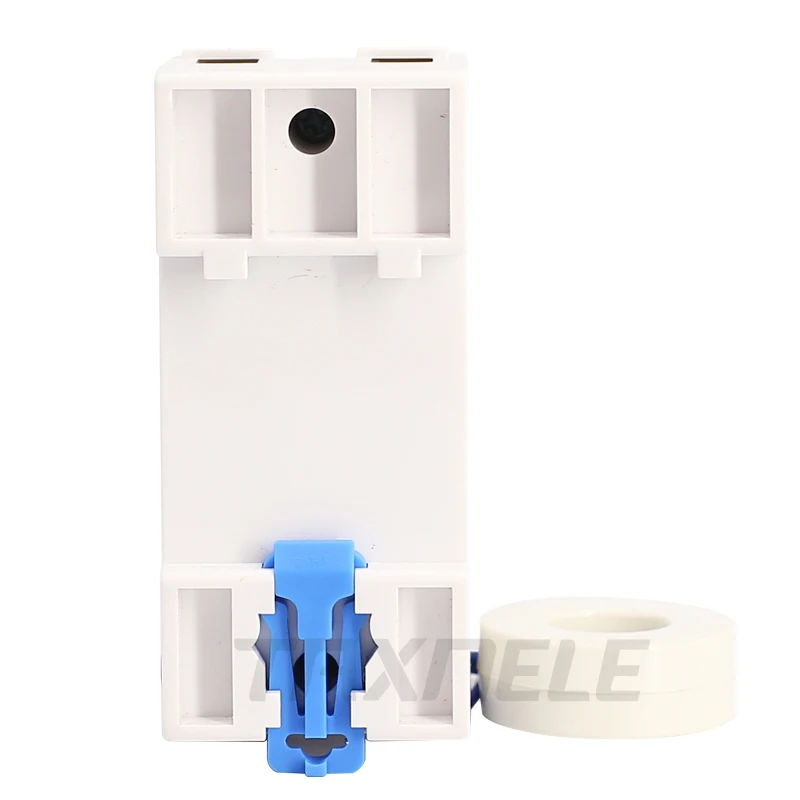

• Installation: 35mm Din rail


• Size: 37x87x64m


•


• Note:


• 1.Transition: 1cm=10mm=0.39inch


• 2.Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.


• 3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

• 1 pcs x Voltmeter Ammeter


• 1 pcs x User Manual
