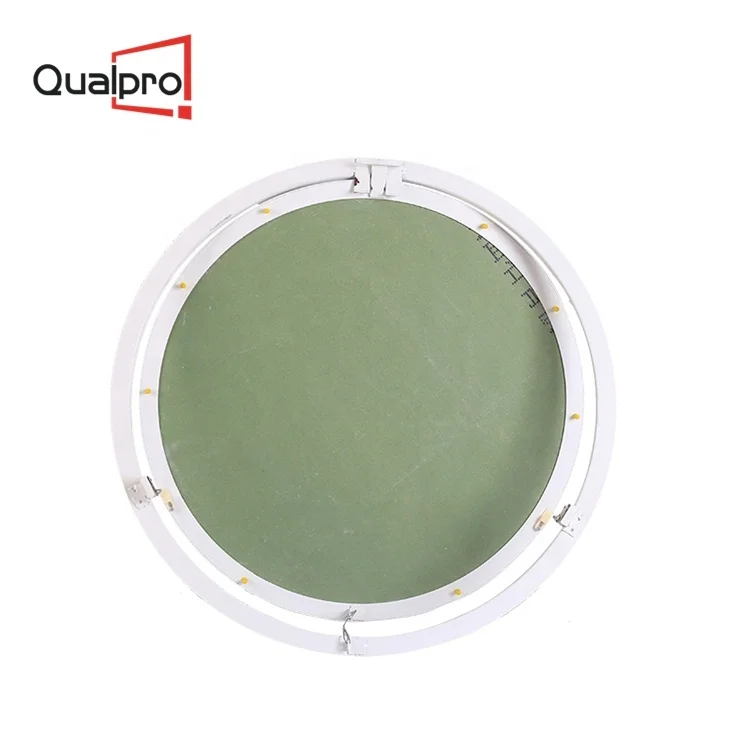

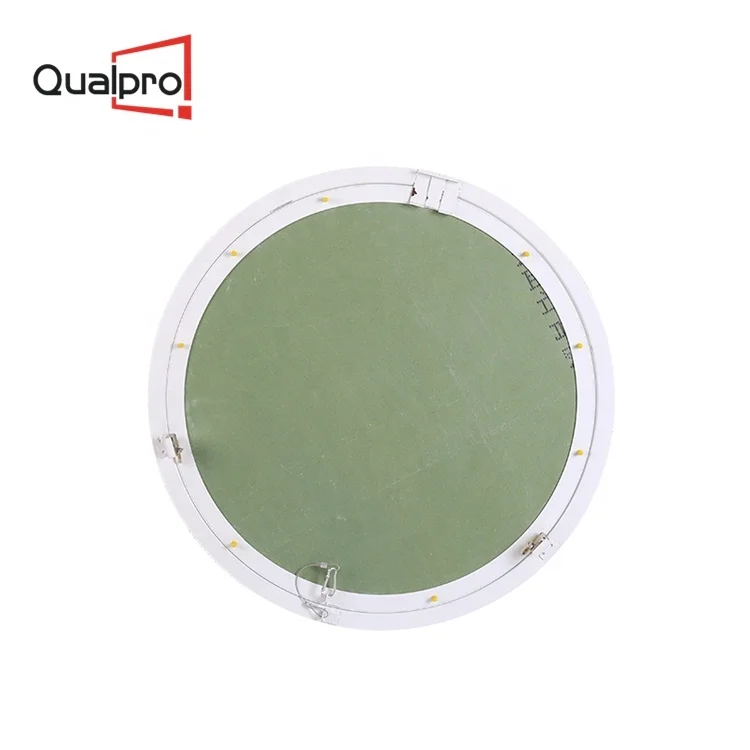

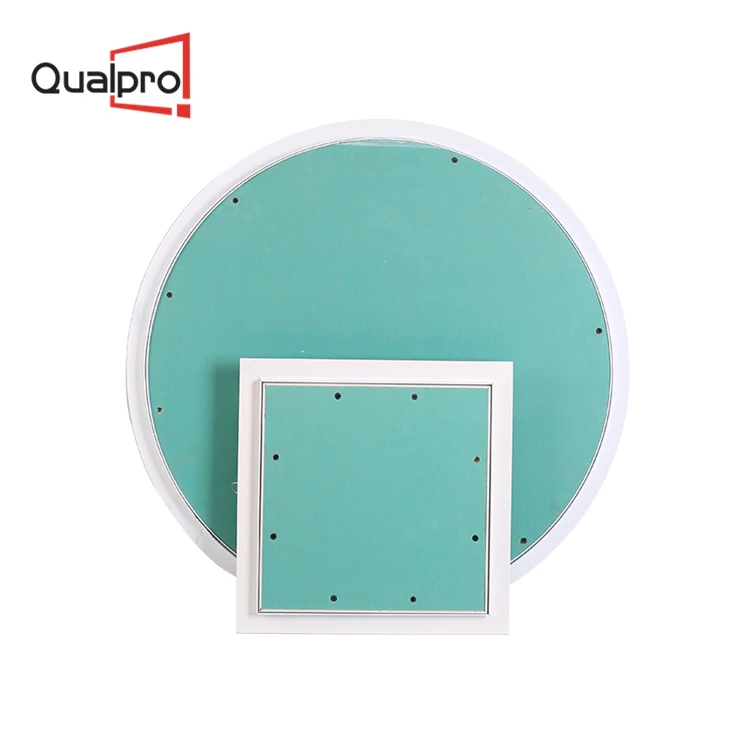

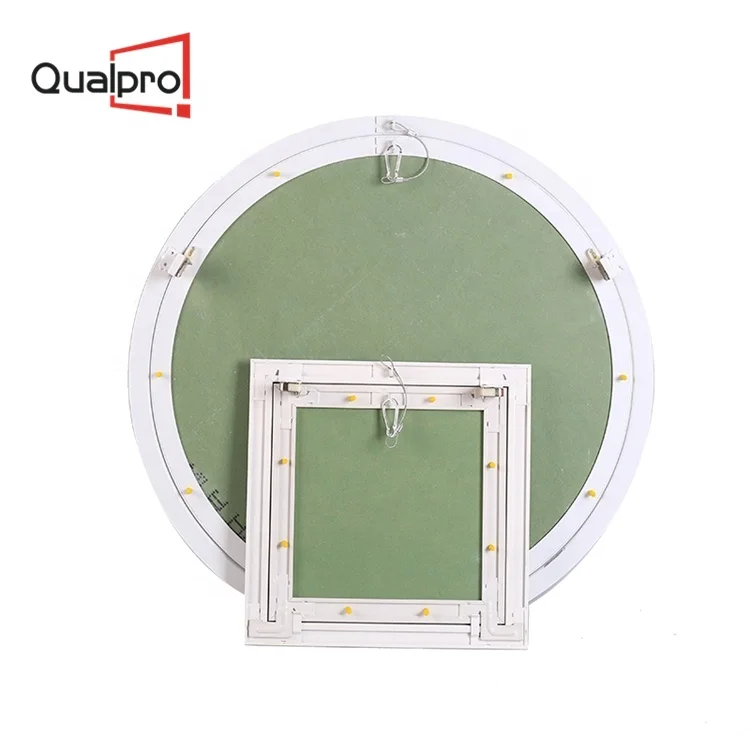

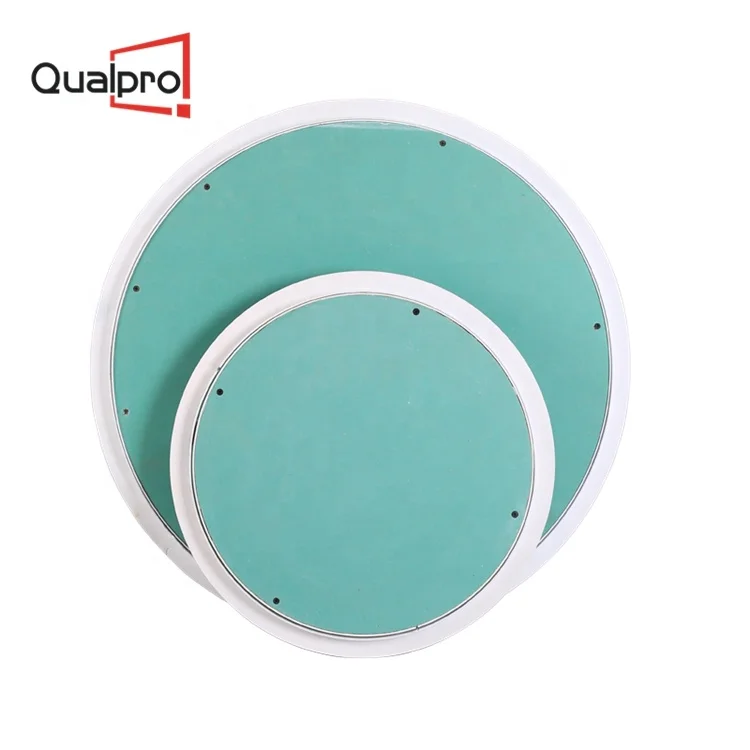

Wholesale price metal ceiling access panel round shape inspection door with gypsum board

Share on (62092056100):


Price:$5.99 - $17.90

Quantity:


Product Overview

Description


Wholesale price metal ceiling access panel round inspection door for wall



Product Description










































  Material  Galvanised Steel
  Size  12'' & 16'' & 24''
  Color  Mill finish
  Surface Treatment  Mill finish
  Lock/Latch  Concealed snap lock
  Item  Round ceiling tile access panel
  Frame Thickness  2mm
  Gypsum board  12.5mm











































Item No.Nom Size (mm)Packing Size (mm) PCS/CTN
LWH
 AP7715 3003703704306
4004704704306
6006706704306

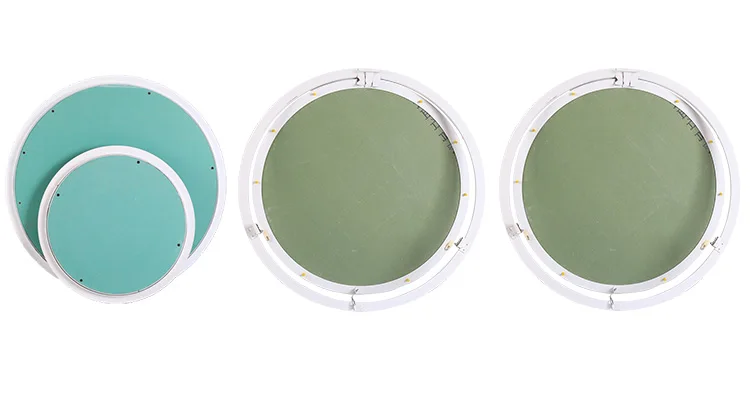

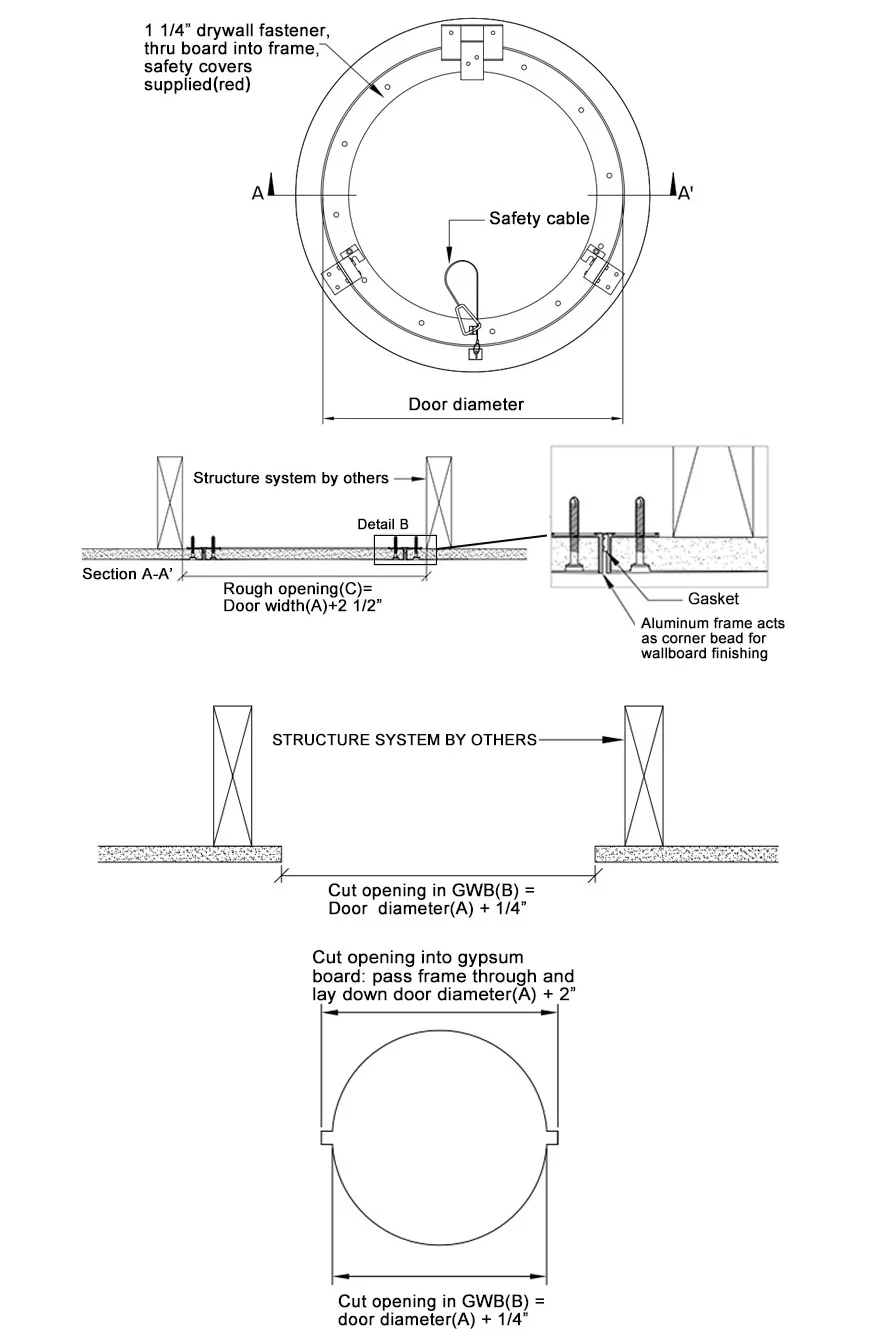

7715 -750x400.jpground access panel details.jpg

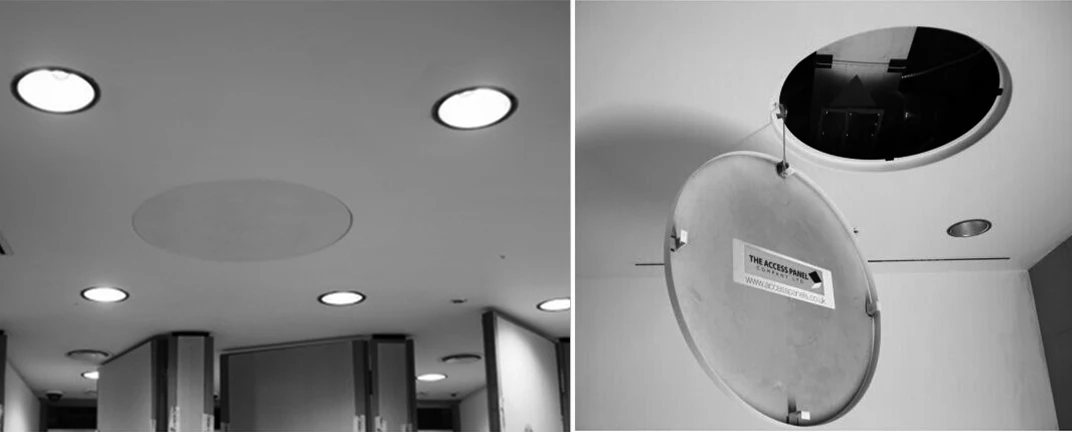

Round Access Panels provide protected openings in ceilings and walls for access to building engineering services. The round outline continues architectural themes blending with other circular fittings. The narrow 27mm profile can be used in all types of wall or ceiling construction. Each panel consists of a removable door tray and frame finished in powder coated white which can be over painted on site to blend with the surrounding surface.


There are two frame options for the Round Access Panel. A beaded frame type (SBF) with perforated flange to key into surrounding membrane. This is used where the surface has yet to be finished. Or the picture frame type (PF) where the solid flange sits on the surface of the wall or ceiling. This covers the cut edge of the aperture and is used when the surface has already been finished.








Hot Sale


















Production Process







Packaging & Shipping







Company Information









Contact Us








FAQ


1.Q:Are you a factory or trading company?
A:We are a professional Industrial and Trading Company,have more than 10 years production experiences.

2.Q:Could you provide some samples?
A: We will be happy to send you free existing samples if you need check the quality.

3.Q:How does your factory do regarding quality control?
A:"Quality is priority." We always attach great importance to quality controlling from the beginning to the end.

4.Q: What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.




wholesale mill finish steel metal ceiling tile access panel
