Grain Seeds Gravity Table Cleaner for Maize Popcorn Sugar Beans and Sunflower
- Category: >>>
- Supplier: Hebei Julite Sorting Technology Co. Ltd.
Share on (62092087923):
Product Overview
Description

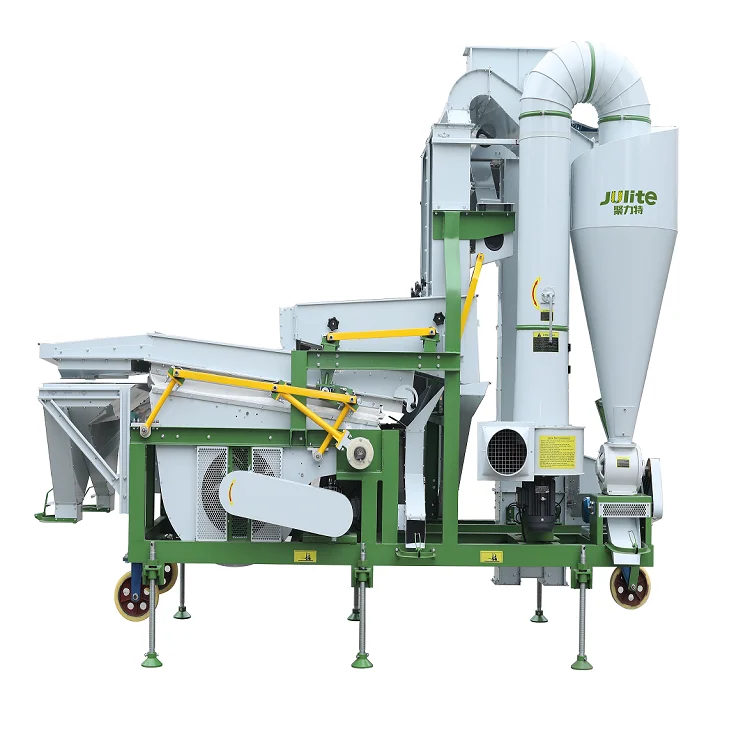

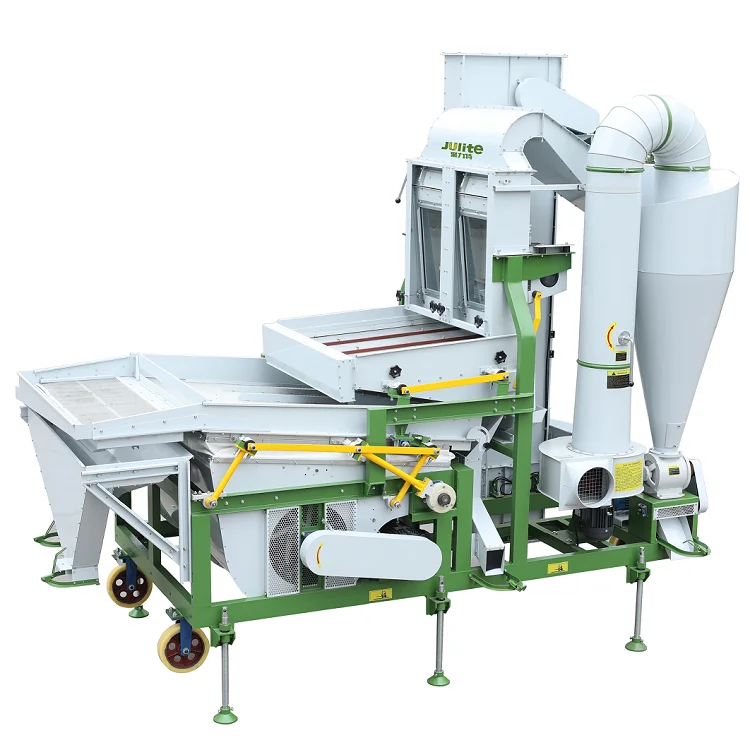

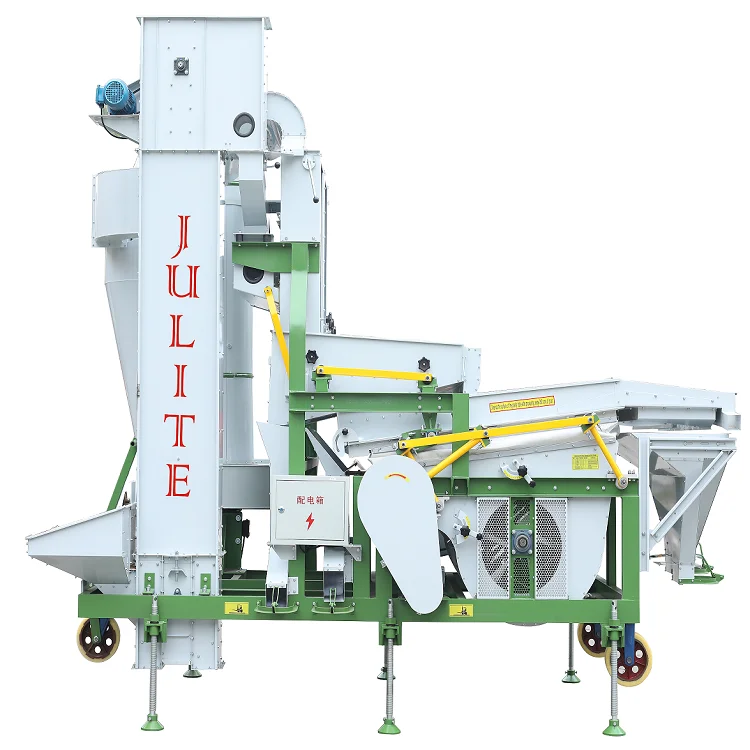

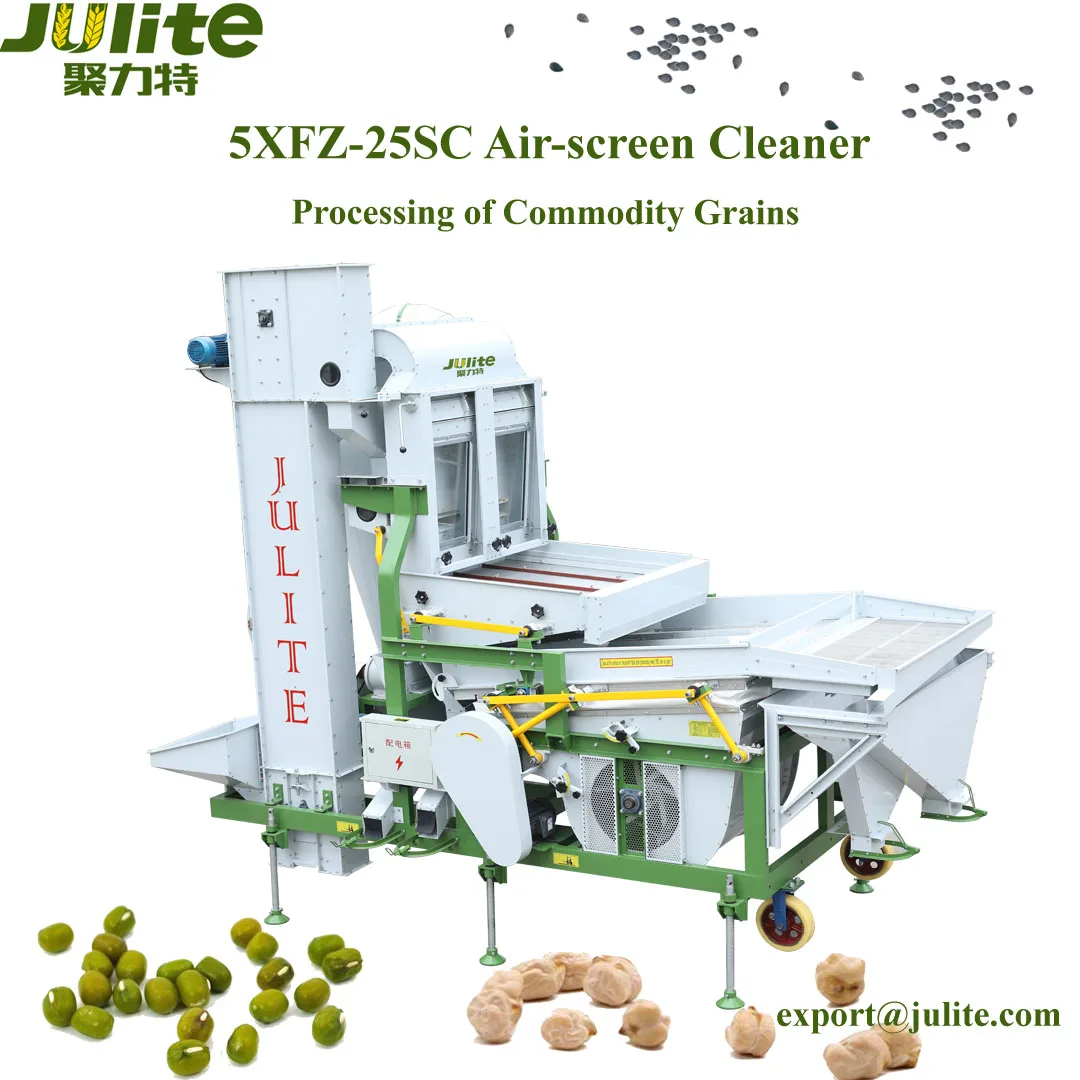

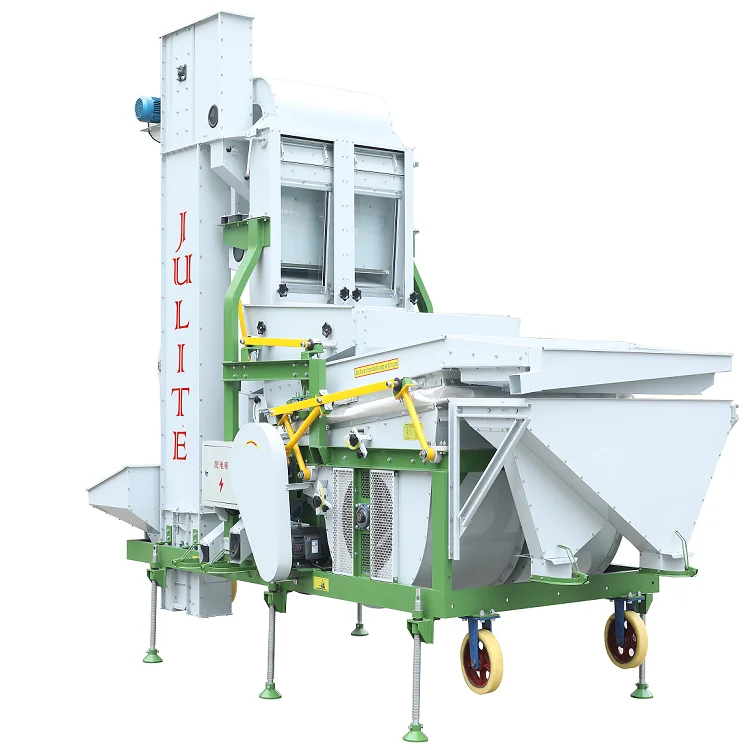

5XFZ-25SC Air-screen Cleaner with Gravity Table
This machine consists of ultra low speed, no broken elevator, vertical air screen, cyclone dedusting system, large proportion
platform, vibrating and grading screen. It can remove dust, chaff, shell and other light impurities. It can also remove the
blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, seed with
black powder sick. After the large and small impurities have removed, the finished product can be divided into best, medium and
small particles.
This machine consists of ultra low speed, no broken elevator, vertical air screen, cyclone dedusting system, large proportion
platform, vibrating and grading screen. It can remove dust, chaff, shell and other light impurities. It can also remove the
blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, seed with
black powder sick. After the large and small impurities have removed, the finished product can be divided into best, medium and
small particles.
Advantages

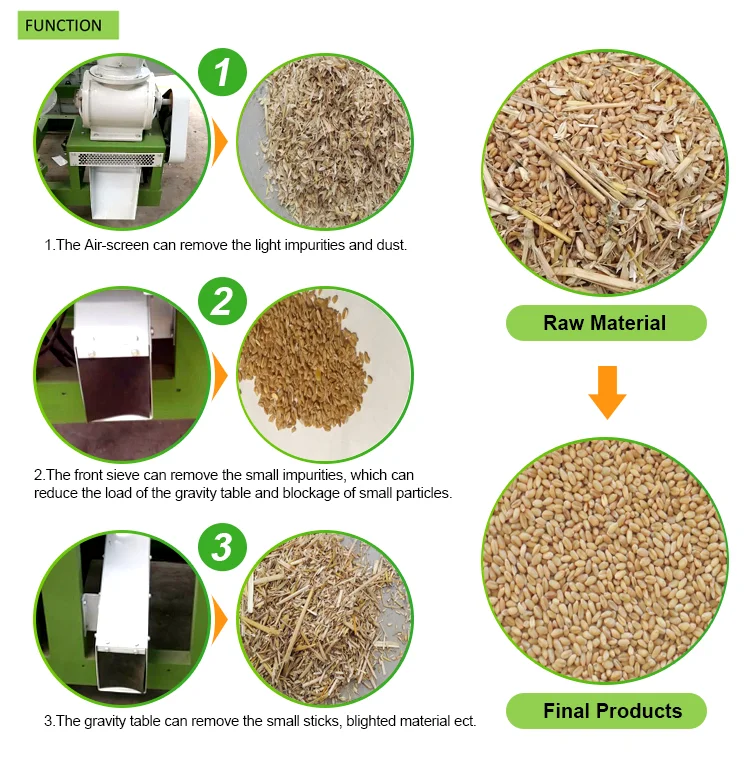

1.The front sieve can remove small impurities, which can reduce the load of gravity table and blockage of small particles.
2.The machine can also remove kinds of light and small impurities, which improves the selection of proportion greatly.
2.The machine can also remove kinds of light and small impurities, which improves the selection of proportion greatly.
Product Details
Features
1. This machine can replace gravity separator, reduce the load of gravity table and increase production further.
2. For the processing of wheat, rice, corn, soybean, sorghum and other commodity grains, productivity can reach 20t/h, and can
remove more than 90% kinds of light impurities from grain.
3. Complete wind selection, gravity selection, screening and grading, which can save energy and reduce consumption and labor.
4. Environmental cyclone duster system and without a lot of dust leakage.
5. It can be equipped with elevator, screw conveyor and belt conveyor.
2. For the processing of wheat, rice, corn, soybean, sorghum and other commodity grains, productivity can reach 20t/h, and can
remove more than 90% kinds of light impurities from grain.
3. Complete wind selection, gravity selection, screening and grading, which can save energy and reduce consumption and labor.
4. Environmental cyclone duster system and without a lot of dust leakage.
5. It can be equipped with elevator, screw conveyor and belt conveyor.
Specification
Model | 5XFZ-25SC |
Purity | 99% |
Sieve Size(mm) | Gravity sieve1700 x 1600 |
Front sieve1250 x 1200 | |
Power(kw) | 12.1 |
Capacity(t/h) | 10 |
Weight(T) | 2.25 |
Overall size L x W x H(mm) | 4456 x 2400 x 3740 |

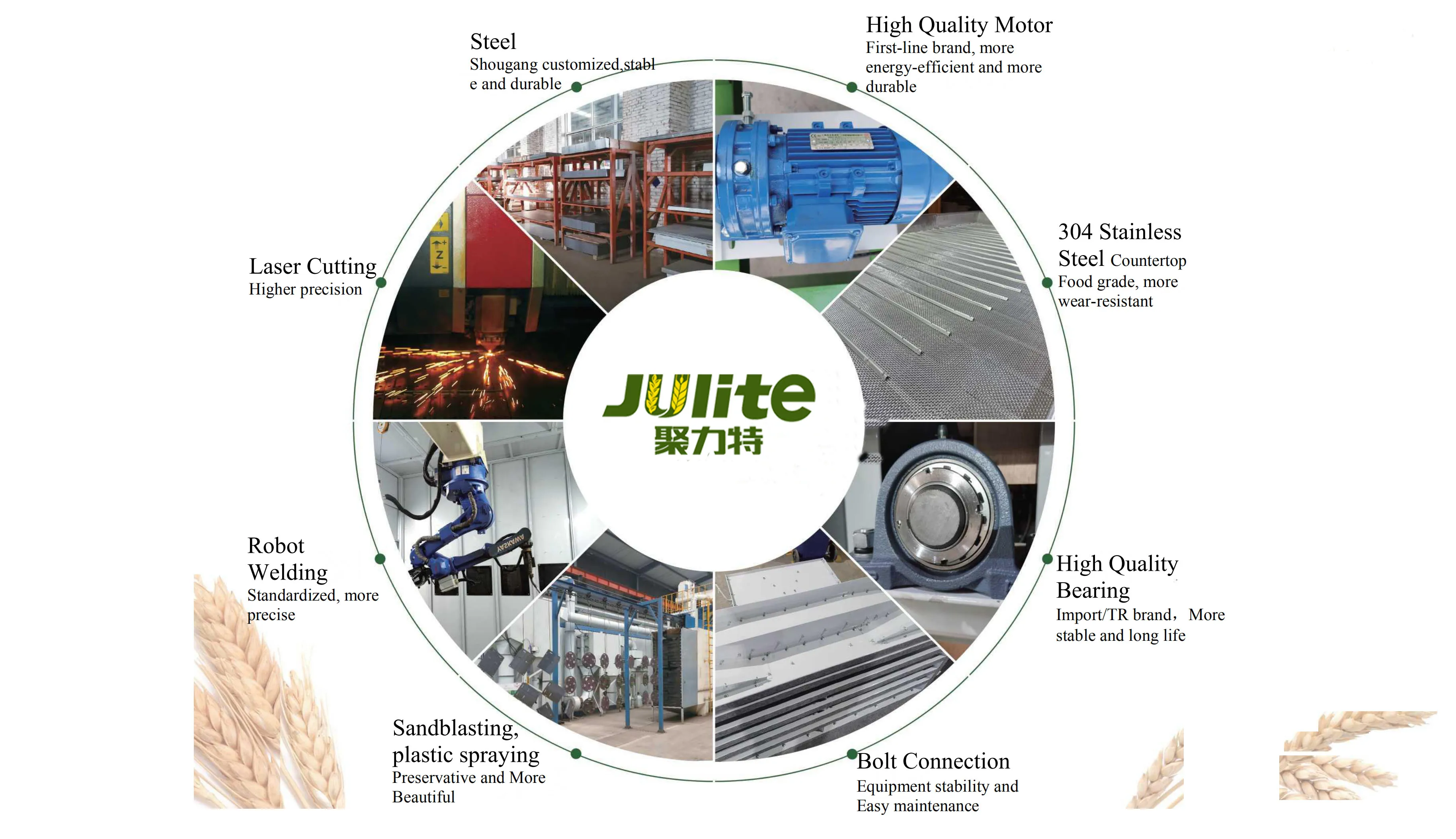

Production Process

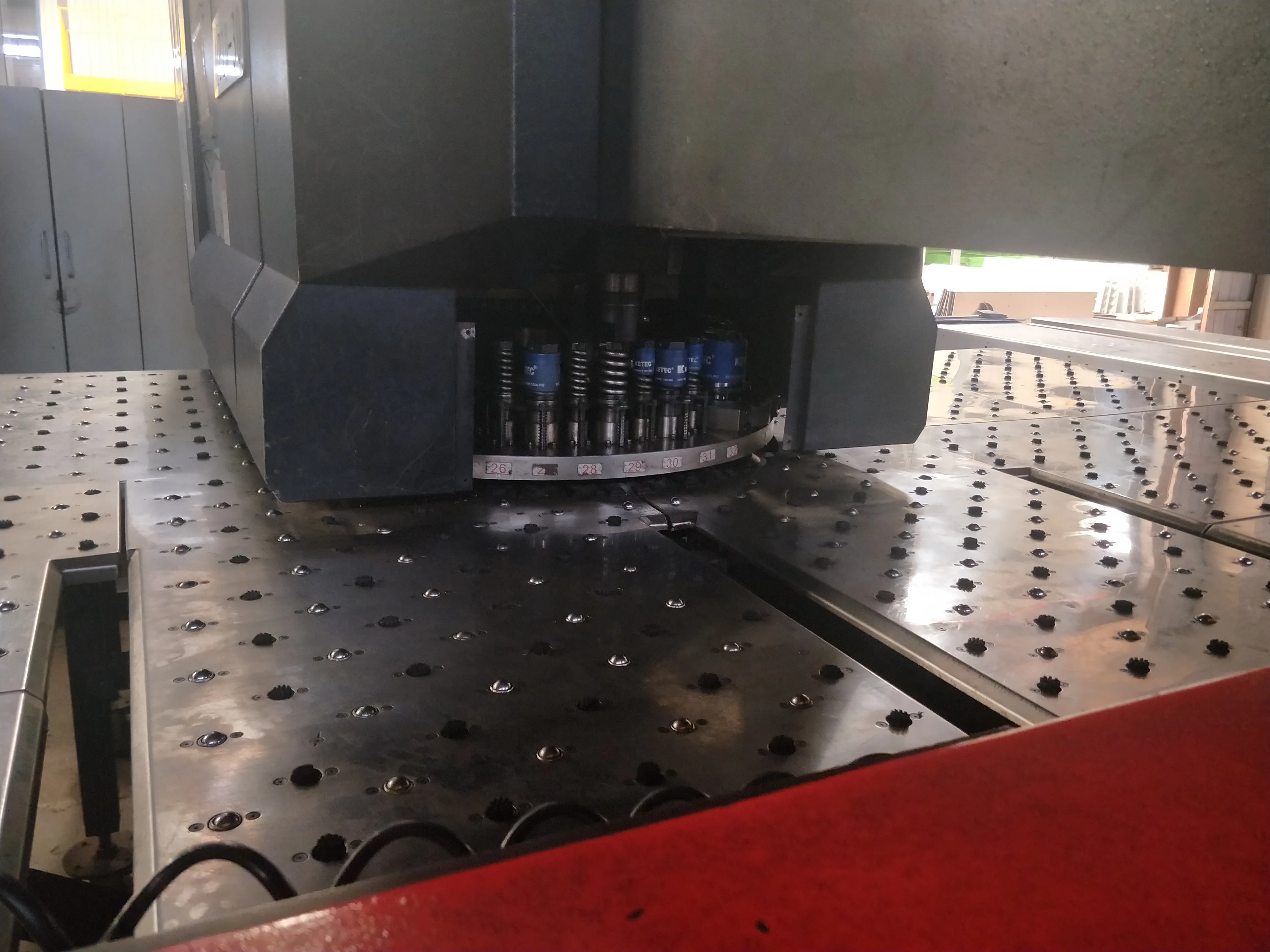

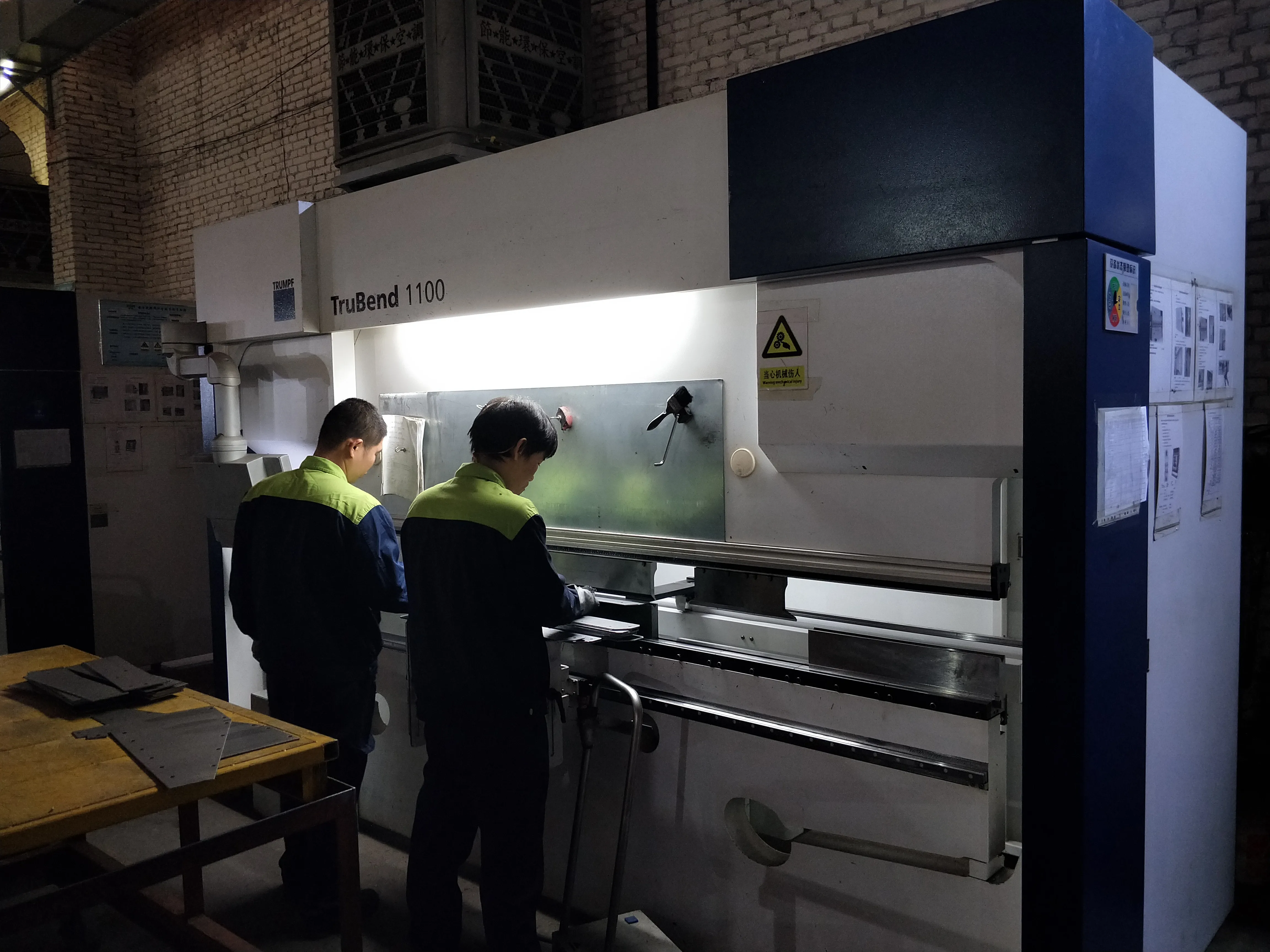

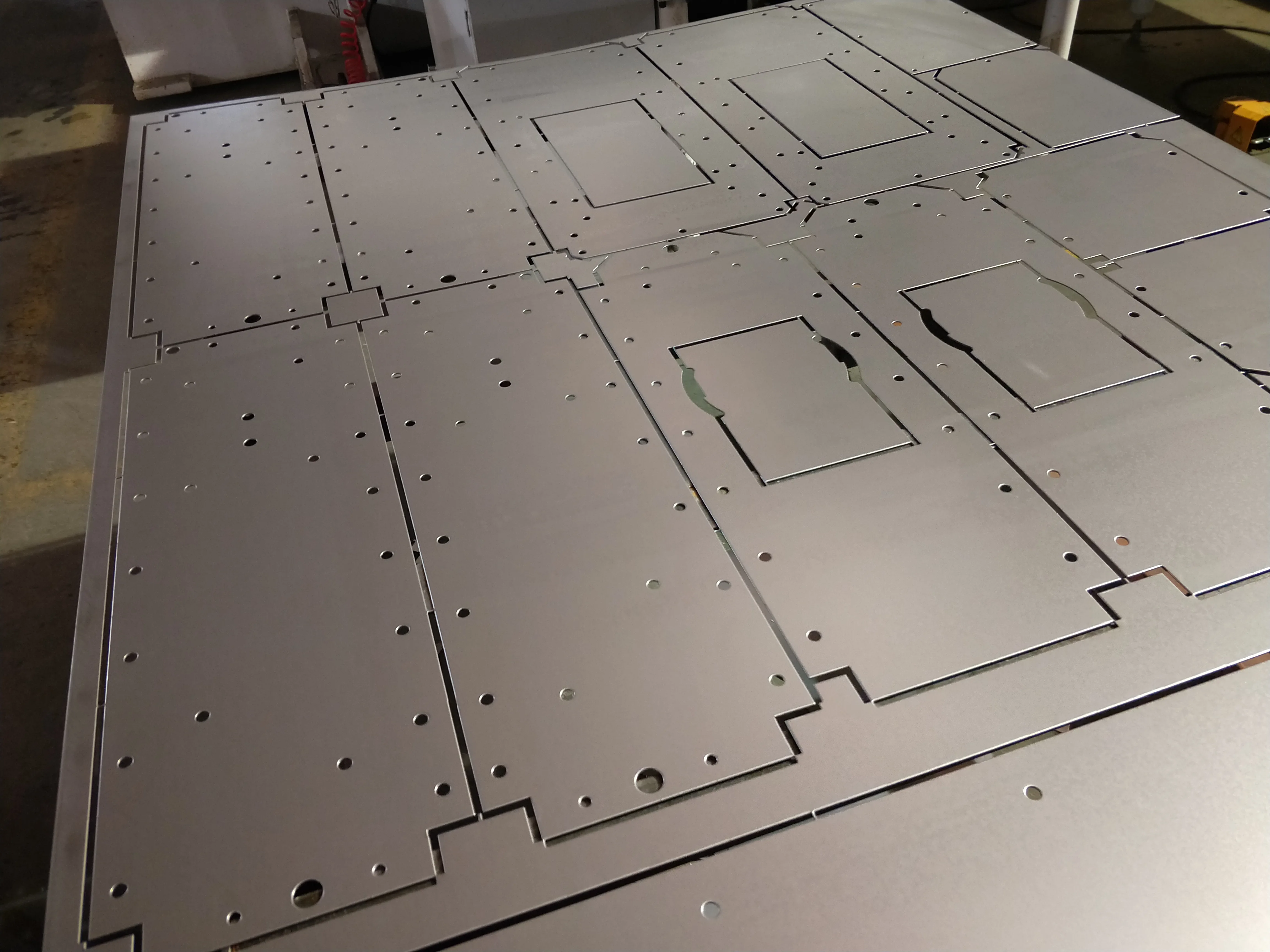

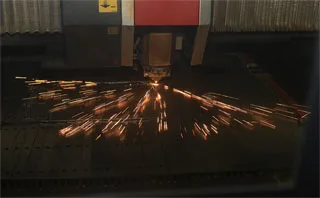

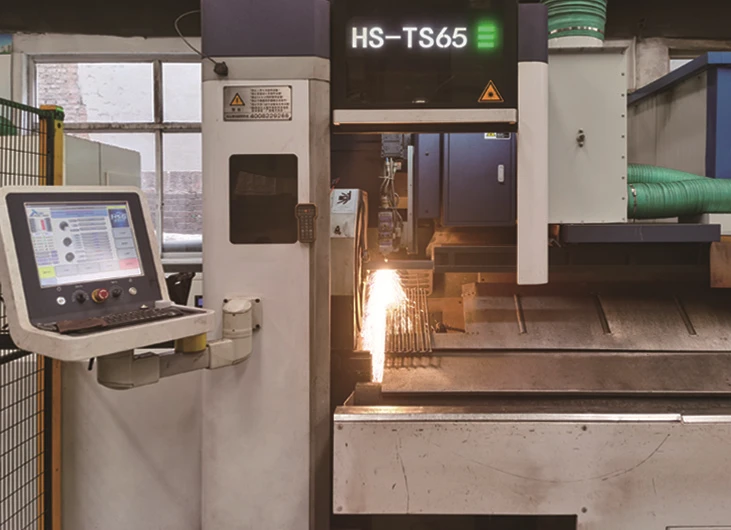

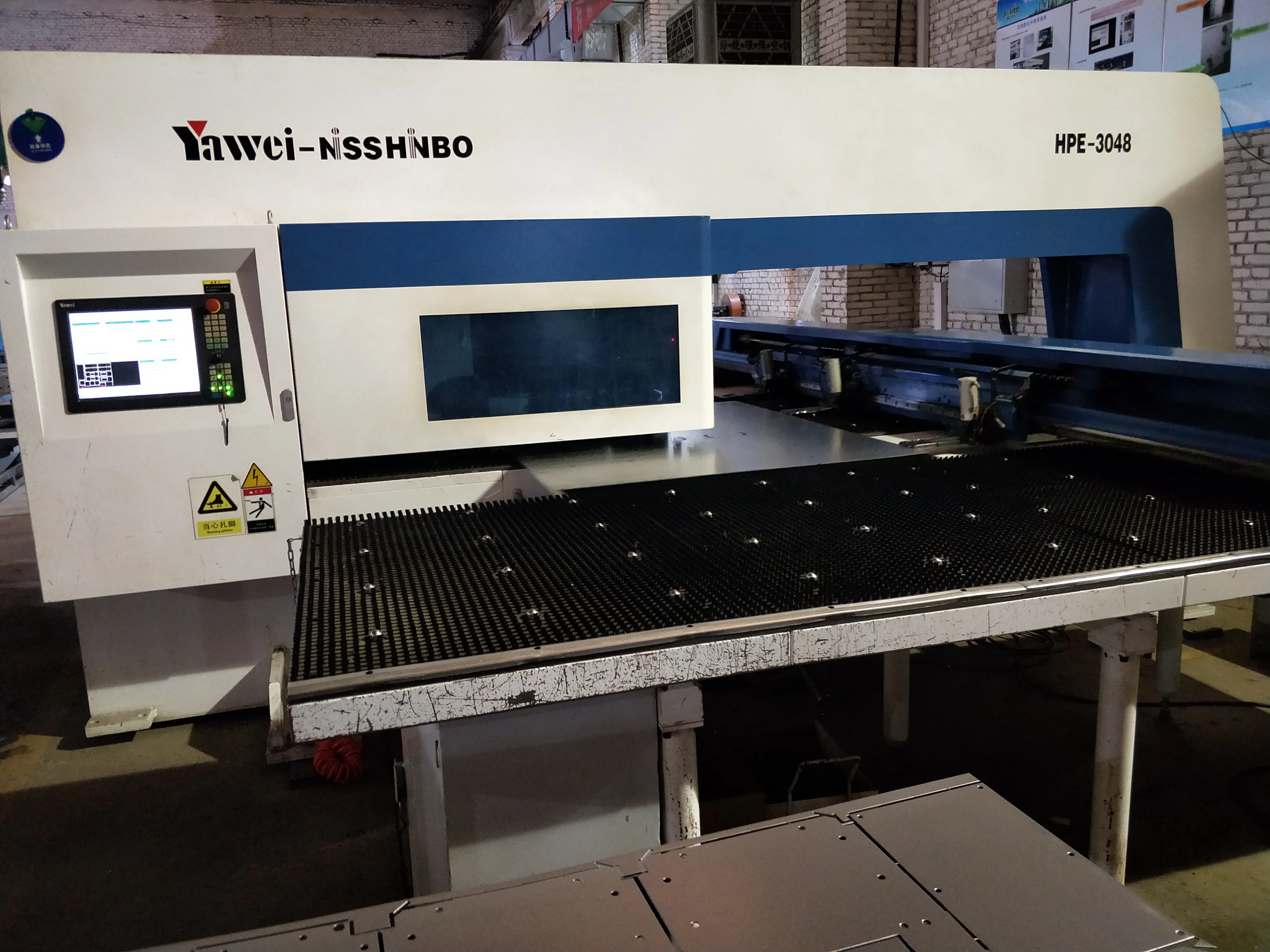

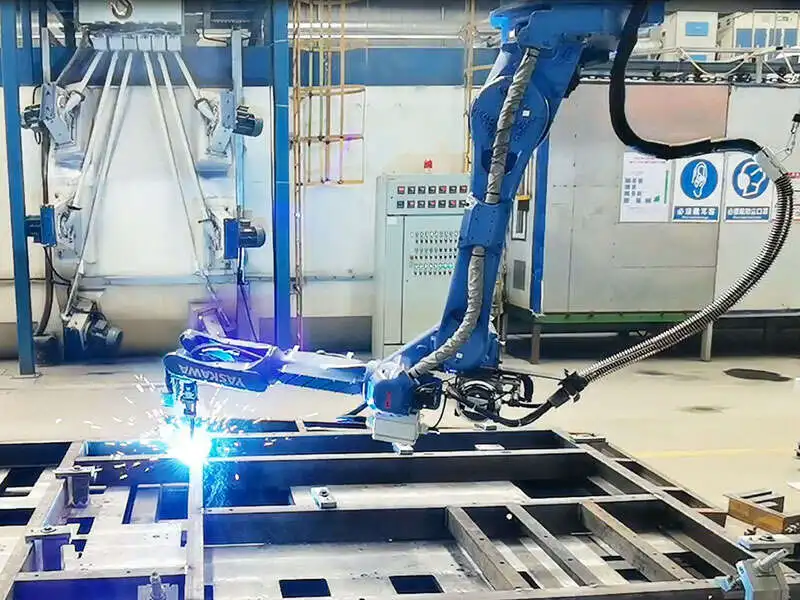

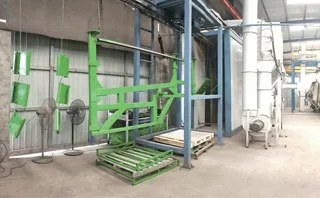

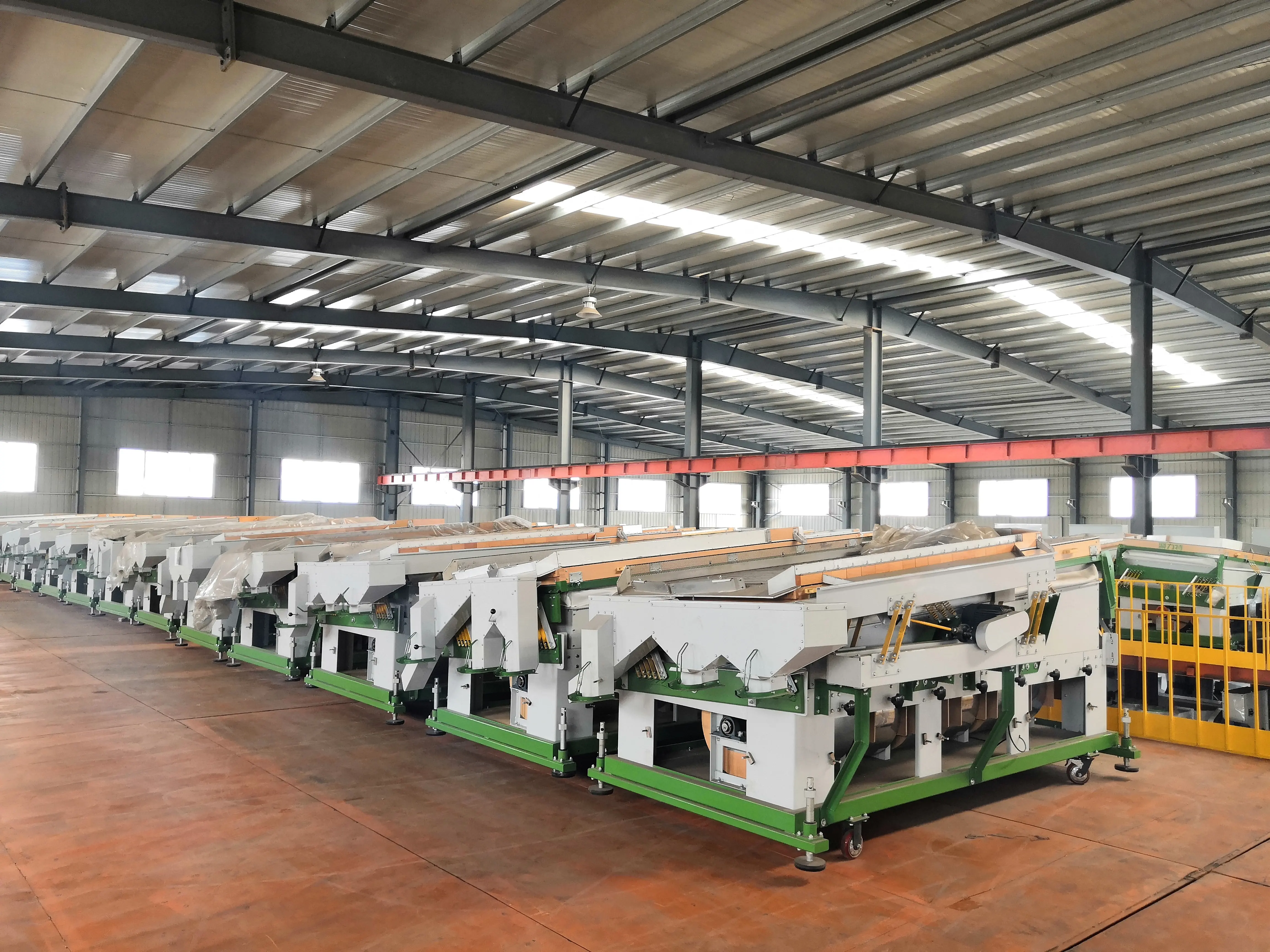

Manufacturing Technique
Company Profile

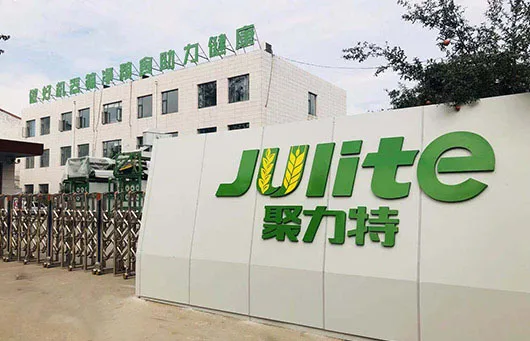

Company Introduction
Shijiazhuang Julite Machinery Co., Ltd. was established in 2006, which specializes in grain cleaning and seeds processing machines research and development, production, sales and service as a whole. Our company is located in Shijiazhuang High-tech Industrial Development Zone, with an area of nearly 10,000 square meters of research and production base.
Julite has successfully developed air screen cleaner, gravity separator, De-stoner, magnetic separator, air screen cleaner with gravity table, huller, Double air screen cleaner, polishing machine, vibration grader, seed coating machine, automatic packing machine and various types of elevators. We firmly believe that, where there is seed, where there is grain, there is "Julite".
Julite has successfully developed air screen cleaner, gravity separator, De-stoner, magnetic separator, air screen cleaner with gravity table, huller, Double air screen cleaner, polishing machine, vibration grader, seed coating machine, automatic packing machine and various types of elevators. We firmly believe that, where there is seed, where there is grain, there is "Julite".
