Daily Use Ambulatory BP Monitor for hypertension Diagnosis Outdoor Blood Pressure Monitor better than Home use BP Monitor

Product Overview

Description

Daily Use Ambulatory BP Monitor for hypertension Diagnosis Outdoor Blood Pressure Monitor better than Home use BP Monitor

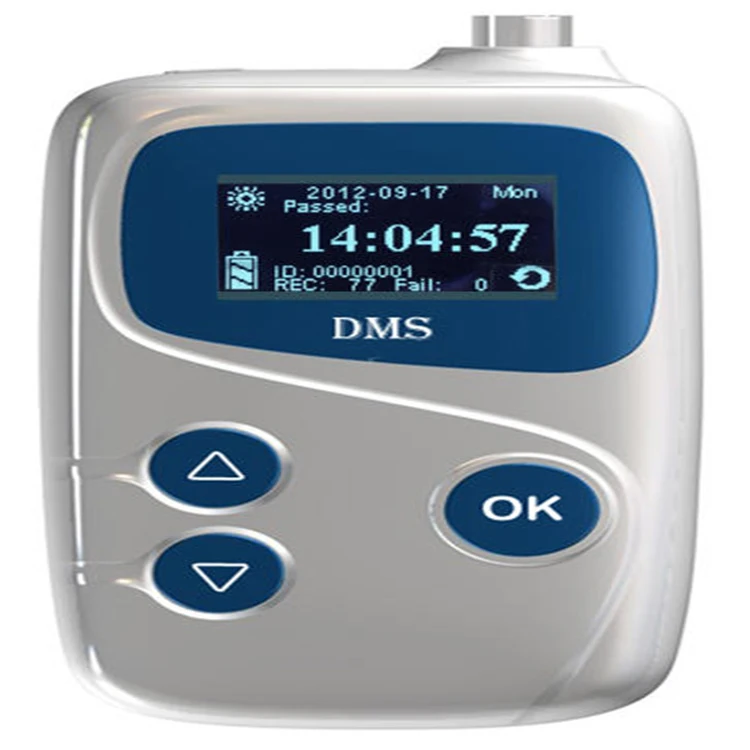

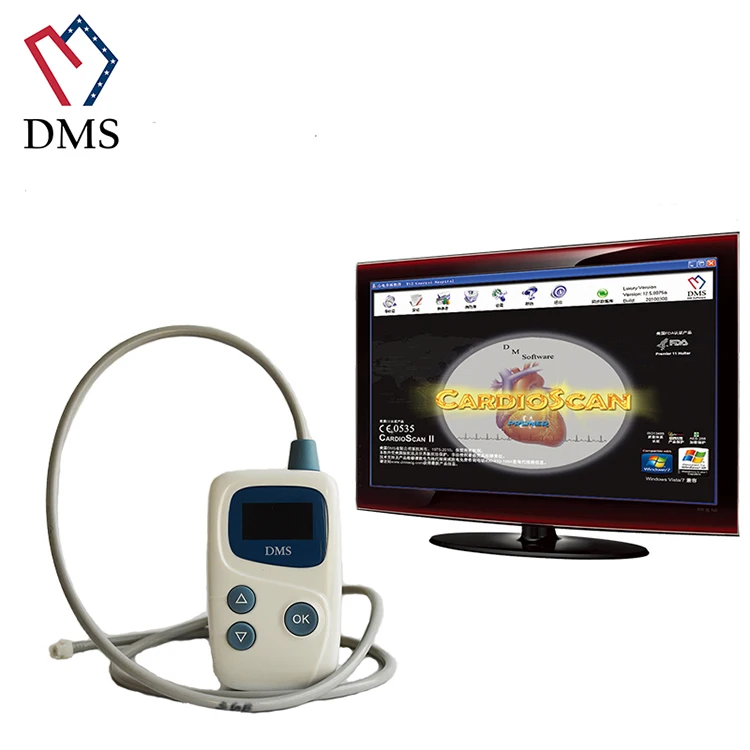

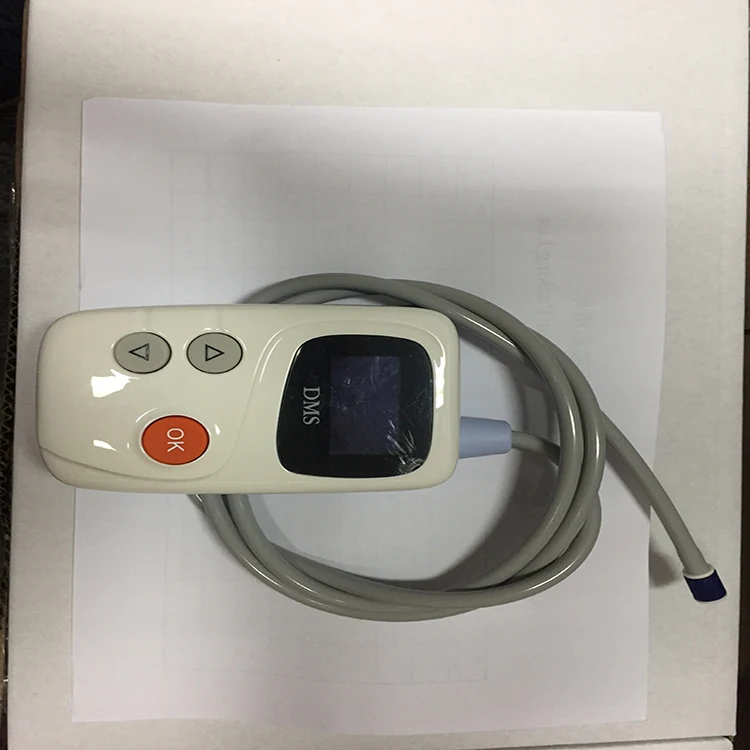

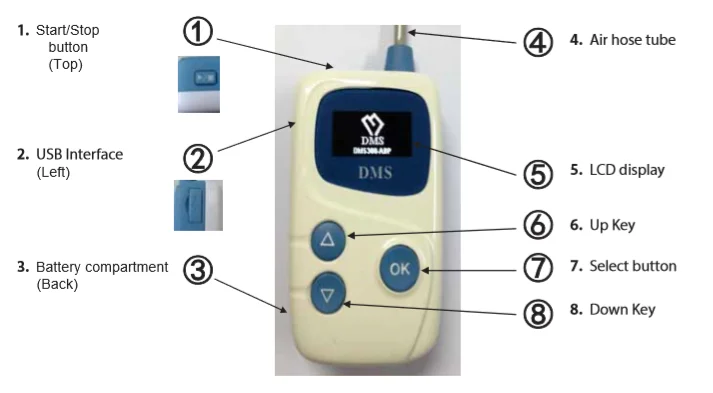

DMS300-ABP is a noninvasive oscillometric BP monitor which can record at least 24 hours. It is intended for using as an aid or adjunct to diagnosis abd treatment when it is necessary to measure an adult’s patient blood pressure. The associated PC- based program provides display, analysis and report printing functions.

Measurement method	Oscillometry with step deflation
Display	LCD
Measuring range	Bp: 20-260mmHg  hr: 40-200 pulse/min
Sys/dia measure error	Less than ±3 mmHg
Pulse rate Measure error	Less than ±5%
Single Test time	30-45s
Power	DC 3.0V, 2*LR06/ AA Alkaline Batteries
Dimension	116*70*40mm
Weight	About 252g(including batteries)
Interface	USB
Usage Specs	Temperature :1-40℃ Relative Humidity:20-90% Atmospheric pressure: 860-1060 hPa
Storage and Transport Conditions	Temperature :1-40℃ Relative Humidity:15-93% Atmospheric pressure: 500-1060 hPa



Feature:

1.  1-24 hour recording period.  Up to 460 measurements test memory

2.   Industry leading accurate Blood Pressure readings

3.   Body position sensor, day - night - morning wake up modes

4.   Comprehensive Trend, Table, Histogram, Pie Chart,

5.   Correlation reports

6.   Compare test mode

7.   Day & Night interval reading settings

8.   PDF, JPG, DICOM Outputs

9.   Remote Satellite server for remote BP downloads

10.  Custom report options



Function:

1.  Windows 10/XP/Vista/7 Platform

2.  Oscillometer with step deflation algorithms

3.   Automatic 24h BP measurements

4.   Body-position reading for each BP measure

5.   Small, portable, and large LCD

6.   Automatic re-measurement algorithms

7.   Pulse rate monitoring

8.   Independent measurement via Start/Stop button on BP monitor

9.   Results directly shown on LCD of BP monitor

10.   Versatile display and print forms with full  disclosure ABP monitoring

 11.   PC based patients’ database to ensure a quick and reliable replay of all records

 Standard Configuration:

Products	Quantity
ABP Monitor	1
Software Security Key	1
SSS Cable	1
Operating Manual	1

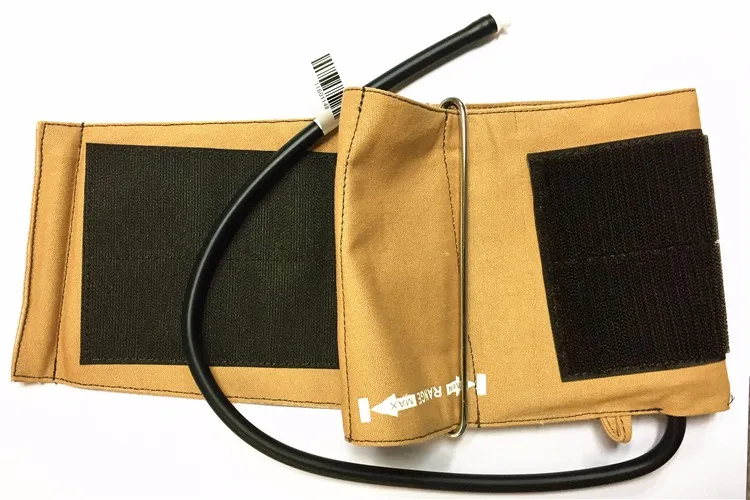

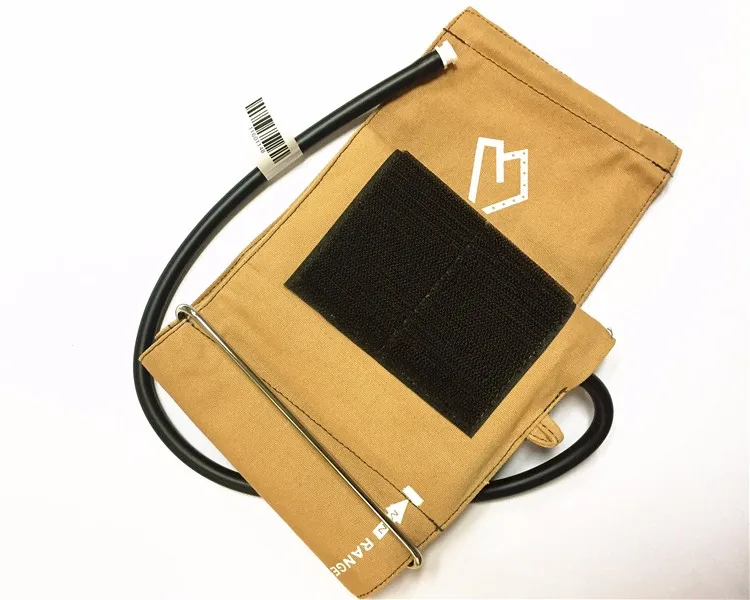

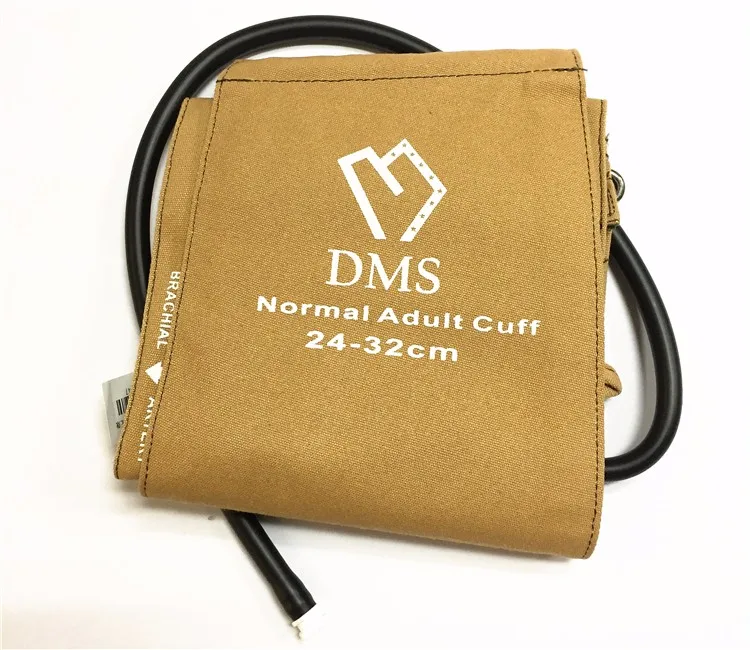

Cuff	2
Pouch	1
Factory Quality Certificate	1

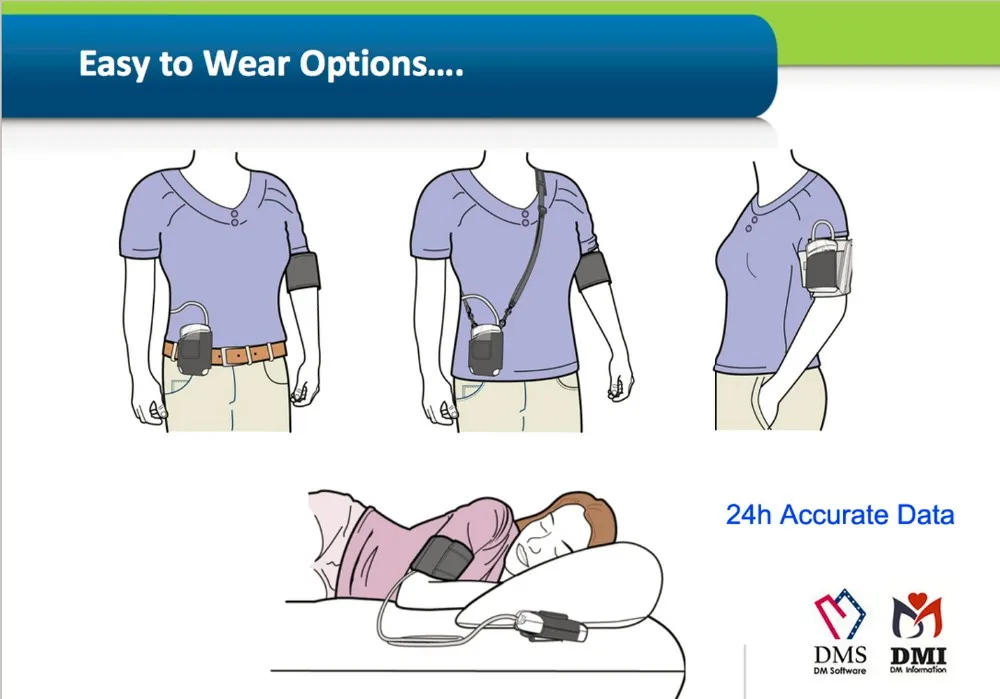

How to wear:

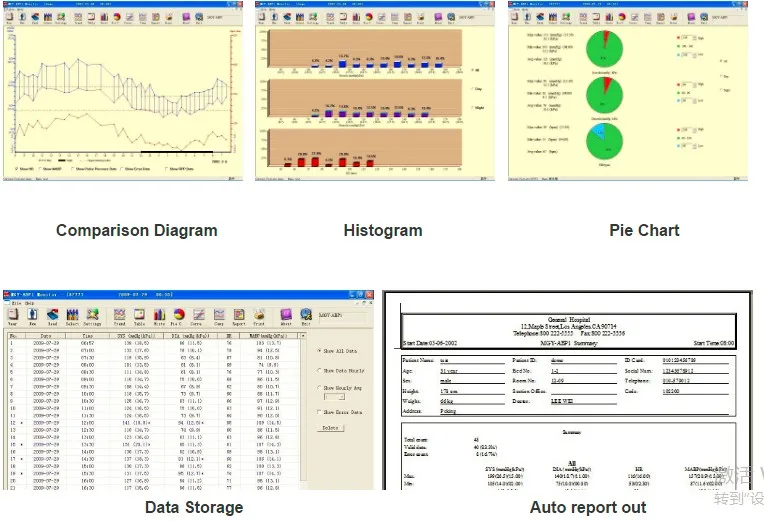

Software Analysis Page:
