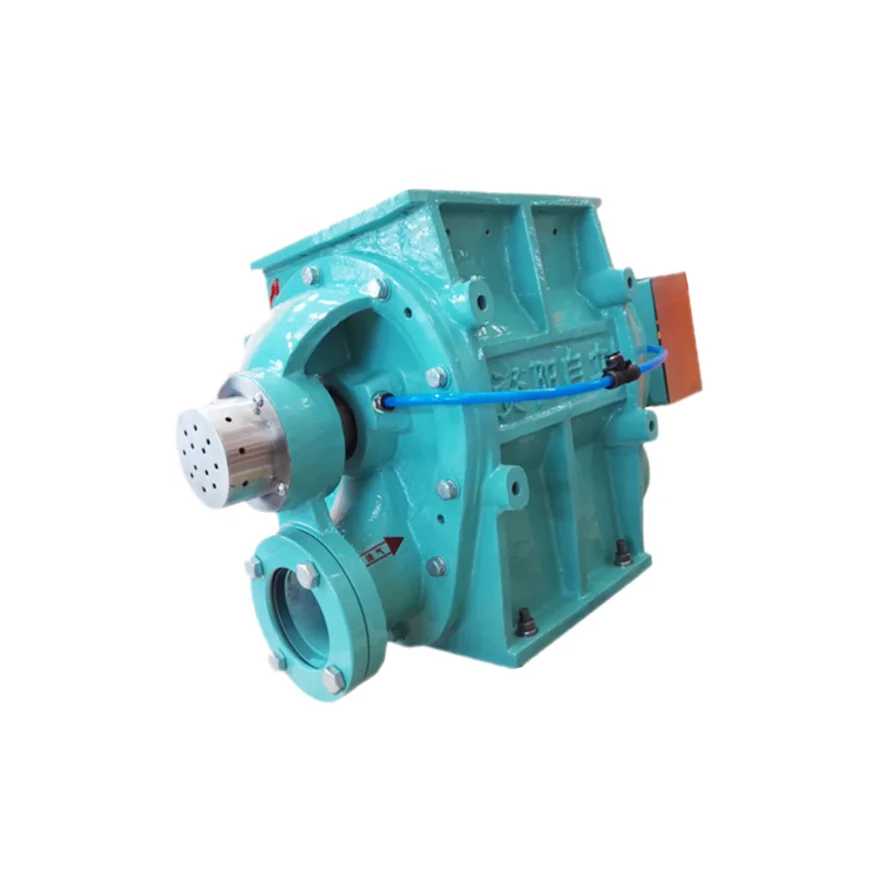

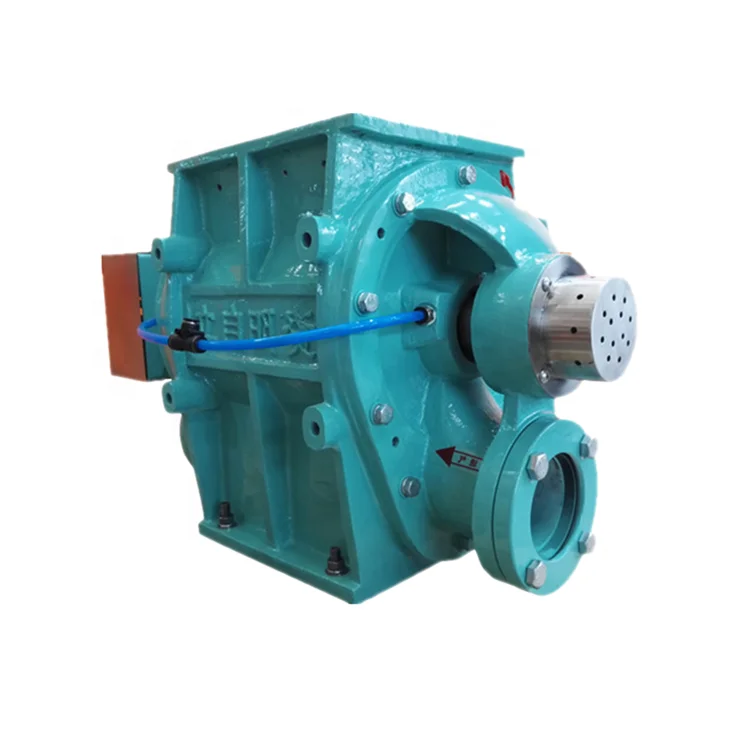

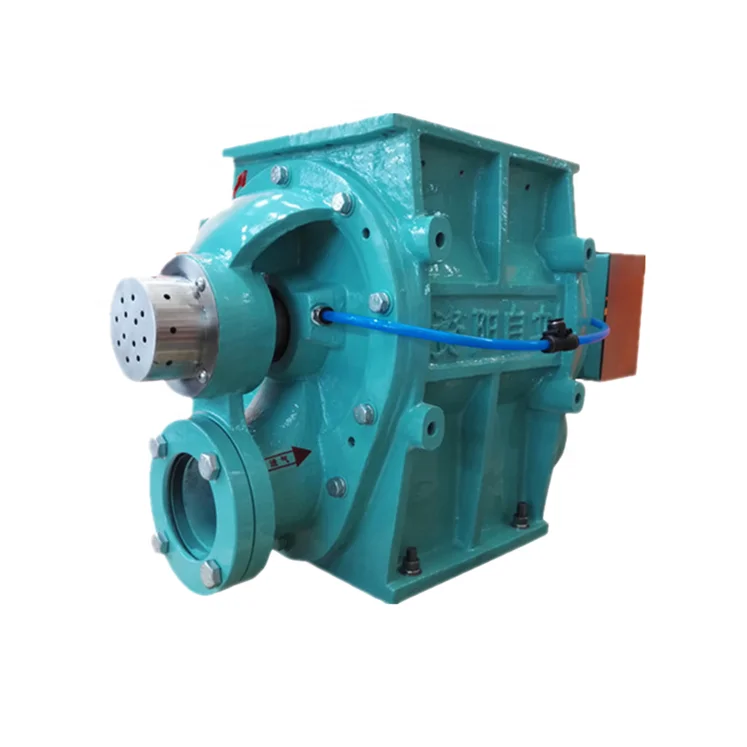

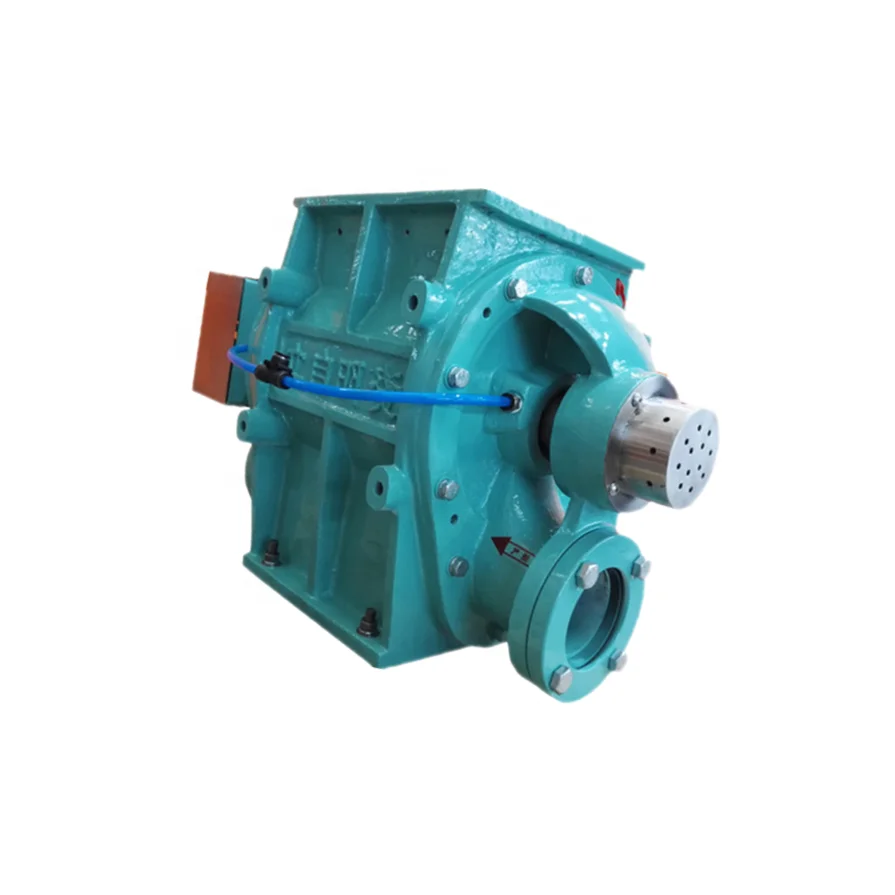

blow through meyers buhler airlock feeders rotary valve for sugar

Description:

     Rotary airlock feeders have wide application in industry wherever dry free-flowing powders, granules, crystals, or pellets are used. Typical materials include: cement, ore, sugar, minerals, grains, plastics, dust, fly ash, flour, gypsum, lime, coffee, cereals, pharmaceuticals, etc.


Shell material:

The product adopts 600-3 ductile iron casting which Combined with resin sand casting process. Its hardness and wear-resisting strength are greatly increased, the friction between the blade and the shell is reduced, the wind closing effect is enhanced, and its "effective service" life is greatly improved.

 The air reture passage:

The built-in concealed return air passage and the external return air duct mounting seat are equipped at the same time, which is convenient for flexible use on site according to the different configuration of the feeding hopper.

Inlet and outlet pipe diameter:

the inlet and outlet pipe diameter is large, so that the wind pressure inside the shutter is small, small air explosion, the operation of the equipment is more stable.

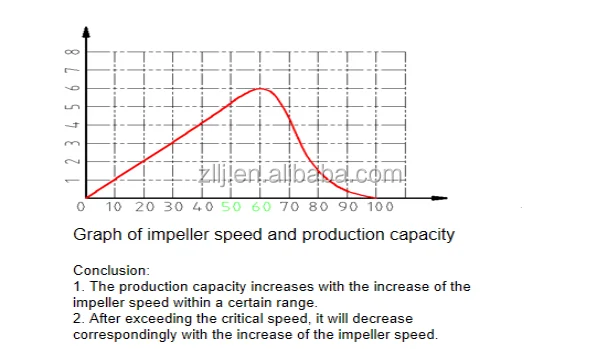

Production calculation:

Output(capacity) calculation: G=0.06VnKp(t/h) in which the V stands for Volume N: rotating speed (r/min) P: volumetric weight K: full coefficient Granule size:0.6-0.8; powder is 0.4-0.6(working pressure 25-100KPa)

Sichuan Ziyang Self-reliance Grain Oil Machinery Co., LTD. specializes in designing, manufacturing, and distributing high-quality Rotary Airlock valves used in pneumatic conveying systems for application in bulk solids handling in the Plastics, Chemical, Food, Pharmaceutical and Detergent industries, since 1957, located in Ziyang city, Sichuan province, China.Long-term supplied to Buhler China and COFCO, our Rotary Airlock valves achieved more than 70% market in same products in China.At the same time, our TXFLF series Plug Diverter praised by users also.Please contact us with all of your bulk material handling applications, and let us put our expertise to work for you.
