Wood Machine Saw cutting woodworking cnc router machine For Panel Furniture

Share on (62092406974):


Price:$19,880.00

Quantity:


Product Overview

Description

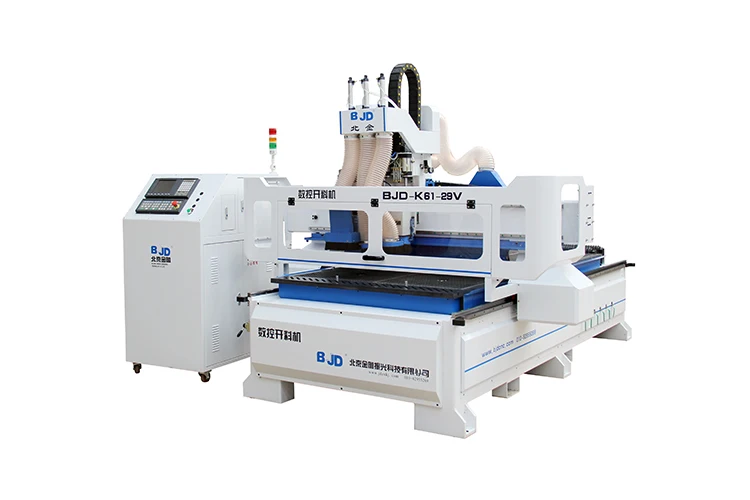

3 Axis drill cutting panel furniture woodworking cnc router machine


  Cnc router machine



Related Products

















Product Description






Application:


Suitable for panel furniture, cabinet doors, office furniture, custom furniture, door industry and other industries.



Material:


multi-layer board, particle board, ecological board, MDF, wave board and other various boards.





Advantage
1.Multi-purpose machine can cut and punch the cabinet, and can also engrave and mill the door. It is the best solution for the panel furniture industry.
2.Powerful, intelligent automatic labeling, automatic feeding, vertical hole, optimized material cutting, automatic material cutting, one-stop operation, achieving industry-leading efficiency
3.The stability is strong, all the beds are tempered, the industrial weight is designed, the square linear guide is adopted, the bearing capacity is strong, and the load of the machine tool is leading in the industry.
4.Excellent accessories, imported from abroad, imported vertical drill, new generation integrated control system,Taiwan Delta servo,or Japan Yaskawa servo motor and other high-quality accessories, strict inspection of factory precision.






Processing data:


































 Number of plates processed per day



Particle board



45--95 pics



MDF



80--150 pics



Multi-layer board, solid wood board



60--110 pics



Electricity fee



Hour (maximum)



380V:18℃



Efficiency



Holing speed



2seconds/each







Cutting speed



12-20meters/minute











Technical parameter































































Model



BJD-K61-29V



Machine size



3350*2350*2600mm



Machinable sheet size



1220*2440mm



Max. Speed



40/60/20m/min



Max. Feeding height



70mm



Transmission



X,Y high precision rack and pinion Z ball screw



Spindle power



6KW*2



Spindle speed



0-18000r/min



Power(without spindle)



3.9KW(without dust collect and vacuum pump)



Voltage



380V±5%   50HZ1±1%



Carving instructions



G code:(nc),mmg,Plt,eng,dxf



Control system



SYNTEC



Installation way



Vacuum



Drilling head



9V(5+4)

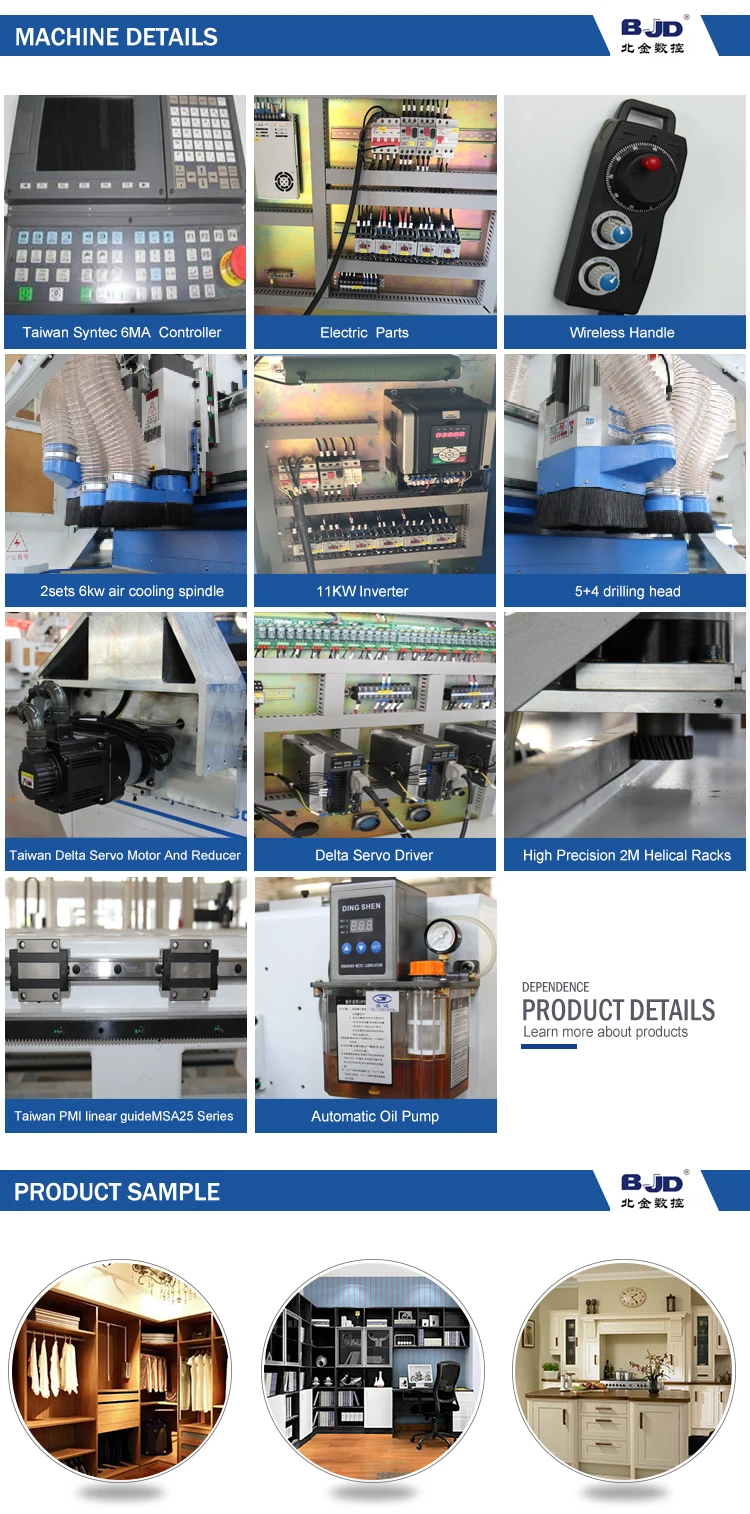

Machine Details
