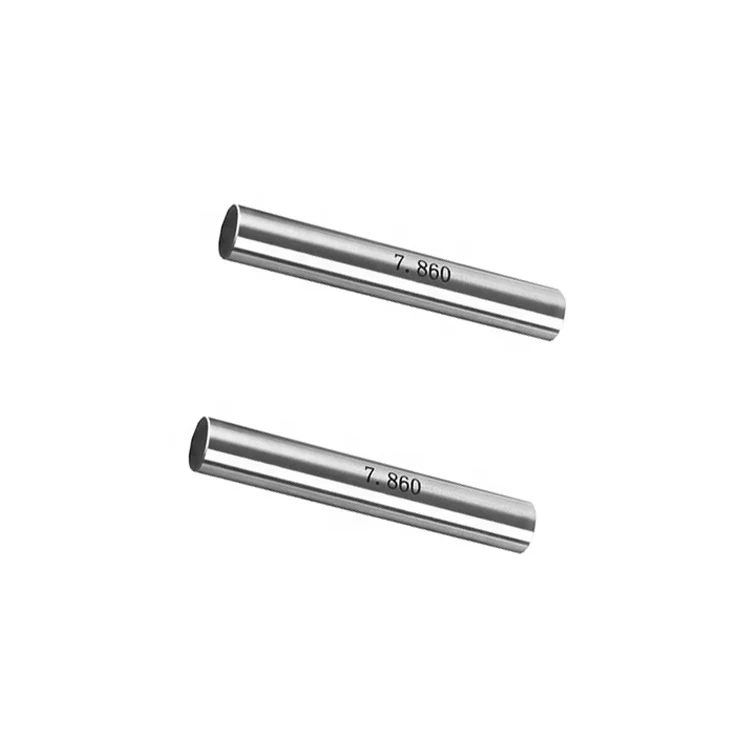

High Quality Precision Metric 0.100mm to 25.000mm Steel Pin Gauge Set
- Category: Gauges >>>
- Supplier: Shenzhen Acmeewin Technology Co. Ltd.
Share on (62092497856):
Product Overview
Description
Product Description

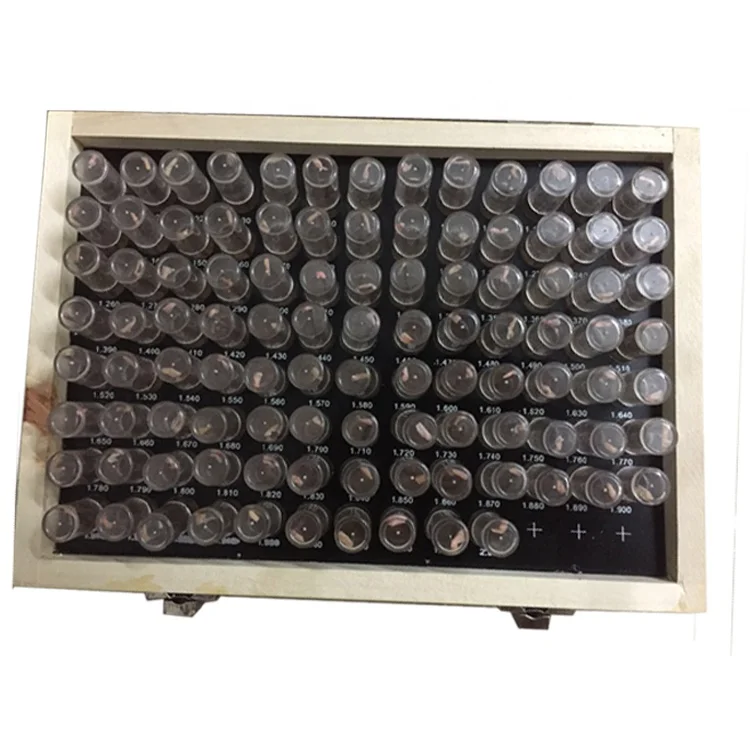

High Quality Precision Metric 0.100mm to 25.000mm Steel Pin Gauge Set
We also supply many other of measuring tools ,such as
Thread plug gauges ,
Thread ring gauges,
GO NOGO gauges,
Ceramic pin gauge,
Tungsten steel pin gauge,
Block gauge,
Smooth limit plug gauge,
Screw Pitch Gauge,etc.

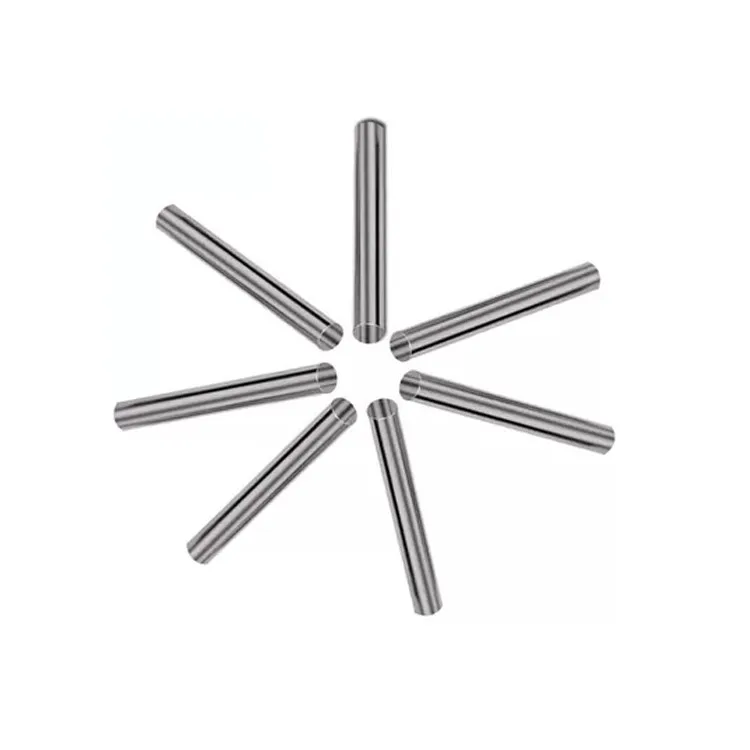

PIN GAUGES
Pin gauge is one of manual measuring tool,It is a necessary tool for hole standardization inspection, and are mainly used for measuring holes, hole spacing and groove width; it is especially suitable for measuring precision micro holes and measuring circuit boards in electronics, electrical appliances and hardware industries.
Metric pin range | Size range:0.10mm~30.00mm Spacing:0.01mm,0.02mm,0.025mm,0.05mm,0.10mm,0.50mm,1.00mm,etc Precision:±0.001mm,±0.002mm,±0.0005mm,etc | ||||
Inch pin gauge | Size range:0.011"~1.000" Spacing:0.001",0.002",0.005",etc Precision:±0.0001 ",±0.0002 ",etc | ||||
Technical parameters | Surface roughness:Ra0.25; Heat treatment:HRC58 ~ 63; Diameter precision: ±0.001 mm, 0.002 mm; Roundness: 1.27 um | ||||
Material | GCr15, 9 sicr, tungsten steel and other materials. | ||||

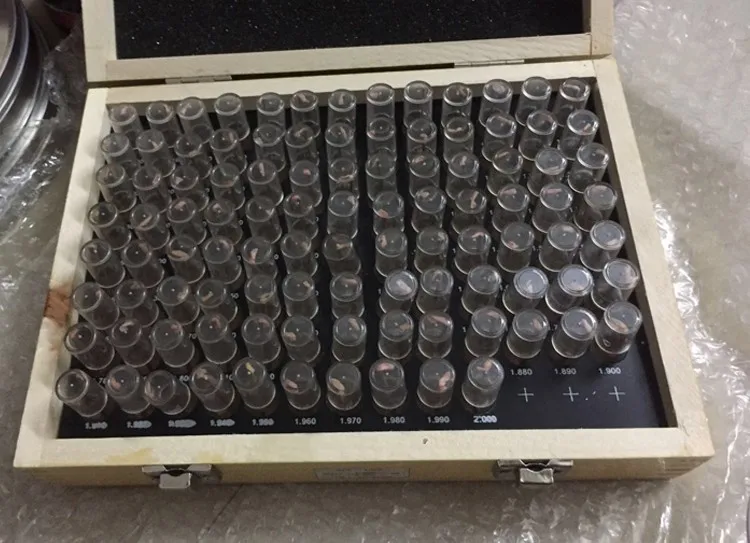

Detailed Images
NON STANDARD CUSTOMIZED
MANY OTHER OF MEASURING TOOLS AVAILABLE

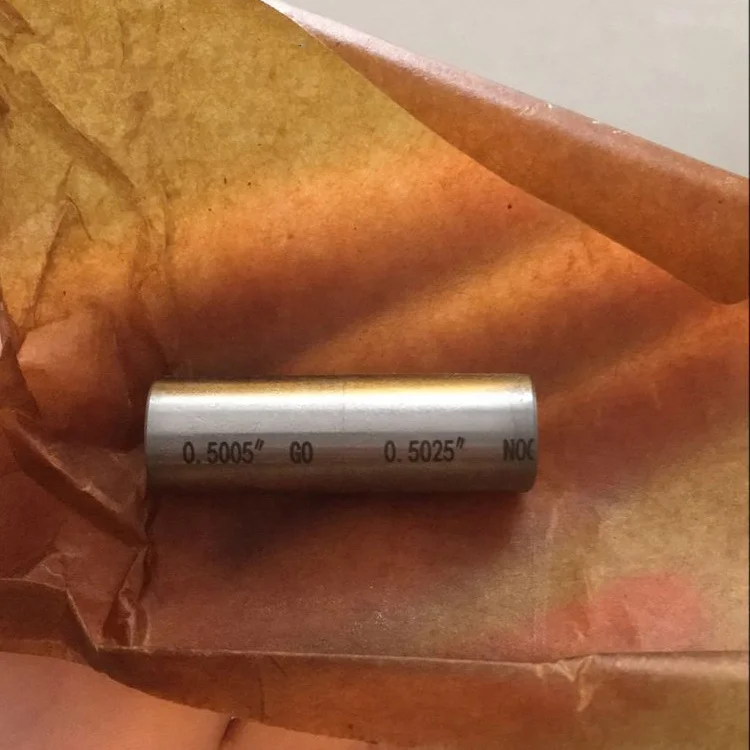

GO NOGO gauges
Smooth limit plug gauge
Smooth limit plug gauge
Thread plug gauges
Thread ring gauges
Tungsten steel pin gauge
Ceramic pin gauge
Block gauge
Ceramic Block gauge
Packing & Delivery
Packaging : Carton and Wooden Box Are Both Available ,We Also Can Be Customized Package According To Customer's Requirements.
Shipping: We Suggest DHL,UPS,TNT,Fedex,EMS ,Special Line etc. If You Have Special Required , Just Email Us.
