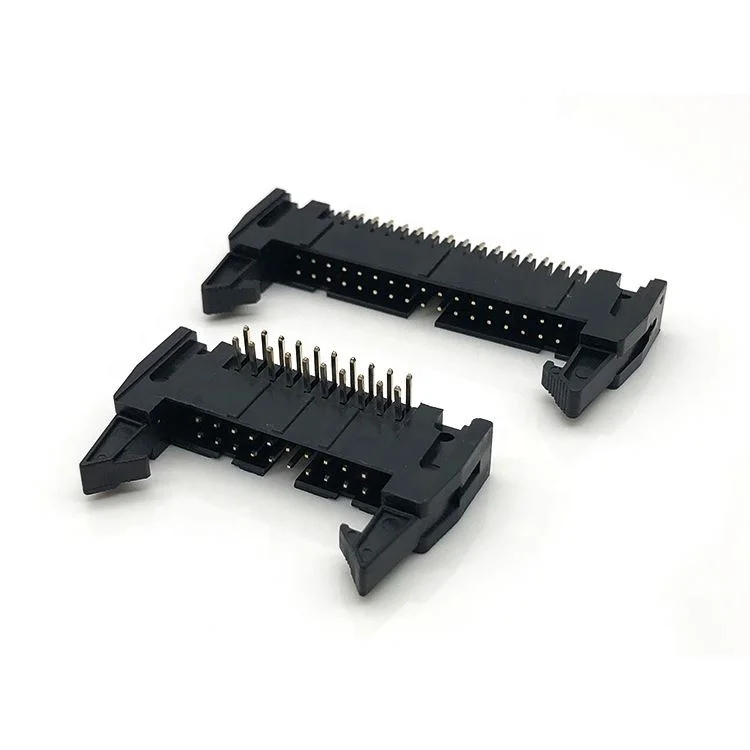

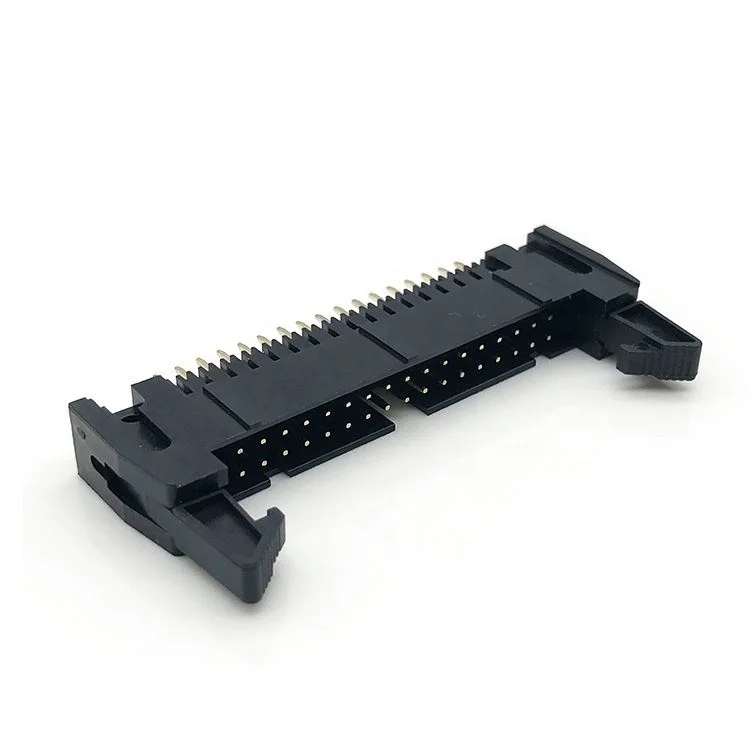

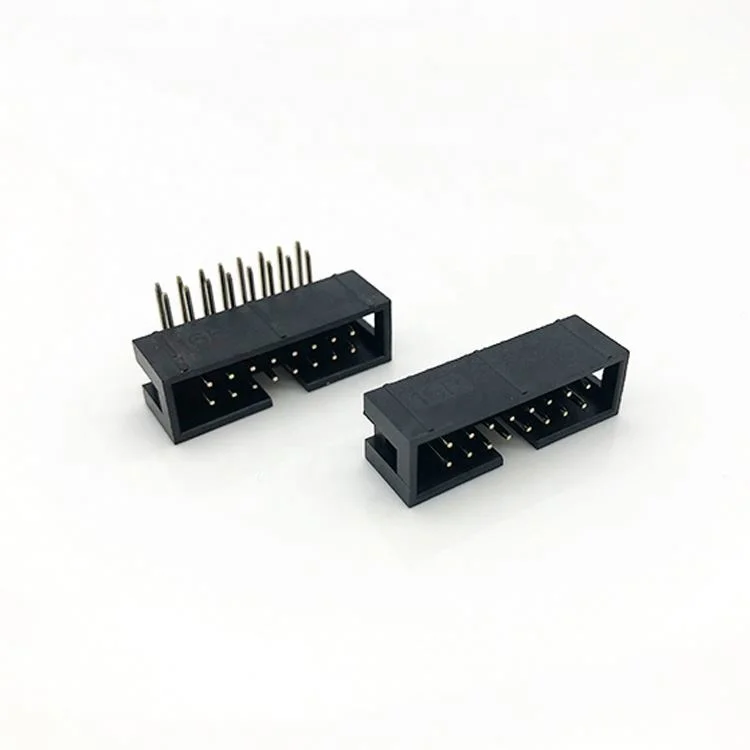

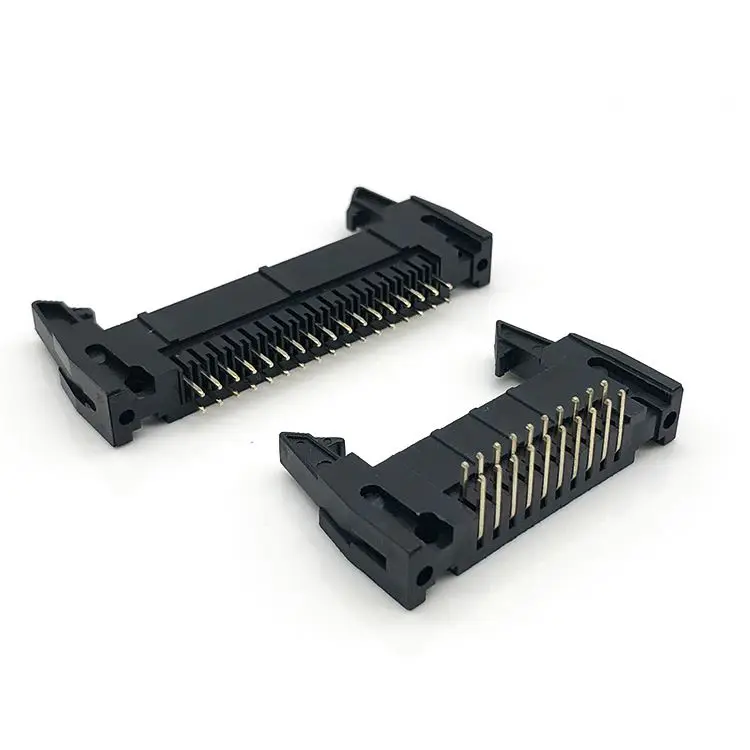

2.0 Pitch Ejector header SMT Right angle Gold Flash Box header connector PA6T

Product Overview

Description

Product Description

We are connector supplier in Dongguan,China,over 14 years experience,provide different types of connector,and also could customize the product based on your requirement,accept OEM/ODM,so if possible,pls just send me email about your inquiry,we will provide the most competitive price,high quality and best service,thanks!



Contact Name: Luis Lee
Trade manager : cn1524712844ipgg

E-mail : sales04 [at] cylconn.com



Key Specifications/Special Features:

OEM Ejector header connectors Pitch 2.00mm 2x10 Pins SMT Right Angle Type PCB board Plating Gold or Tin Customized service

Specifications:
01. Model: EJ200-XXX-008
02. Positions: 2x5 pins - 2x40 pins
03. Plastics height: customized
04. Plastics width: customized
05. Pitch: 2.00mm

1.0mm 1.27mm 2.0mm 2.54mm  available
06. Current rating: 3A
07. Insulation resistance: 1000MΩ min
08. Dielectric withstanding voltage: AC 1000V
09. Contact resistance: 20~40mΩ max
10. Operating temperature: -30 to +80°C
11. Insulation material: polyester UL94V-0
12. Contact material: brass
13. Plating: gold or TIN
14. Max. processing temp: 260℃
15. Insertion force: 80~200g
16. Withdrawal force: 70~200g
17. Mechanical life/durability:
18. Packing: tube, tray, plastic bag, tape & reel optional
19. Carton size: customized
20. Carton quantity: customized
21. Carton weight: customized
22. Free sample available
23. 100% tested before shipment
24. Payment terms: T/T, Western Union, L/C, MoneyGram, PayPal, Cash
25. Shipping ways: FedEx, DHL, UPS, TNT, air, sea
26. Delivery lead-time: within 5-30 days, depends on order quantity
27. We are professional manufacturer majoring in board to board connectors, wire to board connector, pin header, female header, box header, ejector header, wafer, FFC, FPC, D-SUB, USB, RJ45, SD Card, SIM Card, IC socket, terminal block, Jumper cap, cables etc.
28. OEM/ODM/Customized products are welcome
29. If any questions, feel free to contact us.
30. For drawings, please send to Luis’s E-mail: sales04 [at] cylconn.com.
