Smart city using 6m 30w security remote control sensor all in one outdoor solar street light lamp with camera
- Category: >>>
- Supplier: Yangzhou Phoebus Outdoor Lighting Co. Ltd.
Share on (62092644799):
Product Overview
Description
Home page
Solar LED Street Lighting System
Solar streetlights use solar energy to generate electricity, so there are no cables and no leakage or other accidents. The DC controller ensures that the battery pack is not damaged by overcharging or over-discharging, and has functions such as light control, time control, temperature compensation, lightning protection, and reverse polarity protection. No need to lay cables, no AC power supply, and no electricity bills. The low-carbon, environmentally friendly, safe, and reliable advantages of solar street lamps have been recognized by customers and have been greatly promoted. Therefore, it can be widely used in urban main and secondary roads, communities, factories, tourist attractions, parking lots, and other places.
Solar Street Light Working Principle
The working principle of solar street lamps is to convert solar energy into electric energy to realize illumination. The top of the street lamp is a solar panel, also known as a photovoltaic module. During the day, the photovoltaic modules made of polysilicon convert solar energy into electric energy and store it in the battery, so that the solar street lamp is intelligently controlled. Under the control of the device, the solar panel is irradiated by sunlight, absorbs solar light, and is converted into electric energy, and the solar cell module charges the battery pack during the day. In the evening, power is supplied to the light source through the control of the controller to illuminate people at night. At night, the battery pack provides power to supply power to the LED light source to achieve lighting functions.
Specifications
6M Pole 30W Solar Street Light General Specifications
Component | 6M Pole 30W Solar Street Light design | Life Span | QTY | ||
1 | Solar Panel | 100W/18V,Mono Crystalline,>22.5% Efficiency. | >25years | 1pc | |
2 | LED Lamp | 30W-12V,Phillips 3030,160LM/W,3700K-6500K,IP66-IP68 | >80,000hrs | 1pc | |
3 | Lighting Pole | 6M conical,single arm,Q235 Steel. Hot dip galvanized,Powder coating,Rust Proof. | >25years | 1pc | |
4 | Solar Panel Bracket | Detachable,Q235 steel,Hot dip galvanized,Powder coating,Rust Proof. | >25years | 1pc | |
5 | Foundation Kit | Detachable,Q235 steel. | >25years | 1pc | |
6 | Charge Controller | 10A, Automatic dusk to dawn auto dimming | >8years | 1pc | |
7 | Battery | Option 1: GEL battery 80AH/12V,Free Maintenance,Deep cycle. | >10years | 1pc | |
Option 2: LifePO4 battery 54AH/12.8V,Lighter Weight,Longer Cycle Lifespan. | 5~10years | 1pc | |||
8 | Battery Box | GEL battery: Hanging type,Underground type,Bottom type for choosing. | >5years | 1pc | |
Lithium battery: Top or hanging on the pole. | >10years | 1pc | |||
9 | Cables | 2*1.5mm²,from LED lamp to controller | >20years | 3-7M | |
2*2.5mm²,from solar panel to controller | 2-7M | ||||
2*2.5mm²,from solar battery to controller | 2-5M | ||||
Products Description

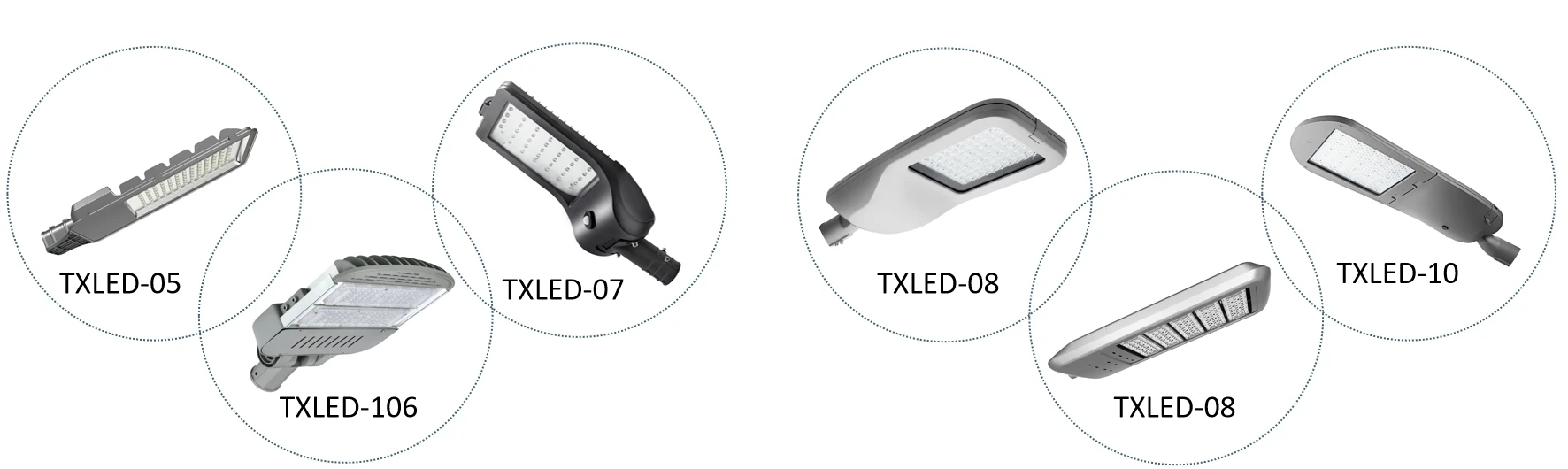

01. LED Light
● 12V/24V DC
● Philips LED chip efficiency >160lm/W.
● CRI: >75Ra
● Color Temp.: 4000k-6500k (optional ).
● No mercury content, according to RoHS Standard
● Housing Material: Die-casting aluminum High purity tempered glass Easy to replace luminaire elements are allowed
● Life Span is more than 80,000 hours
● Warranty 5 years
● Standard CE/ROHS/IP66/IK10/IEC/EN/IES/LM80
● CRI: >75Ra
● Color Temp.: 4000k-6500k (optional ).
● No mercury content, according to RoHS Standard
● Housing Material: Die-casting aluminum High purity tempered glass Easy to replace luminaire elements are allowed
● Life Span is more than 80,000 hours
● Warranty 5 years
● Standard CE/ROHS/IP66/IK10/IEC/EN/IES/LM80

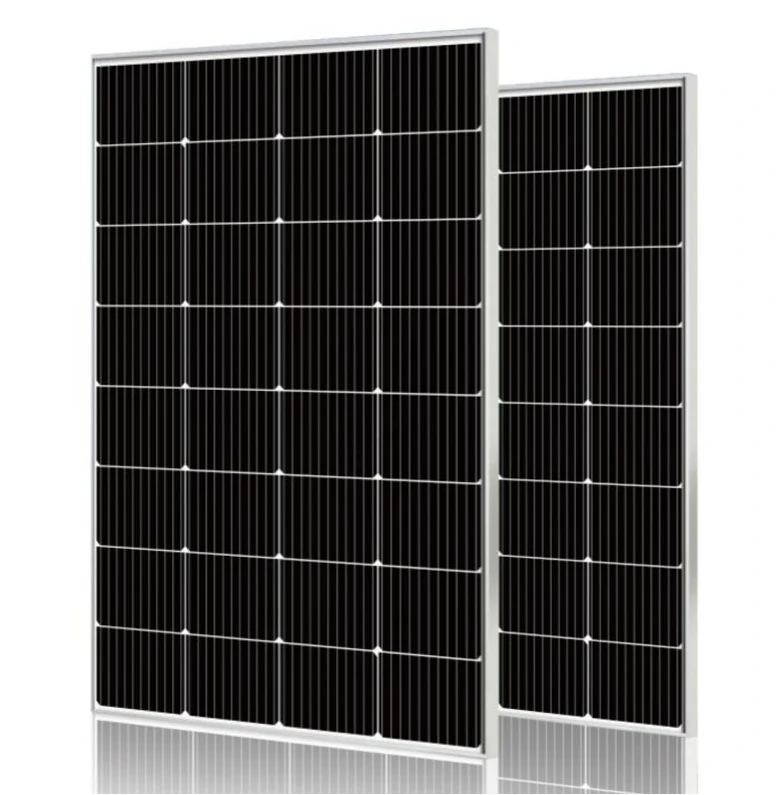

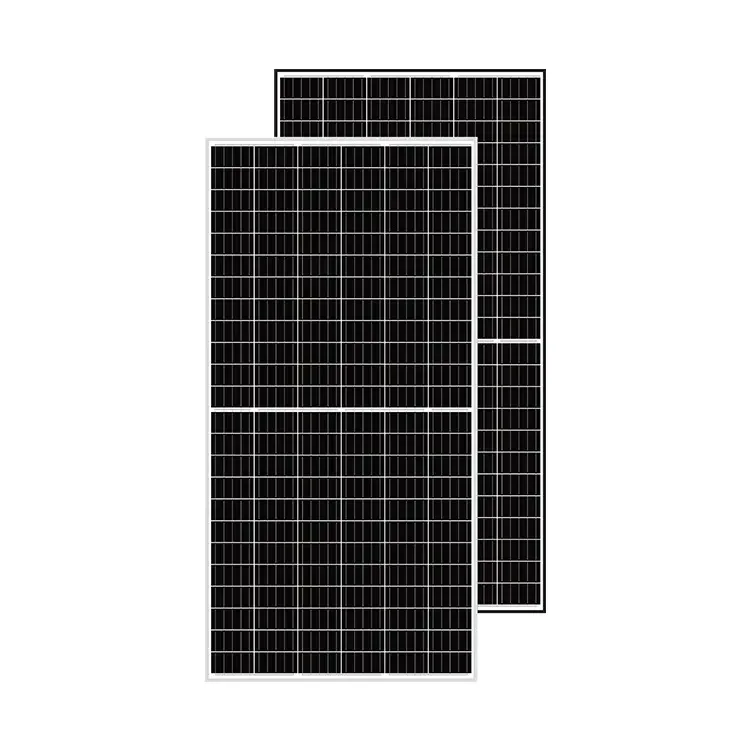

02. Solar Panel
● A-grade Mono crystalline silicon
● Integrated diodes to prevent reserve current ● IP66 rating and strong anti-aging to last > 25
years.
years.
● Adopt ultra white low-iron toughened glass with 98% light transmittance, which can resist hail stone and impact of ice
and snow with max 5400Pa.
and snow with max 5400Pa.
● Factors (25% losses) have been applied to considering the dirty, power decay losses and angle losses
in winter time.
in winter time.
● The efficiency of the solar panels is up to max 22.5%.
● Standard TUV/CQC/IEC
03. Solar Panel Bracket
Full-frame Typed
Half-frame Typed
Ⅱ Typed
04. Solar Battery

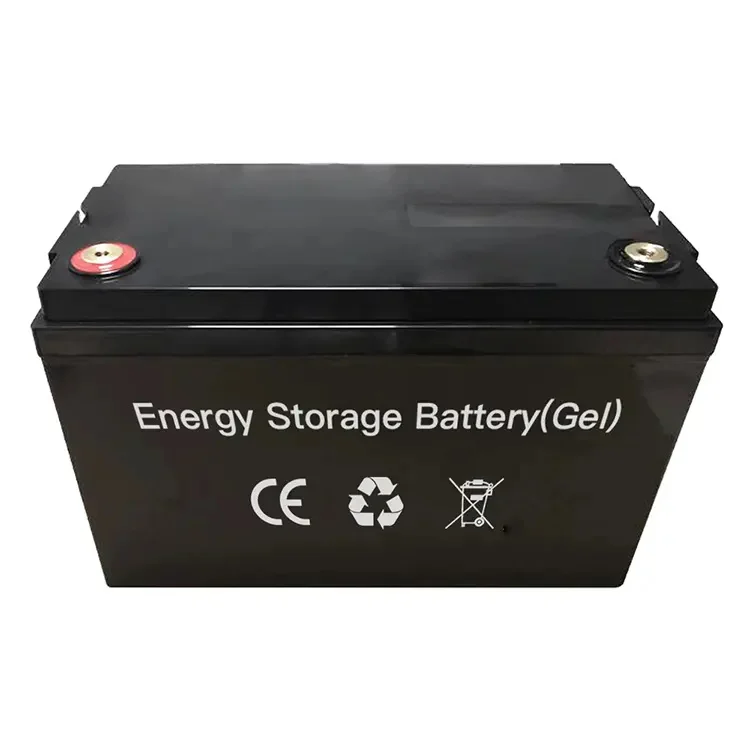

Gel Battery
● Gel battery,sealed type.
● Minimum 2,500 deep cycles at 25% DOD
● Minimum 2,000 deep cycles at 50% DOD
● Minimum 2,500 deep cycles at 25% DOD
● Minimum 2,000 deep cycles at 50% DOD
● Minimum 1,500 deep cycles at 70% DOD
● Self-discharge less than 1% monthly
● Free maintenance
● Life Span 5-10 years
● Standard CE/CQC
● Self-discharge less than 1% monthly
● Free maintenance
● Life Span 5-10 years
● Standard CE/CQC

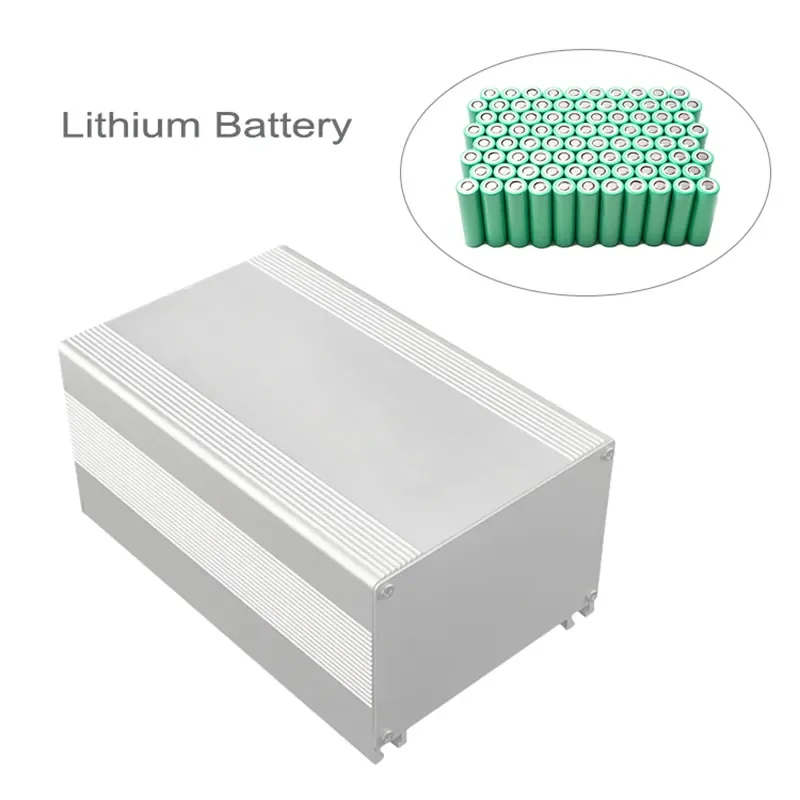

Lithium Battery
● Lithium battery,LifePO4 with longer lifespan.
● Case:Aluminium Ally
● Minimum 3.000 deep cycles at 25%DOD
● Free maintenance
● Life Span 5-10 years
● Case:Aluminium Ally
● Minimum 3.000 deep cycles at 25%DOD
● Free maintenance
● Life Span 5-10 years

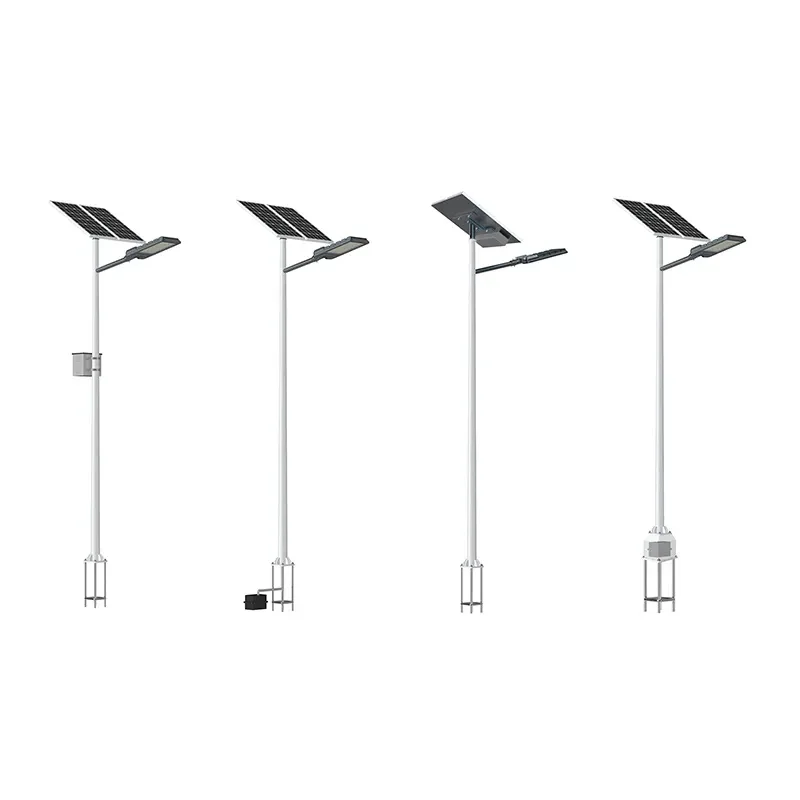

05. Battery Box
Top Battery Box
● Under the solar panel bracket
● Steel
● Anti-theft
● Steel
● Anti-theft
Hanging Battery Box
● Steel
● Anti-theft
Underground Battery Box
● Under the ground, beside the anchor bolts
● ABS
● Anti-theft

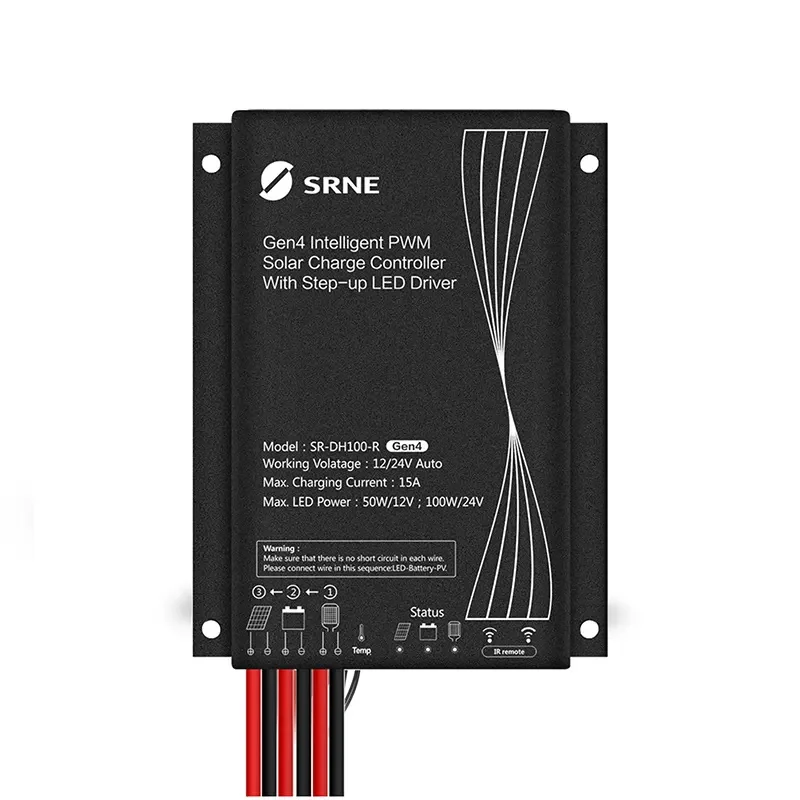

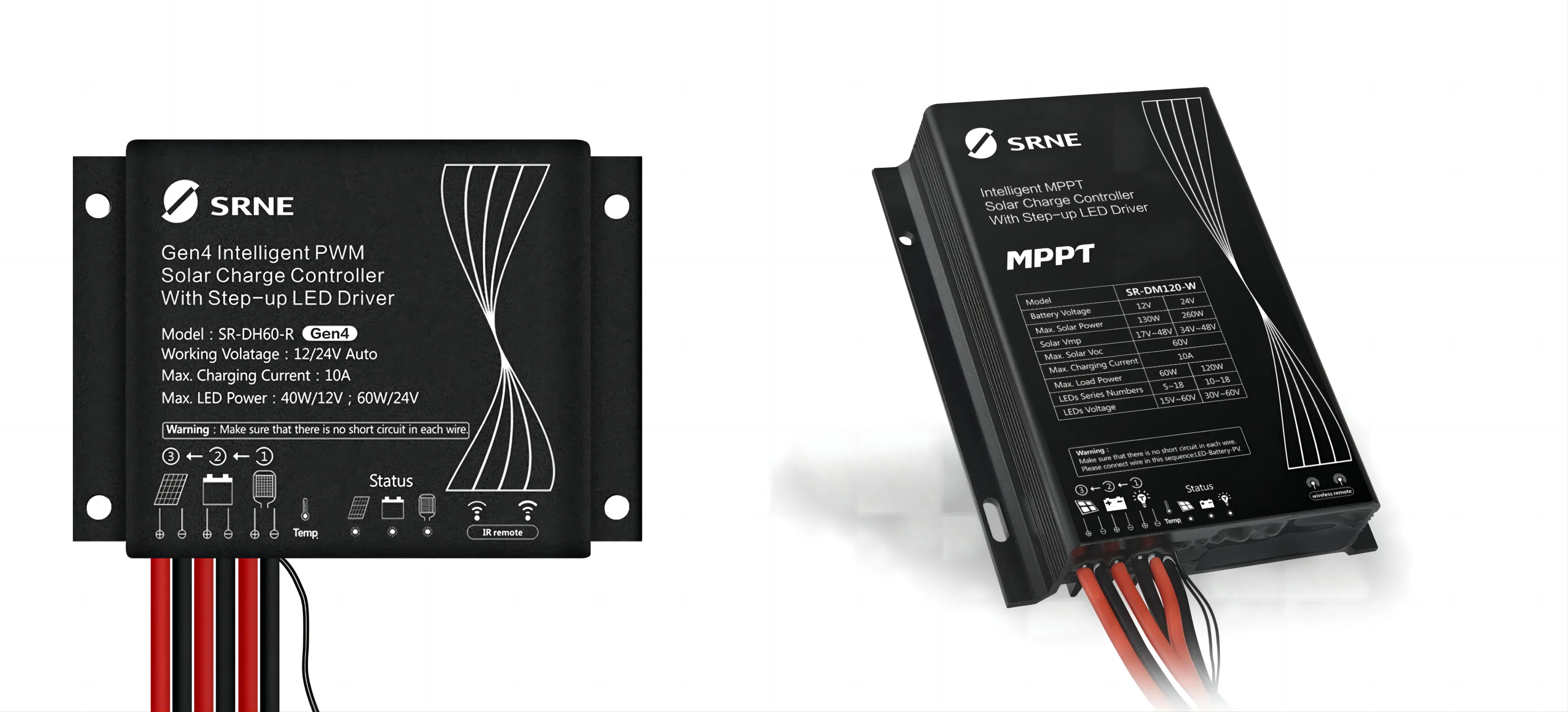

06. Solar Controller
PWM MPPT
● 12/24V DC automatically according to the system
● Timing Control system which allows to change the configuration setting, including light performance level, power and stage-length. This system allows to save energy in order to increase the lifespan of the batteries
● Automatic turn on/off and modify the timer and diming function
● Over charging/discharging protection
● Waterproof IP68 rating
● Standard CE/ROHS
07. Light Pole
● Shape: Conical, Octagonal, Square, Round
● Material: Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
● Height: 3M-40M
● Thickness: 2.5mm~20mm
● Color: Customized
● Surface treatment: Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II

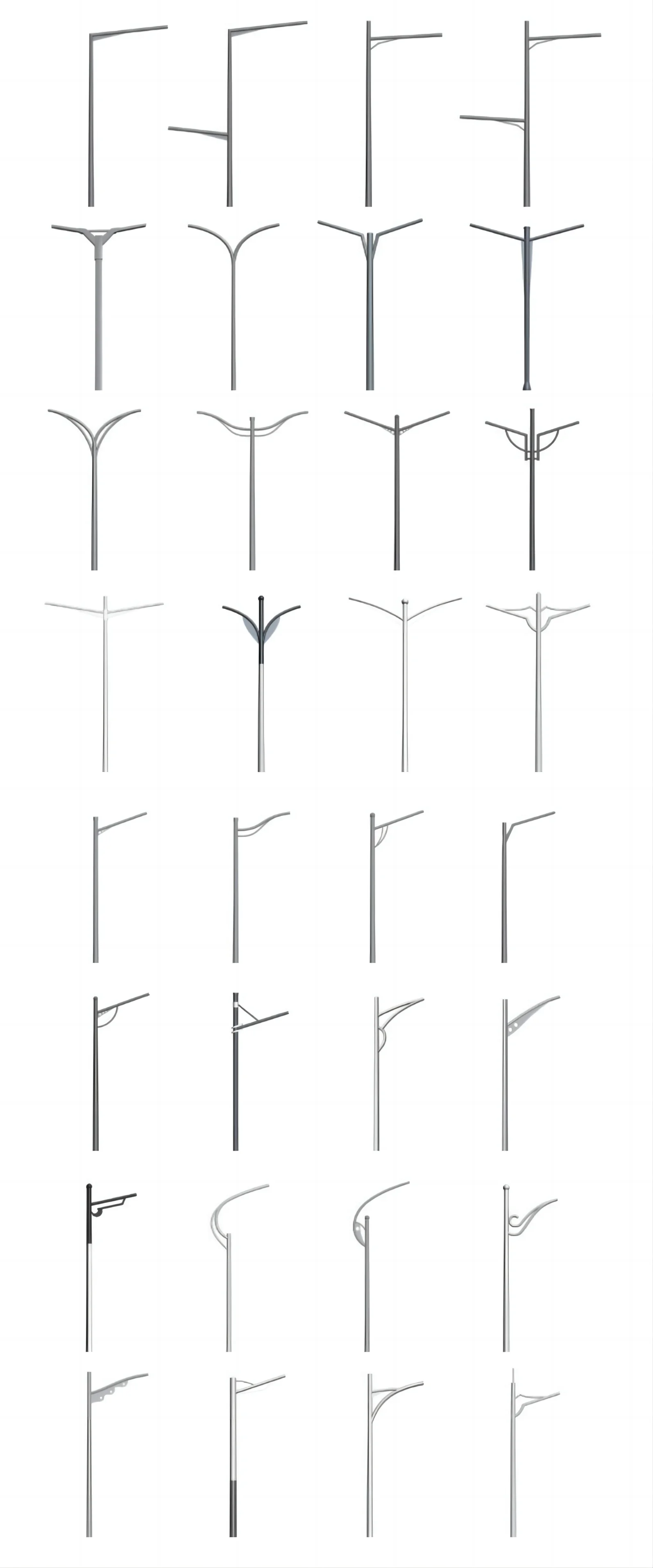

08. Pole Arm

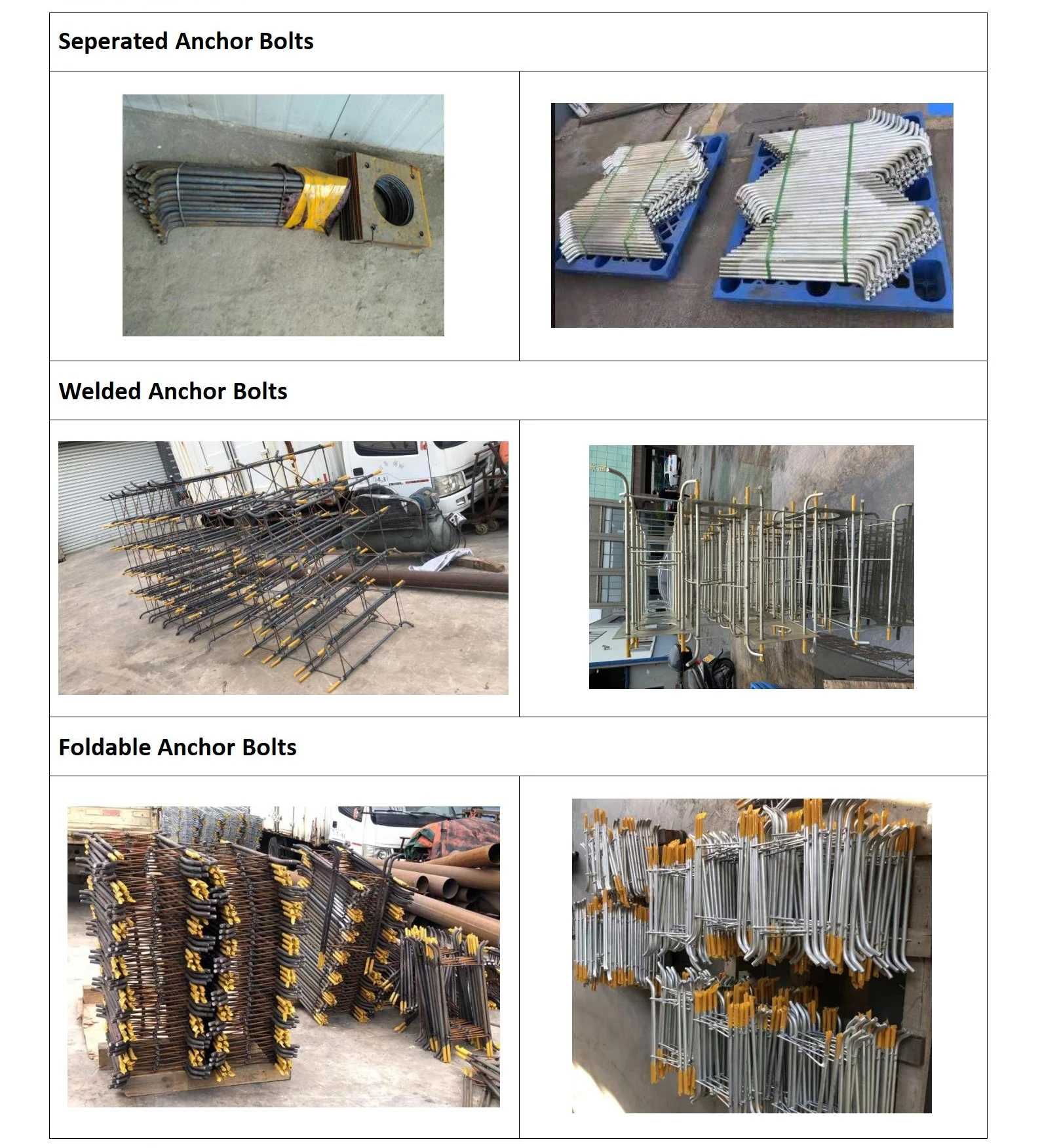

09. Anchor Bolts
10. Cables and Fittings
Item | Type | Specification | ||
connecting solar panel and controller | RVV | 2.5mm² | ||
connecting solar panel | RVV | 2.5mm² | ||
connecting battery | AGR | 2.5mm² | ||
connecting controller and battery | AGR | 2.5mm² | ||
connecting Lamp and controller | RVV | 1.5mm² | ||
Above cables are all copper core wire inside | ||||
Project Show

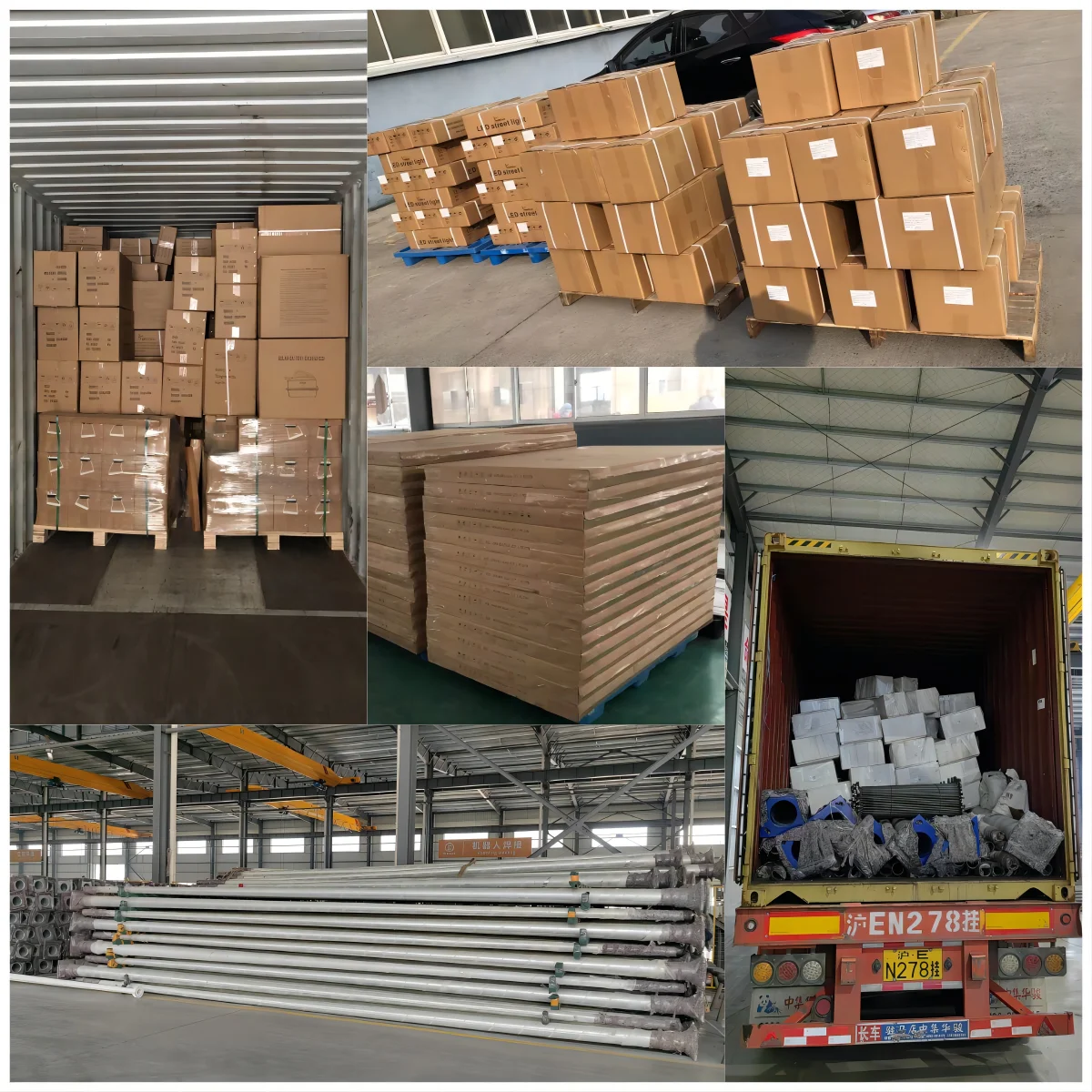

Packing & Delivery
