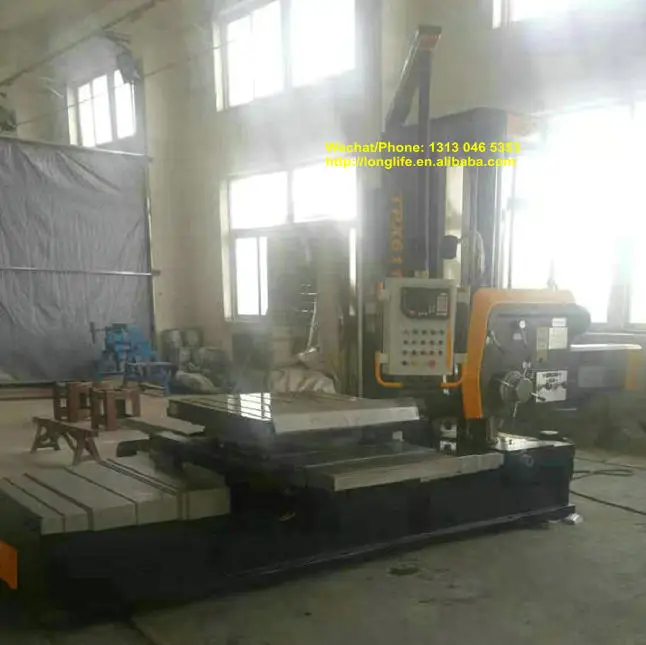

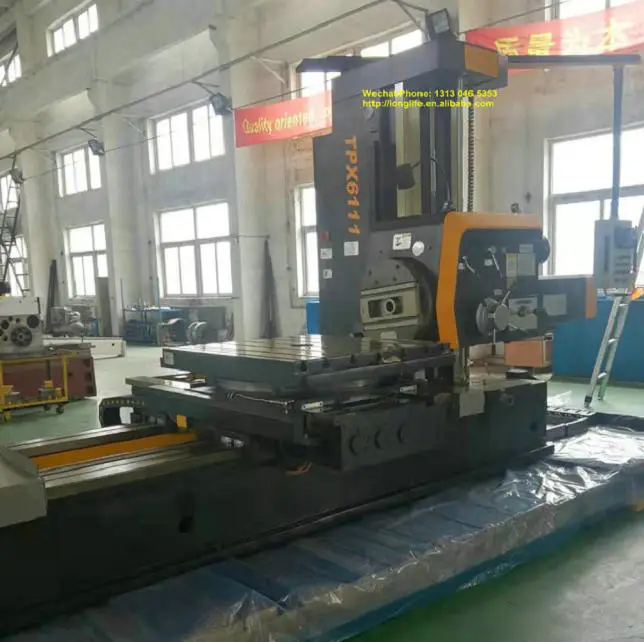

TPX6113 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
Main Technical Data
Specifications
Unit
TPX6111
TPX6111/2
TPX6111/3
TPX6113
TPX6113/2
Spindle bore diameter
mm
Φ110
Φ110
Φ110
Φ130
Φ130
Spindle taper
MT 6
MT 6
MT 6
Metric 80#
Metric 80#
Max. torque of spindle
Nm
1225
1225
1225
3136
3136
Max. axial thrust of spindle
N
12250
12250
12250
31360
31360
Steps of spindle speed
22
22
22
24
24
Range of spindle speed
r/min
8~1000
8~1000
8~1000
4~800
4~800
Power of main motor
kW
7.5
7.5
7.5
15
15
Max. torque of facing head
Nm
1960
1960
1960
4900
4900
Diameter of facing head
mm
Φ600
Φ600
Φ600
Φ750
Φ750
Range of facing head speed
r/min
4~200
4~200
4~200
2.5~125
2.5~125
Speed step of facing head speed
18
18
18
18
18
Table size
mm
1100 x960
1100 x960
1250 x1100
1600 x1400
1800 x1600
Max. permissible load on table
kg
5000
5000
5000
8000
8000
T- slot
mm
22
22
22
28
28
Number of T-slot
7
7
7
9
11
X- axis travel
mm
900
1250
1600
1600
2000
Y - axis travel
mm
900
900
1200
1400
1800
Z - axis travel
mm
1400
1400
1400
2000
2000
W- axis travel (Spindle travel)
mm
600
600
600
900
900
U - axis travel (facing head slide travel)
mm
180
180
180
250
250
B - axis work table rotary
°
360
360
360
360
360
Min. distance between spindle center and table surface
mm
0
0
0
0
0
Rapid travel (X/Y/Z)
mm/min
2500
2500
2500
2500
2500
Range of feed (X/Y/Z)
mm/rev
0.04-6/0.01-1.88
0.04-6/0.01-1.88
0.04-6/0.01-1.88
0.05-8/0.01-2
0.05-8/0.01-2
Precision of measurement accuracy by DRO (X/Y)
mm
0.005
0.005
0.005
0.005
0.005
Precision of measurement accuracy by DRO (Z-axis opt.)
mm
0.005
0.005
0.005
0.005
0.005
Overall dimensions (L*W*H)
mm
4910x24540
x2750
4930x2870
x2750
5028x3359
x3079
6995×3647
×3442
7030x4665
x3800
Weight of machine
kg
11500
13000
14000
24000
28000
Free Std Accessories
S.N
Name
Remark
2
Face heading plate
1 Set
3
Tool holder for boring
1 pc
4
Tool holder for milling
1 pc
5
Operation tools
1 Set
6
Automatic centralized lubrication system
1 Set
7
Work light
1 Set
8
Documents in English
1 Set
Optional Accessories
S.N
Name
Remark
1
Rear column and support
$
2
universal boring head
$
3
angle boring head
$
4
tool holder for turning
$
5
DRO for B-axis
$
6
DRO for Z-axis
$
7
8
Pls send inquiry to me for optioanl accessories and other further information about such horizontal boring machines.
