latest hidden design cut line alarm mini gps tracker car waterproof realtime tracking gps locator for e bike motorbike

Share on:


Price:$12.50 - $16.50
Price in USD:Details

Quantity:


Product Overview

Description


latest hidden design cut line alarm mini gps tracker car waterproof realtime tracking gps locator for e-bike motorbike


Hot Products.jpg















AT1.jpgLK209C (2).jpgLK720





Product Description.jpg
























































 Item name LK710C Operating Voltage 9-100V
 Dimension 72*25*13mm Backup Battery Chargeable 3.7V 110mAh Polymer Li-ion   Battery
 Net Weight 30g GPS accuracy 5m
 Network GSM/GPRS Operation Temp. -20°C~+55°C
 Hot status  1s Cold status  35s- 80s
 Output Power 5w Battery Life  10 -19hours
 GPS sensitivity -159dBm Humidity 5%--95% non-condensing
 Position mode GPS, GLONASS,LBS Band 850/900/1800/1900Mhz




Functions:





1. Wide Operating Voltage 9-100V DC, compatible with vehicles on the market!


2. Hidden Design and Easy Installation
3. GPS+GLONASS+LBS Triple Positioning Ways


    If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS and GLONASS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!
4. Realtime Tracking

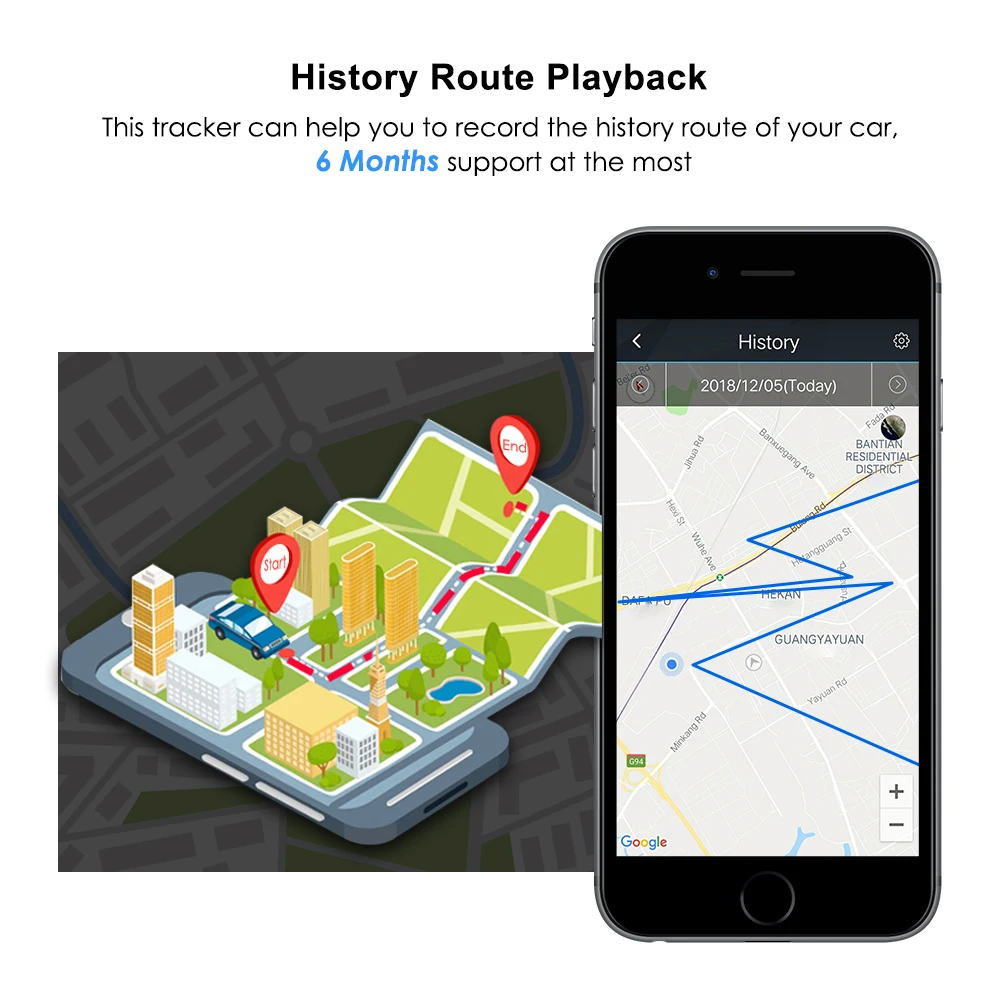

5. History Route Playback
6. Power Saving Mode


    If no movement more than 3 minutes, the device will go into standby mode automatically, it will be back to working mode when it detect vibration again
7. Overspeed Alarm


    This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
8. Shake Alarm


    After you did the shake alarm setting, please keep the tracker being stationary for 5 minutes, then this function will start to work. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.
9. Movement Alarm


    When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.
10. Virtual Fence


    Set up a virtual fence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
11. Sleep Mode
  * Sleep by time mode


   After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
  * Sleep by shock sensor mode


   After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.
12. Illegal Cutting Line Alarm


    Under arm mode, if someone cut the wires of the device, you will can get alarm information from the device
13. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !





710c 1.png


710c 2.jpg


710c 3.jpg


710c 4.jpg


















Q: Why will you choose us?


A: 9 Years gps tracking business experenice, own engineer team service, free tracking software,quickly after-service, we will reply your inquiry in 24 hours. After sending, we will track the products for you once every two day, until you get it.

Q: How long about the delivery date?


A: Under normal circumstance, the delivery date around 1day if you just need samples.
The delivery date will be around 2-3 days if more than 100pcs is needed, 500pcs would be within 15 days.

Q: What's your shipment way?


A: We will use Postal, DHL, Fedex or Amx to ship the goods to you. Or choose your own forwarder.

Q: Do you provide the warranty?


A: At least 12 months warranty from date of purchase to ensure that correspend to any production flaws.

Q: Do you support Customization, ODM&OEM?


A: Yes, we do. MOQ is different for each product, welcome your consulation!
